QNAP TVS 872XT Review QNAP TVS-872XT and QTS


The QNAP TVS-872XT is one of the best buy NAS on the market today. Powered by an 8th Gen Intel Core processor the QNAP TVS-872XT is a powerhouse of a NAS and is the perfect Plex server.

The NAS is designed for handling heavy workloads, and for seamlessly transferring, editing, and displaying Ultra HD 4K videos in real-time.

With the M.2 SSD assistance and ability to install and place a graphics card, the NAS helps enhance and improve performance. It can be done while establishing a scalable working environment for high-speed and collaboration file sharing. It also comes with both the Thunderbolt 3 and 10GBASE-T high bandwidth connection.

Top-Notch Hardware for Excellent Performance

The QNAP TVS-872XT is driven by high-quality and efficient software that offers outstanding levels of performance. This NAS provides expandable storage capacities and comprehensive multimedia features.

Aside from these, there are other NAS functions to inspire more accomplishments and enhanced creativity.

QNAP TVS-872XT and QTS – Powered to do More

The QNAP TVS-872XT is powered by the 1.7GHz Intel Core i5-8400-T 6-core processor and 16GB of DDR4 RAM. What’s good is that it can be upgraded to 32GBs via a single 16GB module in each SODIMM slot.

You can have network connectivity by utilising the 10 Gigabit and two Gigabit Ethernet ports. The previous aids in further improving on the fly video editing, as well as rapid file sharing.

Also, the QNAP TVS-872XT supports JBOD and various RAID modes like RAID 0|1|5|6|10|50 and 60.

Each of these provides data speed, redundancy, or a combination of both.

QNAP TVS-872XT and QTS – The QTS Software

QTS is QNAP’s software for the TVS-872XT. It’s an essential element designed to provide high-performance services and applications to fulfil various tasks.

These include backup, storage management, file sharing, multimedia, virtual environments and more.

With the QNAP App Centre, you can conveniently enjoy a powerful home, and business applications fit for your needs.

Features of QTS Software

Enhanced Security System

To guarantee sufficient and effective NAS system security, the standard password for the “Administrator” account has improved. Generally, it’s the first MAC address that does not have any special characters.

An example is this: your MAC address is 11:22:33:44:55:66, so the default password is 112233445566.

You can check and see the MAC address using the Qfinder Pro. Or, you can check the sticker found on the QNAP TVS-872XT.

QTS – Supporting a Wider Range of USB/SATA Expansion Solutions

The QNAP QTS software boosts storage scalability, allowing for more support for QNAP expansion units. These include hassle-free TL-USB JBOD and high-speed TL-SATA JBOD series for satisfying efficient backup and file storage needs.

Easy Removal of Qtier’s SSD RAID Tier

With QTS 4.4.2, you can quickly remove solid-state drives from the SSD RAID group to add/change SSDs. You can even change the SSD type (M.2, SATA, QM2) or SSD RAID type whenever necessary. It’s specifically essential when boosting storage auto-tiering efficiency.

Supports Samsung SSD Self-Encrypting Drives or SED

For those using the Samsung Self-Encrypting Drive or SED, QTS now supports it. This feature lets you leverage the SSD’s integrated extra software. Or, utilise the NAS system resource for encrypting data to get additional layers of protection.

Digital Signature: Trusted App Installation

With the QTS software, each application in the QNAP App Center will have a digital sign on them. Generally, digital signatures guarantee that the app that you’re installing comes from a reliable source. Plus, it also shows that it’s free from tampering and the like.

When you install applications, the QTS software checks for digital signatures to guarantee that the apps are from QNAP. It also accepts those from QNAP-approved sources to protect your data, TVS-872XT, and other NAS from malicious programs.

QTS Apps

The QTS software comes with a bunch of applications that are essential for the QNAP TVS-872XT, and other devices. Here’s a list of all the apps that you can take advantage of after installing the QTS software.

Container Station

2020 05 15 11 10 06 Window QNAP TVS-872XT and QTS2020 05 15 11 11 45 Window QNAP TVS-872XT and QTS 2020 05 15 11 11 29 Window QNAP TVS-872XT and QTS

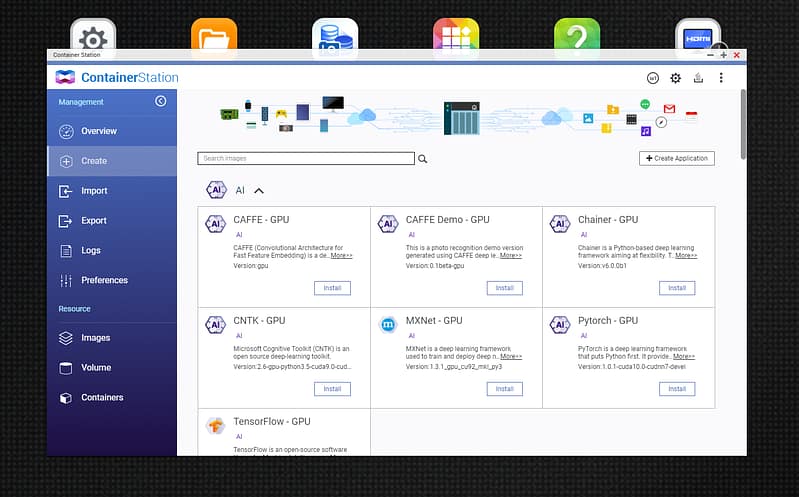

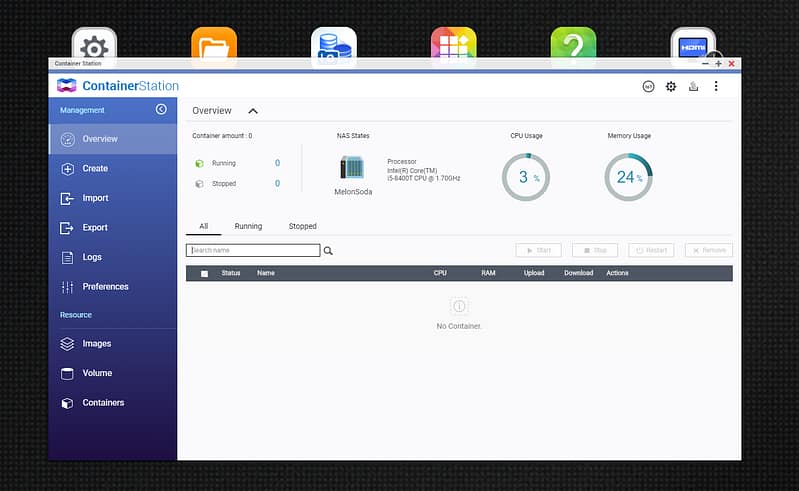

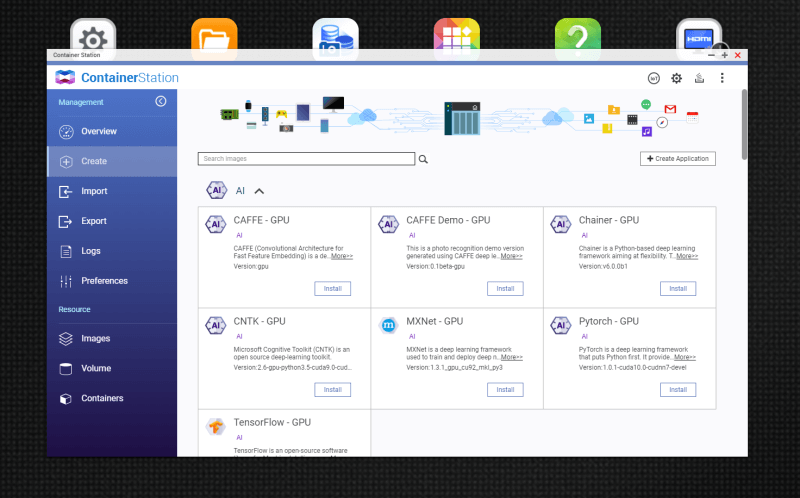

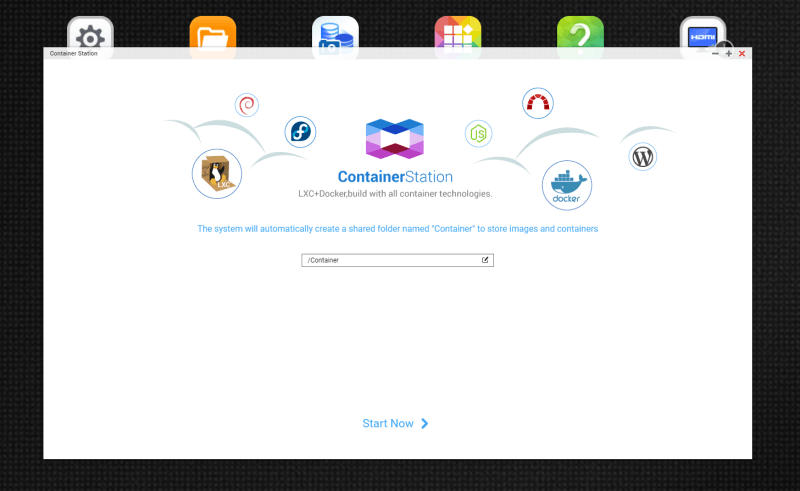

One of the apps available is the Container Station, which is a lightweight Linux-based app and OS virtualisation solution. This application exclusively incorporates LXC & Docker lightweight virtualisation technologies.

It lets you operate several isolated Linux systems on your QNAP NAS. Also, it allows you to download applications from the integrated Docker Hub Registry.

Virtualization Station

2020 05 15 11 13 47 Window QNAP TVS-872XT and QTS 2020 05 15 11 14 00 Window QNAP TVS-872XT and QTS 2020 05 15 11 14 14 Window QNAP TVS-872XT and QTS

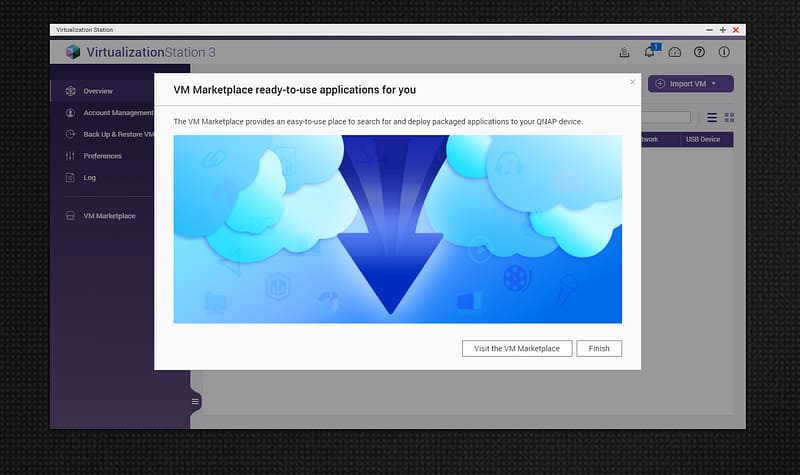

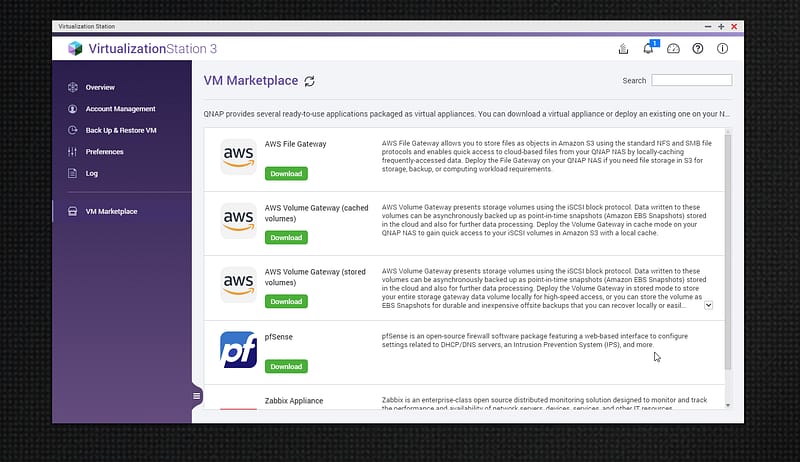

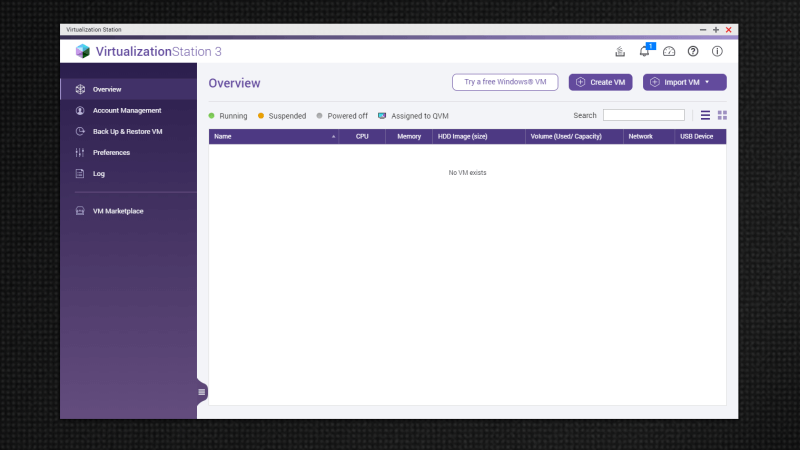

The Virtualization Station from QNAP is a complete virtualisation solution for the x86-based NAS from the company. It works excellently for NAS devices with virtualisation extensions like AMD-V or Intel VT. Additionally, it allows you to manage and operate numerous VMs on the same NAS.

This application adds impressive versatility to your NAS. It goes from utilising your NAS as a computer, to creating private virtual networks from VMs. Also, you can employ GPU and USB pass-throughs to give your VMs, and NAS devices boosted performance and functionality.

With integrated data protection features like Snapshots, the VMs can stay secure against data loss and failure.

Here, we’ve listed the essential features of the Virtualization Station.

Access VMs Anywhere

HTML5-compatible web browsers like Google Chrome, Safari, or Mozilla Firefox is what you’ll require to access VMs remotely. Plus, a VNC connection can be utilised for each of the virtual machines you have.

USB and GPU Pass-throughs

Virtualization Station lets you access the USB devices* linked to the NAS from various VMs. Certain models with adequate power supplies also support GPU pass-through. It’s to allow the use of compatible graphics cards for empowering VMs with boosted processing potentials, OpenGLs, and DirectX support.

QvPC to Use Your Nas as a PC

The QvPC Technology consolidates a variety of high-end technologies, letting you use your QNAP NAS as a computer. This setup is achieved by connecting a mouse, keyboard, and HDMI display.

Just install the QVM application in HD Station, then directly utilise your VMs like the NAS was an attached workstation.

Virtualized Server Applications

With the Virtualization Station feature, every business can establish virtual machines on their NAS, then run various server applications. These include Windows Exchange, Windows AD, Enterprise Resource Planning (ERP), or Customer Relationship Management (CRM) systems.

It lets you consolidate legacy/older systems into one NAS, then manage and run newly-virtualised systems without requiring extra physical servers.

Furthermore, the Virtualization Station has an integrated data recovery feature like Snapshot & Backup/Restore to establish a seamless VM experience.


2020 05 15 11 18 11 Window QNAP TVS-872XT and QTS 2020 05 15 11 18 22 Window QNAP TVS-872XT and QTS

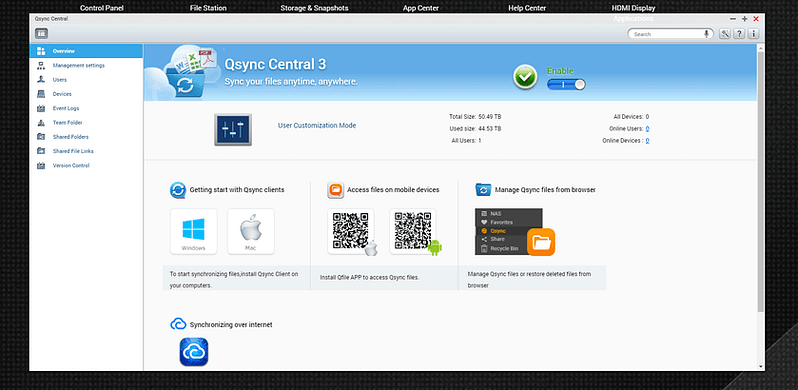

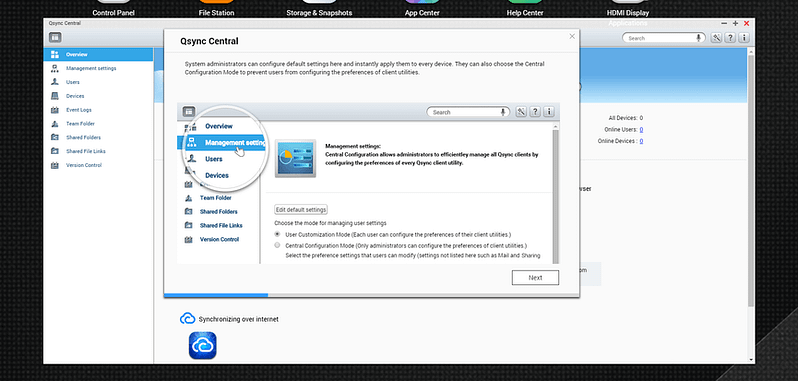

Qsync enables adequate file syncing between a QNAP NAS and connected devices like laptops, computers, and mobile devices. For business users, they can access their most recent data in their shared folder, anytime. It’s possible from a plethora of devices that significantly improve collaboration and teamwork.

Personal users can readily access media files from smart devices. It lets you enjoy a full multimedia experience for better sharing with family and friends.

Qsync also has a couple of essential features, and we’ve listed them for you as well.

Qsync for Personal Use – Cross-Device File Synchronization for Mobile Multimedia Entertainment

Public cloud services provide free storage and file sharing across devices. However, multimedia files can quickly go over the storage limits. In this instance, you’ll have to remove some files or end up paying for a monthly charge for additional space.

With the QSync software, you can readily link files on your NAS across all connected devices. You can take advantage of the huge storage potential of your NAS to view videos on the go. There’s no need to pay additional fees while maintaining control and management over your files.

Qsync for Business Use – Enhanced for Teamwork Efficiency

Current business models need real-time collaboration between its workers inside and outside the office. It’s a necessary aspect in businesses to complete challenging projects.

Generally, ensuring that everyone on the team can securely access the latest files can be tricky. With that, QSync shifts the QNAP NAS into your secure data centre for file syncing with huge storage capacities.

There are numerous ways for group file sharing and file synchronisation that lets everyone access files anytime, anywhere. Plus, it greatly improves the flexibility and efficiency of collaboration.


qvrpro1 QNAP TVS-872XT and QTS qvrpro2 QNAP TVS-872XT and QTS qvrpro3 QNAP TVS-872XT and QTS qvrpro5 QNAP TVS-872XT and QTS qvrpro6 QNAP TVS-872XT and QTS qvrpro7 QNAP TVS-872XT and QTS

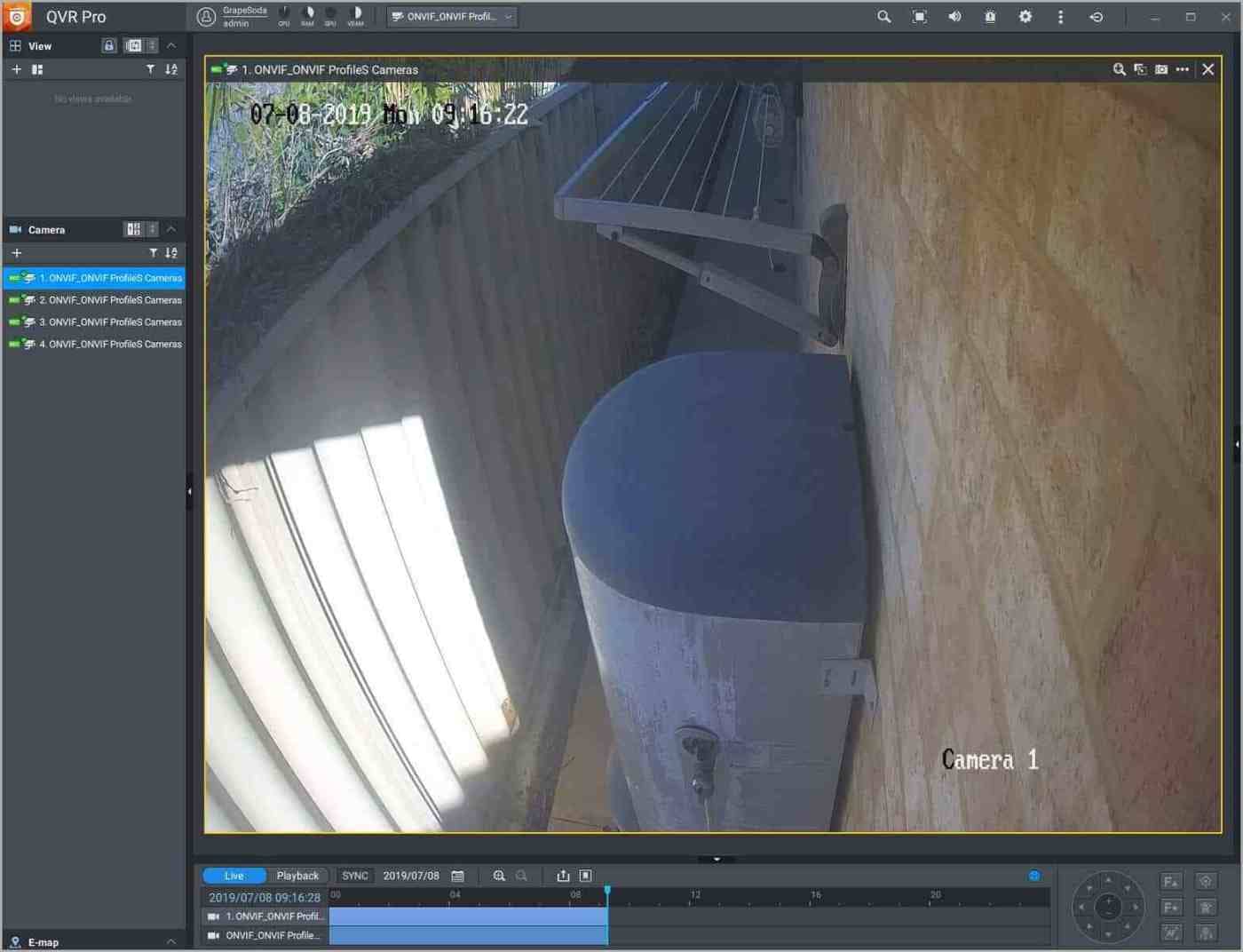

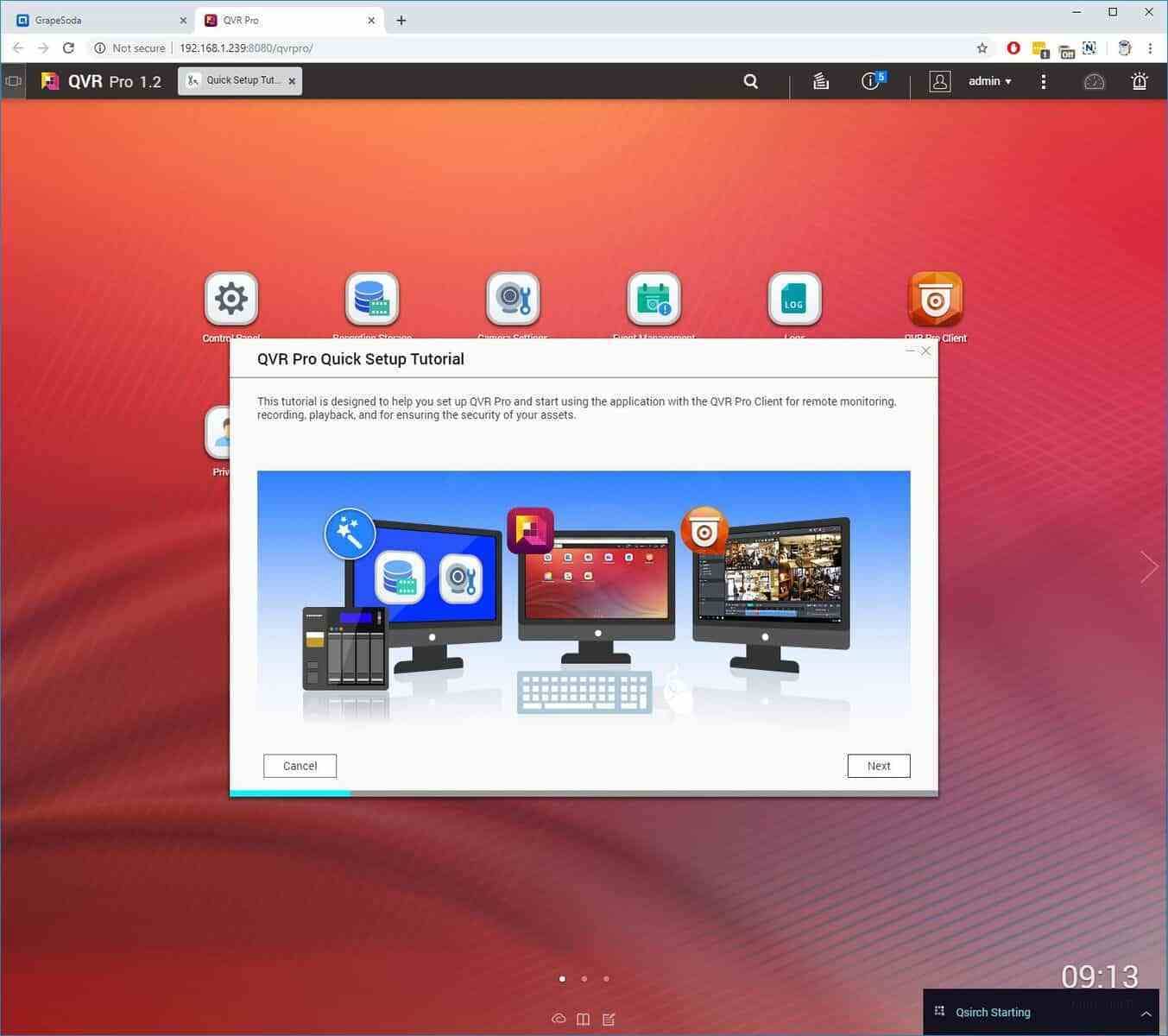

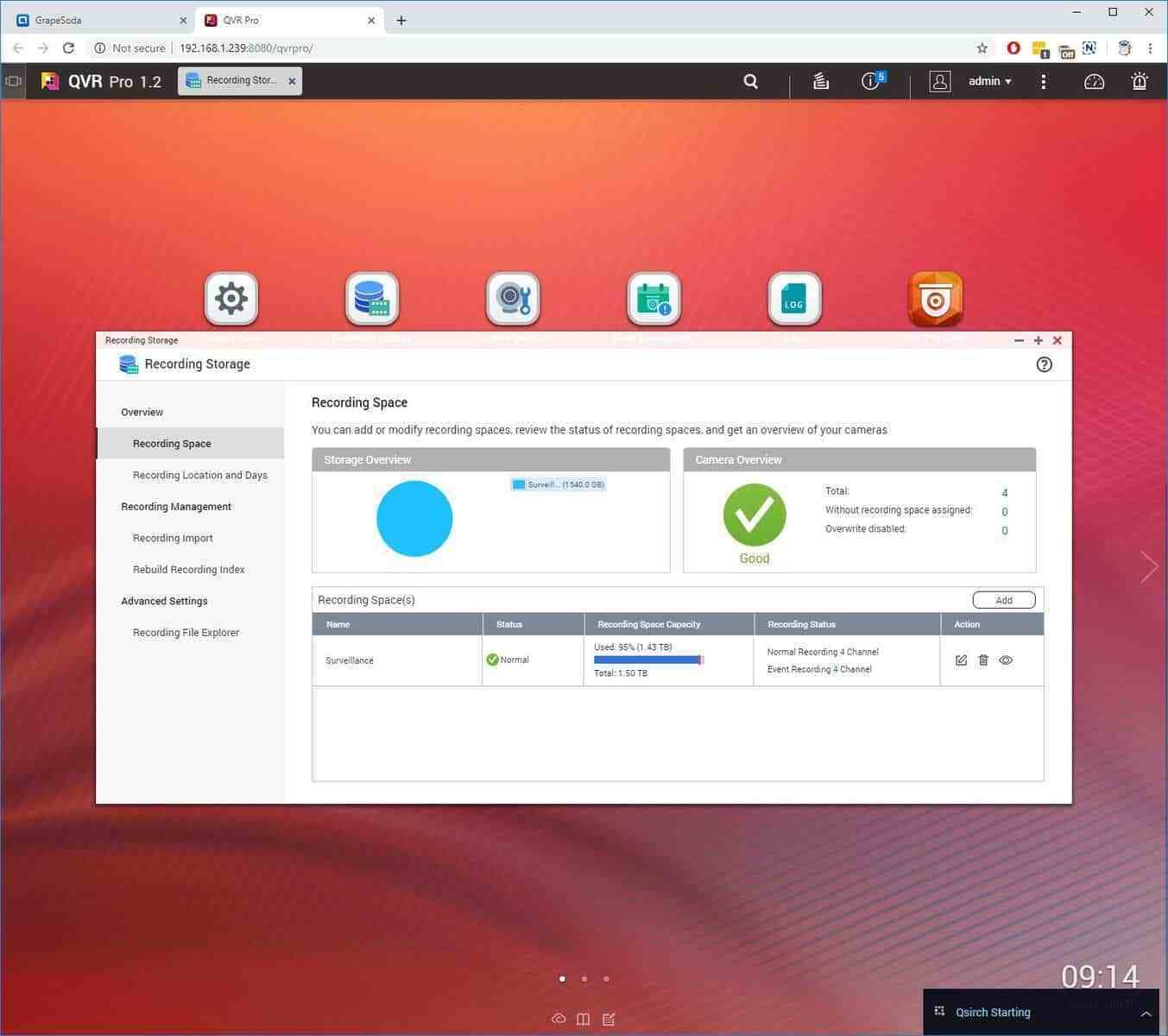

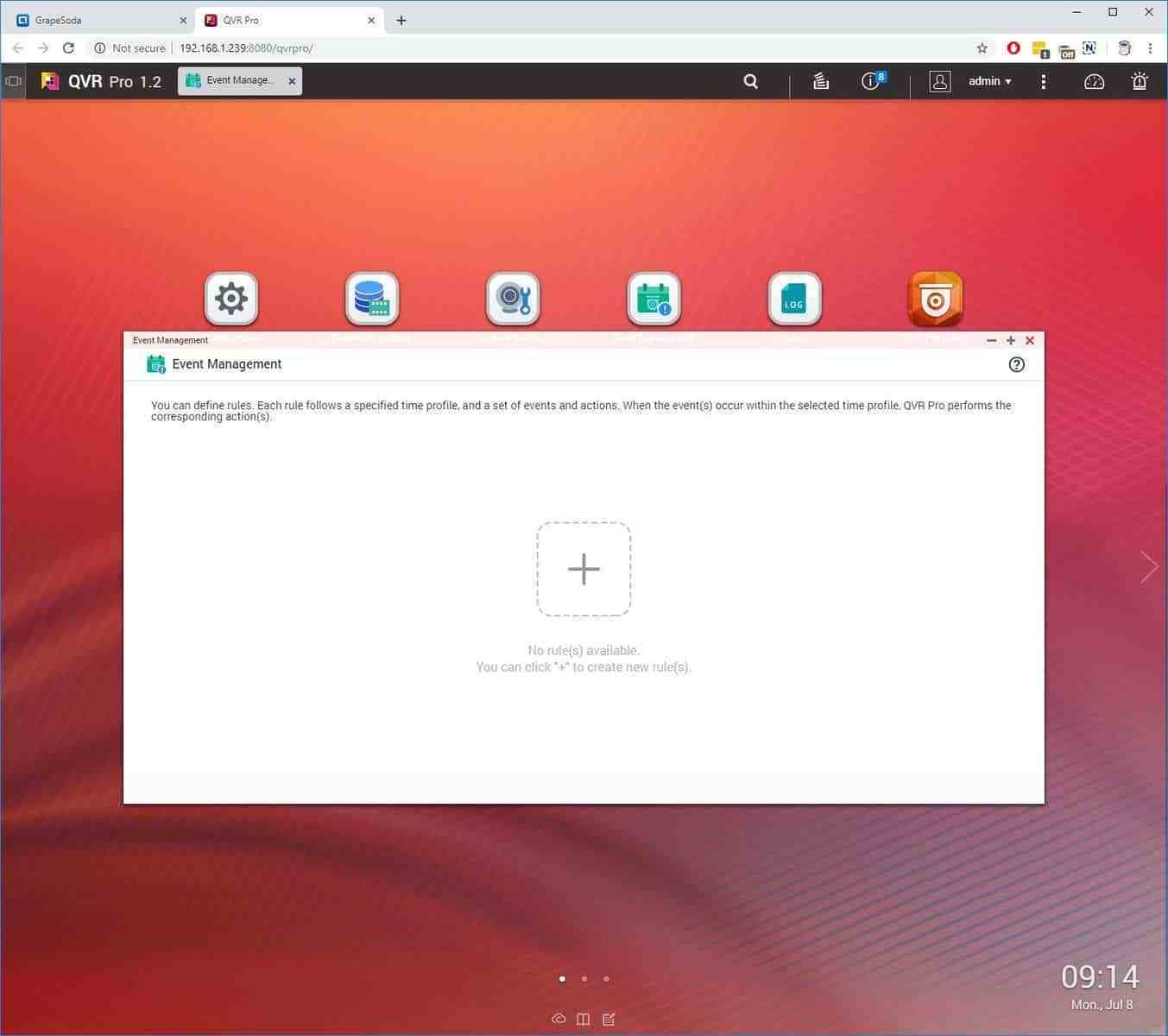

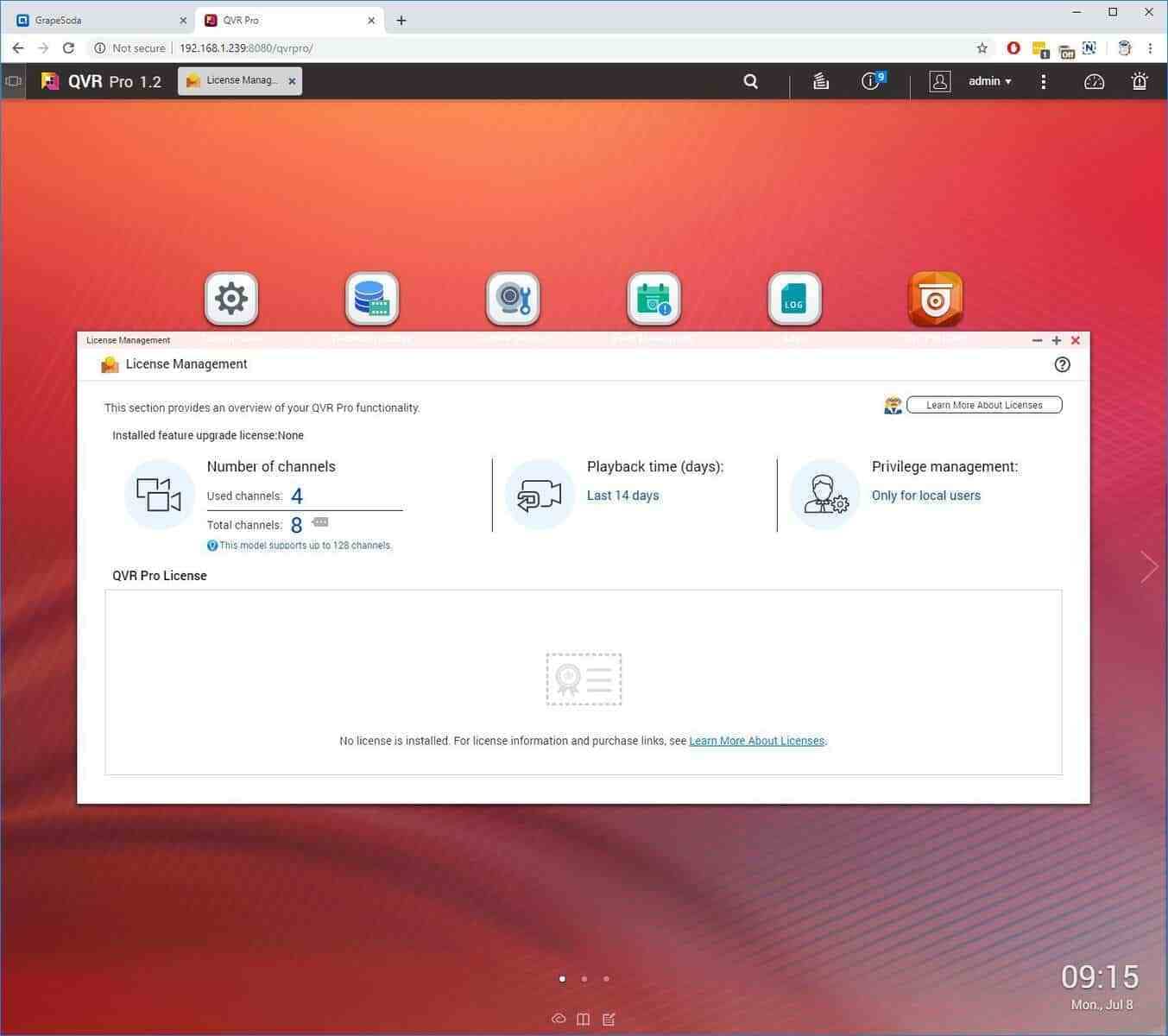

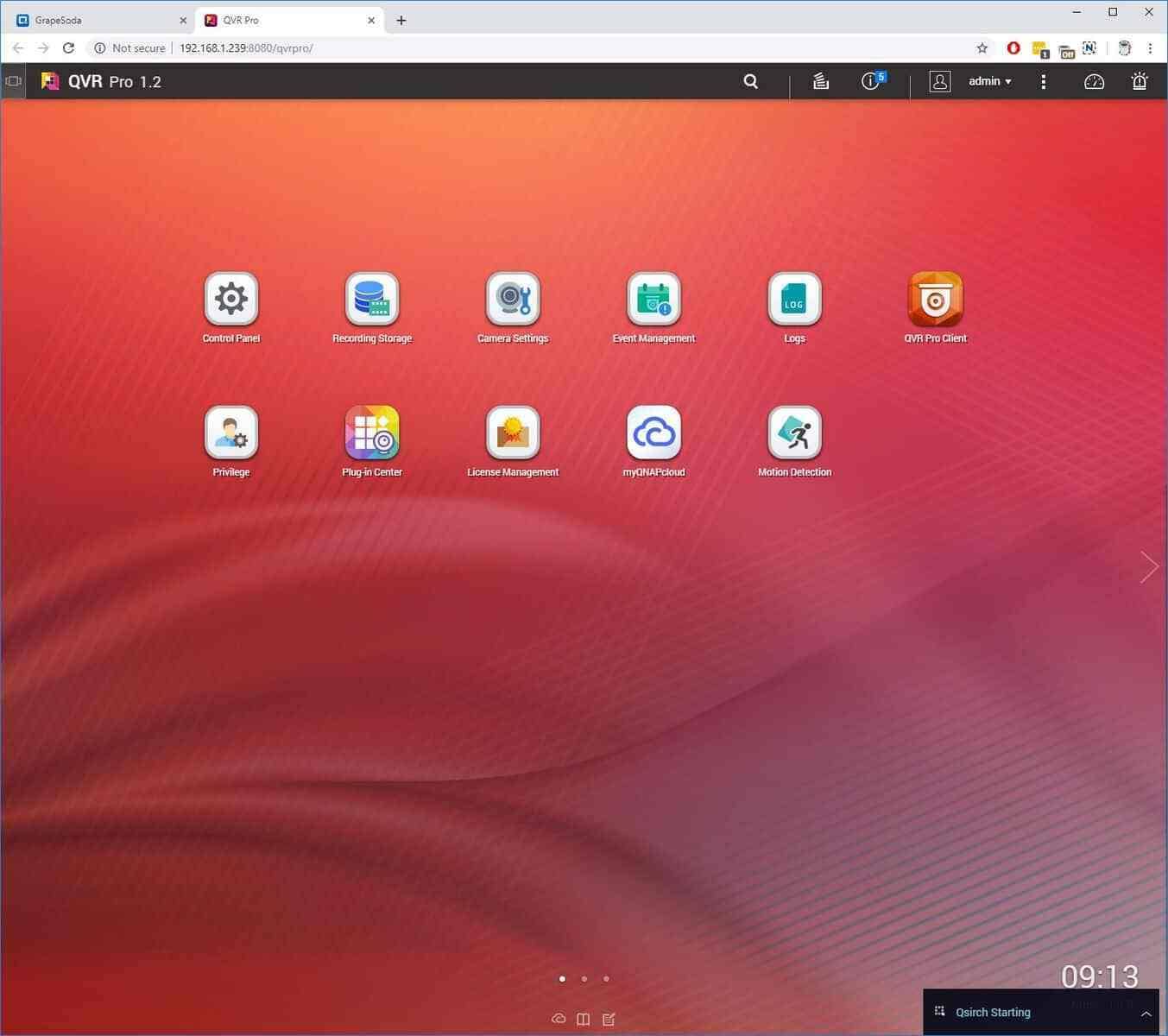

QVR Pro is the newest surveillance solution for QNAP NAS. With its eight embedded monitoring channels, you can create a surveillance environment for your home. It is hosted on QNAP TVS-872XT, and it doesn’t require more programs to download.

One of QVR Pro’s benefits is Optimal Bandwidth Management, which allows for designating certain bandwidth for each camera. With that, you can take advantage of NAS system resources for faultless recordings.

When it comes to Camera Management & Support, you can start different surveillance solutions to cater to your environment. At the same time, it gives you a convenient form of camera control.

QVR Pro supports thousands of camera models from more than a hundred brands. Aside from that, it also supports cameras with differing image file formats.

QVR Center

QVR Center allows for assigned deployment and simplified management. Whether your organisation is within one building or across a large campus, QVR Center makes tasks easier and centralised. With that, you can control multiple QVR Pros in different areas.

With QVR Center, you can handle live feeds and receive event alerts from different QVR Pros. Also, it enables you to playback surveillance footage.

QVR Guard – Uninterrupted and Seamless Recording Tasks

QVR Guard is a failover control app that keeps the QVR Pro safe from system failures. It allows for smooth, uninterrupted surveillance recordings.

Its failover functions take over all recording tasks on the QVR Pro server. It’s a reliable app, especially when unexpected things like system or hardware failure happens. In QVR Guard, you will find all of your saved recording data while QVR Pro reboots then works normally again.

QVR Pro Client Mobile Application

The mobile app provides several display layouts that allow you to view different channels simultaneously. Under the single-channel view, you can switch between playback and live modes in a snap. If your network connection is slow or metered, you can choose low bandwidth mode.

With QVR Pro Client Mobile App, you can view bandwidth-optimised streams without compromising the recording quality. Using the app, you can manage PTZ cameras and its preset point wherever you are. Additional features include camera view through e-map and mobile notifications.


2020 05 15 11 16 53 Window QNAP TVS-872XT and QTS

Generally, businesses have two options for remote backup planning. It’s either to invest and establish their remote server solution or to utilise a cost-efficient yet flexible cloud backup.

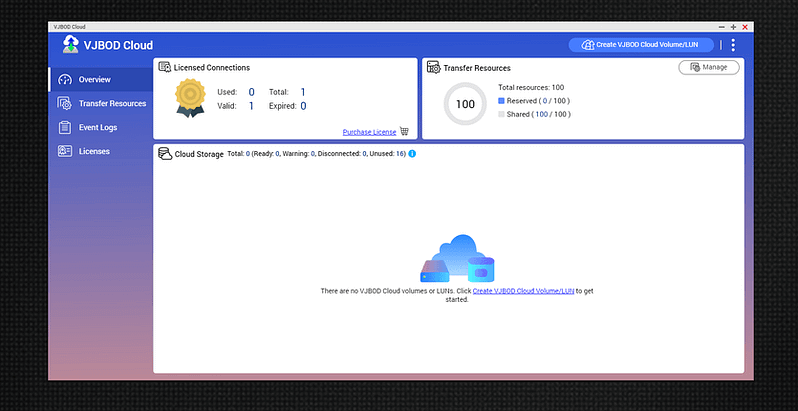

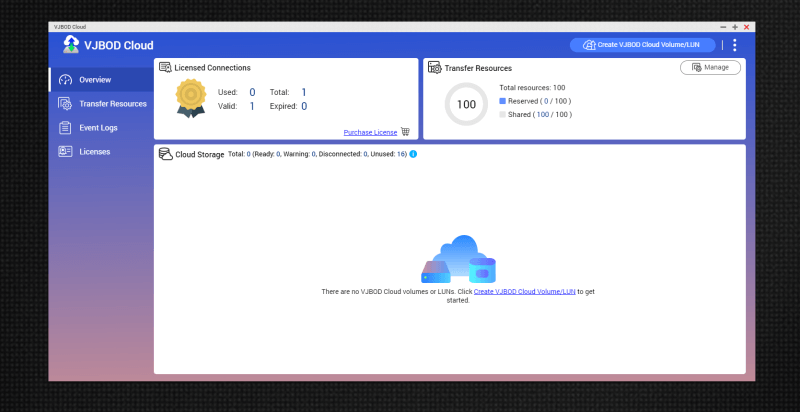

QNAP’s VJBOD Cloud simplifies cloud backup from the NAS to the cloud storage. It also ensures safety for sensitive data since it becomes unrecognisable in cloud object storage.

VJBOD Cloud offers a cloud storage gateway backup solution that is block-based for simple data backup. Only modified blocks are transported to the cloud to reduce bandwidth usage and boost data transfer at the same time.

VJBOD or Virtual JBOD is an exclusive QNAP technology that lets you expand your NAS’ storage capacity. It utilises the unused space from another QNAP NAS.

Easier and Flexible Cloud Backup for Minimum RTO

VJBOD Cloud allows you to create cloud volumes or LUNs on your NAS. Also, you can upload and access data using a wide range of protocols. Data in cloud LUNs or volumes are automatically backed up to the cloud.

When the primary NAS is offline, you can recover data and apps from the cloud. Since it uses a snapshot recovery point to another NAS system, it prevents data loss and service interruption.

Supports Major Cloud Object Storage Services

VJBOD Cloud supports a wide range of cloud object storage services. Some of these are Google Cloud, Amazon S3, and Azure.

With lock-based data transmission, the app uploads files to the cloud by blocks. It’s best for enterprises with large transfer requirements. VJBOD Cloud allows for more efficient data transmission and optimised bandwidth.

Qsirch– Qnap’s Distinct, Powerful, & Google-Like Search Tool

2020 05 15 11 15 02 Window QNAP TVS-872XT and QTS 2020 05 15 11 15 14 Window QNAP TVS-872XT and QTS

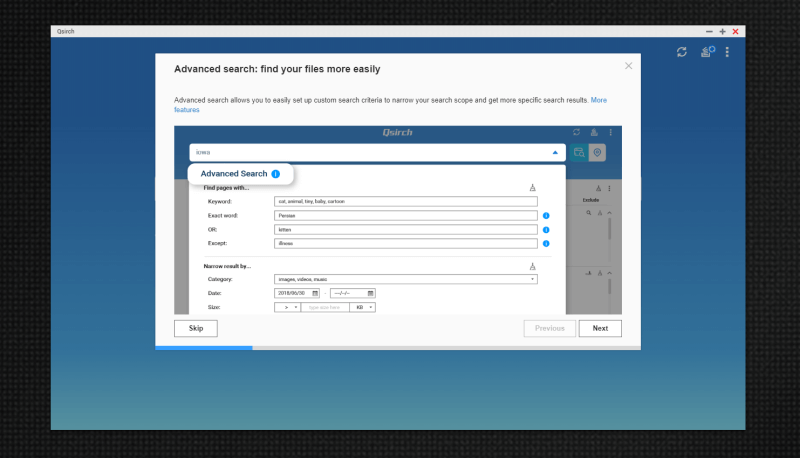

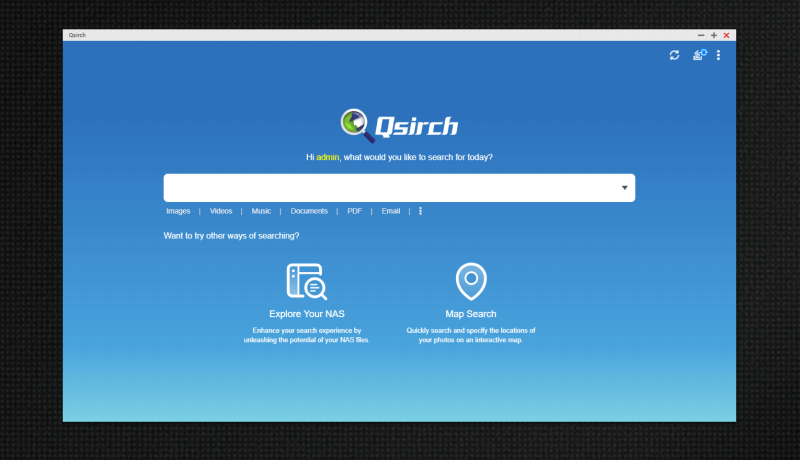

Qsirch is a quick full-text search engine that you can use to search for files. You can search by name, content, and even metadata. Select from various search options for quick finding of files in your NAS.

You can also use Qsirch via the web, browser extension, a mobile app, as well as Mac Finder. With this quick search feature, you can enjoy increased productivity and overall better experience.

When Qsirch is enabled, it will automatically categorise all files on NAS for you to quickly find each file anytime. Since Qsirch and QTS have the same privilege settings, you can only find which data you are authorised to.

As an admin, you’ll be able to remove backup folders that are indexed and shared in Qsirch. It’s to avoid using excessive system resources.

QNAP TVS-872XT and QTS Conclusion

The QNAP TVS-872XT is one of the best NAS products today for home and office use. With the help of QTS, you can take advantage of applications and features for your centralised storage and surveillance system.

Also, QTS helps boost your productivity, make file storage and backup convenient, as well as keep your data secure.
