The ASRock Phantom Gaming B850 Riptide WiFi enters the market as a motherboard that balances modern specifications with an approachable design. Built around AMD’s AM5 platform, it provides a solid foundation for gamers and creators who want strong performance without stepping into the extremes of high-end boards. By incorporating next-generation features, it makes a compelling case for those seeking longevity and reliability in their system.
This model continues the progression from earlier generations, offering refinements in connectivity, storage, and power delivery. It supports high-speed DDR5 memory, integrates WiFi 7, and includes a PCIe 5.0 slot for graphics and storage, which are crucial for future-proofing. The absence of USB4 may be noticed by some, but the inclusion of a 20Gbps front header ensures fast peripheral access.
ASRock has paid attention not only to hardware capability but also to aesthetics. With subtle lines and accents of blue and purple set against a mostly black PCB, the board carries a style that fits easily into many different build themes. This blend of practicality and appearance helps it stand out as an accessible yet feature-rich option for today’s PC builders.
Design and Functionality

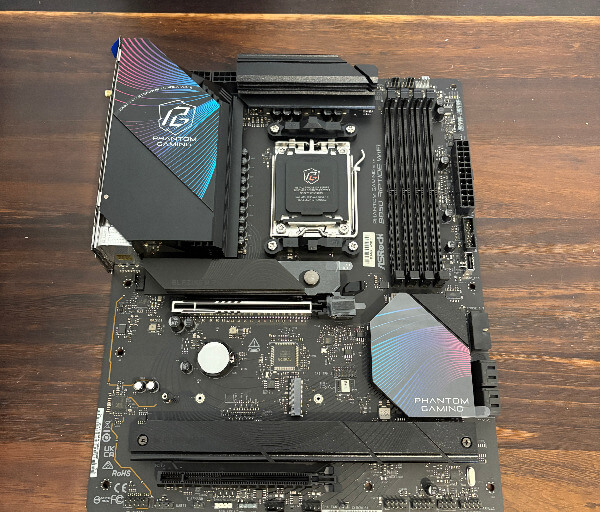

The ASRock Phantom Gaming B850 Riptide WiFi has been designed with a clear focus on efficiency and build compatibility. Its ATX form factor ensures it will fit comfortably in most mid-tower and larger cases, offering a straightforward layout that builders will find easy to work with. The board doesn’t rely on flashy styling but instead blends subtle touches of colour into a sleek, understated base.

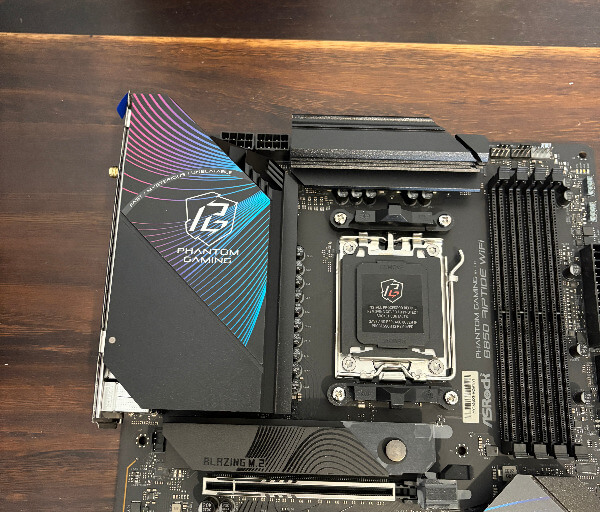

The cooling approach demonstrates careful consideration of long-term stability. A large heatsink covers the VRM section, extending across the rear I/O area to take advantage of case airflow. Additional heatsinks for the M.2 slots are positioned to prevent thermal build-up, with enough surface area to keep drives operating at safe levels even under heavy loads.
RGB lighting is present but tastefully implemented. A strip of LEDs runs beneath the lower heatsink, casting a soft glow across the build without overpowering it. Builders wanting more illumination have three addressable RGB headers and a traditional 12V header at their disposal, giving flexibility to customise the lighting scheme to match any setup.
The layout of connectors and headers is another highlight. Six 4-pin fan headers and an AIO pump header ensure that both air- and liquid-cooling configurations are supported with ease. A thermistor header adds extra value, allowing users to monitor component temperatures beyond what the onboard sensors provide.

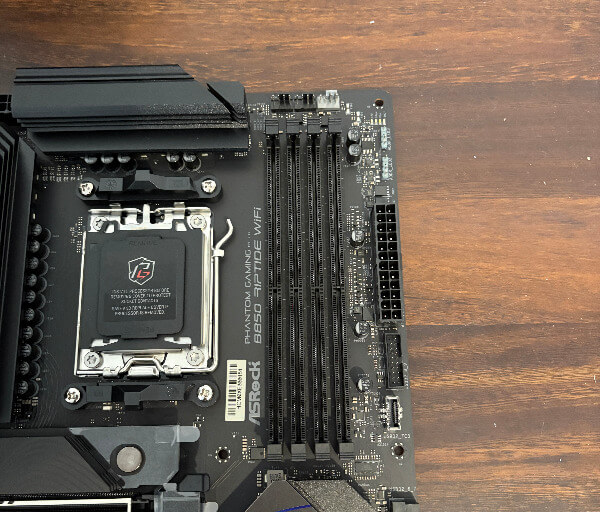

For memory, the B850 Riptide WiFi includes four DIMM slots supporting DDR5 modules up to 256GB in capacity. While the maximum rated speeds surpass DDR5-8000, most users will find that more modest speeds around DDR5-6000 deliver excellent stability when paired with Zen 4 and Zen 5 processors. This balance between capacity and speed makes the board highly versatile.

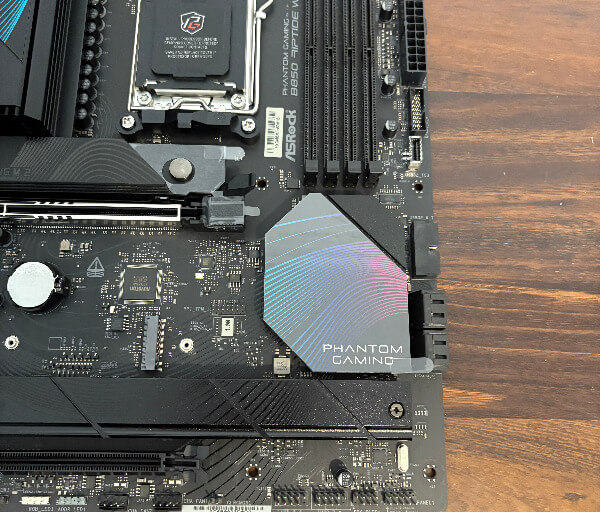

Storage connectivity is also comprehensive. There are four M.2 slots available, with one running at PCIe 5.0 speeds and the remainder supporting PCIe 4.0. For those with legacy drives or larger storage needs, four SATA ports round out the storage options, providing flexibility for both fast NVMe SSDs and bulk storage solutions.

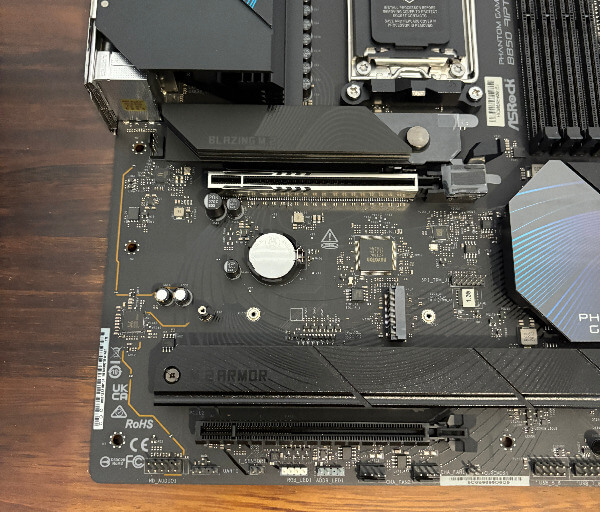

Expansion capabilities are equally well thought out. A PCIe 5.0 x16 slot caters for the latest GPUs, while a secondary PCIe 4.0 slot offers extra room for cards such as capture devices or network adapters. ASRock has managed to reduce lane-sharing compromises, with only one configuration affecting the secondary slot when the final M.2 slot is occupied.
The rear I/O is generously equipped for a board in this class. Eleven USB ports are available, including multiple 10Gbps Type-C and Type-A ports, as well as legacy USB 2.0 options for peripherals. A BIOS flashback button is included, which allows for CPU upgrades without needing an older processor on hand to update the firmware.
Networking is also a standout feature. Alongside Intel’s Killer 2.5G LAN controller, the board features MediaTek’s WiFi 7 module with Bluetooth 5.4 support. This combination provides both wired stability and cutting-edge wireless connectivity for gaming, streaming, and everyday tasks.
The audio system is built around the Realtek ALC4082 codec. It delivers clear and detailed output, with individual PCB layers dedicated to audio separation to reduce interference. Combined with Nahimic software, the audio experience is refined enough for gaming, media consumption, and even higher-end headsets.
Key Features
One of the key highlights of the ASRock Phantom Gaming B850 Riptide WiFi is its support for PCIe 5.0. Both the primary graphics card slot and the main M.2 slot run at Gen 5 speeds, allowing users to pair the board with the latest GPUs and SSDs. This provides headroom for future hardware upgrades while ensuring compatibility with today’s most demanding components.
The memory subsystem is another strong point. With four DDR5 DIMM slots, the board supports up to 256GB of RAM, offering both capacity and speed. Enthusiasts can push memory to speeds above DDR5-8000, though everyday builds will find a stable balance around DDR5-6000 to 6400, ideal for AMD’s latest processors.
Networking performance is well covered thanks to the inclusion of WiFi 7. This next-generation standard provides high bandwidth and low latency connections across multiple frequency bands. For wired connections, the Killer E3100G 2.5G LAN controller ensures stable throughput for gaming and high-speed file transfers.
Audio quality hasn’t been overlooked either. The Realtek ALC4082 codec delivers 7.1-channel surround sound, complemented by Nahimic software for additional tuning. The design includes separated PCB layers for the left and right audio channels, which helps minimise crosstalk and improve clarity when using premium headsets or speakers.
Cooling and power delivery features add to the board’s appeal. A 14+2+1 phase VRM design with 80A stages ensures consistent performance even with high-end CPUs. The extended heatsink structure provides efficient heat dissipation, keeping the system stable during demanding workloads or extended gaming sessions.
Customisation options are plentiful, particularly for lighting. Three addressable RGB headers and one standard RGB header allow builders to expand their lighting setup easily. With ASRock’s Polychrome Sync software, users can manage all connected lighting devices for a cohesive look across their system.
Storage flexibility is another advantage. Four M.2 slots cover a mix of PCIe 5.0 and PCIe 4.0 support, while four SATA connectors ensure older drives remain usable. This combination gives builders freedom to mix ultra-fast NVMe drives with traditional high-capacity HDDs or SSDs for large storage pools.
The inclusion of modern conveniences such as a BIOS flashback button and Ultra USB Power ports makes system building smoother. Flashback ensures compatibility with upcoming CPUs, while the enhanced USB ports deliver cleaner and more reliable power for devices. These thoughtful touches round out the board’s feature set, making it more user-friendly and future-ready.
ASRock Phantom Gaming B850 Riptide WiFi – Specifications
CPU & Chipset
- Socket AM5, supports AMD Ryzen 7000, 8000, and 9000 series
- AMD B850 chipset
Memory
- 4 × DDR5 DIMM slots
- Up to 256GB capacity
- Speeds up to DDR5-8000+ (OC)
- Supports ECC/non-ECC, XMP, and EXPO profiles
Expansion Slots
- 1 × PCIe 5.0 x16 slot (GPU)
- 1 × PCIe 4.0 x16 slot (x4 mode)
- 1 × Vertical M.2 Key-E slot for WiFi/BT module
Storage
- 4 × M.2 slots (1 × PCIe 5.0, 3 × PCIe 4.0)
- 4 × SATA 6Gb/s ports
- Supports RAID 0, 1, and 10 for NVMe drives
Networking
- Killer E3100G 2.5G LAN
- WiFi 7 (802.11be, 2×2 MU-MIMO)
- Bluetooth 5.4
Audio
- Realtek ALC4082 7.1-channel HD audio codec
- Nahimic audio support
- Front headphone amp up to 600Ω
USB Connectivity
- Rear I/O:
- 2 × USB 3.2 Gen2 Type-C (10Gbps)
- 2 × USB 3.2 Gen2 Type-A (10Gbps)
- 3 × USB 3.2 Gen1 Type-A (5Gbps)
- 4 × USB 2.0
- Front panel:
- 1 × USB 3.2 Gen2x2 Type-C (20Gbps)
- 4 × USB 3.2 Gen1 (5Gbps)
- 4 × USB 2.0
Cooling & Power
- 14+2+1 Power Phase VRM, 80A Dr.MOS
- Enlarged VRM and M.2 heatsinks
- 6 × Fan headers + 1 × AIO pump header
- Thermistor header for external sensors
Other Features
- BIOS Flashback button
- ASRock Polychrome RGB with 3 × ARGB headers + 1 × 12V RGB header
- Flexible integrated I/O shield
- Ultra USB Power & Lightning Gaming USB ports

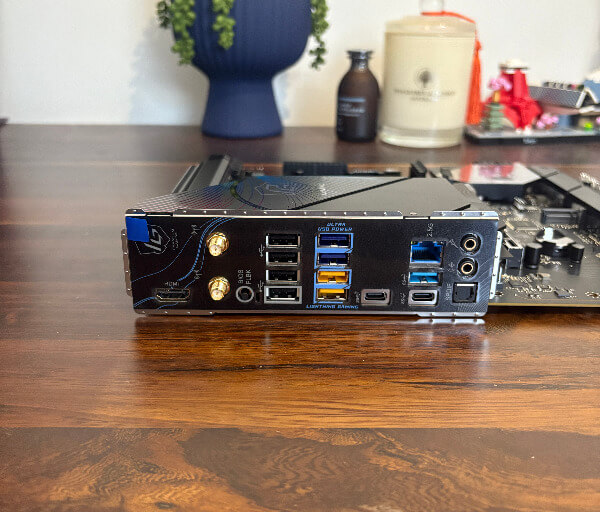

Rear I/O Panel
- 2 × Antenna connectors
- 1 × HDMI 2.1 (up to 4K @ 120Hz)
- 1 × Optical S/PDIF
- 5 × Audio jacks
- 1 × 2.5G LAN port
- 11 × USB ports (as listed above)
- 1 × BIOS Flashback button
Form Factor
8-layer PCB
ATX (30.5cm × 24.4cm)
Experience Using the Product and Performance
Building a system with the ASRock Phantom Gaming B850 Riptide WiFi is straightforward thanks to its clear layout and accessible connectors. The ATX form factor ensures that most case sizes will accommodate it without difficulty.
The pre-installed I/O shield simplifies installation further, cutting down on the hassle that can sometimes occur during case assembly. This is a feature often reserved for higher-tier motherboards, making its inclusion a pleasant touch.
Once powered on, the BIOS interface is simple to navigate. Although it may lack the polish of some competitors, it provides all the essential options users need to tune their system effectively.
Fan control can be configured easily, though the visual design of the interface feels somewhat dated. Despite this, it remains functional, allowing for flexible cooling profiles based on workload.
Overclocking potential is solid, thanks to the robust 14+2+1 power phase design. Even with demanding processors, the board keeps voltages stable and avoids excessive thermal build-up.
When paired with a high-end Ryzen CPU, the VRM heatsinks demonstrate excellent thermal efficiency. Temperatures remain within safe limits, even when boosting frequencies under heavy load.
Memory performance is equally impressive. Running DDR5 at speeds around 6000 to 6400 MT/s delivers a smooth experience, with fast response times noticeable in both applications and gaming.
The board also accommodates enthusiasts who want to push memory further. Support for DDR5-8000+ is available, though this will depend heavily on memory kits and CPU capability.
Gaming performance is a strong suit, especially with the PCIe 5.0 x16 slot supporting the latest GPUs. Frame rates remain consistent, with no bandwidth limitations holding back modern graphics cards.
For storage-heavy users, the four M.2 slots provide an excellent balance of speed and capacity. The Gen 5 slot is perfect for blazing-fast primary drives, while the Gen 4 slots handle secondary drives with ease.
The addition of four SATA ports means users can still integrate older storage devices. This is valuable for those migrating from previous builds where HDDs or SATA SSDs are already in use.
Thermal performance across the storage subsystem is well managed by the included heatsinks. Drives run cooler, reducing the risk of throttling during extended workloads.
Networking performance is another highlight. WiFi 7 connectivity is fast and reliable, delivering low latency connections that are particularly useful for online gaming.
The Killer 2.5G LAN port provides stability for wired connections. File transfers over a local network are swift, with consistent throughput even when under heavy traffic.
Bluetooth 5.4 integration is useful for peripherals such as wireless headsets or controllers. Pairing is quick and stable, making it convenient for everyday use.
The audio system powered by the Realtek ALC4082 codec produces clear sound with good separation. Combined with Nahimic software, it delivers immersive audio for both gaming and media.
Headphone users benefit from strong amplification, allowing high-impedance headsets to be driven without distortion. This makes the board suitable for those who value premium sound quality.
The RGB lighting features are easy to control using ASRock’s Polychrome software. Users can sync lighting across multiple components, achieving cohesive system aesthetics.
The lighting itself is not overbearing, offering a balanced glow rather than overwhelming brightness. For those who prefer a more minimalist look, it can also be disabled entirely.
During stress testing, the board maintained stable performance across all areas. CPU and memory benchmarks showed consistent results, with no instability or throttling issues.
Day-to-day usage highlights the practicality of the B850 Riptide WiFi. From gaming sessions to productivity workloads, it delivers a balanced blend of speed, stability, and modern connectivity.
The performance of this motherboard shows how well ASRock has optimised it for mainstream users. It offers features that extend beyond its category, giving builders confidence in both immediate and long-term use.
Conclusion
The ASRock Phantom Gaming B850 Riptide WiFi successfully combines modern performance with an accessible design. It delivers the essentials of the AM5 platform while adding features that help it stand out in a crowded market. By balancing practicality with style, it appeals to a wide range of builders.
Its strong VRM design and capable cooling ensure stable performance even with high-end processors. Support for PCIe 5.0, DDR5 memory, and WiFi 7 provides a forward-looking platform that won’t feel outdated any time soon. These inclusions highlight ASRock’s intent to create a board that is both current and future-ready.
The layout is intuitive, making building and cable management easier. The mixture of M.2 and SATA storage options, alongside flexible USB connectivity, makes it a versatile choice for gamers and power users alike. Subtle RGB lighting and reliable audio support further enhance its appeal.
The B850 Riptide WiFi shows how ASRock has refined its Phantom Gaming series to suit mainstream users. It’s a motherboard that offers reliability, features, and style in one package, making it an excellent foundation for a modern AMD build.
