The ASRock Phantom Gaming B850M Riptide WiFi is designed for gamers and PC enthusiasts who want a compact motherboard without losing out on modern features. As a micro-ATX board, it manages to balance performance, connectivity, and design elements that make it appealing for both new builders and seasoned users. It enters the market as part of ASRock’s Phantom Gaming range, a series known for blending style with practical functionality.
ASRock has paid attention to making this board suitable for today’s hardware demands, ensuring compatibility with the latest AMD processors and memory technologies. Despite its smaller footprint, the B850M Riptide WiFi offers generous options for expansion and connectivity, which is impressive for its class. Builders who want efficiency without needing a full-sized ATX option may find this board particularly appealing.
What stands out immediately is how the B850M Riptide WiFi combines durability with gamer-focused features. From its reinforced power delivery system to high-speed storage and networking support, the board aims to provide a stable and reliable foundation for demanding setups. It is clear that ASRock has designed it with long-term use and strong performance in mind.
Design and Functionality

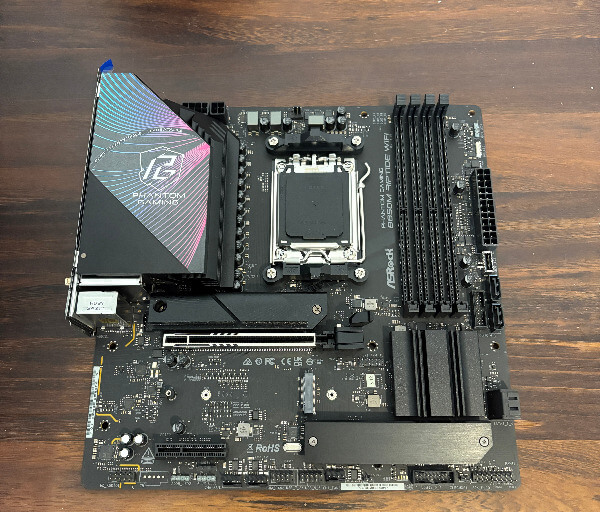

The ASRock Phantom Gaming B850M Riptide WiFi adopts a sleek micro-ATX form factor that balances compact size with plenty of capability. Its black PCB is accented by subtle blue highlights, giving it a clean aesthetic that suits both minimalist and gaming builds.
Rather than loading the board with heavy RGB, ASRock has gone for a refined look. A faint glow beneath the heatsinks provides a touch of lighting, leaving room for users to customise further with their own RGB components if desired.

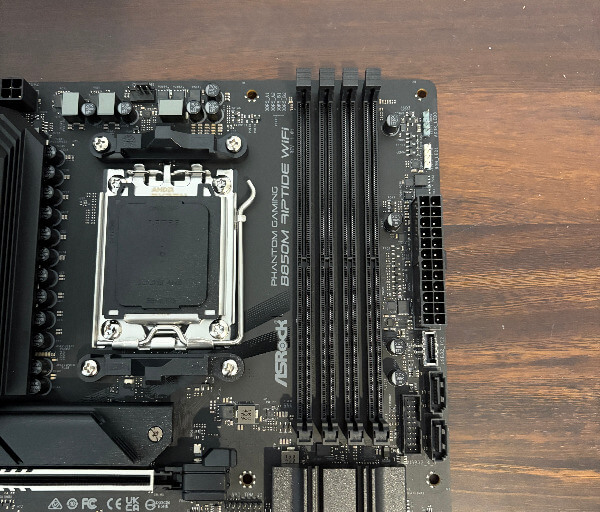

At the heart of the board lies the AMD AM5 socket, supporting Ryzen 7000, 8000, and 9000 series processors. This makes it a future-ready choice, giving users flexibility as newer CPU generations are released.
Power delivery is managed by a 12+2+1 phase design using Dr.MOS technology, ensuring efficient and stable voltage regulation. This helps keep high-performance CPUs running reliably, whether at stock settings or under overclocking conditions.
ASRock has reinforced this with high-quality capacitors rated for extended lifespan, making the board more durable under long-term operation. The inclusion of Hi-Density power connectors ensures the system can handle higher current loads with reduced risk of instability.
Cooling design is another highlight, with robust aluminium heatsinks covering the VRMs and I/O components. Thermal pads and a stacked-fin layout work to dissipate heat effectively, keeping temperatures under control even during heavy use.
Memory support is generous for a micro-ATX board, with four DDR5 DIMM slots accommodating up to 256GB of RAM. These slots are positioned with clearance in mind, reducing compatibility issues with larger CPU coolers.

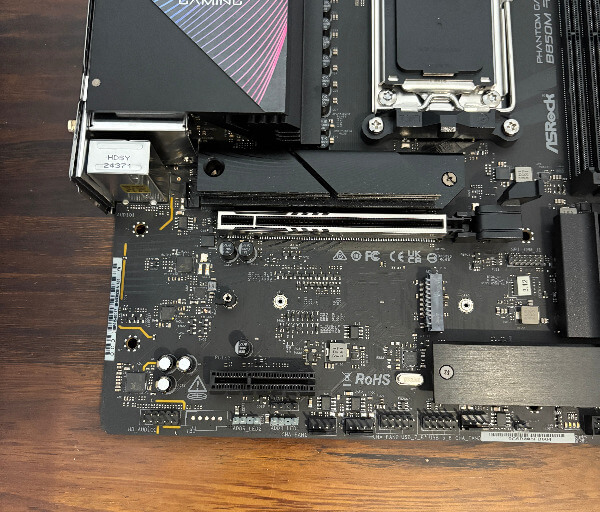

For graphics, the board offers a PCIe 5.0 x16 slot, reinforced for heavy GPUs. An additional PCIe 4.0 x4 slot provides room for expansion, while a vertical slot is available for WiFi or Bluetooth modules.

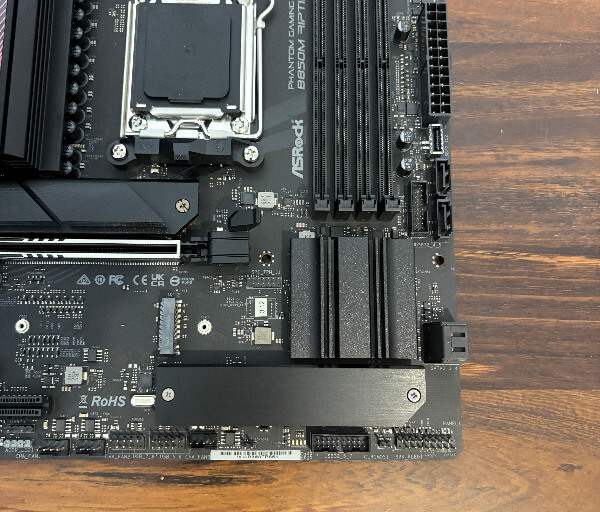

Storage is well-covered with three M.2 slots, including a Gen 5 option for ultra-fast SSDs. Two of these slots are paired with heatsinks and quick-release mechanisms, streamlining installation and helping manage drive temperatures.
The layout of the B850M Riptide WiFi reflects thoughtful design choices, ensuring ease of building and maintenance. From clearly labelled headers to the inclusion of a GPU EZ Latch, ASRock has made it straightforward for users to set up and upgrade their systems.
Key Features
The ASRock Phantom Gaming B850M Riptide WiFi brings a robust set of features to a compact micro-ATX format. Despite its smaller size, it manages to include many elements usually found on larger boards, giving users impressive flexibility when building.
One of the main highlights is its support for AMD Ryzen 7000, 8000, and 9000 series processors. This ensures compatibility with the latest hardware, making the board suitable for both current and future upgrades.
The power delivery system uses a 12+2+1 phase design with Dr.MOS technology, optimised for stable performance. This allows the board to handle demanding processors reliably, even when running under heavy workloads.
High-density power connectors further strengthen stability by delivering clean, consistent power to the CPU. These connectors are built to endure higher current loads, which is useful when pushing performance beyond stock levels.
Cooling solutions have been carefully considered, with large heatsinks covering key areas. Thermal pads and a stacked-fin design help dissipate heat, ensuring that VRMs and other components stay within safe operating limits.
The memory configuration supports four DDR5 slots with speeds reaching over 8000 MHz (OC). Users can install up to 256GB of RAM, which provides a generous amount of headroom for gaming and productivity tasks.
Compatibility with XMP and EXPO profiles means overclocking memory is simplified. This helps both novice and advanced users achieve optimised performance without unnecessary complications.
Storage is another strong point, with three M.2 slots available. The inclusion of a PCIe Gen 5 x4 slot ensures the fastest SSDs can operate at their full potential.
Two of the M.2 slots come with heatsinks that use a toolless quick-release system. This makes installation more straightforward, while also keeping storage drives cool during intensive usage.
SATA storage hasn’t been overlooked, with four connectors providing additional options for traditional hard drives or SSDs. RAID support across both M.2 and SATA gives more flexibility for those who want speed or redundancy.
Expansion options include a reinforced PCIe 5.0 x16 slot for modern GPUs. There is also a PCIe 4.0 x4 slot for additional cards, and a vertical M.2 slot that can be used for wireless modules.
The inclusion of a GPU EZ Latch is a thoughtful touch. This feature makes it easier to install and remove graphics cards without struggling with tight spaces.
Connectivity is plentiful, with a total of 17 USB ports available across the rear and front. This ensures users have enough ports for peripherals, storage devices, and other accessories.
A rear USB 3.2 Gen2 Type-C port provides fast transfer speeds. Although the board doesn’t include USB4, the available connections are still more than adequate for most setups.
Networking is handled by a 2.5G LAN port alongside WiFi 7. Bluetooth 5.4 is also supported, covering both wired and wireless needs with modern standards.
The WiFi 7 implementation includes Multi-Link Operation, allowing simultaneous use of multiple frequency bands. This reduces latency and increases bandwidth, which is particularly useful for gaming and streaming.
For audio, the board integrates the Realtek ALC1082 codec. While not the highest-end solution, it delivers clear sound backed by Nahimic software enhancements.
Nahimic Audio provides features like noise suppression, echo cancellation, and directional sound adjustments. These additions create a cleaner listening experience across gaming, calls, and multimedia.
ASRock’s Post Status Checker is a convenient diagnostic tool built into the board. Using simple LED indicators, it helps users quickly identify hardware issues during boot-up.
The rear I/O panel offers a practical range of connections, including HDMI and DisplayPort outputs. With the BIOS Flashback button included, updating firmware is simple and doesn’t require a CPU or RAM installed.
The features provided make the B850M Riptide WiFi a capable and well-rounded option for gamers and PC builders. From modern connectivity to thoughtful quality-of-life touches, the board is prepared for diverse usage scenarios.
Tech Specs
CPU Support
- AMD AM5 socket
- Ryzen 7000, 8000, and 9000 Series
Chipset
- AMD B850
Memory
- 4 x DDR5 DIMM slots
- Up to 256GB capacity
- Supports up to 8000+ MHz (OC)
- Dual-channel, XMP & EXPO profiles supported
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K @ 120Hz)
- 1 x DisplayPort 1.4 (up to 4K @ 120Hz)
- Integrated graphics support depends on CPU
Expansion Slots
- 1 x PCIe 5.0 x16 (for GPU)
- 1 x PCIe 4.0 x4
- 1 x Vertical M.2 WiFi/BT slot
Storage
- 1 x M.2 Gen 5 x4 (2280)
- 1 x M.2 Gen 4 x2 (2260/2280)
- 1 x M.2 Gen 4 x4 (2260/2280)
- 4 x SATA3 (6Gb/s)
- RAID 0, 1, 10 supported
USB Ports
- Rear: 1 x USB-C 3.2 Gen2, 1 x USB-A 3.2 Gen2, 2 x USB-A 3.2 Gen1, 4 x USB 2.0
- Front: 1 x USB-C 3.2 Gen1, 4 x USB-A 3.2 Gen1, 4 x USB 2.0
Networking
- 2.5G LAN (Dragon RTL8125BG)
- WiFi 7 (802.11be, 2×2)
- Bluetooth 5.4
Audio
- Realtek ALC1082 codec
- 7.1-channel HD audio
- Nahimic Audio software support
Internal Headers
- 2 x CPU fan headers, 3 x chassis fan headers
- 3 x ARGB headers, 1 x RGB header
- USB 2.0, USB 3.2 Gen1, and front-panel USB-C
Rear I/O
- 2 x antenna ports
- HDMI + DisplayPort
- 1 x USB-C 3.2 Gen2
- 1 x USB-A 3.2 Gen2
- 2 x USB-A 3.2 Gen1
- 4 x USB 2.0
- 1 x 2.5G LAN port
- BIOS Flashback button
- Audio jacks (line in, front speaker, mic)
Form Factor
- Micro ATX (24.4cm x 24.4cm)
Experience Using the Product and Performance
Building with the ASRock Phantom Gaming B850M Riptide WiFi is straightforward thanks to its well-organised layout. Components fit neatly, and the inclusion of a GPU EZ Latch removes one of the usual frustrations of graphics card installation.
The compact micro-ATX form factor makes it easy to work with in smaller cases. Despite the reduced size, there’s no sense of compromise when it comes to features or functionality.
During setup, the toolless M.2 heatsinks prove to be particularly useful. They make installing storage drives quick and efficient, even for those new to PC building.
Memory installation is also smooth, with four DIMM slots providing plenty of clearance around the CPU socket. This minimises potential clashes with large air coolers, giving builders more flexibility in choosing components.
When powering on for the first time, the Post Status Checker provides reassurance. Its simple LED indicators help pinpoint any configuration issues quickly, reducing troubleshooting time.
Performance with Ryzen 7000 and 9000 series CPUs is consistently strong. The 12+2+1 power phase design delivers stable voltage, even under high load or extended stress testing.
Overclocking is well supported, with the VRMs and capacitors providing reliable power delivery. The Hi-Density power connectors also contribute to smoother overclocking results without system instability.
Temperature management is excellent for a board of this size. The heatsinks and thermal pads keep VRM and storage temperatures under control during heavy gaming and productivity workloads.
When paired with high-speed DDR5, the board handles demanding applications effortlessly. Support for overclocked memory profiles makes it easy to push RAM performance further without extensive tweaking.
Gaming performance is enhanced by the PCIe 5.0 slot, which allows modern GPUs to run at full bandwidth. Frame rates remain stable, and the board shows no signs of bottlenecking in demanding titles.
Storage performance benefits from the Gen 5 M.2 slot, delivering lightning-fast speeds. Game load times and large file transfers are noticeably reduced, making the system feel highly responsive.
Even the additional Gen 4 slots perform well for secondary storage. The mix of Gen 5 and Gen 4 ensures users have options for balancing speed and capacity.
Networking is smooth, with the 2.5G LAN offering consistent wired performance. Gamers who prefer low latency connections will find it more than adequate.
Wireless connectivity is equally impressive with WiFi 7. Multi-Link Operation keeps online performance steady, whether gaming, streaming, or transferring large files over the network.
Bluetooth 5.4 support expands usability further, allowing seamless pairing with peripherals such as headsets, controllers, and keyboards. The connection remains stable, even when multiple devices are connected at once.
Audio quality is solid for onboard sound. The Realtek ALC1082 codec, combined with Nahimic software, produces clear and immersive sound for both games and multimedia.
Features like noise suppression and echo cancellation prove helpful during online communication. Voice clarity remains sharp, making it suitable for streaming or video calls.
The BIOS is user-friendly, with both advanced and EZ modes available. ASRock’s interface makes overclocking, monitoring, and system adjustments accessible to beginners and enthusiasts alike.
Firmware updates are simple thanks to the BIOS Flashback button. The process doesn’t require a CPU or RAM, which adds peace of mind during setup or troubleshooting.
During extended gaming sessions, the system remains cool and responsive. The thermal design ensures that VRM and chipset areas never become excessively hot.
Productivity tasks such as video editing and multitasking also run smoothly. The board’s stability means users can push demanding applications without concern.
Noise levels from the system remain low due to efficient fan control. Smart headers allow fine-tuning, and multiple chassis fan connectors provide options for custom cooling setups.
In long-term use, the durability of the components stands out. High-quality capacitors and reinforced power delivery show that the board has been built with longevity in mind.
The ASRock Phantom Gaming B850M Riptide WiFi provides a balanced experience. It combines ease of building, dependable performance, and strong connectivity in a compact format.
Conclusion
The ASRock Phantom Gaming B850M Riptide WiFi proves that a micro-ATX board can deliver high-end features without compromise. Its blend of modern connectivity, efficient power delivery, and support for the latest AMD processors makes it an appealing choice for gamers and builders alike.
From the reinforced PCIe 5.0 slot to the inclusion of WiFi 7, the board covers both performance and convenience. Thoughtful touches like the GPU EZ Latch and toolless M.2 heatsinks make the building process smoother, even for less experienced users.
In day-to-day performance, the motherboard shines with stable operation across gaming, productivity, and multitasking. Its thermal management and durable components ensure that it can maintain this level of reliability over the long term.
The B850M Riptide WiFi stands out as a versatile and dependable platform. For those seeking a compact yet capable foundation for their next build, it offers an excellent balance of functionality, performance, and durability.
