The ASRock Phantom Gaming B860 Lightning WiFi is one of the newest entries in ASRock’s gaming-focused range, designed to cater to users who want strong performance without stepping into the highest-end tier. Built around Intel’s B860 chipset, it aims to strike a balance between essential functionality and enthusiast features. This board is positioned to serve gamers who value stability, modern connectivity, and thoughtful design.
ASRock has taken care to ensure that the B860 Lightning WiFi doesn’t feel like a stripped-down option despite its place below flagship boards. It brings in features that are typically reserved for more premium models, ensuring that users can still enjoy cutting-edge support for storage, networking, and power delivery. At the same time, it maintains a user-friendly approach that makes it approachable for builders of all skill levels.
This motherboard has been built with versatility in mind, allowing it to fit neatly into a wide range of gaming and productivity builds. Whether used in a compact gaming rig or a multi-purpose workstation, it offers a feature set that ensures reliability and strong long-term use. It’s a clear reminder of ASRock’s commitment to creating hardware that blends practicality with gamer-centric enhancements.
Design and Functionality
The ASRock Phantom Gaming B860 Lightning WiFi arrives in packaging that feels purposeful and tidy. The box is divided into layers, with the motherboard safely housed on top and the essential accessories tucked neatly beneath. This thoughtful arrangement ensures builders have everything within easy reach when setting up.
Included in the package are useful accessories such as SATA cables, WiFi antennas, and a thermistor cable, along with a quick start guide and even a Phantom Gaming badge. These additions make installation straightforward while also providing a touch of brand identity. The thermistor cable is particularly handy for users who want more precise thermal monitoring.

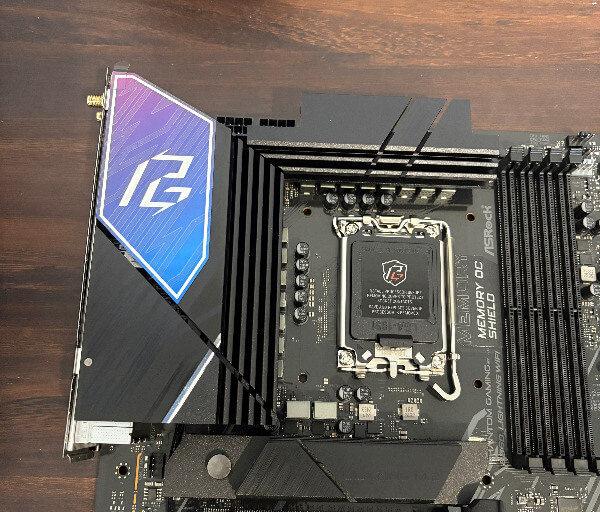

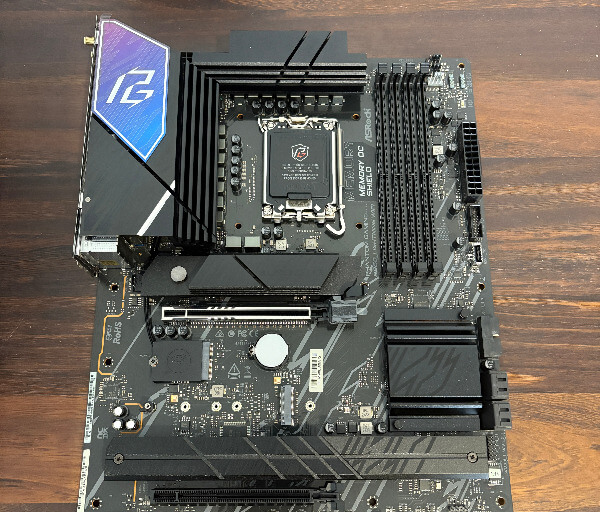

Visually, the board takes on a dark, sleek aesthetic accented with subtle detailing that fits the Phantom Gaming theme. While restrained in design, it manages to look modern and capable, making it suitable for both minimalist cases and more expressive gaming builds with RGB elements.
A key highlight of the layout is its efficient use of space to accommodate multiple storage and expansion options. The main PCIe slot is reinforced for strength, ready to handle heavy modern graphics cards. Additional M.2 slots are arranged thoughtfully, providing ample capacity for fast NVMe storage without compromising accessibility.

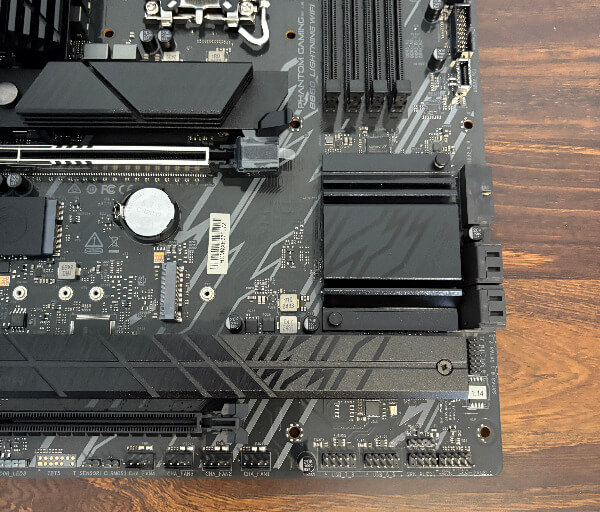

Cooling design has been carefully addressed with large heatsinks covering critical components. These heatsinks not only improve performance under load but also enhance durability by reducing thermal stress on power delivery circuits. Even next-gen PCIe 5.0 drives can remain stable under these cooling solutions.
The board incorporates a 14+1+1+1+1 power phase design, delivering consistent and stable power to the CPU. Backed by premium capacitors, this design ensures that even high-performance processors run reliably, making it suitable for gaming and demanding workloads alike.
Attention to durability extends to the PCB itself, which uses thicker copper layers for enhanced stability. This contributes to both energy efficiency and long-term reliability, a feature appreciated by those who expect their system to last several upgrade cycles.
Connectivity has been planned with gamers in mind, with multiple high-speed USB ports, Thunderbolt 4 support, and onboard WiFi 6E. This ensures compatibility with a wide variety of peripherals and devices, from VR headsets to external storage solutions.
Audio performance is handled by a refined Realtek solution supported by a clean PCB layout and isolation techniques. This means clear, immersive sound whether using gaming headsets or external speakers. It is complemented by software enhancements that improve communication clarity during online play.
The design and functionality of the B860 Lightning WiFi blend practicality with high-end touches. Every element, from the reinforced slots to the convenient layout, reflects a focus on both usability and reliability, making it a solid centrepiece for a modern gaming setup.
Key Features
The Phantom Gaming B860 Lightning WiFi introduces PCIe 5.0 support for both graphics cards and storage. This ensures compatibility with the latest GPUs and ultrafast SSDs, providing a system that is ready to take advantage of next-generation performance. The reinforced slot adds extra stability for heavy cards, reducing stress on the board.

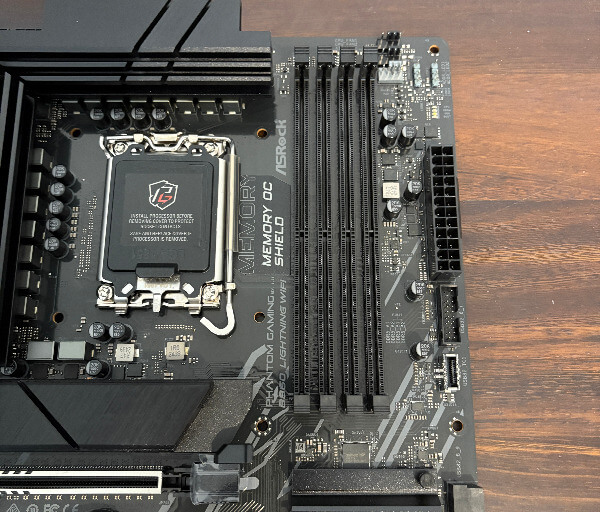

Memory support has been engineered with enthusiasts in mind. The board accommodates DDR5 memory, offering high-frequency support through XMP and EXPO profiles. ASRock’s Memory OC Shield minimises interference, helping modules achieve better stability during overclocking sessions.
Networking options cater directly to gamers and demanding users. With Killer 2.5G LAN alongside WiFi 6E, the board ensures fast and reliable connectivity for online play and media streaming. The bundled software allows for traffic prioritisation, reducing lag during gaming sessions.
For creators and professionals, Thunderbolt 4 brings versatility to the platform. It enables high-speed external storage, multi-monitor support, and a wide range of peripheral connections. This makes the board equally capable for productivity as it is for gaming.

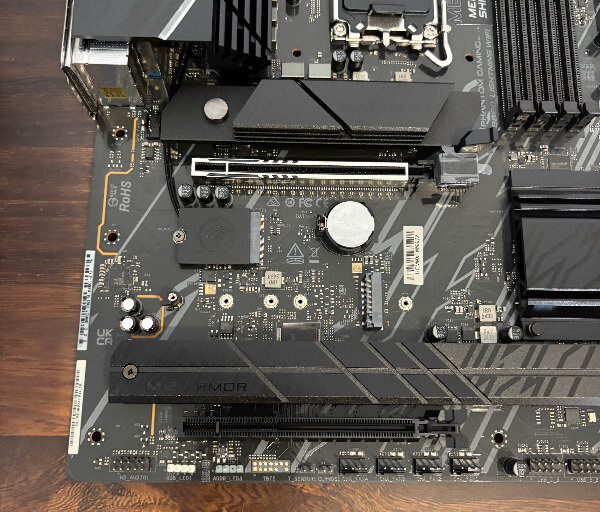

Cooling innovations extend to the toolless M.2 heatsink system. Users can easily install or swap drives without fumbling with screws, while the oversized aluminium heatsinks ensure SSDs remain cool under heavy workloads. A bottom-mounted heatsink further enhances thermal efficiency.
The audio experience is enhanced with Realtek’s ALC1220 codec paired with Nahimic software. This combination delivers crisp sound for entertainment and competitive gaming, with additional features like noise suppression and voice stabilisation for clearer communication.
RGB lighting integration has been expanded with support for Polychrome Sync and SignalRGB. This allows users to unify their lighting setup across multiple components and peripherals, tailoring effects to match their preferences or react to gameplay.
Ease of use rounds out the feature list with BIOS Flashback and an Auto Driver Installer. These tools simplify updates and system setup, ensuring users can get their system running quickly and keep it stable with minimal hassle.
Tech Specs
CPU Support
- Intel Core Ultra (Series 2) processors (LGA1851)
- Intel Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT
- Integrated NPU for AI acceleration
Chipset
- Intel B860
Memory
- Dual Channel DDR5, up to 256GB
- 4 x DDR5 DIMM slots
- Supports up to 8933+ MHz (OC)
- Intel XMP 3.0 & AMD EXPO support
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K @ 120Hz)
- 1 x DisplayPort 1.4 (up to 8K @ 60Hz / 5K @ 120Hz)
- 1 x Thunderbolt 4 (up to 8K @ 60Hz / 5K @ 120Hz)
Expansion Slots
- 1 x PCIe 5.0 x16 (reinforced)
- 1 x PCIe 4.0 x16 (x2 mode)
Storage
- 1 x PCIe 5.0 M.2 (Blazing)
- 2 x PCIe 4.0 M.2 (Hyper)
- 1 x PCIe 4.0 M.2 (x2 mode)
- 4 x SATA 6Gb/s
- RAID 0, 1, 5, 10 support
Networking
- Killer E3100G 2.5Gb Ethernet
- WiFi 6E (802.11axe) + Bluetooth 5.3
- Killer DoubleShot Pro
USB Ports
- 1 x Thunderbolt 4 Type-C (rear, 40Gbps)
- 1 x USB 3.2 Gen2x2 Type-C (front)
- 2 x USB 3.2 Gen2 Type-A (rear)
- 8 x USB 3.2 Gen1 (4 rear, 4 front)
- 7 x USB 2.0 (3 rear, 4 front)
Audio
- Realtek ALC1220 codec, 7.1 channel HD audio
- Nahimic Audio software suite
Cooling & Power
- 14+1+1+1+1 Power Phase with Dr.MOS
- 20K Black capacitors
- XXL heatsinks and toolless M.2 heatsinks
- Multiple fan and pump headers with smart control
Form Factor
- ATX (30.5cm x 24.4cm)
- 2oz copper PCB
Included Accessories
- 2 x SATA cables
- 2 x WiFi antennas
- Thermistor cable
- ARGB splitter cable
- Quick installation guide
- Phantom Gaming badge
Experience Using the Product and Performance
Setting up the ASRock Phantom Gaming B860 Lightning WiFi is straightforward, thanks to the well-organised box layout and helpful quick installation guide. Every accessory is clearly labelled, and the toolless design elements make installation less intimidating for first-time builders.
The board powers on without fuss, and the BIOS is neatly structured to cater to both beginners and advanced users. EZ Mode provides simplified options for essential settings, while the advanced pages give full control over voltages, fan profiles, and overclocking tools.
Navigation through the BIOS is smooth, and the refreshed graphics make it easier to locate settings quickly. For those experimenting with performance tweaks, the built-in profiles offer a safe baseline to avoid pushing hardware beyond its limits.
Fan control is another strong point, with the Fan-Tastic Tuning interface allowing easy adjustments to curves and speeds. This ensures that cooling can be balanced between noise levels and thermal requirements depending on the workload.
In day-to-day tasks, the motherboard runs quietly and efficiently. The power delivery design with its 14+1+1+1+1 phase setup ensures that the CPU is supplied with stable energy even under demanding applications.
Gaming performance is consistently strong, with network latency minimised through Killer LAN and WiFi 6E. Both wired and wireless options are reliable, giving flexibility depending on how the system is used.
During long gaming sessions, the large heatsinks keep VRMs and storage devices cool. Even when using PCIe 5.0 SSDs, thermal throttling isn’t an issue as long as airflow inside the case is adequate.
The inclusion of Thunderbolt 4 provides a noticeable boost for creators and professionals. External storage drives and multiple displays connect easily, expanding the system’s flexibility beyond gaming use.
Audio output is detailed and immersive with the Realtek ALC1220 codec enhanced by Nahimic software. Whether gaming with a headset or streaming music through speakers, the sound remains crisp with minimal distortion.
Voice clarity during online chats benefits from noise suppression and stabilisation features. This makes the system well-suited for competitive multiplayer titles where clear communication is essential.
Overclocking DDR5 memory is user-friendly with support for XMP and EXPO profiles. With compatible modules, achieving higher speeds is quick, and the Memory OC Shield helps maintain stability under pressure.
Storage performance is another highlight, particularly with the PCIe 5.0 M.2 slot delivering lightning-fast read and write speeds. This makes game loading times and large file transfers significantly quicker.
Software support further enhances usability. Phantom Gaming Tuning provides a single hub for system adjustments, while Polychrome Sync and SignalRGB ensure lighting can be customised across components.
SignalRGB integration is especially convenient for users with peripherals from different brands. The unified platform eliminates the need for multiple software tools, streamlining control of RGB effects.
ASRock’s Auto Driver Installer simplifies setup after Windows installation. It automatically detects missing drivers and installs them, saving time compared to manually searching online.
Updating the BIOS is equally hassle-free with the Flashback feature. This allows firmware updates without needing a CPU or memory installed, offering peace of mind during troubleshooting.
Throughout testing, stability was excellent. No crashes or freezes occurred even during stress tests, which highlights the robustness of the power delivery and thermal design.
The Killer networking software provides additional customisation for gamers who want to prioritise traffic. Streaming, downloads, and in-game latency can all be managed easily from a simple interface.
Build quality is reinforced by premium components such as the 20K capacitors and dense PCB design. These ensure long-term durability, which is reassuring for users building systems they expect to last.
The inclusion of multiple M.2 slots and SATA ports gives the board flexibility for expanding storage over time. Users can start with one drive and add more as their needs grow, without running into limitations.
Performance across productivity workloads is equally reliable. Video editing, multitasking, and large file compression benefit from the strong CPU support and fast memory handling.
The Phantom Gaming B860 Lightning WiFi delivers a well-rounded experience across gaming and productivity. Its thoughtful design, stability, and robust performance make it a dependable choice for users wanting modern features without complexity.
Conclusion
The ASRock Phantom Gaming B860 Lightning WiFi successfully combines gamer-focused features with a design that remains approachable for a wide range of users. Its balance of performance, connectivity, and cooling ensures that it feels like a complete package rather than a compromise.
From installation to daily use, the board demonstrates ASRock’s attention to detail in both hardware and software. The inclusion of user-friendly features like toolless M.2 installation and BIOS Flashback make it convenient for builders at any level.
Performance remains consistent whether gaming, creating content, or running heavy multitasking workloads. The stable power design, efficient cooling, and comprehensive connectivity options contribute to a reliable system foundation.
For those seeking a motherboard that bridges the gap between affordability and enthusiast-grade functionality, the B860 Lightning WiFi stands out as a capable and dependable option. It brings together the essentials and modern extras in a way that supports both current needs and future upgrades.
