Recently, ASUS released its RTX 4060 OC Edition, which we will discuss in our ASUS Dual GeForce RTX 4060 OC Edition Review. It integrates 8GB of graphics memory and aims to please the mainstream 1080P range.
It is a promising product that produces notable ray-tracing performance. Plus, it packs exceptional features that make it the best cost-efficient graphics card. Continue reading our ASUS Dual GeForce RTX 4060 OC Edition Review to learn more about it.
But before we look deeper into the RTX 4060 OC Edition, let us start unboxing.

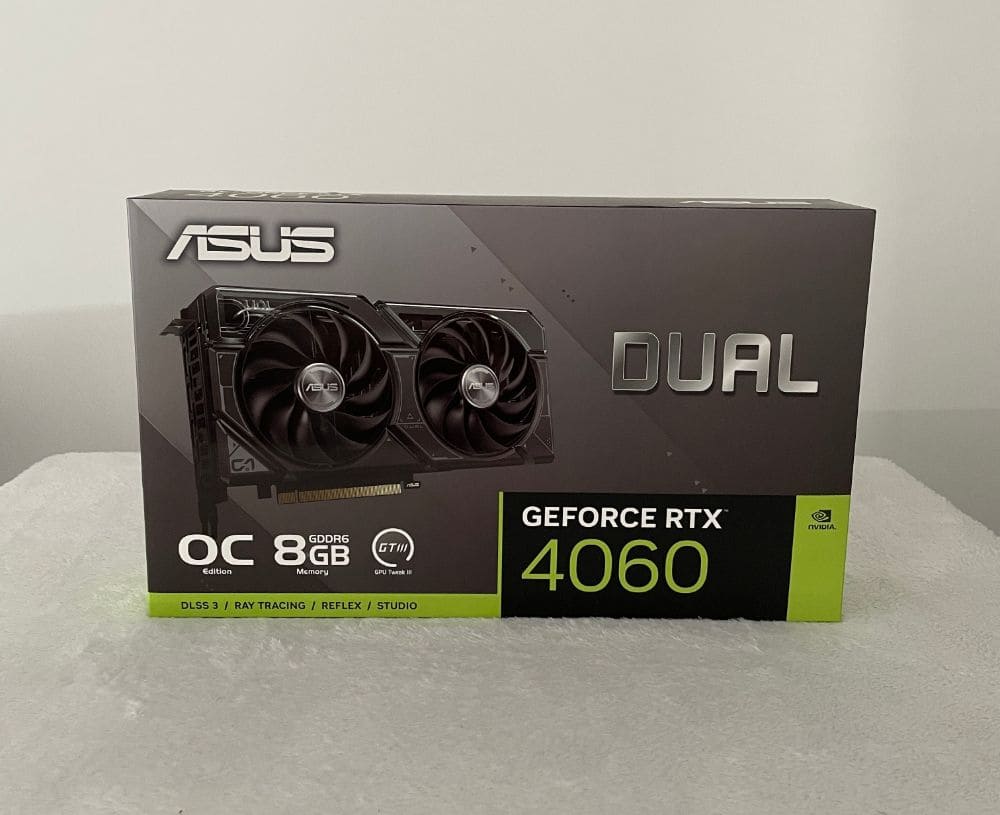

ASUS Dual GeForce RTX 4060 OC Edition Packaging
You will find the RTX 4060 OC Edition kept in a spacious box within its package. The container boasts generous dimensions and incorporates the signature colour scheme of NVIDIA – dark grey with vibrant green accents.
On the upper surface of the box, you will see an image of the GPU with specifications and features. The details highlight the 8GB memory capacity and robust support for DLSS-3 and ray tracing.
On the rear side of the box, ASUS included an array of information regarding the card and its features. Images showcasing essential attributes, comprehensive software details, and direct links are available. The latter redirects to websites where you can access extra information about the graphics card.
The graphics card, a quick start guide, and a warranty card are present in the box.

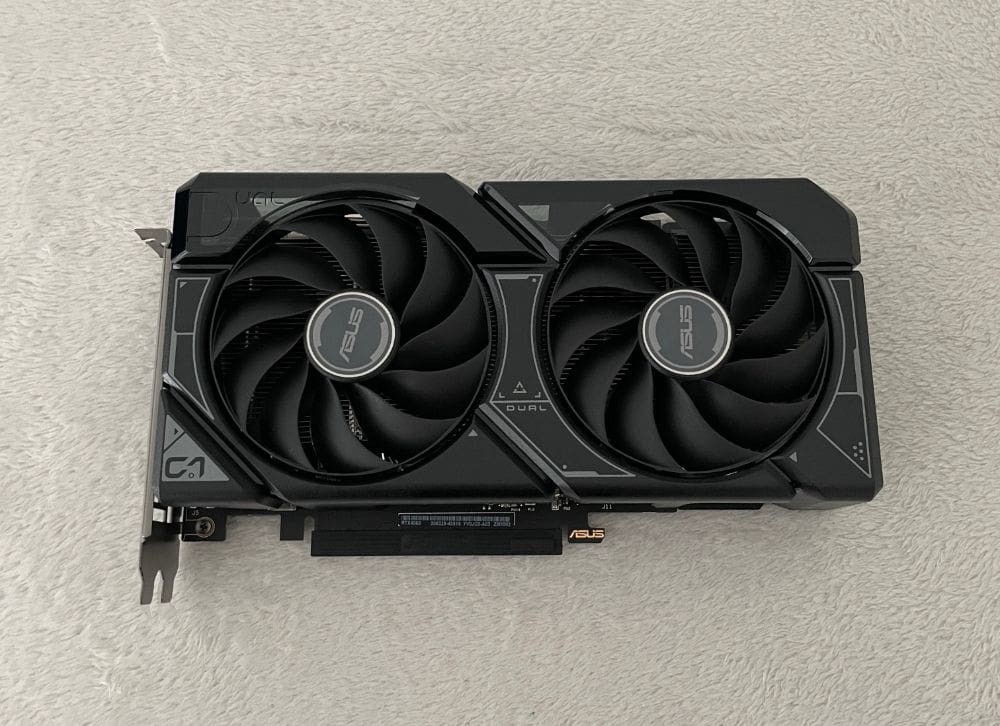

ASUS Dual GeForce RTX 4060 OC Edition Review – Design and Functionality
This part of our ASUS Dual GeForce RTX 4060 OC Edition Review is where we focus on its appearance and functions. We will also discuss the NVIDIA Ada Lovelace architecture.
Like everything under the NVIDIA GeForce RTX 40 series, the graphics card uses a tailored 4nm TSMC manufacturing process. It also uses the cutting-edge Ada Lovelace microarchitecture from NVIDIA.
The Ada Lovelace architectural framework delivers a host of substantial advantages. It is notable for its support for elevated clock speeds, thanks to the innovation in the manufacturing process.
Ray-tracing performance has seen a remarkable improvement in Ada Lovelace’s graphics cards. It features a third-generation ray-tracing core operating at higher speeds. The product also performs efficiently compared to the previous designs from NVIDIA.
Additionally, NVIDIA has significantly expanded the cache capacity on its graphics cards.
In addition to these improvements, new iterations of tensor cores dedicated to powering AI-related technologies are present. These exhibit notably higher speeds.
Furthermore, the CUDA cores received enhancements for increased performance and refinements for video acceleration capabilities. This graphics card also supports DLSS-3 or Deep Learning Super Sampling 3.0.
Key Features of the ASUS Dual GeForce RTX 4060 OC Edition
Twice the Fans, Twice the Fun
The RTX 4060 OC Edition brings together dynamic thermal performance with increased compatibility.

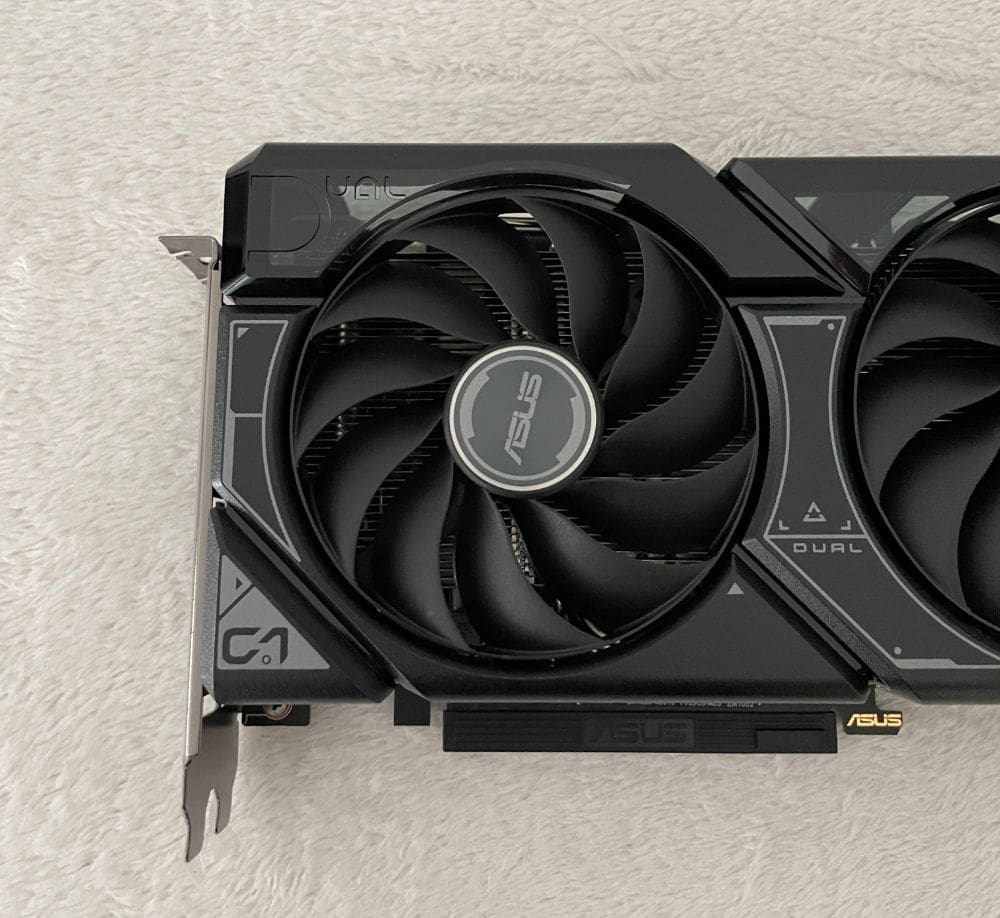

Embrace the cutting-edge cooling solutions found in this top-tier graphics card. It includes dual Axial-tech fans designed to optimise airflow towards the heatsink.
All these elements are ingeniously packed into a compact 22.7cm, 2.5-slot card, providing enhanced power within a reduced footprint. For gamers needing robust graphics performance without compromising on space, your ideal option is ASUS Dual.
GeForce RTX 40 Series and DLSS 3-Powered
The RTX 4060 OC Edition uses an NVIDIA chipset to improve power efficiency and performance. With fourth-generation tensor cores, this graphics card can perform four times better with DLSS 3 than brute-force rendering. Plus, the third-generation RT cores allow enhanced ray tracing.
Faster, Stronger, and Better with the Axial-Tech Fan Design
The RTX 4060 OC Editionhas two tried and tested Axial-Tech fans. These have a smaller hub to accommodate longer blades. Plus, the barrier ring delivers more downward air pressure.
0dB Technology for Silent Performance
With the stop mode, the RTX 4060 OC Edition eliminates unwanted noise. It pauses the fans from spinning when the GPU temperature drops below 50°C, and the power consumption goes lower.
Dual Ball Fan Bearings
The dual ball bearings on the fan are highly durable, allowing them to last two times longer than sleeve bearings.
Dual BIOS
The dual BIOS of the RTX 4060 OC Edition allows you to prioritise low-core temperatures or reduced noise. Setting performance mode increases the fan speeds to maintain the cool temperatures of your GPU.
Quiet mode keeps the same top-end settings and power target but with a less aggressive fan speed. As a result, the graphics card performs with reduced noise and medium temperatures. You can also use the GPU Tweak III for additional customisation and control features.
2.5-slot Design of the ASUS Dual GeForce RTX 4060 OC Edition

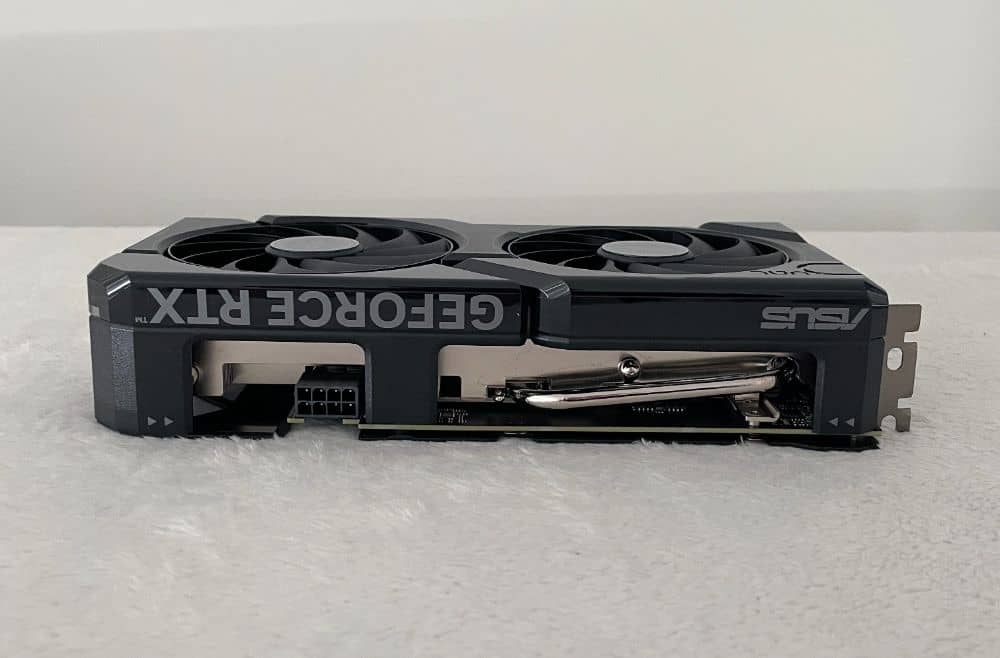

The RTX 4060 OC Edition has a 2.5-slot design for maximised cooling efficiency and compatibility. As a result, you can achieve superior performance when building a compact PC. It features a carefully designed heatsink, shroud, and heat pipe layout for optimal thermal performance.
Auto-Extreme Technology – Automated Precision
Auto-Extreme Technology is automated manufacturing that completes all soldering in a single pass. As a result, it reduces thermal strain on components while eliminating harsh cleaning chemicals.
This technology helps lower environmental impact and manufacturing power consumption, making the RTX 4060 OC Edition highly reliable.

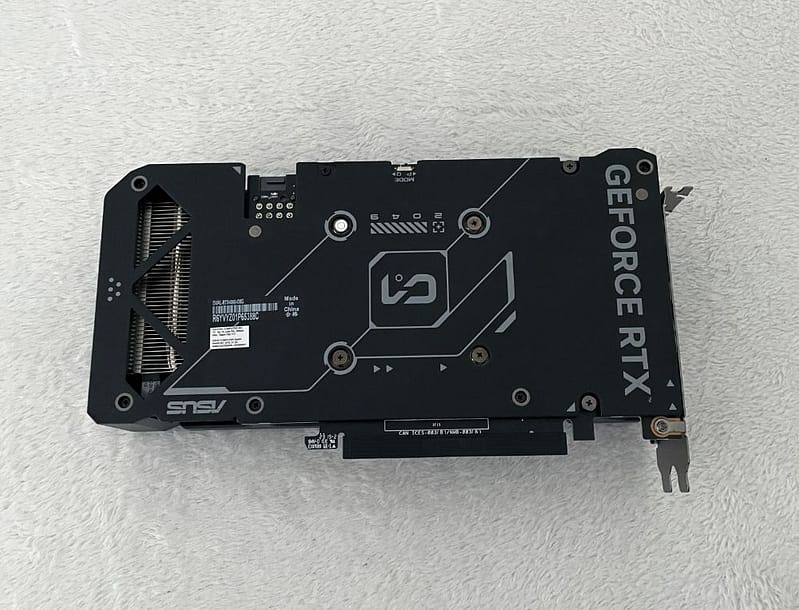

Protective Aluminium Backplate
This graphics card has an aluminium backplate to add to the structural rigidity of the PCB. It prevents flexing while keeping components safe from damage. Plus, the rear has a wide vent for hot air to escape towards the exhaust fans of the chassis.

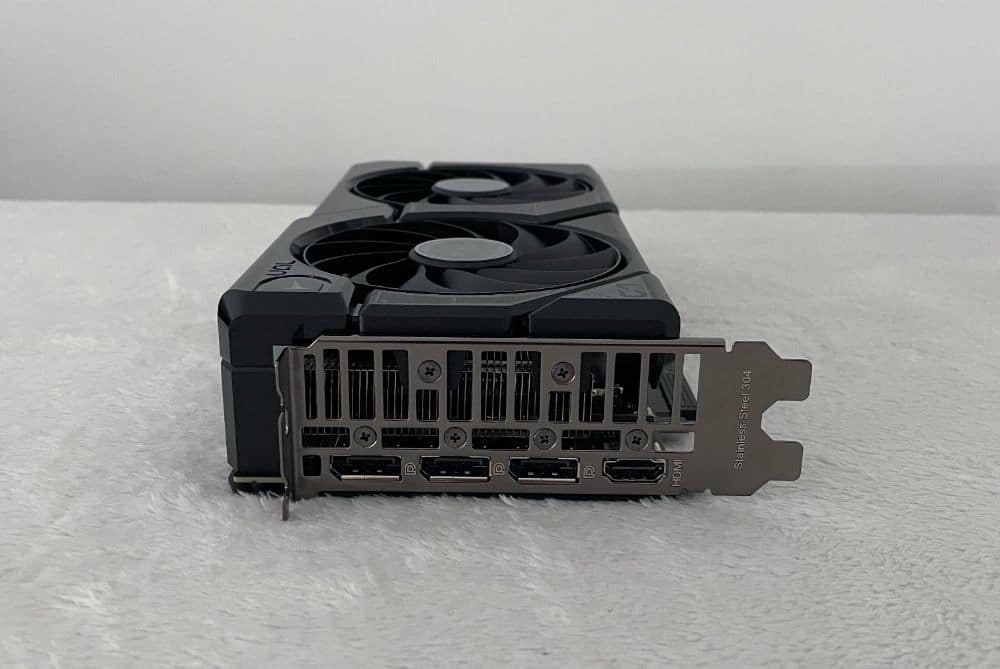

Stainless Steel Bracket for Added Durability
Our ASUS Dual GeForce RTX 4060 OC Edition Review will discuss another feature that makes this product more durable and reliable. The graphics card has a 304 stainless steel bracket, which is durable and more corrosion-resistant.
GPU Tweak III for Optimising the ASUS Dual GeForce RTX 4060 OC Edition
This feature optimises the performance of graphics cards. It lets you tweak its parameters like memory frequencies, GPU core locks, and voltage settings. Moreover, it allows you to watch everything via the customisable on-screen display.
Advanced fan controls also let you get the most out of the product.
Profit from GPU Power with QuantumCloud
QuantumCloud is a user-friendly application that helps you earn extra money when sharing the computing power of your graphics card. You can access your earnings via PayPal and WeChat.
This application is also safe and does not collect personal data.
Available 144-hour Validation Program
The feature places cards through numerous tests to guarantee compatibility with current games.
Adobe Creative Cloud for One Month Free
Enjoy a complimentary Adobe Creative Cloud membership when you purchase this graphics card and other selected ASUS products.
The Best VR Experiences with the ASUS Dual GeForce RTX 4060 OC Edition
The Dual GeForce RTX 4060 OC Editiondelivers the highest performance graphics, allowing you to enjoy highly smooth and immersive virtual reality.
Resizable BAR
This advanced PCI Express feature provides CPU access to the entire GPU frame buffer. As a result, it delivers better performance in many games.
Game Ready Drivers
This graphics card uses the GeForce Game Ready Drivers to boost your gaming experience. ASUS collaborated with developers to fine-tune the drivers of this product. Plus, the company performed tests on this graphics card across many setups to ensure maximum reliability and performance.
Before you head out to purchase this product, you need to know about its specs. Read further into our ASUS Dual GeForce RTX 4060 OC Edition Review and see if the product is compatible with your system.
Specifications
- Graphic Engine: NVIDIA GeForce RTX 4060 OC Edition
- Bus Standard: PCIe 4.0
- Dimensions: 227.2 x 123.24 x 49.6mm
- Recommended PSU: 550W
- OpenGL: 4.6
- Engine Clock: Default mode: 505 MHz (Boost) | OC mode: 2535 MHz
- CUDA Core: 3072
- Memory Interface: 128-bit
- Memory Speed: 17 Gbps
- Video Memory: 8GB GDDR6
- Digital Max Resolution: 7680 x 4320
- Maximum Display Support: 4
Hands-on with the ASUS Dual GeForce RTX 4060 OC Edition
We tested the graphics card to share our experience and its performance in this ASUS Dual GeForce RTX 4060 OC Edition Review. A detailed explanation of how well it worked will help determine if this product meets your demands.

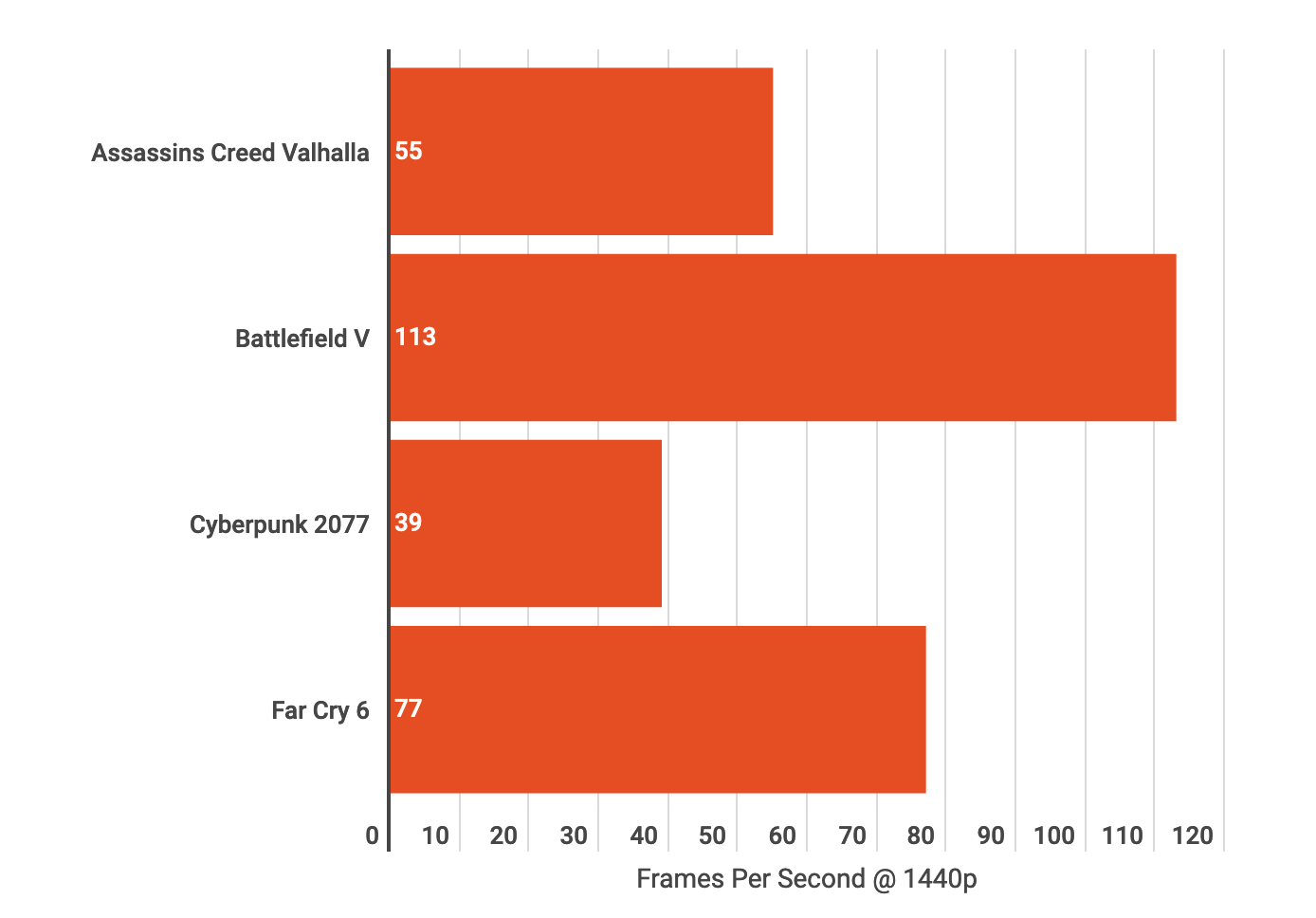

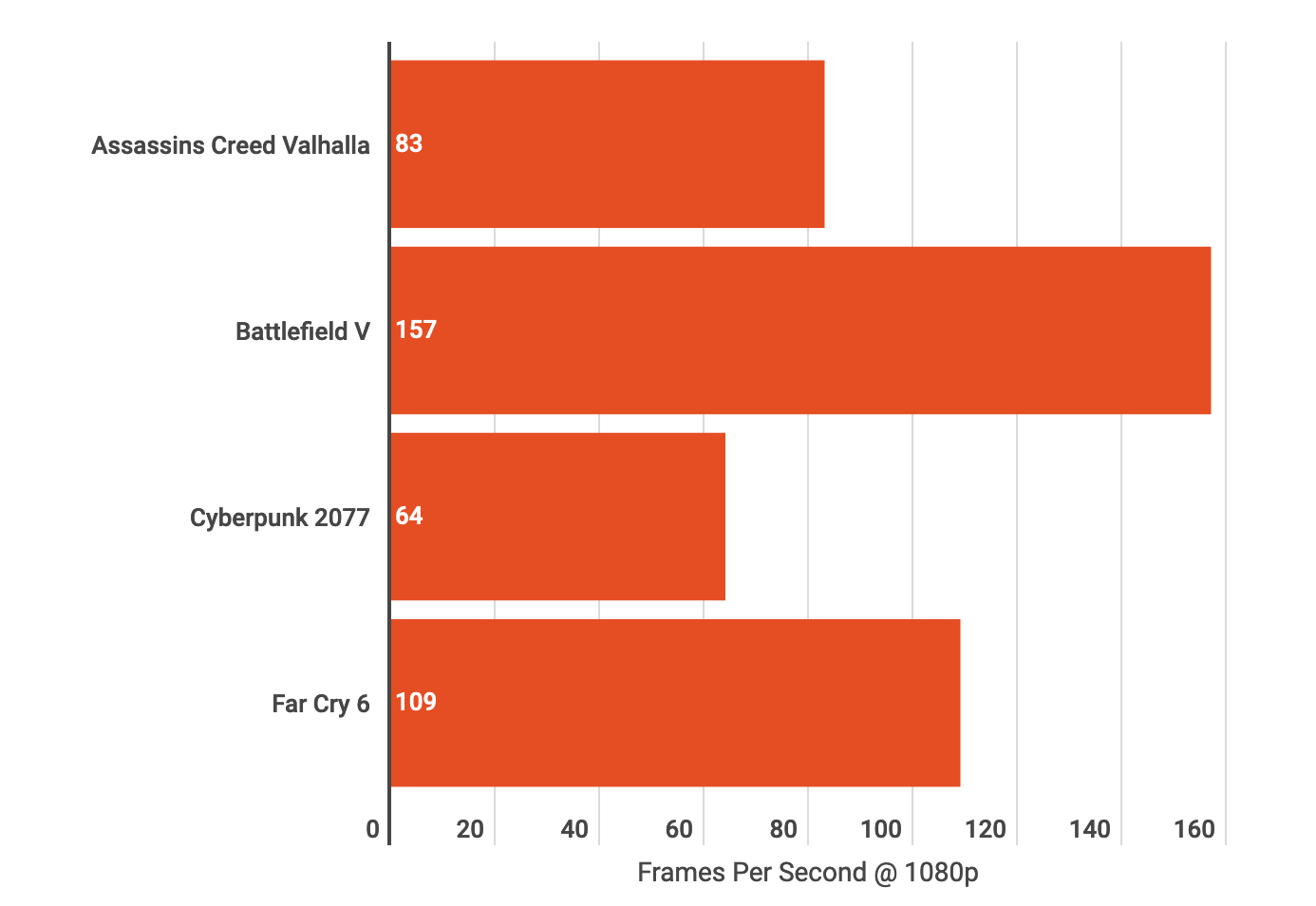

The RTX 4060 OC Edition works well at resolutions of 1080p and 1440p . It also performs impressively up to WQHD with a DLSS assist. Its performance will also improve with frame generation but will require using VRAM.
Ray tracing is a nice-to-have rather than a must-have technology in this category. It adds an extra layer of visual appeal that many modern games incorporate.
For games with extra FPS, activating ray tracing can elevate your visual experience. It can go beyond what traditional ultra settings can achieve.
Its power consumption was adequate during our tests for this ASUS Dual GeForce RTX 4060 OC Edition Review. It was in line with other cards like the Radeon RX7600. Plus, it was slightly better than the RTX 3060, suggesting a slight increase in its overall efficiency.
ASUS maintained optimal card temperatures with its dual-fan thermal solution. Under demanding workloads, you can expect its temperature to sit around the 60°C range.
Remember that this temperature can vary based on the airflow efficiency within your computer case.
ASUS Dual GeForce RTX 4060 OC Edition Review Summary
The market of 1080p graphics cards has always been competitive with its old and new cards. Each graphics card released by manufacturers has unique specs and prices, which makes decision-making challenging.
Among the new cards released by NVIDIA and AMD, the GeForce RTX 4060 OC Edition is one of the best. Although the RTX 4060 Ti is faster, this performance boost costs significantly higher. In most tests, the RTX 4060 OC Edition is speedier than the RX 7600, which makes it an excellent choice.
The RTX 4060 OC Edition from ASUS has many impressive features, including a triple-slot dual fan cooler. Plus, it can deliver high-quality graphics and ray-tracing performance while keeping temperature, noise, and power consumption low.
We highly recommend this graphics card if you want a cost and power-efficient graphics card for 1080p gaming.
Visit the official ASUS product page for more details about the Dual GeForce RTX 4060 OC Edition.
