3D scanning continues to evolve, with new innovations aimed at making the technology more accessible, portable, and powerful for everyday creators. The EINSTAR VEGA represents a strong step forward in this space, offering an all-in-one wireless solution tailored for users who need quality scans without the complexity of industrial-grade systems.
This scanner is designed to suit a wide audience—from hobbyists and designers to professionals in need of quick, reliable digital captures. By combining high-end performance with ease of use, it bridges the gap between casual and professional scanning, opening the door for more creative and technical applications.
With onboard processing, dual scanning modes, and wireless functionality, the EINSTAR VEGA is engineered to support a wide variety of scanning tasks, indoors or out. It delivers consistent, accurate results whether you’re documenting a small artefact or creating a 3D model of a large mechanical component.
Design and Functionality

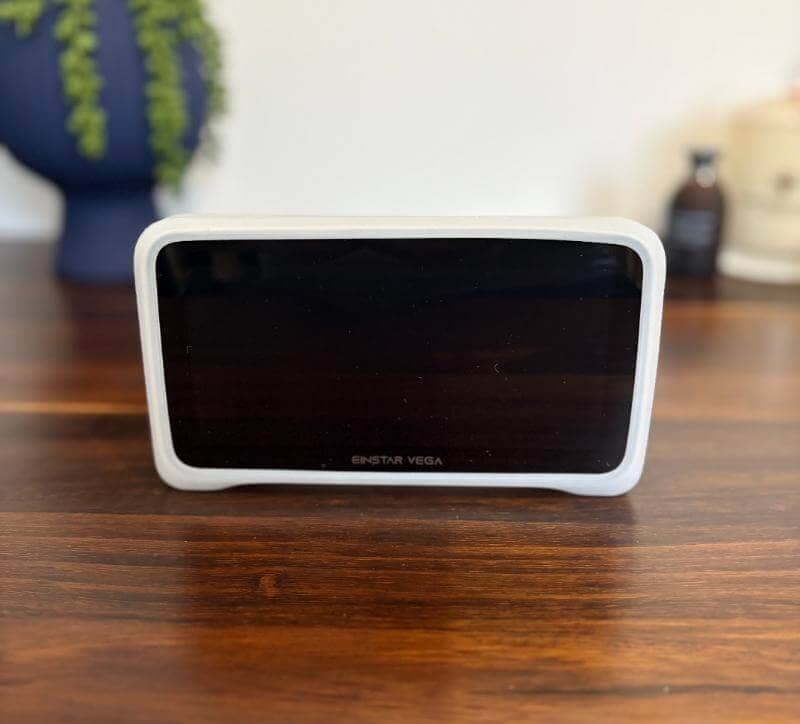

The EINSTAR VEGA stands out immediately with its sleek industrial design and premium build quality. The scanner’s aluminium body, paired with glass panels, gives it a modern and professional appearance that feels solid in hand.
Despite its high-performance capabilities, the EINSTAR VEGA remains remarkably lightweight at just 535 grams. This makes it suitable for extended handheld use, reducing strain and allowing for precise control during long scanning sessions.
Its ergonomic form is enhanced by a detachable silicone grip, which adds comfort and stability during handheld operation. For even greater precision, the scanner can be mounted on the included metal tripod, which is especially helpful for delicate or stationary scans.

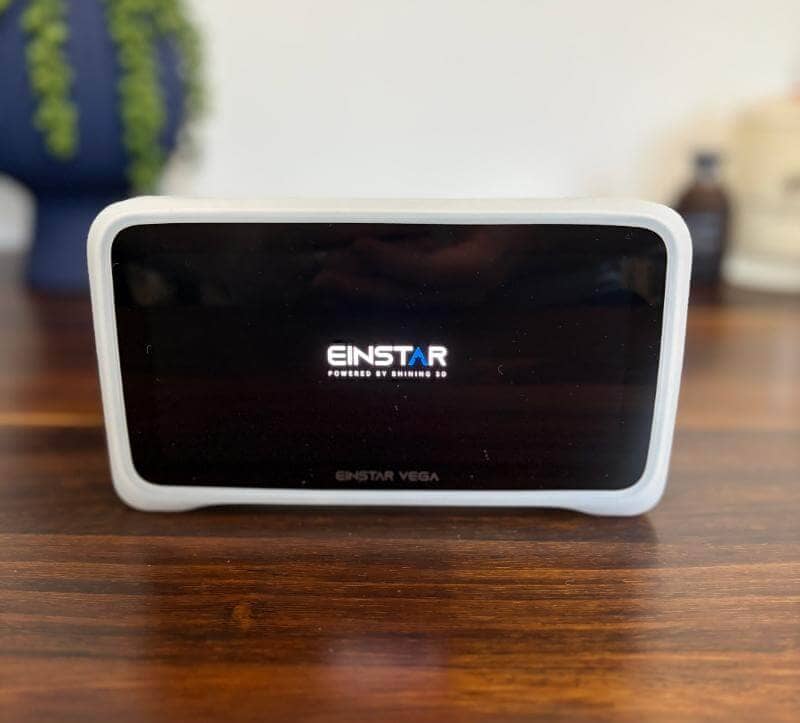

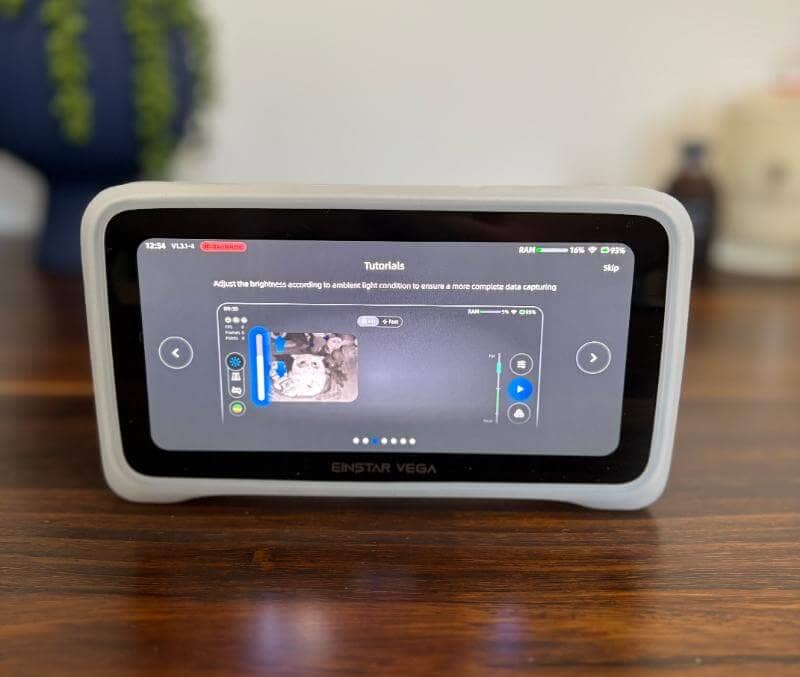

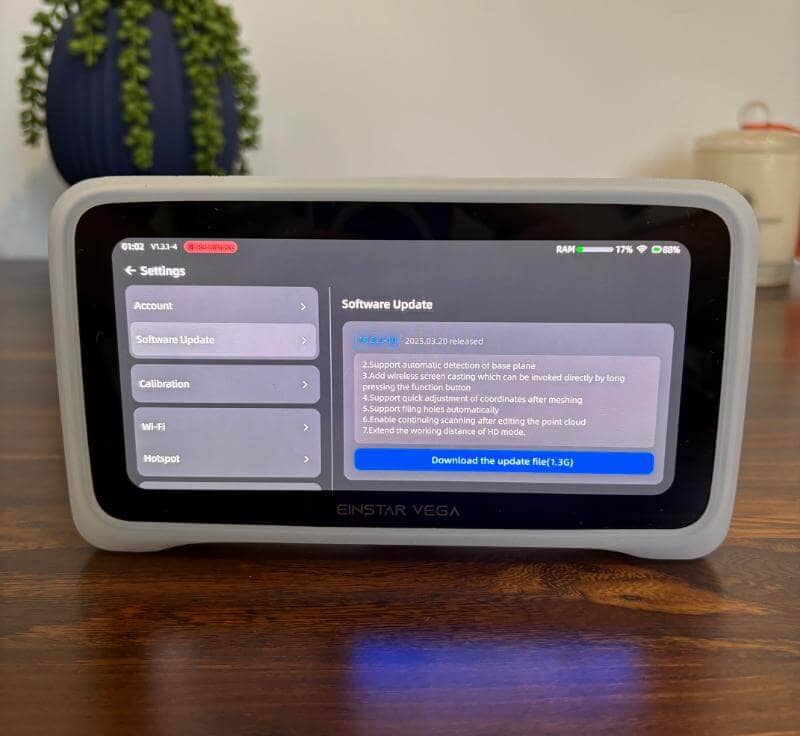

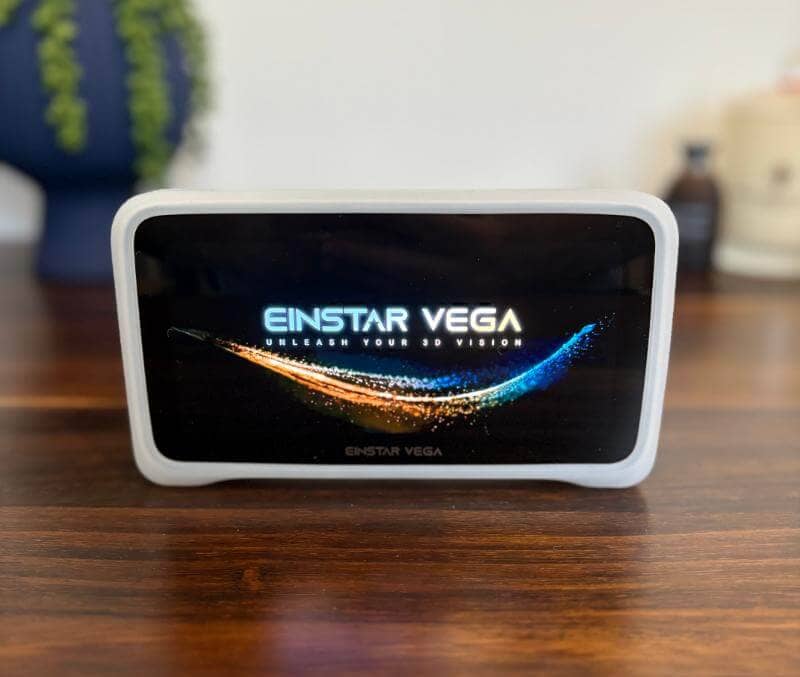

The 6.4-inch 2K AMOLED touchscreen on the rear serves as a responsive and user-friendly control panel. It allows you to monitor scans in real-time, adjust settings, and navigate the scanner’s interface with ease, although visibility in bright outdoor lighting could be improved.

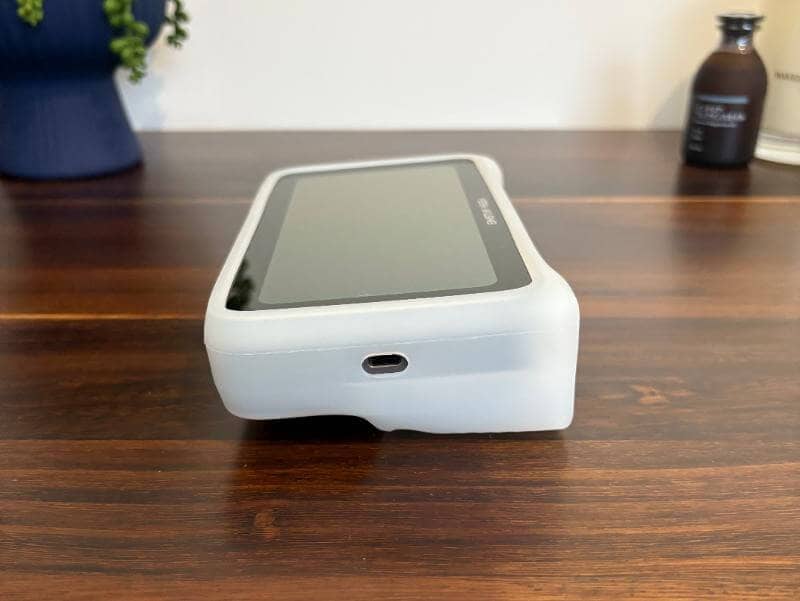

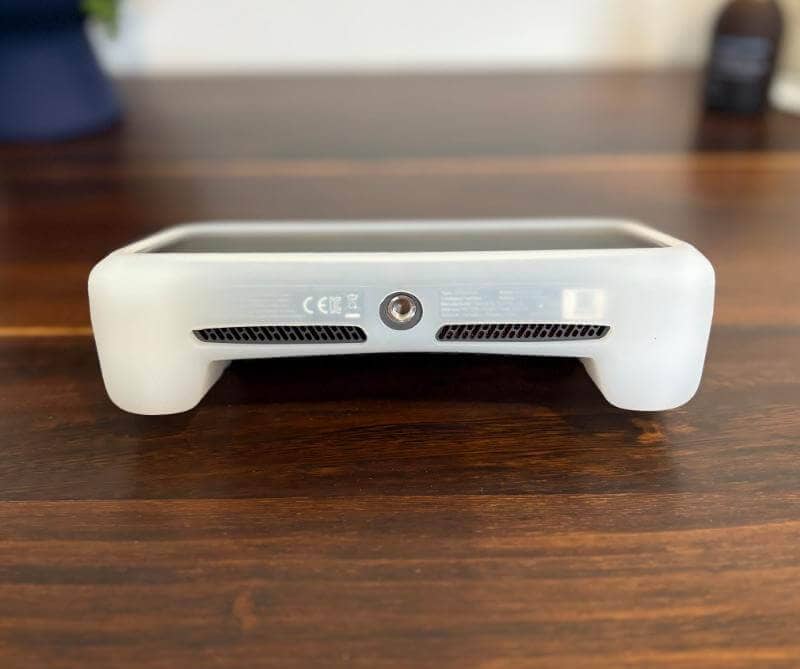

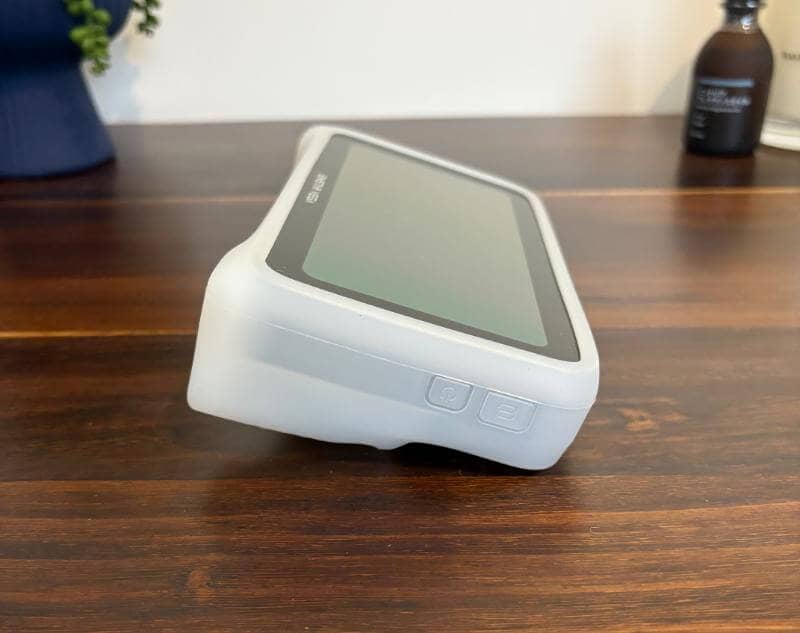

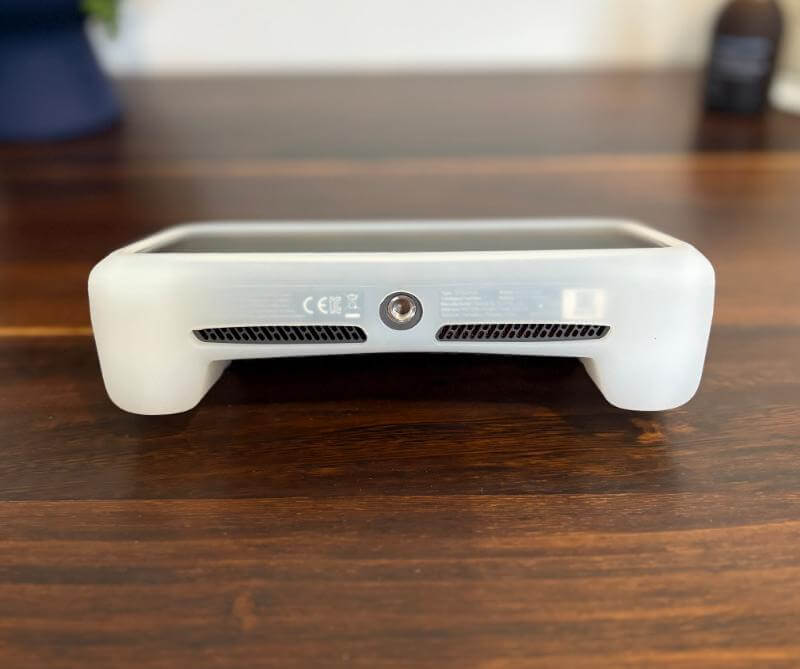

Physical connectivity is handled through a USB-C port on the left, which doubles for file transfers and charging. On the right side, you’ll find the power and capture buttons positioned for easy access, while the bottom of the scanner includes a mounting point and air vents for cooling.
Internally, the scanner is equipped with powerful hardware, including 32GB of RAM and a combination of eMMC and SSD storage totalling 544GB. This all-in-one setup means no external processing is required, enabling users to scan, process, and save models directly on the device without relying on a computer.
Key Features

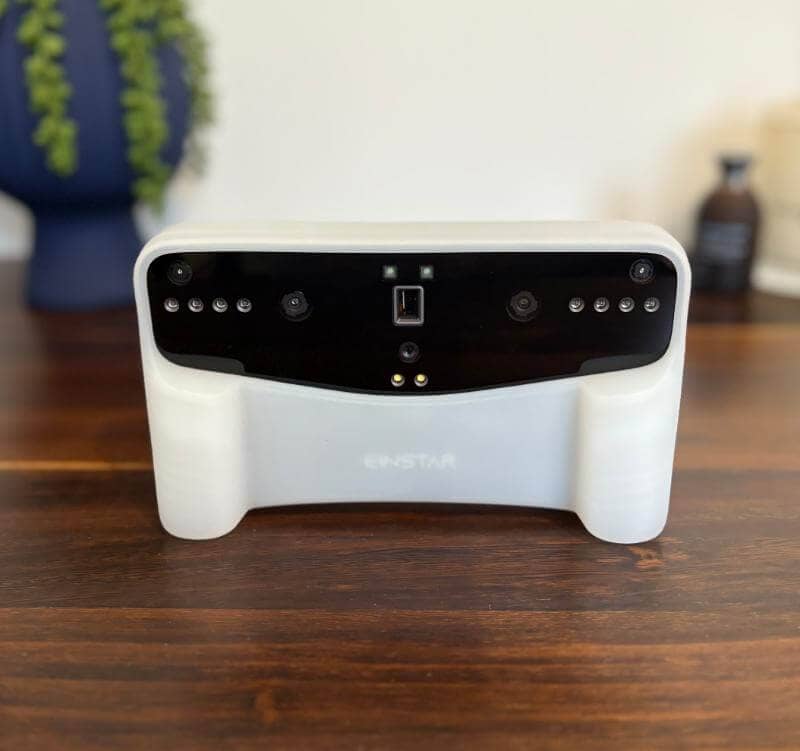

One of the standout features of the EINSTAR VEGA is its dual scanning system, combining VCSEL and MEMS projection technologies in one compact unit. This makes it highly adaptable, allowing users to scan a wide variety of object sizes with consistent accuracy.
Fast Mode utilises an infrared VCSEL projector to capture large and medium-sized objects quickly and efficiently. It offers a broad field of view and a generous working distance range of 350mm to 1500mm, making it ideal for bigger items like machinery or furniture.
HD Mode is optimised for small, detailed objects using MEMS projection technology and a closer working distance. This mode captures extremely fine features with a point distance as low as 0.05mm, making it perfect for delicate items such as jewellery, tools, or figurines.

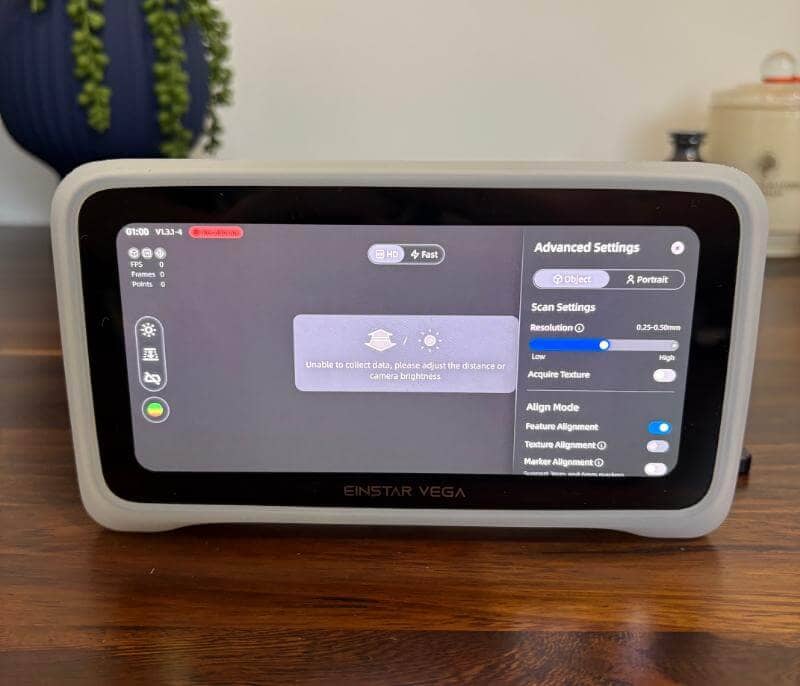

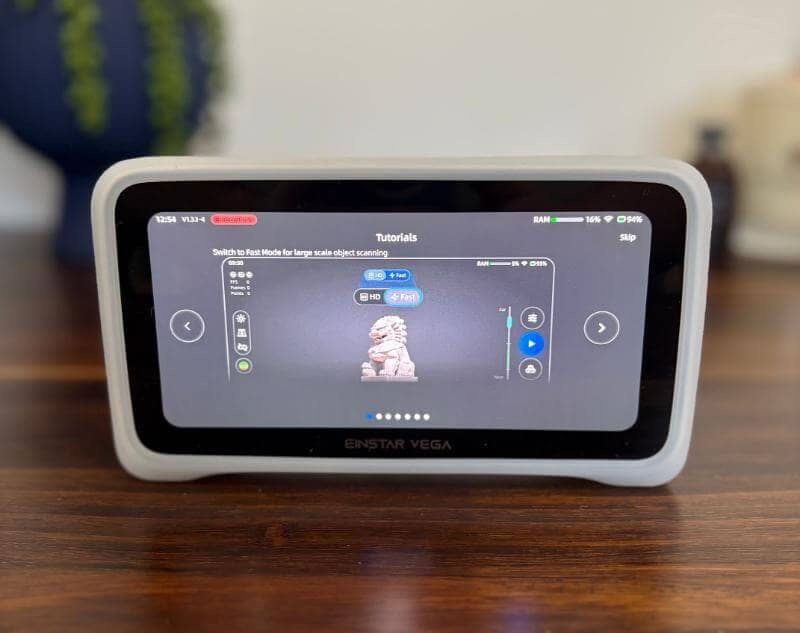

Switching between scanning modes is fast and seamless, requiring only a few taps on the touchscreen interface. This flexibility is incredibly useful when projects involve both detailed close-ups and wider scans, allowing users to work without changing devices.
The EINSTAR VEGA includes a powerful 48MP RGB camera that captures full-colour texture data in addition to geometry. This not only improves the visual fidelity of scans but also assists with alignment accuracy during the processing phase.
A key strength of the EINSTAR VEGA is its one-click scanning workflow, designed for simplicity and efficiency. Users can begin scanning almost immediately after turning the device on, with minimal manual adjustments required.
Wireless functionality further enhances usability, enabling scans to be performed, saved, and shared without any cables. Built-in WiFi and cloud integration eliminate the need for a permanent computer connection, freeing up users to scan in virtually any location.
The SHINING 3D Cloud platform provides 5GB of free online storage, allowing users to upload and manage their scan data remotely. Files stored in the cloud can be accessed, viewed, and shared across devices, making collaboration and remote work more convenient.

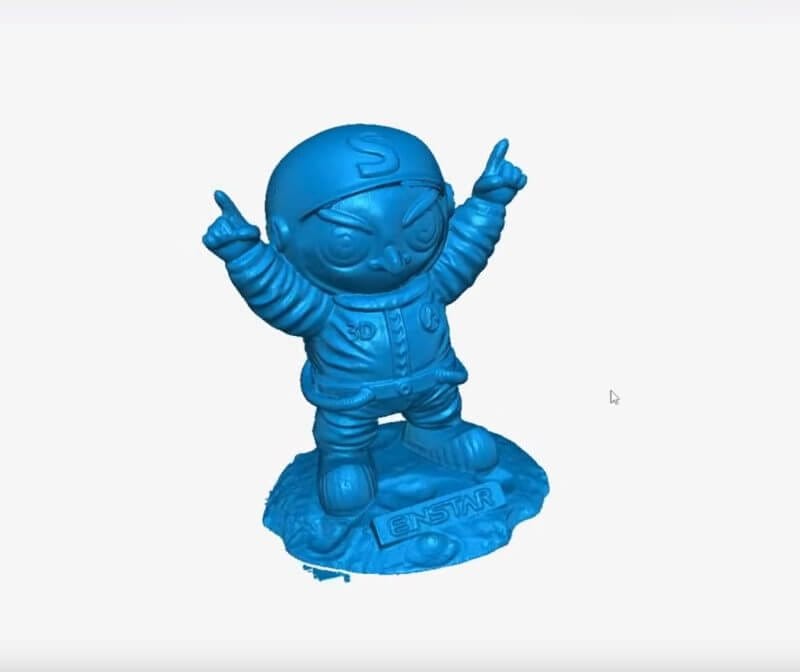

For those needing more control, the StarVision desktop application provides a full suite of editing and processing tools. It supports scan merging, advanced post-processing, and export in various formats, helping professionals prepare models for 3D printing, design, or inspection.
StarVision is compatible with both Windows and macOS, broadening its accessibility across different systems. While file transfer from the scanner to the desktop app requires a USB-C cable, the trade-off is a more powerful and precise editing environment.
The hardware inside the EINSTAR VEGA is equally impressive, featuring 32GB of RAM and dual internal storage solutions—32GB eMMC and 512GB SSD. This combination allows for smooth scan performance, rapid data saving, and ample space for ongoing projects.
With its all-in-one design, the EINSTAR VEGA eliminates the need for external computing or extra scanning accessories. Everything needed to perform, process, and store scans is built into the device, making it a fully self-contained solution for 3D modelling tasks.
EINSTAR VEGA Specifications
Scan Modes:
- HD Mode – For small, detailed objects
- Fast Mode – For medium to large objects
Light Source:
- HD Mode: Infrared MEMS
- Fast Mode: Infrared VCSEL
Point Distance (Detail Level):
- HD Mode: 0.05mm to 3mm
- Fast Mode: 0.5mm to 10mm
Capture Frame Rate:
- HD Mode: Up to 15 frames per second
- Fast Mode: Up to 20 frames per second
Working Distance:
- HD Mode: 100mm to 350mm
- Fast Mode: 270mm to 1500mm
IR Camera Resolution:
- HD Mode: 2 Megapixels
- Fast Mode: 1.3 Megapixels
Alignment Options:
- Feature-based
- Texture-based
- Marker-based
- Hybrid alignment
Colour Camera:
- 48 Megapixels
Supported File Formats:
- PLY, STL, OBJ, ASC
Outdoor Scanning:
- Yes
Weight:
- Limited Edition: 643g
- Regular Edition: 535g
Size:
- 180mm (L) × 95mm (W) × 26.5mm (H)
Processor:
- 8-core, 2.4GHz
Memory (RAM):
- 32GB LPDDR4
Storage:
- 32GB eMMC + 512GB SSD
Charging:
- 65W fast charger (supports PD/PPS)
Connectivity:
- Wi-Fi 6
- USB Type-C
Screen:
- 6.4-inch 2K OLED touchscreen
Supplemental Lighting:
- 10 integrated lights
IMU (Motion Tracking):
- 6 Degrees of Freedom (6 DoF)
Operating Conditions:
- Temperature: -10°C to 40°C
- Humidity: 0% to 90% RH (non-condensing)
Packaging Size:
- 380mm × 305mm × 155mm
Protection Rating:
- IP50
Battery:
- Built-in 5000mAh
- Supports external power banks
System Compatibility:
- Fully standalone for scanning (no computer required)
- StarVision Software (for PC editing):
- Windows 10/11 (64-bit)
- macOS 11.0+ (Apple chip)
Recommended PC Specs for StarVision:
- Intel i7
- 32GB RAM
Experience Using the Product and Performance

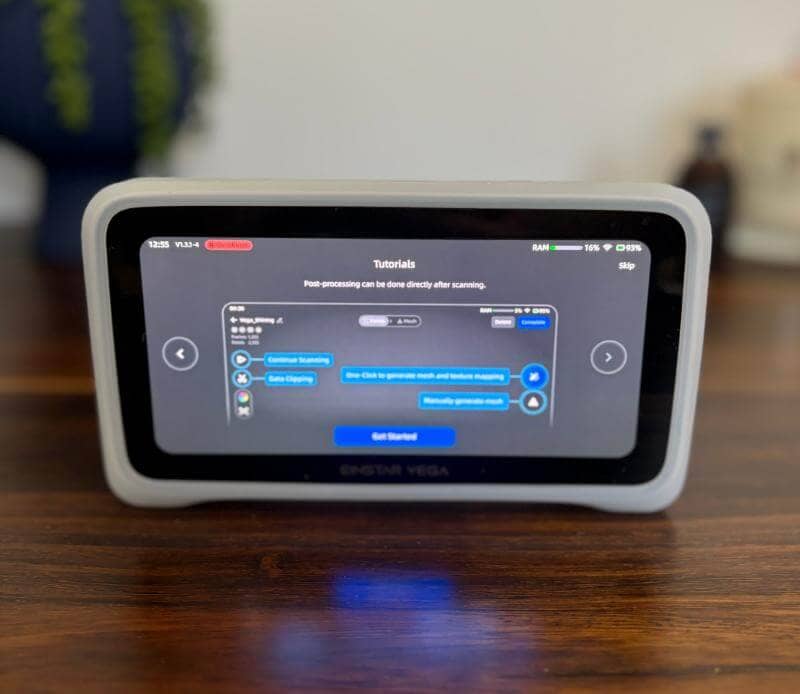

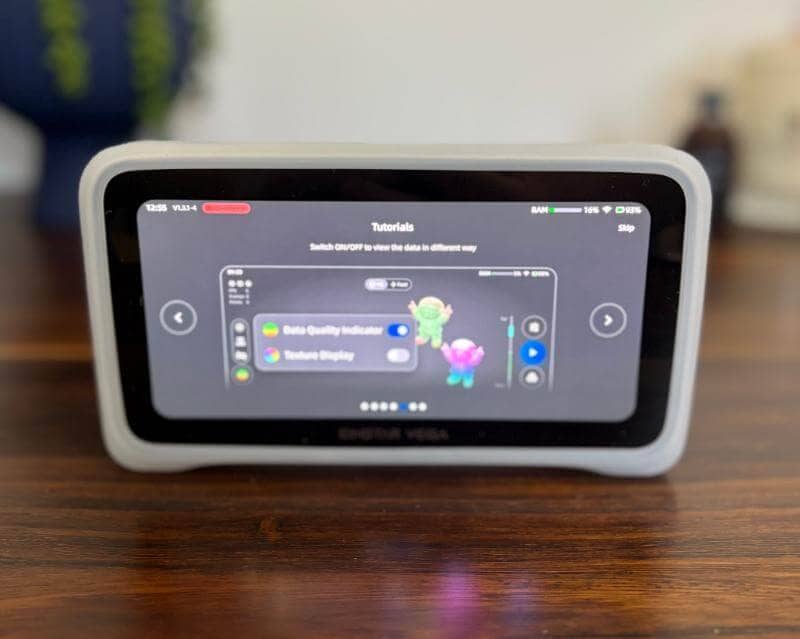

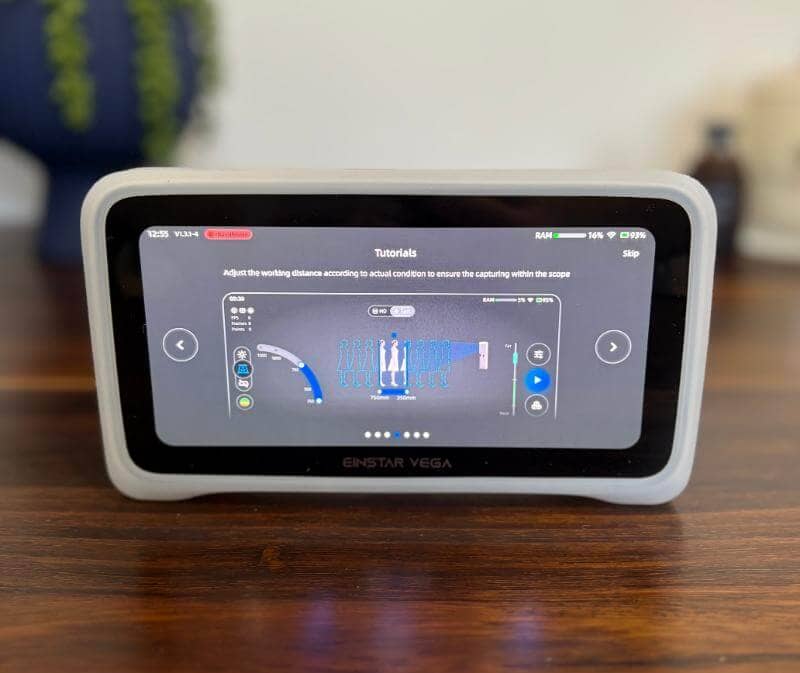

From the first time you power on the EINSTAR VEGA, the experience feels refined, efficient, and welcoming. The interface is minimal yet informative, allowing new users to get started quickly without feeling overwhelmed by technical jargon.

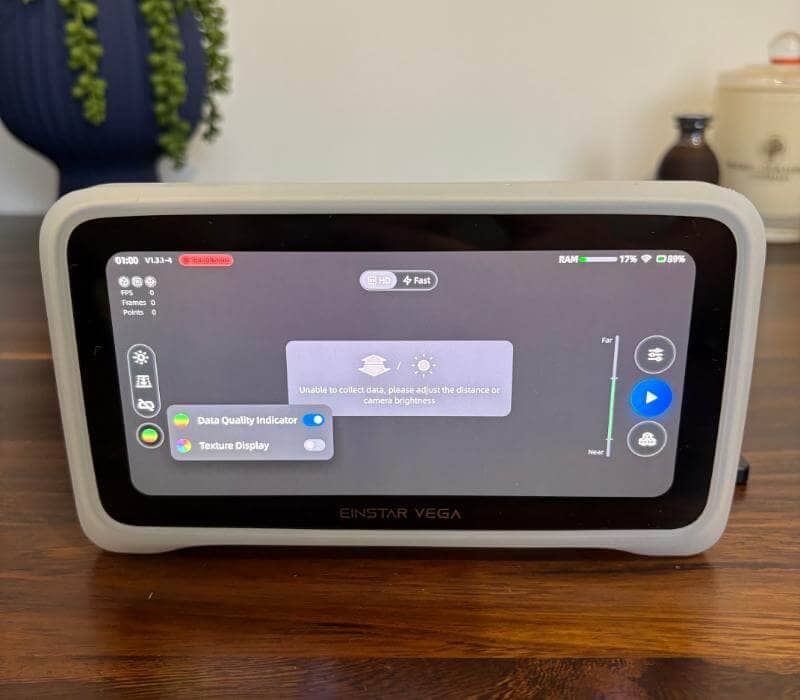

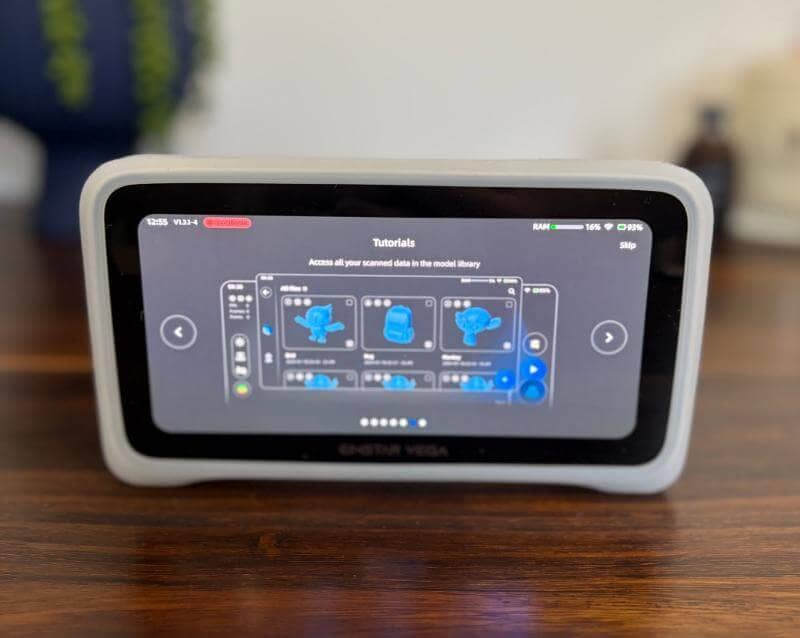

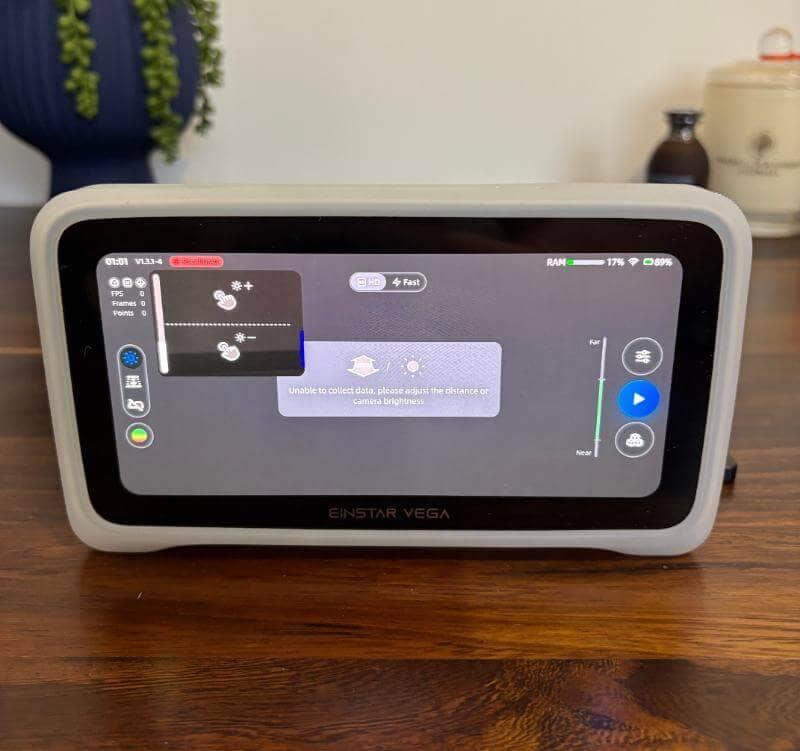

Navigating the touchscreen menus is smooth and responsive, with clearly labelled icons and options. Transitioning between scan modes or adjusting basic settings can be done easily, even mid-session, which is a real benefit during time-sensitive tasks.
Starting a scan is quick thanks to the one-click workflow, which minimises preparation time and gets you scanning almost immediately. The system detects surfaces well, and the scanner begins capturing data as soon as the object is framed in view.
Fast Mode lives up to its name, offering speedy scanning for large and medium-sized objects with very few interruptions. During testing, we scanned larger items like furniture and outdoor equipment in a matter of minutes with excellent tracking retention.
The EINSTAR VEGA’s tracking system is particularly impressive, maintaining consistent alignment even when the scanner is briefly moved off the target. When tracking is lost, it picks back up with ease, allowing for uninterrupted scanning across complex surfaces.
HD Mode is more demanding in terms of setup but rewards users with exceptional detail and precision. Using a tripod and turntable significantly enhances scan stability, especially for smaller objects with intricate textures or limited surface features.

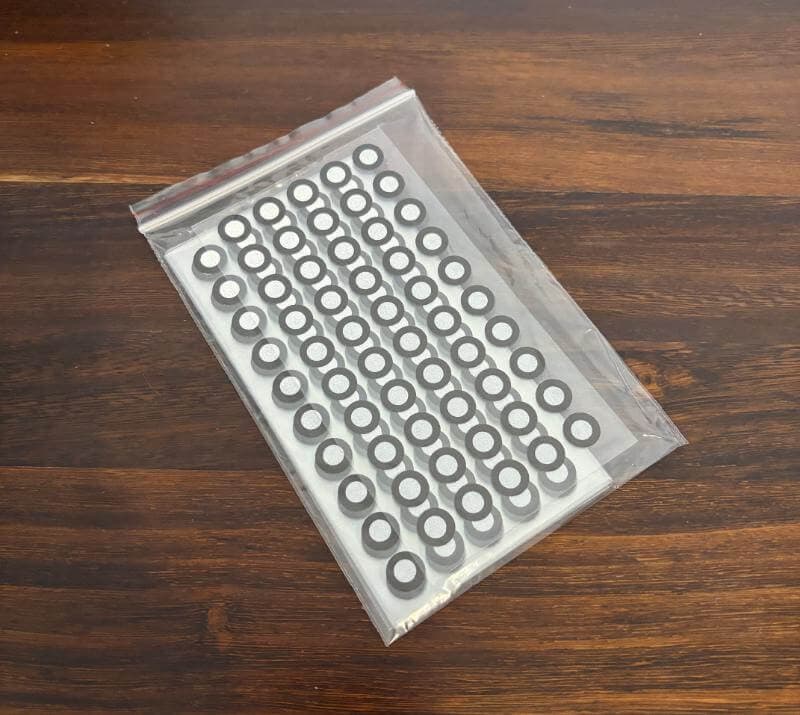

Marker Alignment mode is particularly useful when scanning items with few natural features, ensuring reliable registration. Including sticky markers in the box is a thoughtful touch that adds flexibility and improves scan consistency in challenging scenarios.

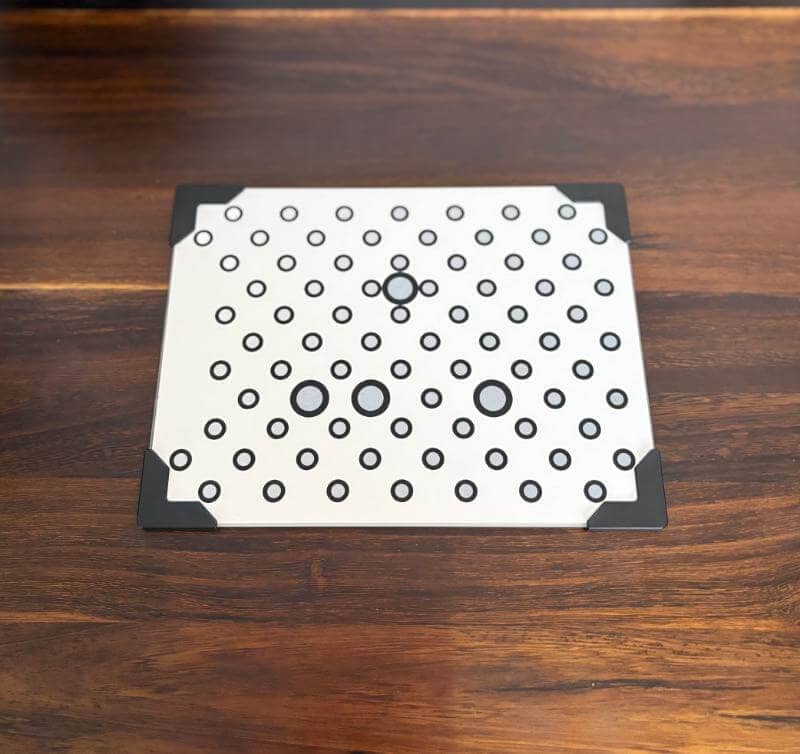

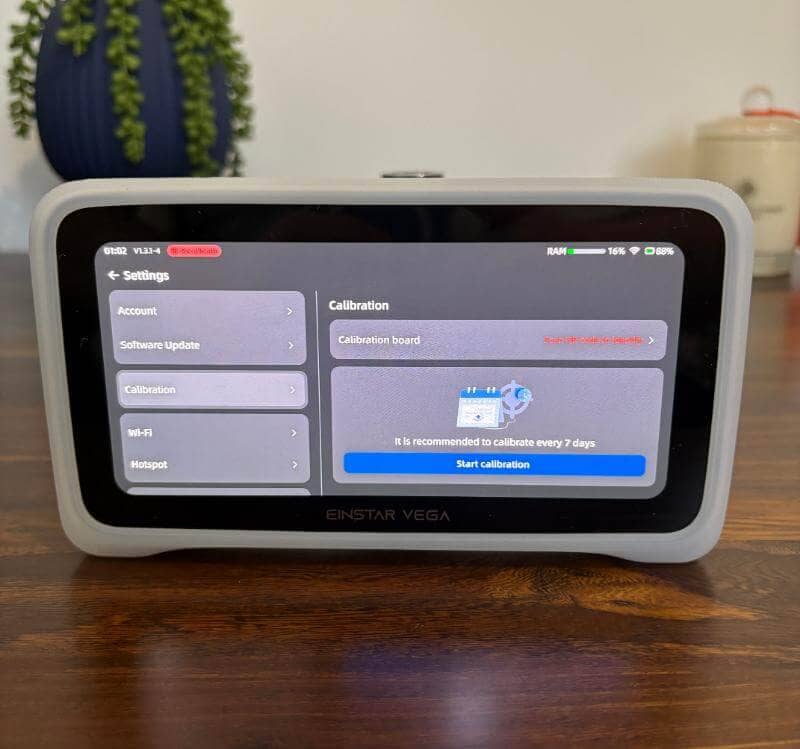

Calibration is a simple process that only takes about five minutes and is recommended weekly for optimal performance. The provided board and software guide make this step easy to follow, even for users unfamiliar with calibration procedures.
Wireless scanning delivers real convenience, especially when working in tight spaces or moving between indoor and outdoor environments. There’s no need to tether the device to a laptop, giving users greater freedom of movement and a less cluttered workspace.
The 6.4-inch AMOLED display is a great tool for monitoring scans in real-time, although visibility in bright sunlight is a bit limited. Indoors, the screen performs excellently, showing fine details and clear menus that make tracking your progress simple.
Battery life supports about 30 minutes of active scanning, which is suitable for most tasks, though longer projects may require charging breaks. Fortunately, the device recharges in about an hour, and a power bank can easily extend its runtime in the field.
Onboard storage is generous, comfortably handling multiple large projects without the need to offload data mid-session. The internal SSD helps the scanner process and save models quickly, which is especially noticeable during large or complex scans.
The StarVision desktop software enhances the overall experience by providing advanced editing tools that go beyond what the cloud platform offers. While it requires USB transfer, its capabilities for scan merging, post-processing, and export are excellent for professional use.
The EINSTAR VEGA delivers a highly capable and enjoyable scanning experience. It combines reliable performance, a thoughtful design, and accessible tools into a single package that caters to both hobbyists and professionals across a wide range of applications.
Conclusion
The EINSTAR VEGA succeeds in offering a powerful and accessible 3D scanning experience in a compact, all-in-one design. It brings together ease of use, high performance, and portability in a way that suits both beginners and seasoned users alike.
Its dual-mode scanning system provides great flexibility, allowing users to switch between fast wide-area scans and detailed close-up captures without changing equipment. This versatility makes it an excellent tool for a wide variety of creative, technical, and professional tasks.
With features like wireless scanning, onboard processing, and a high-resolution touchscreen, the EINSTAR VEGA simplifies the entire workflow from setup to final output. Whether you’re working in a studio or on location, the scanner is well-equipped to keep up with your needs.
If you’re looking for a capable, user-friendly 3D scanner that doesn’t sacrifice performance for portability, the EINSTAR VEGA is a strong contender. It delivers impressive results, supports multiple workflows, and opens up new possibilities for capturing and creating in 3D.
