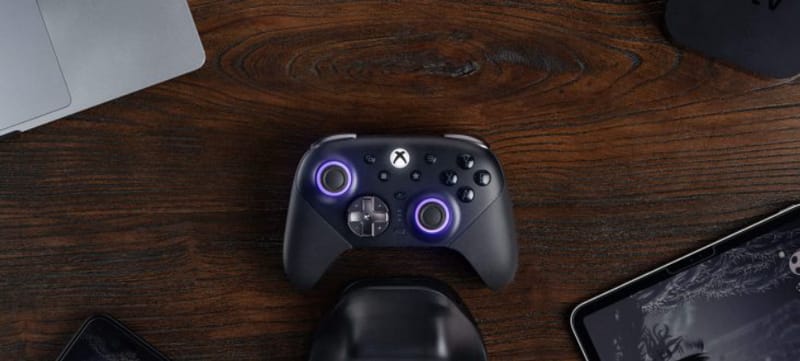

The 8BitDo Ultimate 3E controller has launched across the UK and Europe, bringing officially licensed modular design to Xbox Series X|S and Xbox One. It works over 2.4GHz wireless, wired USB, or Bluetooth, and it connects to consoles, PC, Android, and Apple devices alike. For players who want a pad they can tweak, repair, or rebuild rather than replace, this is the most flexible option 8BitDo has put out for Xbox so far.
Key takeaways
- ✓The 8BitDo Ultimate 3E controller is officially licensed for Xbox Series X|S and Xbox One.
- ✓It connects via 2.4GHz wireless, USB, or Bluetooth across consoles, PC, Android, and Apple devices.
- ✓Swappable ABXY modules, D-pads, and thumbstick tops allow custom builds or easy repairs.
- ✓PC users get up to 1000Hz polling, Hall-effect triggers, and 18 hours of battery life.
- ✓The controller ships with a charging dock and a dedicated travel case.
What sets the Ultimate 3E apart from a standard first-party controller is how much of it comes apart. Rather than a single sealed unit, the controller ships with swappable modules and a dedicated travel case so none of the extra parts get lost in a drawer. It is a design philosophy 8BitDo has refined across several releases, and this latest model pushes it further than before.
Table of Contents
8BitDo Ultimate 3E controller: what’s actually modular
The headline feature is customisation. Players can switch between silicone and micro-switch ABXY button modules depending on whether they prefer a softer press or a crisper, more tactile click. The D-pad is swappable too, with standard and circular options included, and the thumsticks come in different heights and profiles to suit different grip styles and genres.
Beyond the cosmetic and feel-based swaps, this modularity has a practical upside: repairability. A worn-out ABXY module or a damaged stick top does not mean the whole controller becomes useless. Users can simply replace the part rather than the entire pad, which is a meaningful departure from most licensed console controllers that are effectively disposable once a component fails.
The body itself has been reworked with a wider grip angle and silicone side grips for comfort during longer sessions. Customisable RGB Fire Rings sit around the thumbsticks, giving the controller a visual identity alongside the functional changes.
Specifications and performance details
Underneath the modular shell, the Ultimate 3E uses TMR thumbsticks paired with a 12-bit ADC sampling chip, a combination aimed at reducing stick drift and improving precision over time compared with older potentiometer-based sticks. Hall-effect impulse triggers with dual trigger stops are fitted for faster, more consistent trigger response, and the controller adds two quick-action bumpers (L4 and R4) alongside two remappable rear buttons for extra inputs during fast-paced play.
| Feature | Detail |
|---|---|
| Licensing | Officially licensed for Xbox Series X|S and Xbox One |
| Connectivity | 2.4GHz wireless, wired USB, Bluetooth |
| Compatible platforms | Xbox consoles, PC, Android, Apple devices |
| Thumbsticks | TMR sticks with 12-bit ADC sampling chip |
| Triggers | Hall-effect impulse triggers with dual trigger stops |
| Extra inputs | L4/R4 bumpers, two remappable rear buttons |
| PC polling rate | Up to 1000Hz over 2.4GHz |
| Motion controls | 6-axis, over 2.4GHz connection |
| Battery life | Up to 18 hours, rated by 8BitDo |
| Included accessories | Charging dock, travel case |
When connected to a PC over 2.4GHz, the controller supports polling rates of up to 1000Hz along with 6-axis motion controls, figures aimed squarely at players who want console-style comfort without giving up PC-level responsiveness. The bundled charging dock recharges the internal battery, which 8BitDo rates for up to 18 hours of continuous use.
Software and configuration
Fine-tuning the controller happens through 8BitDo Ultimate Software X, which lets users adjust stick sensitivity, remap buttons, and tweak vibration intensity. It follows the same approach 8BitDo has taken with previous Ultimate-series pads, where software tuning does much of the heavy lifting once the hardware is configured the way a player wants it.
That configuration layer matters more here than on a typical controller because of the modular hardware underneath it. Swapping a D-pad or stick top changes how the controller feels, and Ultimate Software X lets players match the digital settings to whatever physical setup they have built. It is a similar idea to the browser-based approach 8BitDo introduced for Linux users through 8BitDo Ultimate Software’s browser-based configuration tool, extending accessible configuration beyond Windows.
How it fits against 8BitDo’s existing Xbox lineup
8BitDo already has a crowded stable of Xbox-licensed pads, including 8BitDo’s Ultimate 2C Bluetooth controller and the Ultimate 2.4G Wireless controller, both of which built a reputation on solid build quality and software support at accessible positioning. The Ultimate 3E sits above those models, adding the Hall-effect triggers, TMR sticks, and modular hardware that the earlier pads lack.
It also extends a design language seen in 8BitDo’s retro-styled hardware, such as 8BitDo’s Retro 87 Xbox Edition keyboard, where officially licensed Xbox branding meets a distinctly customisable approach to hardware. The Ultimate 3E controller applies that same logic to a gamepad rather than a keyboard, and the modular parts make it a genuinely different proposition from Microsoft’s own Xbox Wireless Controller.
For buyers already invested in the Xbox and PC ecosystem via the official Xbox platform, the appeal is straightforward: one controller that adapts rather than one that gets replaced when a stick starts to drift or a button wears out. Full specifications and configuration details are available on the official Ultimate 3E product page.
Frequently asked questions
Is the 8BitDo Ultimate 3E controller compatible with PC?
Yes. It connects to PC over 2.4GHz wireless, USB, or Bluetooth, and offers polling rates of up to 1000Hz along with 6-axis motion controls when using the 2.4GHz connection.
What does “modular” mean on this controller?
It means several physical parts can be swapped by the user, including the ABXY buttons (silicone or micro-switch versions), the D-pad (standard or circular), and the thumbstick tops, which come in different heights and profiles.
How long does the battery last?
8BitDo rates the Ultimate 3E controller for up to 18 hours of continuous play, and it recharges using the included charging dock.
Does the Ultimate 3E work with Xbox One as well as Xbox Series X|S?
Yes, it is officially licensed for both Xbox Series X|S and Xbox One, alongside PC, Android, and Apple device compatibility.
