Today, our ASUS AX5700 RT-AX86U Pro Review discusses a fast, smooth gaming WiFi 6 router from ASUS. The product delivers fast WiFi speeds that reach up to 5700 Mbps. Plus, it integrates advanced technology like the Mobile Game mode for low-latency, lag-free mobile gaming.
The router also has other notable features, which we will discuss in this ASUS AX5700 RT-AX86U Pro Review. Moreover, we will also talk about its design, functions, specifications, and how it fares under various tasks.
ASUS AX5700 RT-AX86U Pro Packaging
The RT-AX86U Pro ships in a dark-coloured cardboard box thick enough to protect the items inside. The front features an image of the router, its name, primary features, and company branding. More details about the product are at the back of the package, which you can refer to whenever needed.
The box has the following items inside:
- RT-AX86U Pro WiFi router
- Power Adapter
- RJ-45 Cable
- Warranty Card
- Quick Start Guide
ASUS AX5700 RT-AX86U Pro Review – Design and Functionality
This product is a standard router. However, this ASUS AX5700 RT-AX86U Pro Review will show you why it is a better option than similar products.

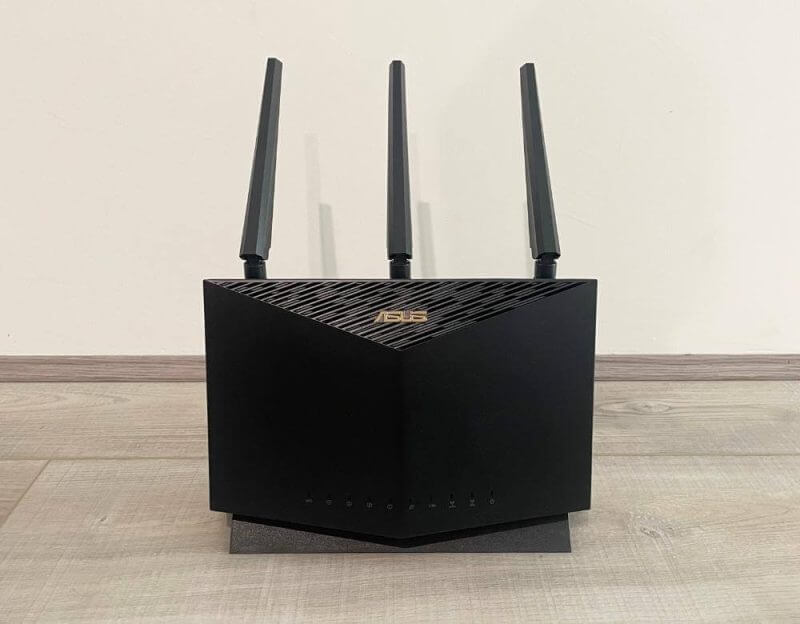

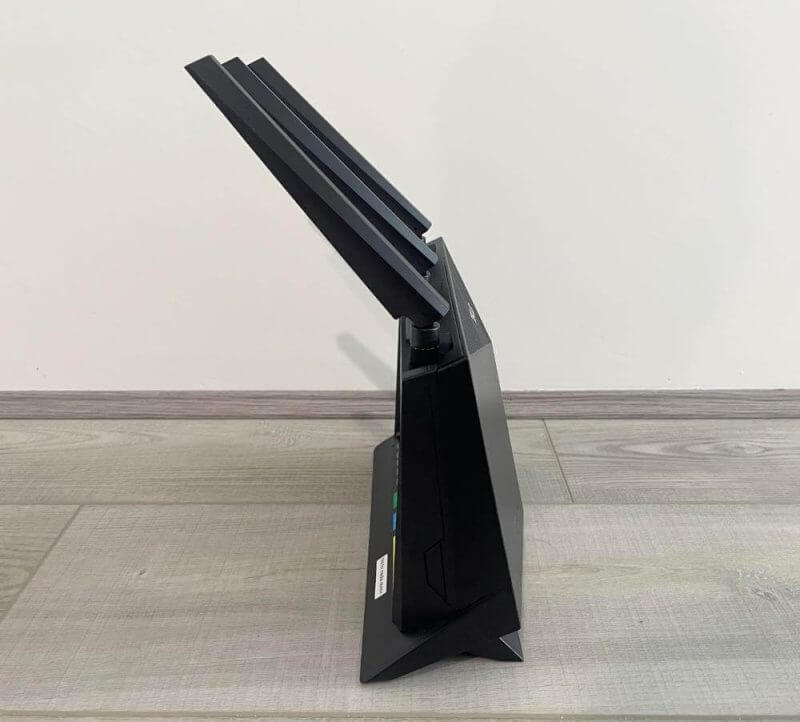

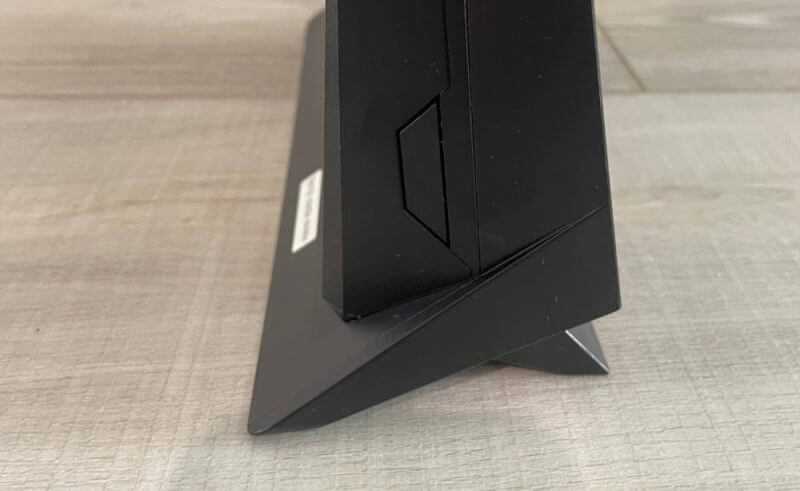

The RT-AX86U Pro has vertical installation and a static stand on its body. Despite this feature, the product still has its distinct characteristics.
The router is rather massive, measuring 242 x 100 x 164/325mm without and with the antenna. It is also quite heavy at 814.5g. It is good to note that an older router like the RT-AX86U Pro requires more space when updating.

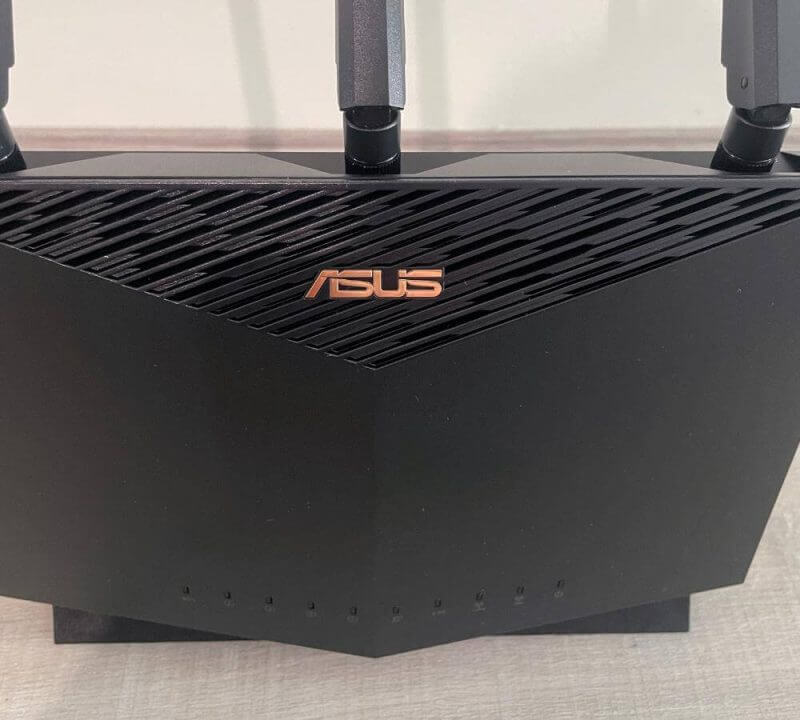

Three modest antennas contribute to its substantial aesthetics without compromising its overall gaming concept. Within the packaging, these antennas are away from the main case, but often, companies leave these fixed on the cases.

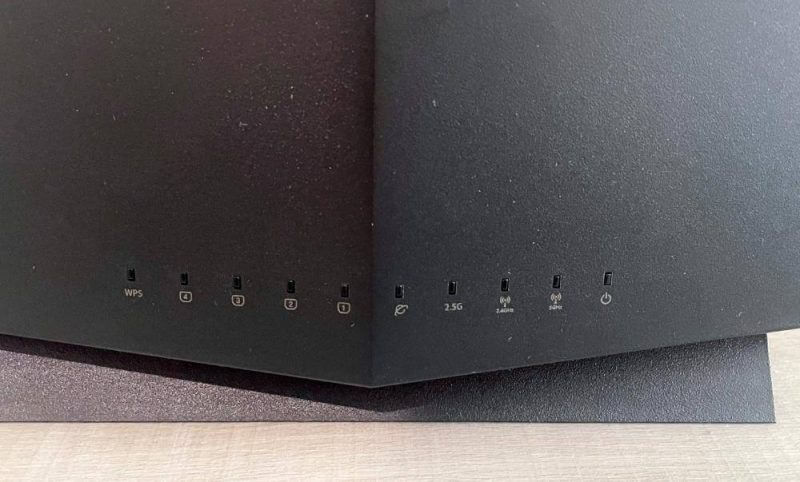

The router boasts numerous cooling slots, complemented by ten illuminating white status diodes. These diodes not only brighten a dark room. They also offer the option of being turned off.

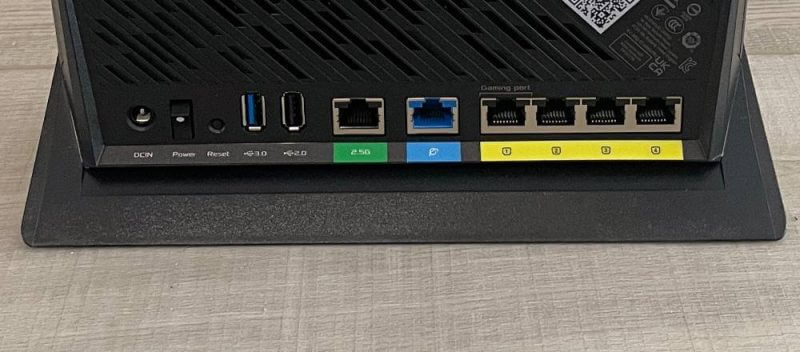

The diodes have a dedicated button, although you can also deactivate the lights via the administrative panel or mobile application. The button to activate WPS mode is on the opposite side of the router. We appreciate ASUS for making everything convenient by placing the ports along the rear.
These include the following:
- Power port
- Two USB ports (3.0 and 2.0)
- 2.5-gigabit Ethernet port
- WAN port
- Four LAN ports
Adjacent to the power port are a power toggle and a recessed reset button.
Key Features of the ASUS AX5700 RT-AX86U Pro
This router integrates many notable features we will share in this ASUS AX5700 RT-AX86U Pro Review. These make it an ideal option if you need an ASUS dual-band WiFi 6 gaming router.
ASUS AX5700 RT-AX86U Pro – Top-Notch Router Beyond Performances
The RT-AX86U Pro uses a 2.0 GHz quad-core 64-bit CPU. This processor can deliver the performance that can handle the most demanding gaming network. It provides maximum network throughput by 18%, accelerating lightning-fast data transfers and optimising your gaming experience.
Fast and Stable Whole-Home Network for Gaming
Some routers leave dead spots at home, and the RT-AX86U Pro solves this issue. It supports ASUS AiMesh, a unique mesh networking technology that forms a network that covers the entire home with multiple ASUS routers.
The user-friendly central control and seamless roaming make it easy for non-experts to set it up with other AiMesh-capable routers.
Eliminate Network Bottlenecks
The Adaptive QoS or Quality of Service prioritises network traffic to keep your network operating smoothly. You can prioritise activities like streaming video, web surfing, and gaming. It is your perfect companion for achieving and delivering low-latency WiFi in all corners of your home.
Lightning-Fast 2 Gbps Internet
ASUS designed the RT-AX86U Pro to eliminate all obstacles slowing your gaming. This router supports up to 2 Gbps internet connection, allowing you to unlock the maximum potential of high-speed networking. It delivers optimal performance, whether you use wired or WiFi connectivity.
A Safer Browsing Experience with the ASUS AX5700 RT-AX86U Pro
ASUS Safe Browsing allows you to block inappropriate content, intrusive ads, and unwanted content in one tap. The best thing about this feature is it does not require an extra app. In addition, the lightweight DNS-based filtering can filter explicit content from search engine results without compromising its performance.
Complete Security for Your Home Network
This router features the latest WPA3 and the Trend Micro-powered AiProtectionPro. The latter automatically provides updated security signatures regularly to protect your devices and data from internet threats.
Parental Controls at Your Fingertips
The parental controls of the RT-AX86U Pro help you learn more about your kids’ online activities. Plus, you can customise settings for specific age groups and flexibly set schedules for internet access. The ASUS Router app makes everything easy and convenient by allowing you to access these controls with one click/tap.
Instant Guard for Secure Free WiFi
The ASUS Instant Guard mobile app offers one-tap secure internet access via the RT-AX86U Pro. It uses an encrypted VPN tunnelling technology to keep your network connection worry-free. With the newly upgraded app, you can conveniently share the network via URL link.
Conveniently Access VPN with the ASUS AX5700 RT-AX86U Pro
The router offers quick and secure VPN access, which we enjoyed while testing for this ASUS AX5700 RT-AX86U Pro Review. It works for streaming, gaming, and many different activities.
The ASUS Router app and web interface lets you conveniently set and manage your VPN connections like WireGuard and OpenVPN.
Encrypted Remote Connection
The RT-AX86U Pro allows remote workers to access corporate networks securely without a VPN on each device. You can create different VPN connection types, like OpenVPN, Wireguard, L2TP, or PPTP.
VPN Fusion sets various devices to different VPN tunnels while keeping a standard internet connection.
Specifications
- Processor: 2.0GHz quad-core processor
- Memory: 1GB RAM + 256MB Flash
- Operating Frequency: 2.4 GHz / 5 GHz
- Transmit/Receive: 2.4GHz 3×3 | 5GHz 4×4
- Weight: 814.5g
- Dimensions: 242 x 100 x 325 (with antenna) | 242 x 100 x 164 (without antenna)
Hands-on with the ASUS AX5700 RT-AX86U Pro
We tested the router for two weeks to give you a thorough and detailed ASUS AX5700 RT-AX86U Pro Review. While testing the product, we observed the Router App, its web interface, and how it fared.
The ASUS Router app and web interface are where you can tweak various settings of the RT-AX86U Pro. The interface allows you to prioritise specific wireless devices in the local network.
Aside from prioritising bandwidth, you can configure Open NAT profiles for particular titles. Although it has several standard QoS modes of operation, these do not override the Open NAT profile.
The ASUS Router app and web interface also have standard traffic analysis and parental control functions. Plus, ASUS continues to cooperate with Trend Micro to guarantee security.
The company retained the layout and functions of the utility suite. The same menus and settings are accessible via the mobile app or web interface.
You will also find support for network operation with separate bands and Smart Connect. The latter is for distributing devices based on their needs and capabilities. Each band allows you to create three guest networks with rules and time limits.
The ASUS Router app and web interface also have a menu for remote control settings. Google or Amazon are handy voice assistants that can aid you in several situations.
The network screen functions are in the administrative panel with varying filters and administrative features. The latter includes automatic reboots & updates, system logs, saving settings, etc. You will also find VPN (PPTP, OpenVPN, IPSec, WireGuard, VPN Fusion and remote fast connection via the Instant Guard app.
You can customise the settings according to your preferences without updating network passwords on numerous devices. It includes seamlessly migrating all aspects from your previous setup.
These include registered devices, network IP, parental controls, and more. Ultimately, it will save you a considerable amount of time.
Its range is undeniably impressive since the connection was fast and stable even at the opposite end of our office. Even on the second floor, our connection was seamless, which we greatly appreciate.
ASUS AX5700 RT-AX86U Pro Review Summary
Gamers are among the most demanding users of gadgets and technology. To have an enjoyable gaming experience, they also need a high-quality router.
The RT-AX86U Pro is a feature-rich router with a stable network, high speeds, and broad coverage. It also has numerous functions that help improve the internet connection and security of users.
The RT-AX86U Pro has top-notch specs and features, making it one of the best gaming WiFi 6 routers. We highly recommend it since we enjoyed its performance in our product tests for this ASUS AX5700 RT-AX86U Pro Review.
Learn more about the AX5700 RT-AX860 Pro when visiting the official ASUS product page.
