More motherboards are dropping on the market, but the drop in their price tags seems nowhere in sight. So, if you plan to purchase an ASUS ROG Strix motherboard, here is something for you. In our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review, we will discuss its latest, more budget-friendly option.
This STRIX B760-F sports groundbreaking technology and a notable collection of features. It works like the top-notch chipsets available but has some restrictions, leaving the motherboard at a lower price.
Our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review focuses on its features, design, functions, specs, and performance. But before looking deeper into these, let us check its packaging and contents.
ASUS ROG STRIX B760-F Gaming WIFI Motherboard Packaging
The motherboard arrived for our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review in a standard-looking ROG STRIX box. The front of the package displays an image of the product, its name, and company branding. You will also find its highlighted features that make the motherboard a hit.
Flipping the box, its rear displays more details about the motherboard.
Inside, the motherboard and its accessories are secure and protected against possible damage during shipping. Other than the STRIX B760-F, items you will find in the box include the following:
- Two SATA 6Gb/s cables
- ASUS WIFI moving antennas
- Thermal pad for M.2
- M.2 Q-Latch package
- Cable ties
- Two M.2 Rubber Packages
- A set of ROG STRIX stickers
- One ROG STRIX keychain
- A thank you card
- A user guide and other documentation
ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review – Design and Functionality

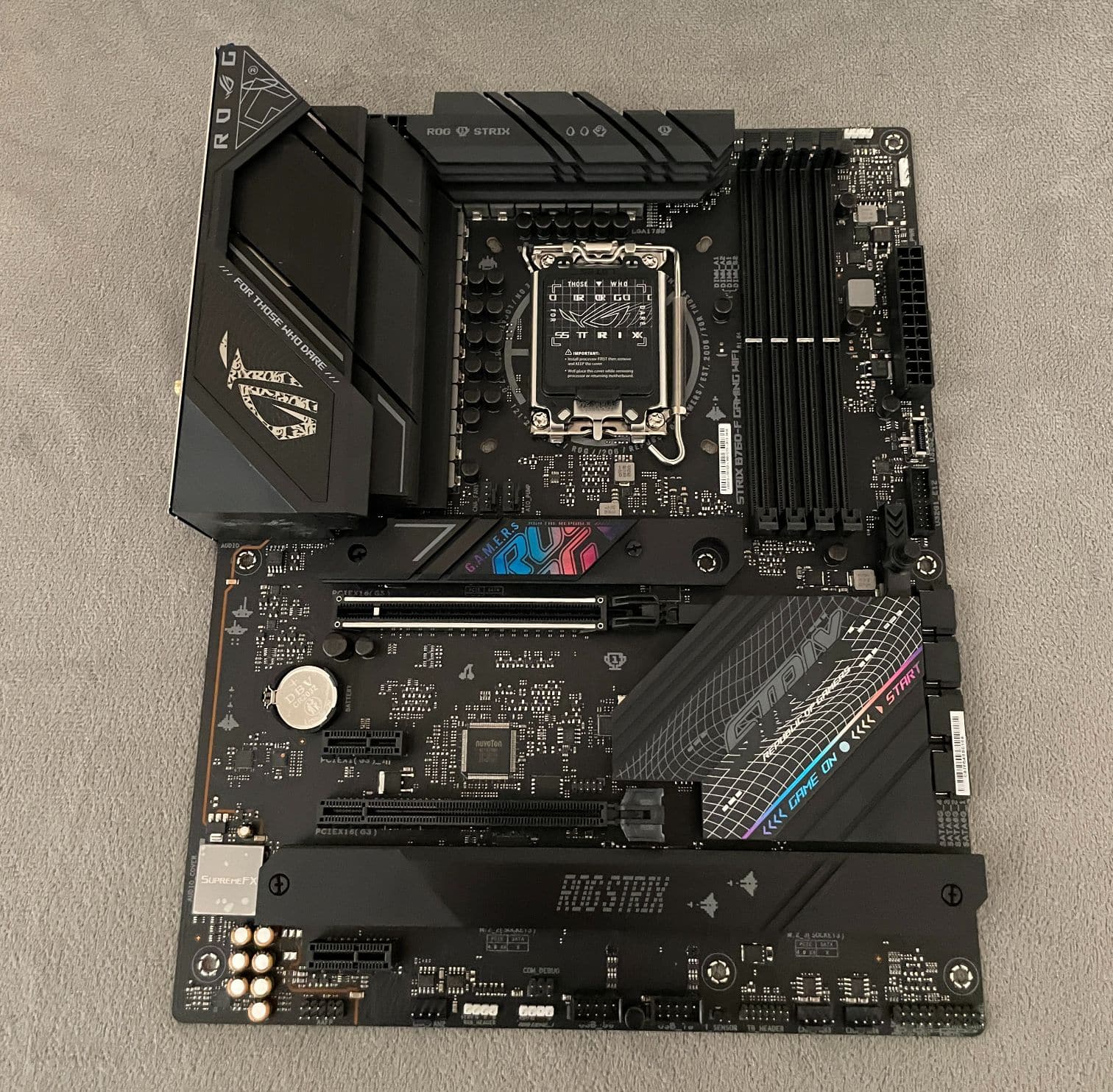

While writing our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review, we noticed how the motherboard layout stays the same. It looks like the previous generation ROG STRIX B660-F. However, you can tell that ASUS made some changes to the design of its heatsink.
Aside from changes to its heatsink, the company also included the Q-release button on the motherboard.
Its EPS 12V headers are still the 4+8-pin set, which only requires the 8-pin to function. Also, there is a total of four DIMM slots on this product.
We always appreciate the debug LED feature since it is another way to determine why the system is not posting. Plus, it is ideal for those unfamiliar with Q-code debug LEDs that are only usually available on high-end, enthusiast-grade motherboards.

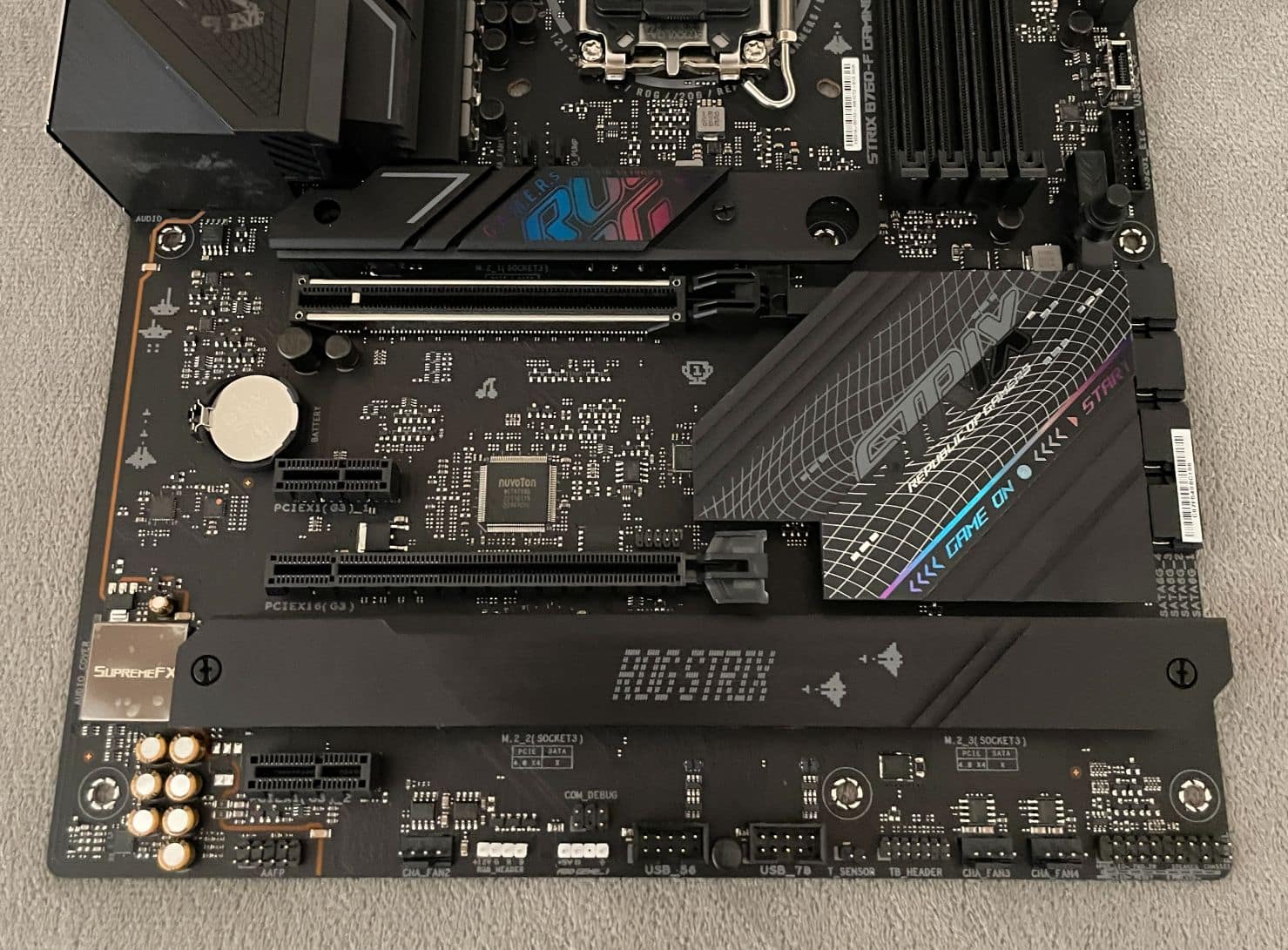

For its expansion slots, you will find the PCIe 5.0 x16 slot. In addition, there is a PCIe x4 slot for graphics cards and extra add-in cards. Also, two PCIe x1 slots and the handy Q-Release button are available on this motherboard.
The Q-Release button is an excellent feature. However, you cannot find this feature in earlier STRIX models.

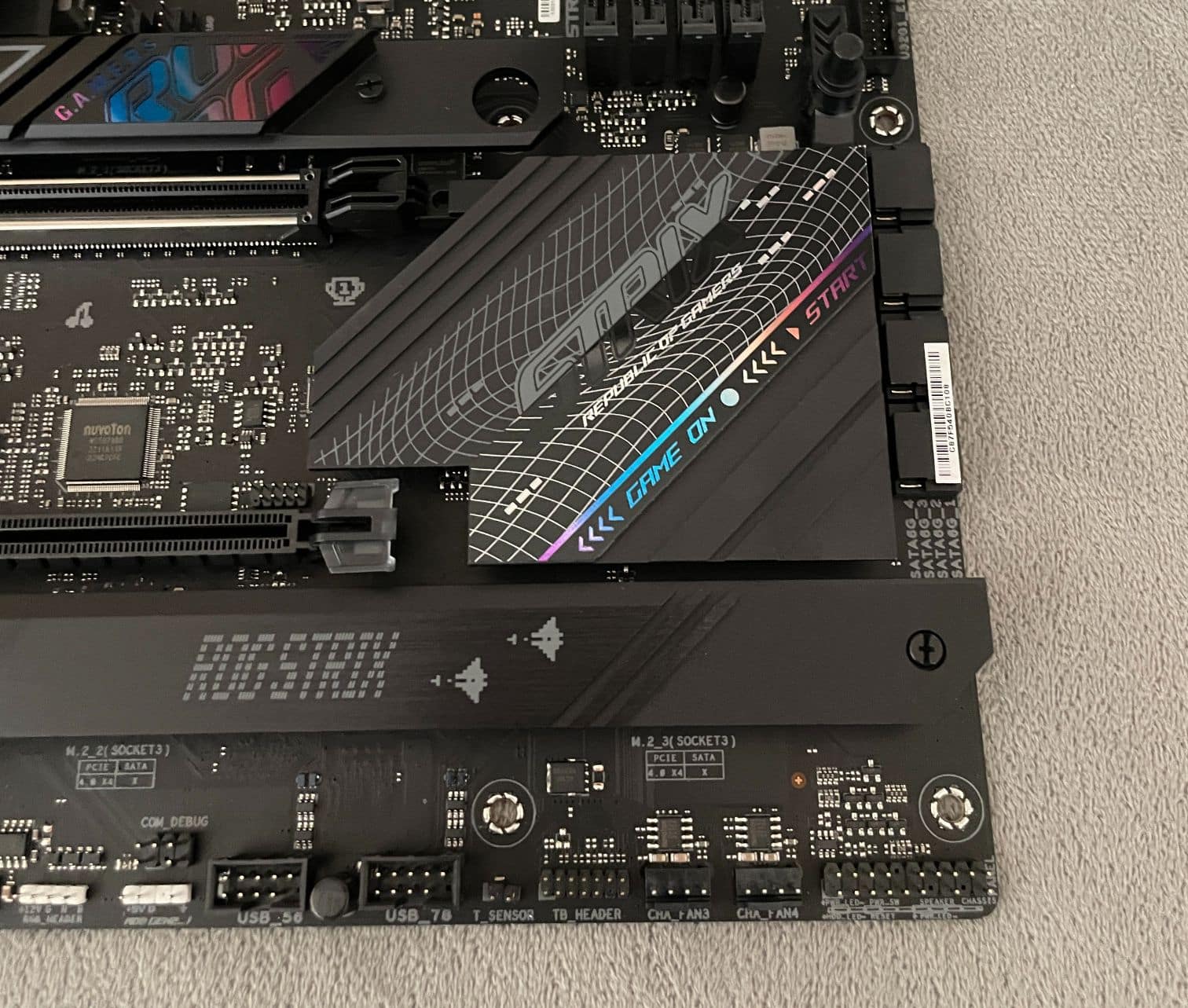

The motherboard can also support up to three M.2 slots, which is enough for most people. The latter is also true if they forego the cable hassles linked to SATA drives in favour of M.2 SSDs.
All SSD slots feature a heatsink to optimise cooling and avoid thermal throttle. It is required if you use an SSD with sequential read/write speeds of 3000MB/s or higher.

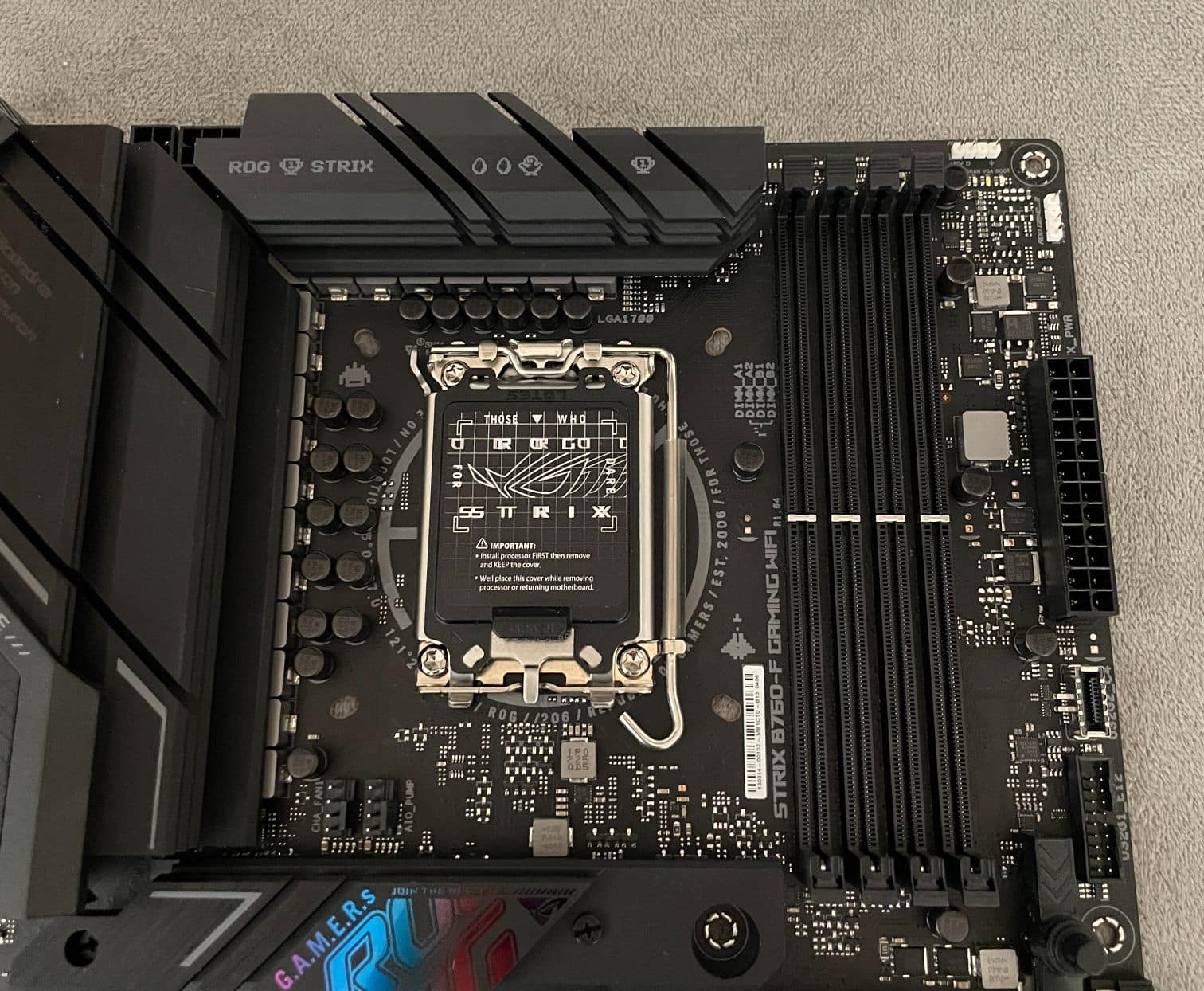

The STRIX B760-F sports a 16+1 power stage design based on its official specifications. And these details are correct based on a teamed style.
The motherboard uses an ASP2100 PWM controller, which is a rebranded RT-3628-AE. It also uses an 8+1 phase Richtek PWM controller and Vishay SiC623 MOSFETs rated at 60A each.

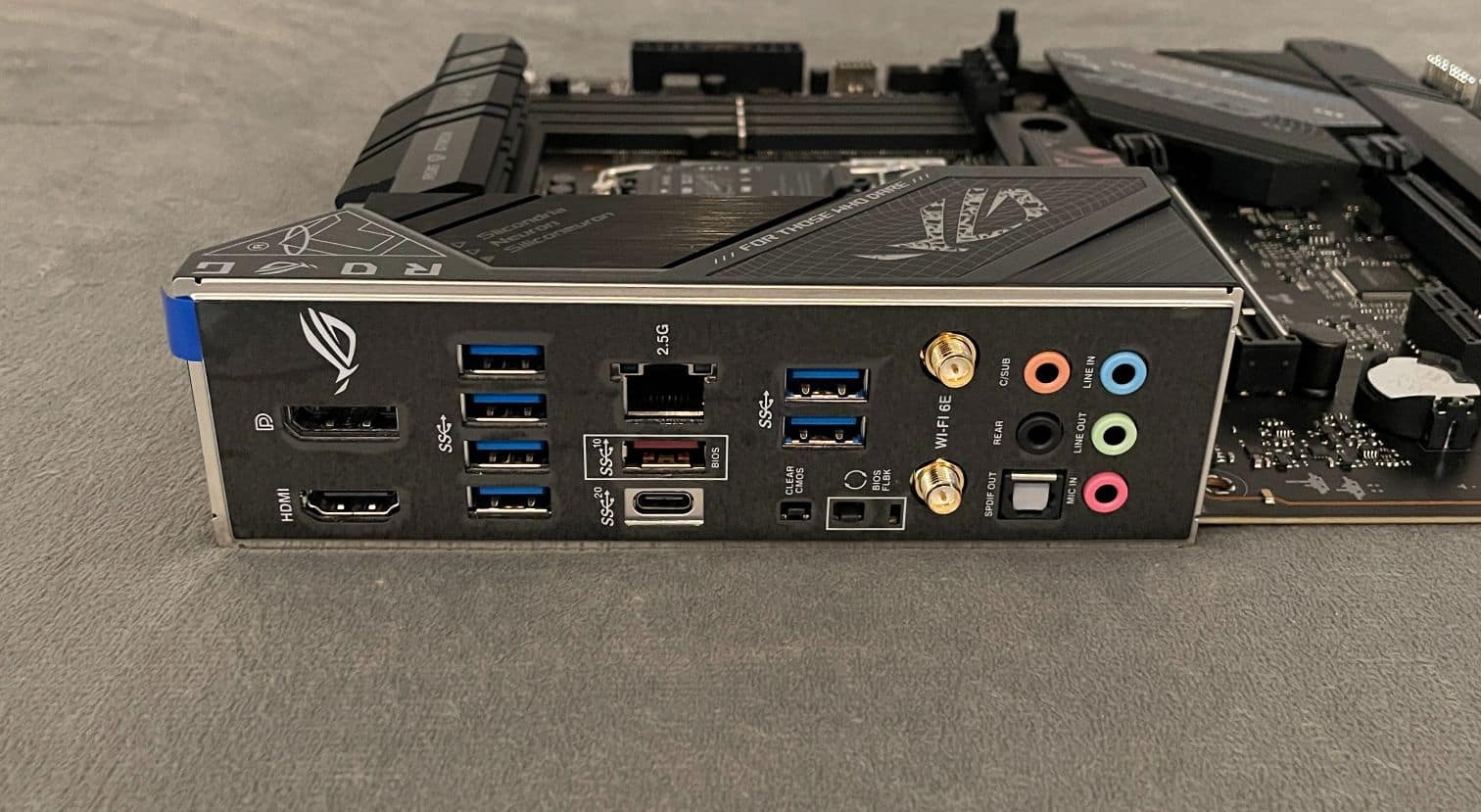

On the rear I/O panel, you will find a few USB ports for all your USB needs. In addition, there are clear CMOS and BIOS flashback buttons, HDMI and DisplayPort for integrated graphics. Also, you will find a 2.5GbE LAN, WIFI 6E, S/PDIF, and audio jacks for audio devices.
Key Features of the ASUS ROG STRIX B760-F Gaming WIFI Motherboard
Our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review discusses all the features this motherboard offers. These elements make the product an ideal option to go for. We are sharing these to determine if it is adequate for your build.
All-around Performance
The STRIX B760-F is ready for any Intel 13th Gen chip thanks to its powerful VRM and thick-stacked heatsinks. Connected devices can also run at incredible speeds because of the massive PCIe bandwidth.
Quality Power Architecture
Each 16+1 power stage is rated at 60A, thus providing enough current to power Intel 13th Gen processors through any workload.
Alloy Chokes + Durable Quality Capacitors
High-end chokes and long-lasting capacitors help withstand extreme temperatures. In addition, these elements provide quality performance that exceeds industry standards.
Six-Layer PCB of the ASUS ROG STRIX B760-F Gaming WIFI Motherboard
A multi-layered printed circuit board design immediately dissipates heat around the voltage regulators to improve overall system stability.
The Rise of DDR5
ROG has a long history of providing everyone with the fastest memory performance. And the DDR5 is no exception.
Because of optimised signal routing, enthusiast-grade kits can now surpass the 7 GT/s limit on the STRIX B760-F. In addition, seasoned veterans can put their skills to the test by experimenting with the extensive tuning options of the UEFI.
The VRM Heatsink Array

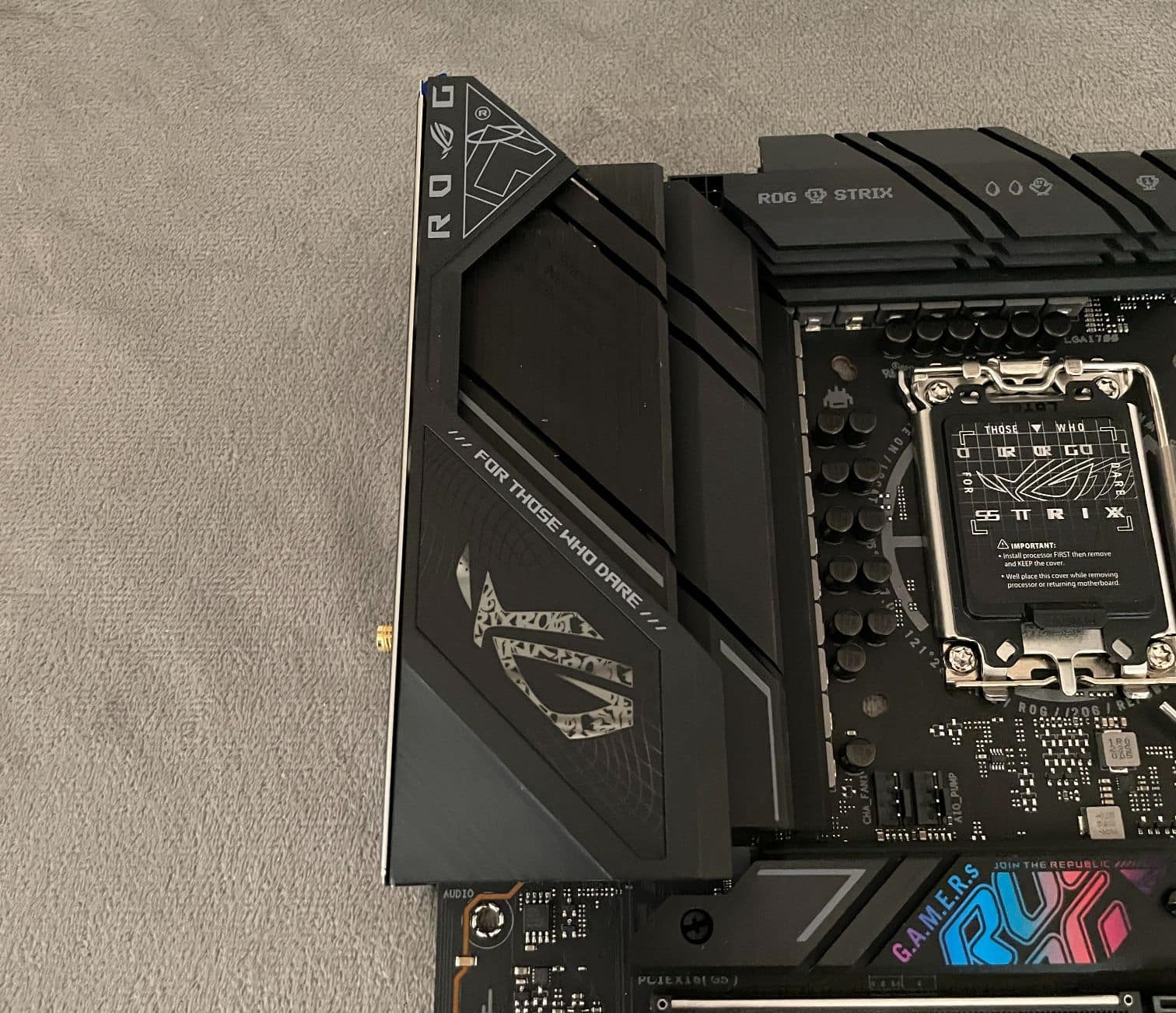

Two thick heatsinks with strategic airflow channels cover the power solution. This setup increases heat dissipation while powering high-performance Intel 13th Gen processors.
PCIe Slot Q-Release
The PCIe Slot Q-Release is a button that unlocks the security latch of the first PCIe slot when pressed. It makes detaching a PCIe card from the motherboard more convenient when upgrading to a new GPU.
M.2 Q-Latch of the ASUS ROG STRIX B760-F Gaming WIFI Motherboard
With the innovative Q-Latch, installing and removing an SSD from the M.2 slot is easier than ever. In addition, it has a simple locking mechanism to keep the drive secure without using a traditional screw.
The Clear CMOS and BIOS FlashBack Buttons
The Clear CMOS button instantly resets BIOS settings to factory default. You can also use this button to reboot the PC if you select incorrect BIOS configurations.
Another convenient button on the STRIX B760-F is the BIOS FlashBack button, which allows quick BIOS updates.
Q-LED Indicators
This motherboard has four onboard LEDs that indicate power status. They can also determine problems with the CPU, graphics card, memory, etc.
Undeniable ROG STRIX Design
ASUS designed the STRIX B760-F with allusions to the popular games from the previous year. It uses scattered decals to form a retro-techno fusion backdrop, accentuated with highlights and an illuminated POG logo.
Beat the Competition
With ASUS Aura technology, you can enjoy comprehensive lighting control and presets for the onboard RGB and third-party accessories. In addition, you can sync effects across compatible devices and peripherals for a unified system.
Cooler Compatibility of the ASUS ROG STRIX B760-F Gaming WIFI Motherboard
The STRIX B760-F uses the LGA 1700 socket like the B660 and Z690 models. As a result, it works with many coolers, including ASUS and ROG all-in-one units.
Sonic Studio III
Sonic Studio supports HRTF-based virtual surround for headsets. As a result, it delivers an immersive aural landscape that makes sound more realistic. The intuitive interface of Sonic Studio also provides EQ options and one-click presets.
DTS Sound Unbound for Increased Immersion
The pre-loaded DTS Sound Unbound application enhances your in-game and entertainment audio immersion. With rich audio, you can enjoy rich and natural audio.
DTS Sound Unbound uses Microsoft spatial sound technology to form an audial 3D environment. With the enhanced audio, you can spot the location and directions of footsteps, gunshots, etc.
Enjoy the ROG STRIX Ecosystem
ROG STRIX lets you level up your game with complementary aesthetics, intuitive controls, compatibility, and versatility. In addition, ROG provides more options than other brands.
AIDA64 EXTREME Subscription
ASUS included a 60-day AIDA64 Extreme subscription for every purchase of the STRIX B760-F. AIDA64 Extreme is a tool that gives you detailed information about your system, hardware, software, and components.
This tool has monitoring and diagnostics, allowing you to detect and prevent hardware issues. In addition, it enables tracking vital system sensors and displays fan speeds, temperature information, and voltage readings. These can also appear on the LCD panels of liquid coolers.
Two-way AI Noise Cancellation
Two-way AI Noise Cancellation uses artificial intelligence or a deep-learning database to reduce over five million background noises. As a result, this feature ensures crystal-clear communication in games and voice calls.
AI Networking
GameFirst VI optimises networking performance by allotting bandwidth based on usage scenarios and corresponding algorithms. In addition, the recent update includes dedicated support for GeForce NOW, ensuring low latency during intense gaming sessions.
Specifications
This part of our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review will focus on the motherboard specifications. And for starters, the STRIX B760-F sports an ATX form factor measuring 30.5 x 24.4cm.
The motherboard works with Windows 11 and Windows 10 64-bit and is compatible with the following Intel Socket LGA1700 processors:
- 13th Gen Intel Core
- 12th Gen Intel Core
- Pentium Gold
- Celeron Processors
The product has 4x DIMM with a dual channel memory architecture, while its graphics have one DisplayPort and HDMI port. Its available expansion slots include the following:
- Intel 12th and 13th Gen Processors
– PCIe 5.0 x16 slot (supoorts x16 modes) - Intel B760 Chipset
– PCIe 3.0 x16 slot (supports x4 modes)
– Two PCIe 3.0 x1 slots
The motherboard has one Intel 2.5Gb Ethernet port, plus WIFI 6E and Bluetooth v5.3 for its connection. For its audio, the STRIX B760-F uses the ROG SupremeFX 7.1 surround-sound high-definition audio CODEC ALC-4080.
We also listed all available USB ports on the STRIX B760-F. On its rear, you will find a total of eight USB ports like the following:
- USB 3.2 Gen 2×2 port (1x USB-C)
- USB 3.2 Gen 2 port (1x Type-A)
- Six USB 3.2 Gen 1 ports (6x Type-A)
In front, the motherboard has a total of seven USB ports:
- USB 3.2 Gen 2 connector
- USB 3.2 Gen 1 header supporting two extra USB 3.2 Gen 1 port
- Two USB 2.0 headers supporting four more USB 2.0 ports
Hands-on with the ASUS ROG STRIX B760-F Gaming WIFI Motherboard
How well does this motherboard perform? Is it something worth purchasing, or should you look elsewhere? We used the STRIX B760-F for over a week to get a hands-on feel of it in action.
But before we share our experience with the product, let us look into the firmware interface.
ASUS set up the STRIX B760-F with its tried-and-true UEFI BIOS Utility. It includes the EZ and Advanced Mode also present on other motherboard utilities. The EZ Mode allows you to toggle between the most commonly used settings.
The AI Tweaker is where you can experiment with CPU and memory settings. ASUS included its power limit option here to switch between Intel and their own.
Because this is a B760 chipset-based motherboard, only memory overclocking is possible. However, you can still adjust power-related settings for both the CPU and memory.
Advanced is where you can find and configure the chipset options.
We also checked the Monitor section while testing the motherboard for our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review. It is where the usual voltage and thermal sensors are set.
However, we find something slightly odd. Despite using Windows-based monitoring programs like HWiNFO, its main voltage rail and VRM sensors were undetected.
The Tool section is where you can erase the contents of storage devices. It is also where you can flash BIOS and has features for setting up your system for a clean installation. You will also find a copy of the MemTest86 in this area.
Lastly, the utility has Q-Fan Controls, which allows you to configure six fans each on their five steppings.
ASUS bundled the STRIX B760-F with Armoury Crate, a powerful software suite offering many configuration options. In addition, this dashboard allows overriding configurations from the BIOS.
Armoury Crate offers centralised control of supported gaming products for convenient configuration. A single interface lets you customise the RGB and effects for all compatible connected devices. Plus, you can synchronise its lighting with your entire system.
Aside from RGB configuration, Armoury Crate features Fan Xpert 4, a tool for comprehensive fan control, coolers, and water pumps. It is a more refined version of the Q-Fan Control in the BIOS.
Other Armoury Crate features include AI Noise Cancellation, a downloadable supplement software.
You can use Armoury for downloading other tools, drivers, user manuals, and product registration. It also features a dedicated news feed where you can interact with the global ASUS gaming community.
Armoury Crate has a simple, user-friendly design. Furthermore, we appreciate the implemented updates on the software since it is no longer buggy, unlike its previous versions.
ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review Summary
Like its predecessor with the B660 chipset, the ROG STRIX B760-F is another solid motherboard from ASUS. It has the specifications and features that can make it outshine the Z790 motherboards. Plus, you can use it with K and non-K series processors.
This new motherboard has an excellent specification list, including its 16+1 power phases and 60A MOSFETs/VRMs. We loved the Q-Release button and M.2 Q-Latch, which made building more convenient. Other elements like the PCIe 5.0 and 4.0 slots and Realtek ALC-4080 make this product even better.
We were also pleased with the addition of WIFI 6E on the STRIX B760-F. The absence of this feature on its predecessor was a drawback, and ASUS addressed this issue on the new motherboard. With WIFI 6E, we enjoyed the 6GHz frequency band and stable network connections while gaming and streaming.

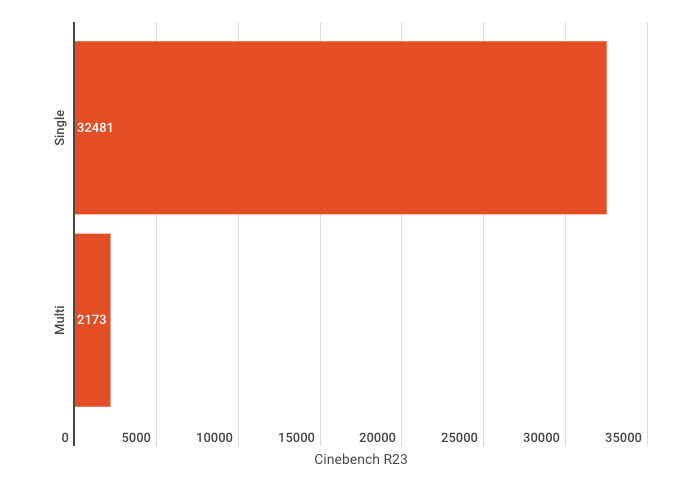

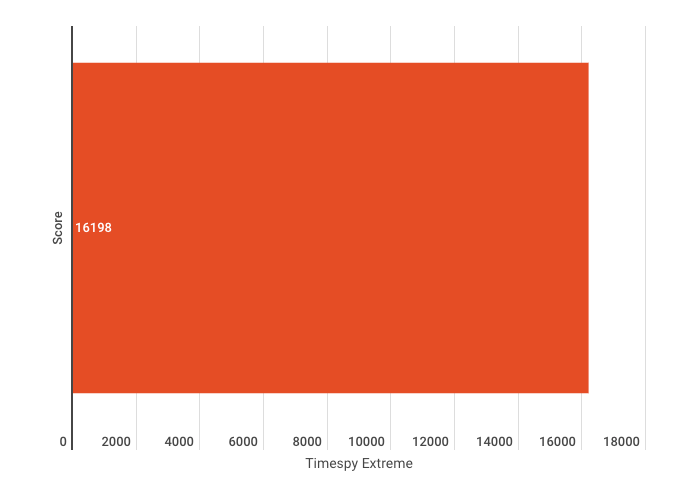

Aside from the superb specifications and features, we were impressed with its performance. When testing it for our ASUS ROG STRIX B760-F Gaming WIFI Motherboard Review, it gave us excellent results. To our surprise, no heating issues in our stress tests were present, even without direct airflow.
We highly recommend the STRIX B760-F if you want a capable ATX motherboard with many impressive features.
