asus 7800review banner ASUS RT-AXE7800 Router Review

ASUS RT-AXE7800 Router Review

Today, we will look at one product from a trusted name and discuss it in our ASUS RT-AXE7800 Router Review.

The ASUS RT-AXE7800 is a WiFi 6E tri-band router that gives lightning-fast 802.11ax connection across a 6GHz band. It sports notable aspects, including one-tap safe searching and optimised security features for worry-free browsing.

To learn more about what the router can offer, read our review and get details on its design, features, etc.

ASUS RT-AXE7800 Router Packaging

The product arrived in time for this ASUS RT-AXE7800 Router Review and shipped in a premium-looking ASUS package.

asus rt axe7800 review6 ASUS RT-AXE7800 Router Review asus rt axe7800 review1 ASUS RT-AXE7800 Router Review

The front displays an image of the product, with its name, company branding, and several features. You can find other details about the product behind the box.

Aside from the router, the only accessories inside the box include a standard power adapter and one CAT5e network cable. You will also find a quick start guide and a warranty card.

ASUS RT-AXE7800 Router Review – Design and Functionality

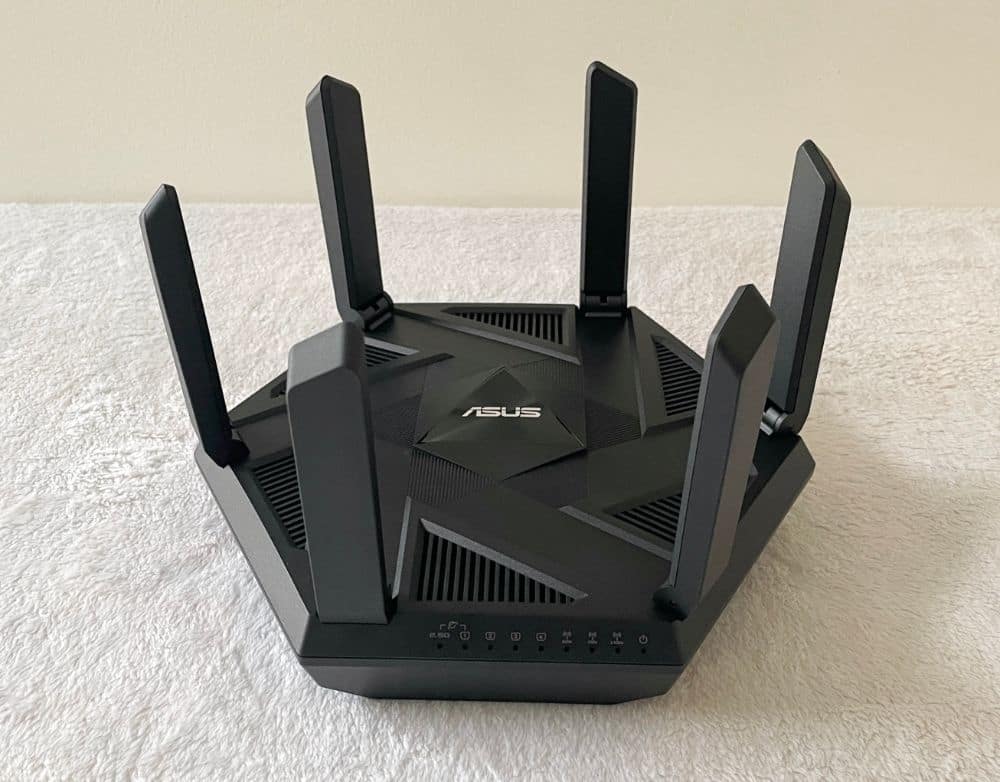

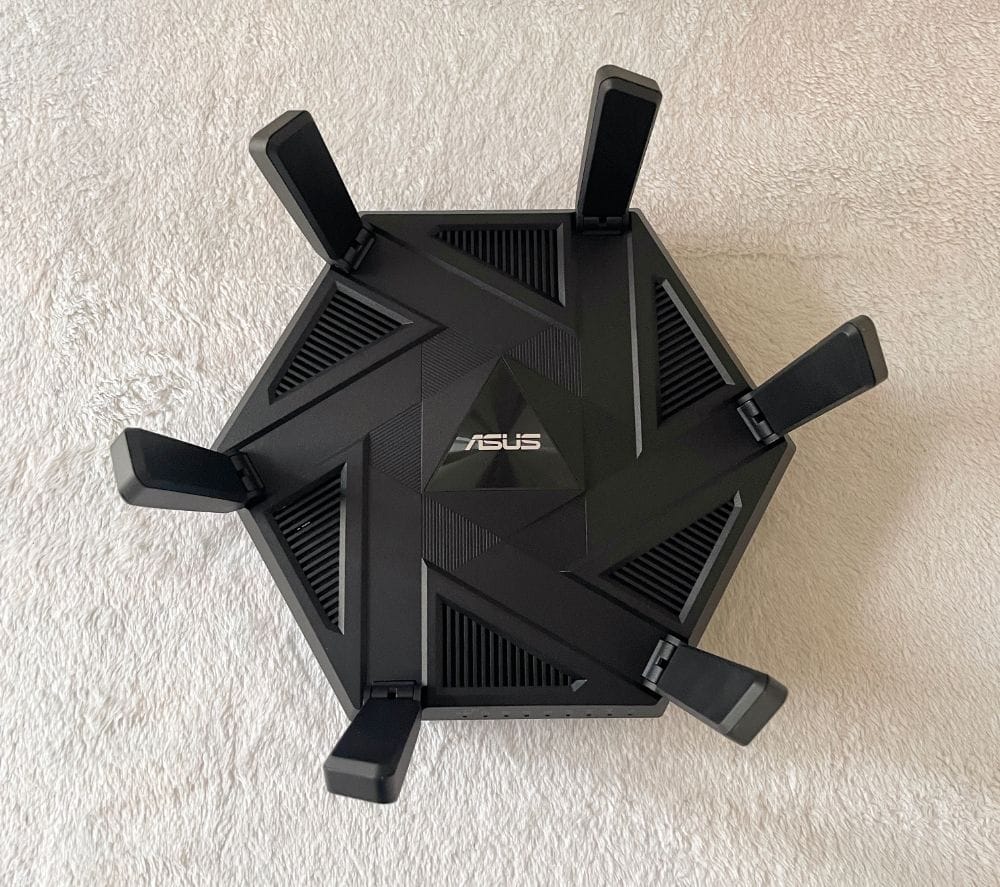

After unboxing the router for our ASUS RT-AXE7800 Router Review, we noticed it sports a hexagon shape.

The RT-AXE7800 boasts compact dimensions, measuring 159.94 x 243.84 x 213.36mm (HxWxD), with its antennas extended entirely. Unlike classic WiFi router antennas, the ones on this product are foldable to offer adequate space. However, these do not have adjustable/swivelling capabilities.

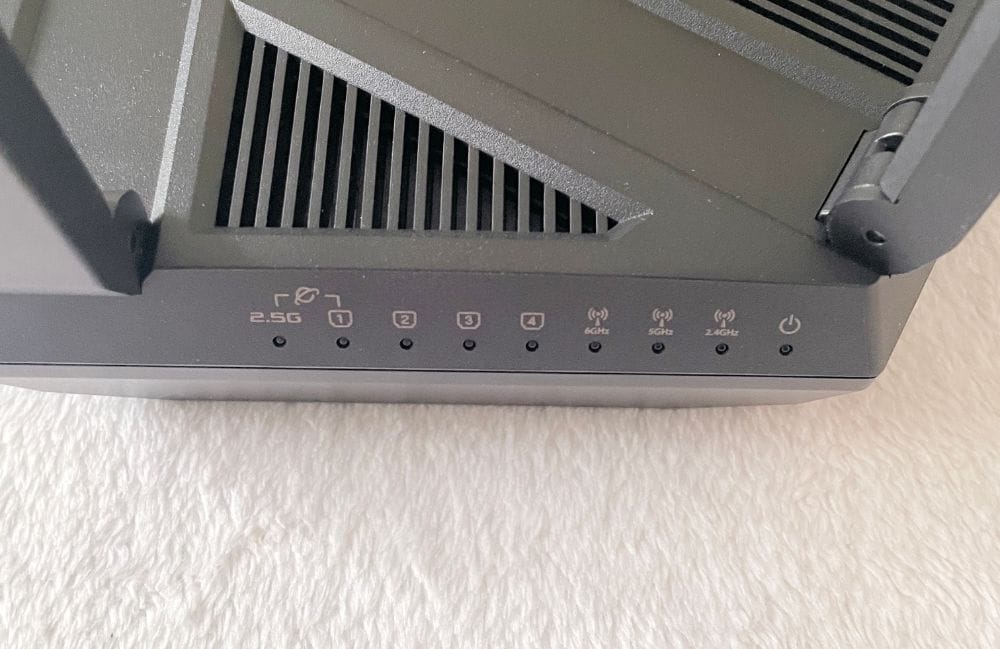

On the front panel are nine status LEDs, providing information on power status, WAN/LAN activity, and WiFi radio band. These serve as intuitive indicators for the proper functioning of this router.

asus rt axe7800 review2 ASUS RT-AXE7800 Router Review asus rt axe7800 review3 ASUS RT-AXE7800 Router Review asus rt axe7800 review4 ASUS RT-AXE7800 Router Review asus rt axe7800 review5 ASUS RT-AXE7800 Router Review

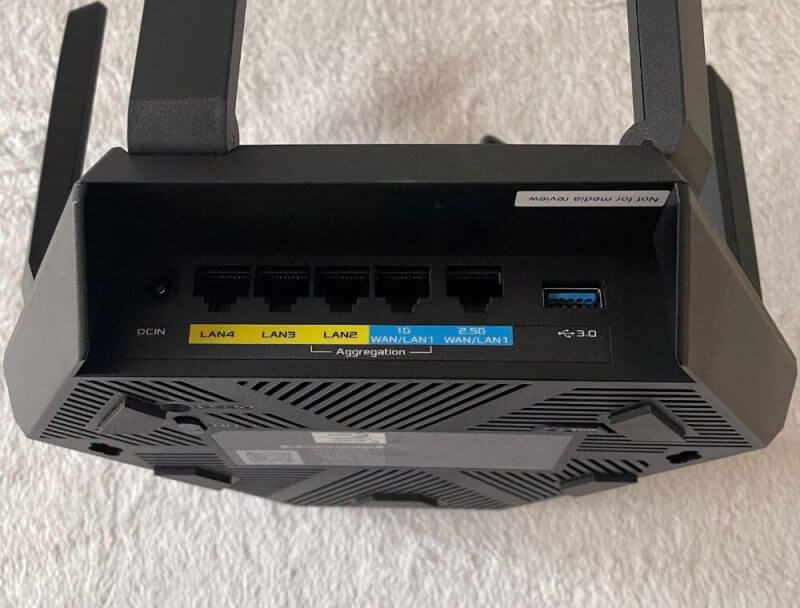

Turning to the rear side, the RT-AXE7800 houses a variety of ports to cater to distinct connectivity needs. There are two WAN/LAN ports, one with a 2.5Gbps capacity and the other offering 1Gbps.

Three 1Gbps LAN ports support link aggregation, enabling seamless data transmission for optimised performance. Additionally, the router includes a USB 3.2 Gen1 port for sharing and accessing files with compatible devices. The power port also ensures a stable power supply.

An outstanding feature of the RT-AXE7800 is its AiMesh compatibility. It lets you integrate it into a whole-home WiFi mesh network alongside other AiMesh-enabled routers. This capability ensures broader and more reliable coverage throughout your living space.

Continue reading our ASUS RT-AXE7800 Router Review and learn about the features that make the product worth considering.

Key Features of the ASUS RT-AXE7800 Router

Ultra-fast WiFi 6E Technology

The new 6GHz band significantly boosts network capacity, offering increased WiFi performance. It also provides a more stable connection with speeds as high as 7800 Mbps.

One-Tap Safe Browsing

Easily block any unwanted content using the Safe Browsing feature from ASUS. It will help protect your children online by filtering and blocking explicit content from search results.

Upgraded Security Anytime, Anywhere

Fortunately, you can now protect your home network with this free lifetime subscription to the AiProtection Pro. The Instant Guard from ASUS offers a single-click, shareable and secure VPN when you are not home.

AiMesh Supported

While looking into the product for this ASUS RT-AXE7800 Router Review, we also learned it is AiMesh supported. Because of this, you can expand your network with AiMesh-compatible routers from ASUS.

Once connected, you can maximise powerful, seamless, and flexible whole-home WiFi for your enjoyment.

Secure Connections, Excellent Speed

The router can go up to 7800 Mbps to meet and exceed your expectations and internet needs. It offers top-notch network protection from the advanced security tech of ASUS, allowing you to gear up for extreme connectivity.

Low Latency & Less Interference

Its 6GHz frequency band is dedicated to WiFi 6E devices, so older ones will not interfere with 6E signals. As a result, you can have more reliable and faster connections for 6E devices.

Massive Capacity

WiFi 6E allows you to enjoy up to seven extra high-speed 160MHz channels. It allows for multi-gigabit speeds with consistently stable connections.

Moreover, it boosts the network capacity while reducing congestion to enhance the performance of WiFi 6E devices.

Connect in a Snap

DFS or Dynamic Frequency Selection is no more since the 6GHz band is exclusive for WiFi 5E devices. It means your gadgets can connect fast without the imposing delays from DFS.

Safe Browsing with a Single Tap

We also looked into the Safe Browsing feature while working on this ASUS RT-AXE7800 Router Review. It helps block intrusive ads and dangers/safety risks with one tap, and no additional apps are required.

It has lightweight DNS filtering that will not affect its performance. Plus, it can filter out and protect your search engine results from explicit content.

Complete Security and Protection for Your Home Network

With the current WPA3 security protocol, the RT-AXE7800 integrates the AiProtection Pro feature backed by Trend Micro. The best aspect of this feature is it regularly updates security signatures to safeguard data and devices from internet threats.

Parental Controls at Your Fingertips

Monitor the online activities, and create custom settings for different age groups. You can also set schedules for internet access or grant additional online time. The best thing about this is it does not have subscription fees.

Instant Guard to Secure Free WiFi

The Instant Guard mobile app from ASUS offers single-tap secure access with your RT-AXE7800 whenever you are away from home. It is all possible because of its encrypted VPN tunnelling technology.

This optimised app allows you to share worry-free network connections via a URL. It means you can share this with family and friends without hassles.

Get Your Way Via VPN

Take advantage of quick and secure VPN access for gaming, streaming etc. With the ASUS Router App and web interface, you can set up and organise your connections seamlessly. These include WireGuard and OpenVPN to meet more VPN scenarios.

Get Your Remote Connection Encrypted

The RT-AXE7800 lets you securely access corporate access without VPN software on devices. Create several VPN connections like L2TP, PPTP, OpenVPN, or WireGuard.

With the VPN Fusion, you can set numerous devices to varying VPN tunnels and use a regular internet connection.

Multi-Gigabit Wired Connection

The RT-AXE7800 has a 2.5Gbps WAN/LAN port and aggregation for them. Having this feature offers you more options when setting up your network.

It means you can flexibly deliver massive bandwidth to various wired devices. Plus, you can benefit from the ultra-high-speed connection in many scenarios.

Simple but Comprehensive Functions

You can set up and manage the RT-AXE7800 via the easy-to-use ASUS Router Mobile App. It has a straightforward interface that makes it user-friendly for all. Also, it has upgraded features like new parental controls, visualised connection diagnostics, and more.

Advanced Controls

Maximise the advanced capabilities of the router using its powerful web interface. It provides access to easy-to-view status reports and comprehensive settings via a user-friendly dashboard. Also, monitor web traffic, set QoS settings, configure security features, manage ports, etc.

Seamless and Convenient Scalability for the Network

With AiMesh technology, combining multiple ASUS routers that are AiMesh-compatible will be easier. It helps create an entire home WiFi network with centralised controls.

AiMesh allows using a single SSID for the entire home/office network while enjoying seamless coverage and zero dead zones.


  • Network Standards:
    – IEEE 802.11a, b, and g
    – WiFi 4 (802.11n), 5 (802.11ac), 6 (802.11ax), and 6E (802.11ax)
    – IPv6 and IPv4
  • Data Rate: 54 – 2402 Mbps
  • Operating Frequency: 2.4/5/6 GHz
  • Processor: 1.7GHz quad-core processor
  • Memory: 512MB DDR4 RAM + 256MB Flash
  • Speed Boost:
    – OFDMA
    – 1024-QAM high data rate
    – Beamforming: standard-based and universal
    – 20/40/80/160 MHz bandwidth
  • AC Input : 110V~240V (50~60Hz)
  • DC Output: 12V with a maximum current of 3.0 A
  • Product Weight: 1033g

Hands-on with the ASUS RT-AXE7800 Router

We used the product for a week to share our experience with it in this ASUS RT-AXE7800 Router Review. Before we discuss its performance, we will focus on the ASUS Router Mobile App, its interface, and the available settings.

Many settings of the RT-AXE7800 are accessible via the ASUS Router Mobile App. This software works for setting up and managing the RT-AXE7800. Although it is not as in-depth as the web interface, it is one of the best router management applications.

ASUS offers the RT-AXE7800 with free lifetime network security tools and parental controls. You can manage and maximise these features with the ASUS Router Mobile App.

As for its interface, the Home screen shows real-time traffic stats and system component usage. You will also find a network map and application-based settings for QoS.

At the bottom of the Home screen is the Devices button. Pressing this leads you to a screen that displays connected users and the band or wired port used. You can tap on the client devices to monitor upload/download speeds and set bandwidth priority.

In Devices, you can configure settings for Safe Browsing to block access to malicious sites.

Other buttons on the Home screen include Family, Insight, and Settings. Family takes you to a screen with settings for creating age-based user profiles with filter presets like teens, school-aged, etc. Plus, you can access schedules and set content filters to block anything inappropriate, like violence, pornography, gambling, and more.

Insight opens a screen where you can share WiFi settings via QR code, change WiFi passwords, and enable AiProtection.

Tapping the Settings button opens a long menu of options for AiMesh, QoS, parental controls, USB, WAN, LAN, and WiFi. In addition, you can update the firmware, run simple diagnostics, and configure notifications. Plus, you can link the RT-AXE7800 to Google or Alexa accounts to activate voice control.

Over the past few weeks, we have enjoyed seamless and dependable WiFi coverage throughout the office. This router operates on the 2.4GHz, 5GHz, and 6GHz bands. So, it was able to cater to all our online activities like video calls, movie streaming, or gaming.

The stability of the router is remarkable, and the only interruption we noticed was during a firmware update. It was not lengthy since it only took several minutes to complete.

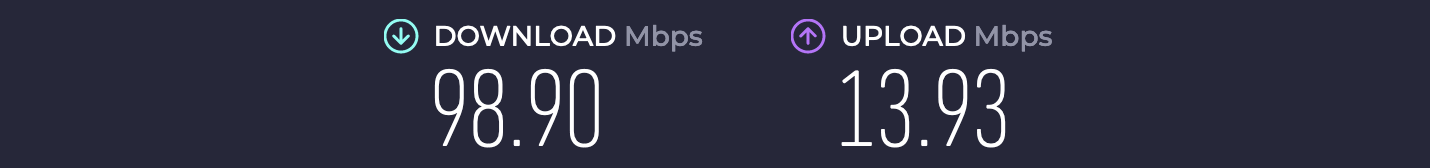

Once we began testing, the RT-AXE7800 outperformed other similar products in latency and speed. It also stood out in close-range scenarios in 5 and 6GHz bands. Over longer distances, it maintained decent performance levels.

The RT-AXE7800 did not have trouble providing a powerful 2.4GHz signal throughout the area. We highly appreciated the solid scores it gave during our throughput performance tests.

CleanShot 2023 08 04 at ASUS RT-AXE7800 Router Review

ASUS RT-AXE7800 Router Review Summary

Free lifetime AiProtection, access to the 6GHz band, and multi-gig WAN/LAN make the RT-AXE7800 easy to recommend. It is an excellent choice for future-proofing your home network.

When we tested the product for our ASUS RT-AXE7800 Router Review, it delivered excellent results. Its speeds were high, stable, and consistent at all bands. Plus, it offered broad coverage without lags and disconnections, even with multiple users connected to the network.

Aside from excellent performance, its mobile application and web interface are user-friendly. Also, these have comprehensive settings that allow you to maximise each feature of this router.

We highly recommend this product for its superior speed, coverage, and many other benefits. Its compact body and hexagonal design suit any home or office aesthetic.

Learn more about the RT-AXE7800 Router by visiting the official ASUS product page.
