Recently, ASUS announced their latest chassis, which we’ll check out in our ASUS TUF Gaming GT302 ARGB Review. The case has a design that makes it easier and convenient for you to build high-performing PCs with excellent cooling.
We’re excited to test the chassis since it’s ready for outstanding cooling out-of-the-box.
Plus, it’s compatible with high-performance parts and has thoughtfully constructed interiors and exteriors. These help make PC DIY-ing easier and more enjoyable.
But is there more to these? Continue reading our review to learn about the GT302.
ASUS TUF Gaming GT302 ARGB Packaging
The case ships in a massive box that arrived in time for our ASUS TUF Gaming GT302 ARGB Review. Its exterior shows the chassis and some of its primary features.
Inside the box, you will find the chassis and a box of accessories you will use when building your PC. It contains the following items:
- Vertical PCIe bracket
- Standoff screw socket
- 8x cable zip ties
- 25x motherboard / 2.5-inch drive screws
- 4x PSU screws
- 8x 3.5-inch drive screws
- 3x side panel clips
- 2x panel screws
- User manual
ASUS TUF Gaming GT302 ARGB Review – Design and Functionality

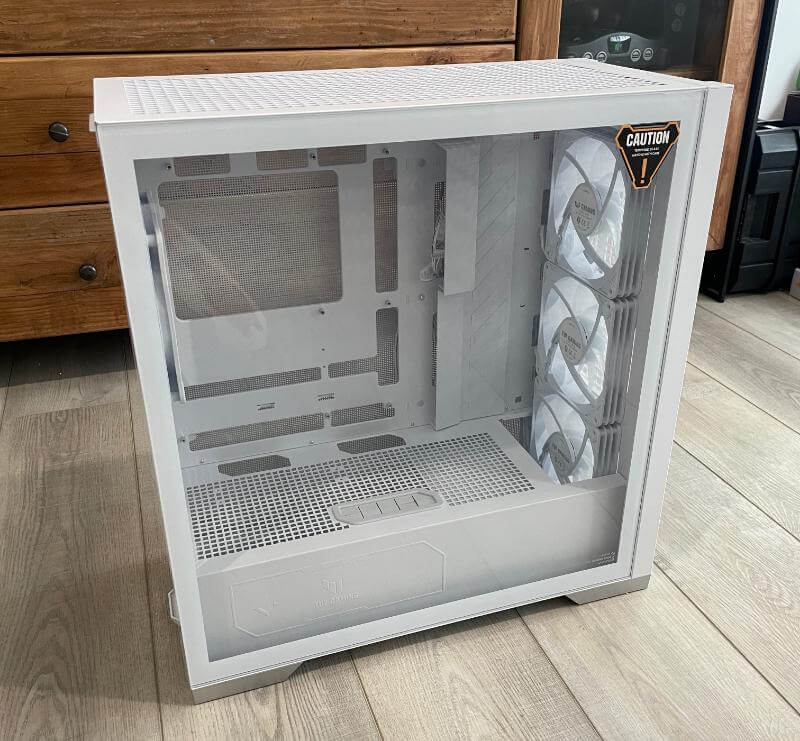

The main highlight of the chassis design is its many perforations that allow adequate airflow. One of its side panels is tempered glass, but you can replace it with a mesh panel.
We want to emphasise the size of this chassis in our ASUS TUF Gaming GT302 ARGB Review. The front and rear sections house four pre-installed 140mm TUF AR140 ARGB fans, making the chassis sizable. It can accommodate EATX motherboards, a 407mm long GPU, and a 220mm PSU.

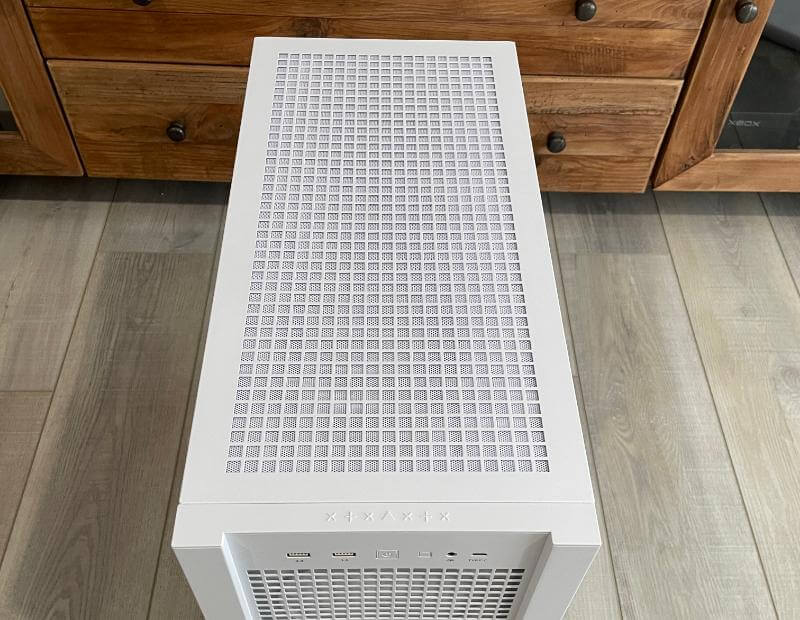

The top portion also offers tool-free accessibility, allowing you to pull the top panel off from the rear. In this area, you can install a radiator with a maximum size of 360mm to handle the most demanding CPUs. It’s also completely removable, so holding the radiator in place while inserting screws is unnecessary.

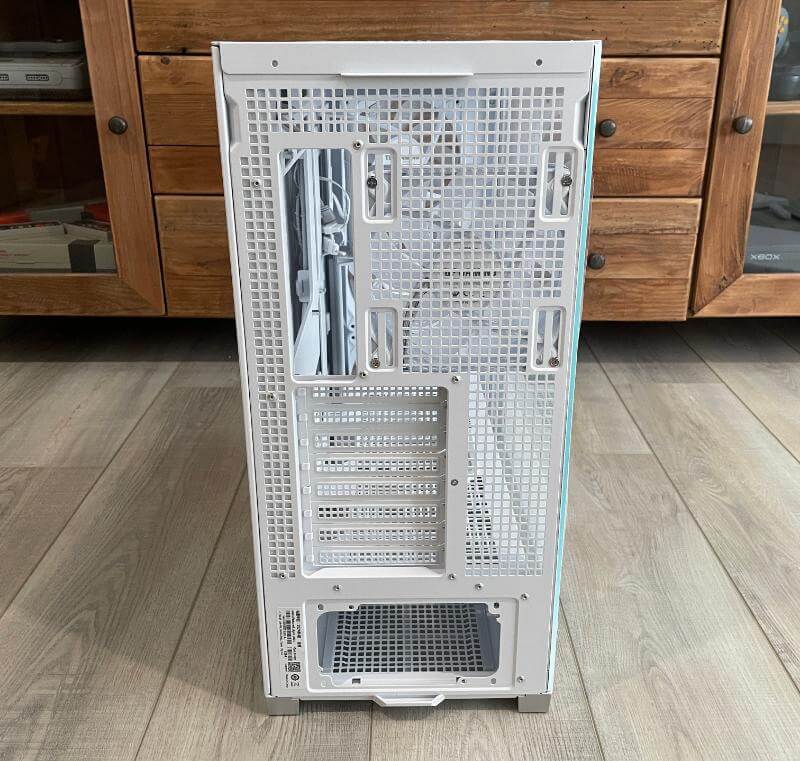

The bottom portion of the chassis has a mesh for the PSU fan to pull air in. Plus, you will find a pair of screws securing the 3.5-inch drive cage.

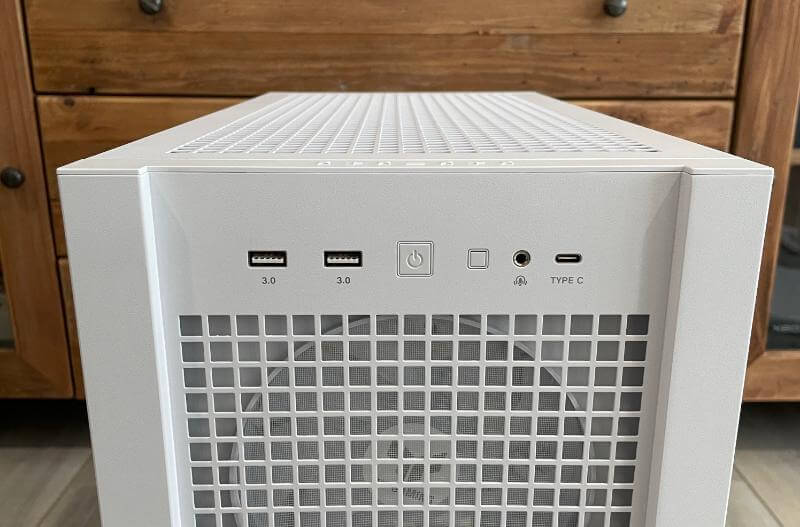

The front panel I/O is standard, consisting of a pair of USB-A ports, a USB-C port, and a 3.5mm combo jack.

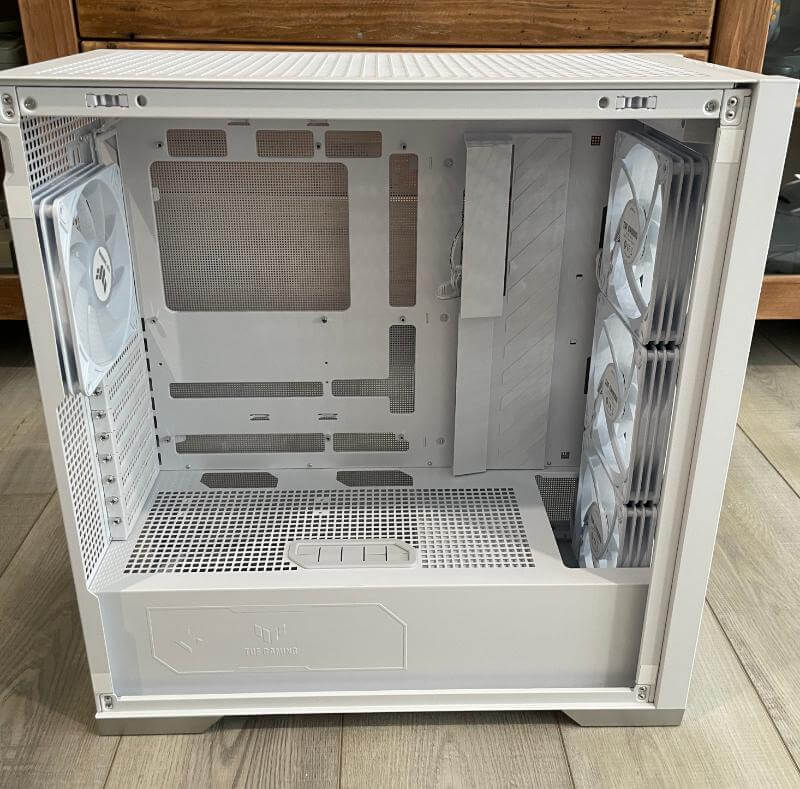

We removed the panels before installing our components and testing the product for this ASUS TUF Gaming GT302 ARGB Review. Doing this was easy since the panels have a tool-less design.
The top and front panels have integrated dust filters, which are easy to remove and re-install.
There was some flexing when we pulled it from the side tab. We recommend removing the top panel before pulling the glass panel out as a safety measure.
Key Features of the ASUS TUF Gaming GT302 ARGB
What makes this product better than other PC cases? Our ASUS TUF Gaming GT302 ARGB Review will discuss all the details about its primary features. This section will help determine if this chassis is suitable for your PC.
Square-type Mesh Front Panel

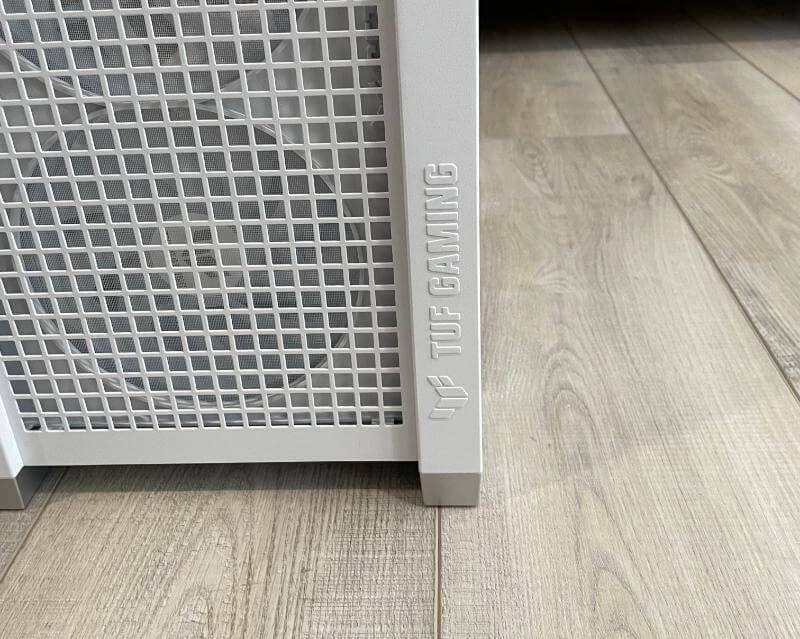

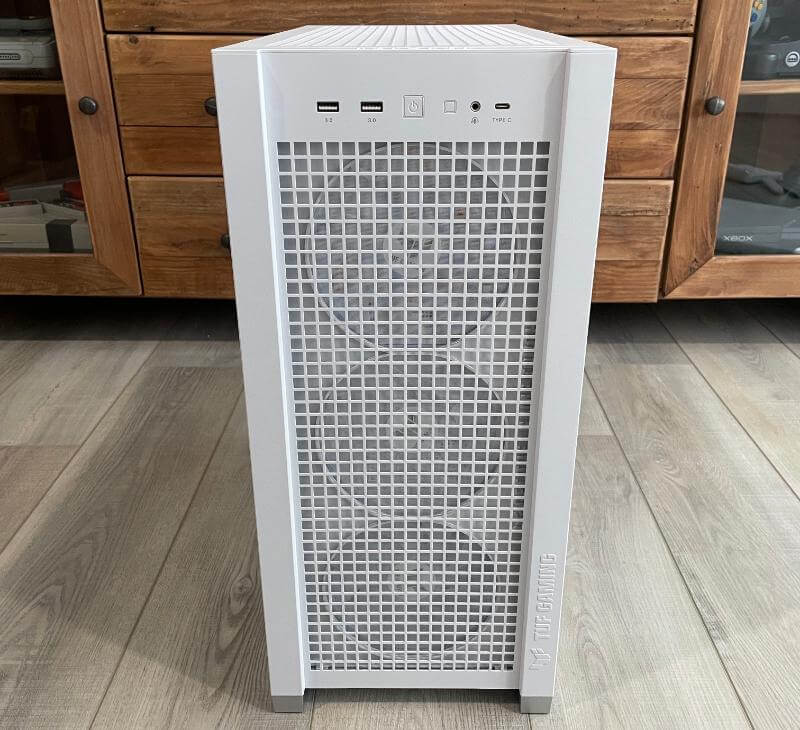

The GT302 has an optimised square-type mesh front panel for unobstructed airflow. It also has high porosity to maximise airflow efficiency to keep temperatures low.
Optimised Cable Management

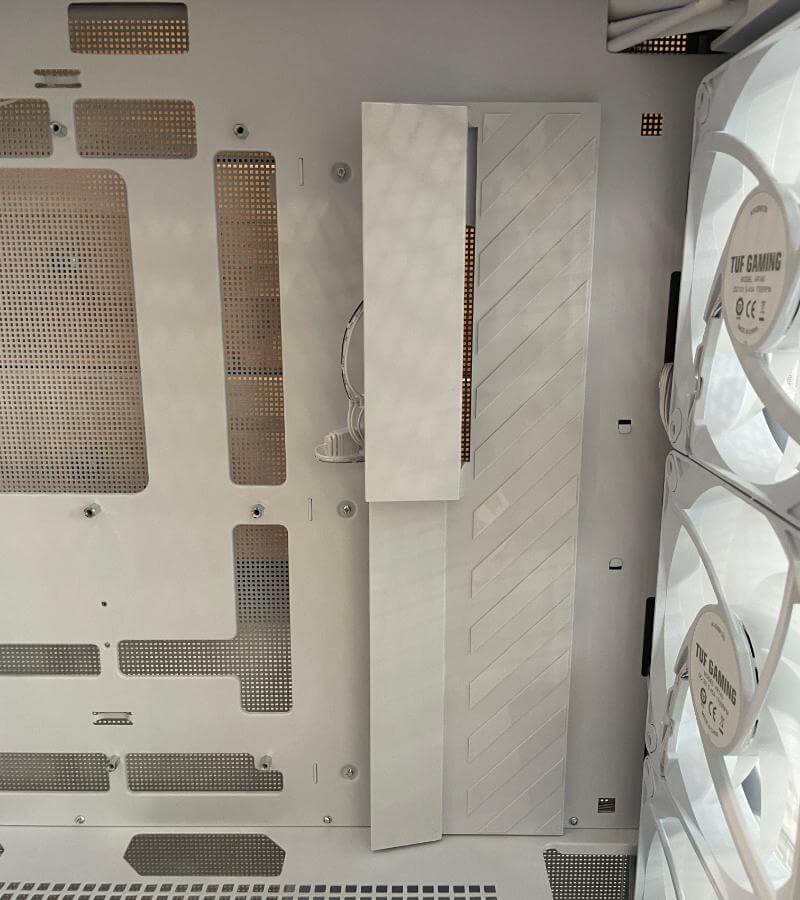

This chassis has a cable grommet bar with three straps for organising two sets of cables. Plus, it has three cable clips on the side to keep the 8-pin CPU power cable tidy.
Unified Front I/O header
Enjoy more convenience when connecting the Front Input/Output (FIO) components to the motherboard. ASUS ensures to eliminate clutter and hassle when setting up your PC.
Room for High-Performing Components

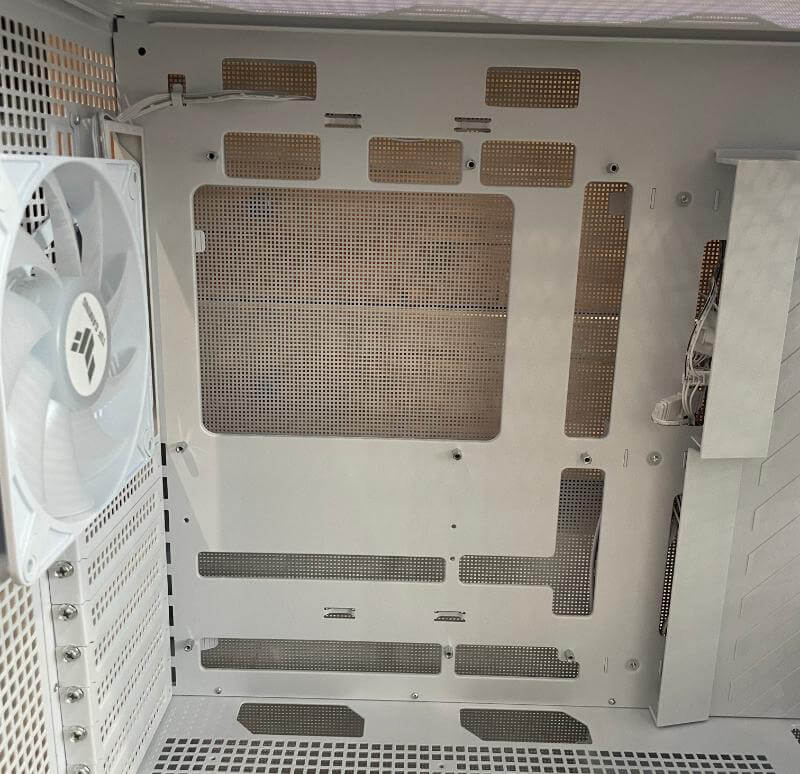

The GT302 can house high-powered motherboards and graphics cards, allowing you to build a fast-performing PC. It also supports ASUS hidden-connector motherboards.
Four Pre-installed Fans – 140 x 28mm ARGB

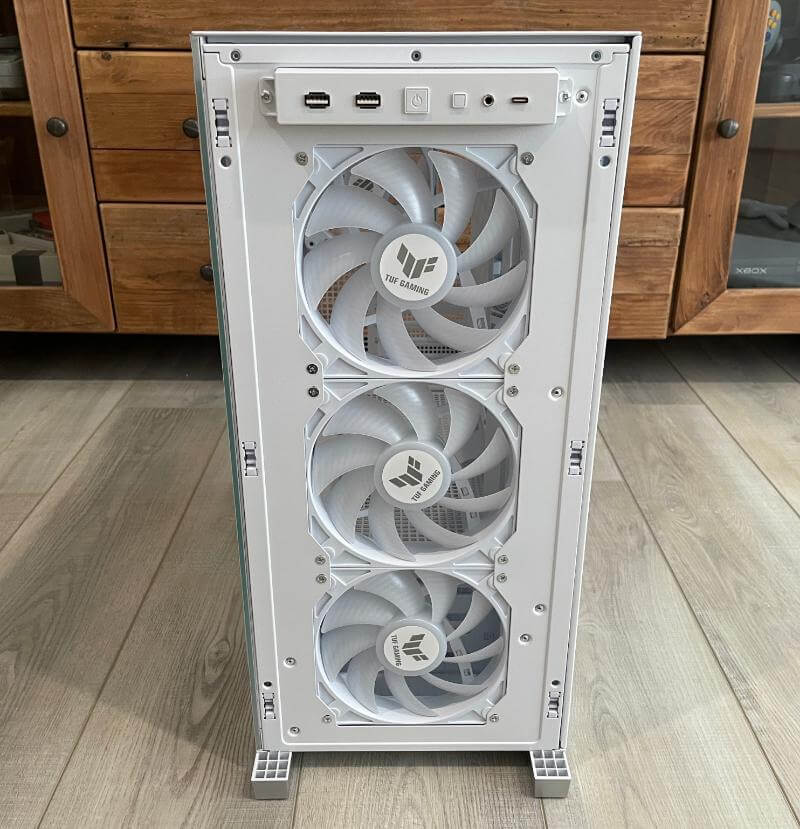

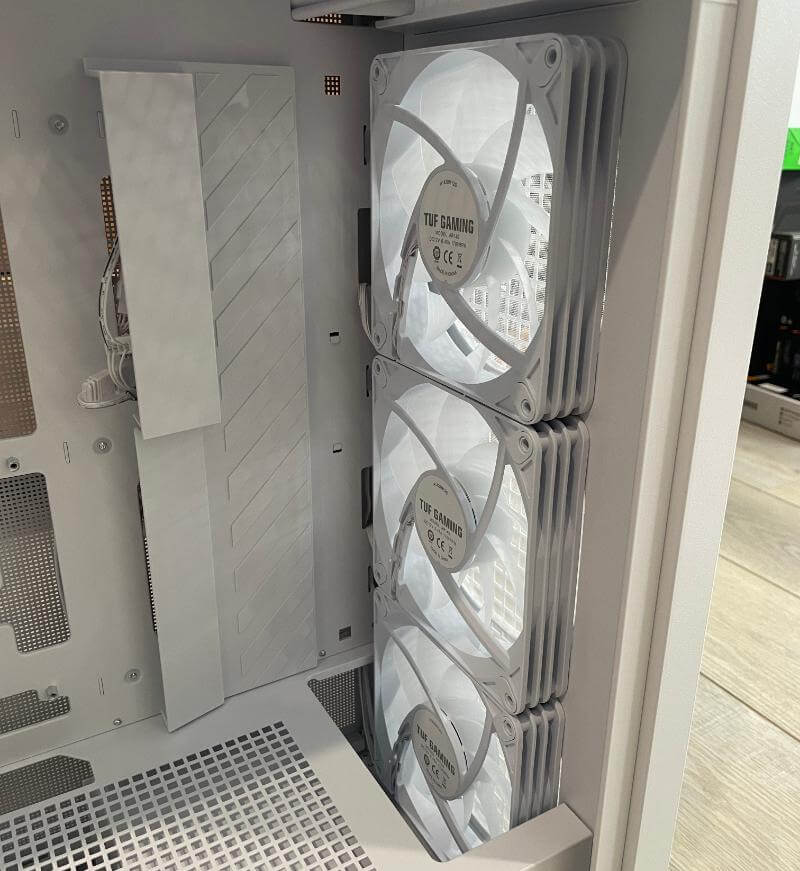

ASUS pre-installed four TUF AR140 fans in the GT302. These 140 x 28mm ARGB fans have an extra-thick design and can quietly yield high airflow.
Our components stayed cool when we tested the chassis for this ASUS TUF Gaming GT302 ARGB Review. These high-performing fans delivered adequate airflow.
Detachable Top Panel
The removable top panel makes cable routing and fan or radiator installation more convenient. Its tool-less design also makes installation quicker.
Interchangeable Side Panels

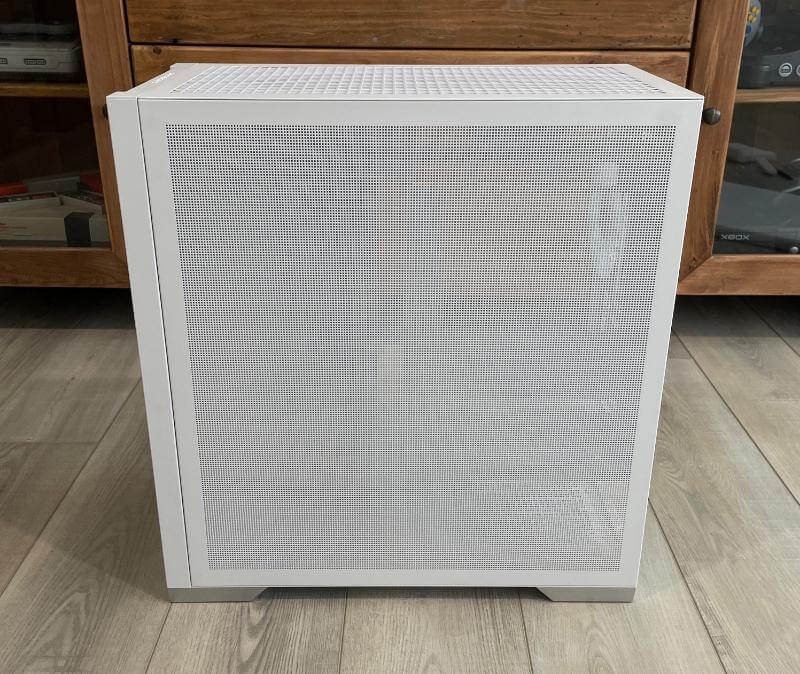

Aside from tool-less removal and installation, the GT302 allows you to swap conveniently between tempered glass or mesh panels. The tempered glass panel lets you showcase your build, while the mesh panel allows more ventilation for the interior.
Specifications
Model
- TUF Gaming GT302 ARGB
Case Size
- Mid Tower
Motherboard Support
- EATX (12″x10.9″)
- ATX
- Micro-ATX
- Mini-ITX
Drive Bays
- 2 x 2.5″ Bay
- 2 x 2.5″/3.5″ Combo Bay
Expansion Slots

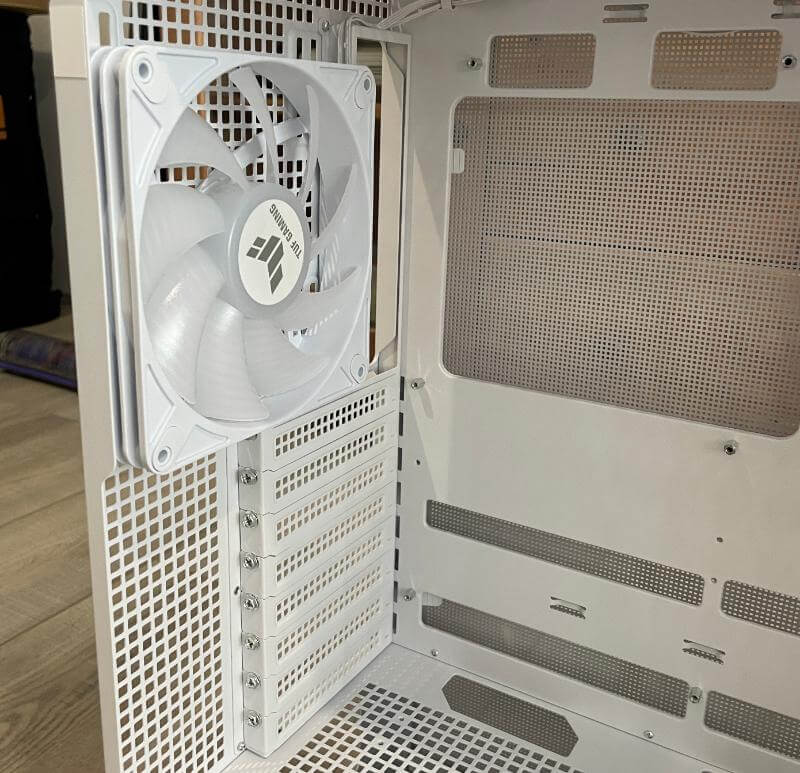

- 8
- 3 (additional vertical)
Front I/O Ports
- 1 x headphone / Microphone
- 2 x USB 3.2 Gen1
- 1 x USB 3.2 Gen 2×2 Type C
Tempered Glass
- Left Side
Radiator Support
- Front: 140 mm, 280 mm
- Top: 120 mm, 140 mm, 240 mm, 280 mm, 360 mm
- Rear: 120 mm, 140 mm
Cooling Support
- Front: 3 x 140 mm
- Top: 3 x 120 mm, 3 x 140 mm
- Rear: 1 x 120 mm, 1 x 140 mm
Pre-installed Fans
- Front: 3 x 140 mm, PWM, ARGB
- Rear: 1 x 140 mm, PWM, ARGB
Maximum Dimensions
- CPU Cooler Height: 165 mm
- GPU Length: 407 mm
- PSU Length: 220 mm
Removable Dust Filters
- Front
- Top
- Bottom
Maximum Cable Management Space
- 37 mm
Dimensions (W x H x D)
- 235 x 520 x 485 mm
Hands-on with the ASUS TUF Gaming GT302 ARGB
We loved the building convenience offered by the design and construction of this chassis. The tool-less design eliminated the need to use screws, which significantly streamlined the entire assembly process.
With all panels being easily removable, we could effortlessly insert and arrange components without having to maneuver around tight spaces or unscrew multiple parts. This innovative design allowed us to finish our building process quickly and efficiently, enhancing the overall user experience.
The inclusion of a pair of USB-A ports, a USB-C port, and a 3.5mm combo jack on the front I/O panel makes it easy to connect a variety of devices, catering to different user needs and preferences.
After building in the case, we tested it to discuss its performance in this ASUS TUF Gaming GT302 ARGB Review. We conducted a stress test with high combined power, and the GT302 performed admirably.
The GPU was far from reaching its thermal limit, thanks to the ample airflow provided by the four pre-installed TUF AR140 ARGB fans and the perforated panels. We tested different GPUs, and all resulted in impressively low temperatures. The overall cooling performance of this chassis was excellent, making it ideal for housing high-performing PCs.
Although the fans were audible, the noise was not distracting and remained within acceptable limits. Our results were comparable to most gaming laptops operating on their highest fan profiles. We recommend tuning the fan settings to achieve a balance between optimal cooling and minimal noise, depending on your specific needs and preferences.
The overall performance of the GT302 under our stress tests was impressive, and we have no complaints about it.
The cooling capabilities were superior, which is crucial for maintaining the longevity and performance of high-end components. While this exceptional cooling may sometimes compromise silent operation, adjusting the fan settings can help find a balance that suits your requirements.
The ASUS TUF Gaming GT302 ARGB offers a well-rounded package of convenience, functionality, and performance, making it a top contender in the realm of high-performance PC cases.
ASUS TUF Gaming GT302 ARGB Review Summary
In our review of the ASUS TUF Gaming GT302 ARGB, we found it to be an excellent choice for those looking to build a high-performing PC with outstanding cooling capabilities.
The chassis is well-designed with numerous thoughtful features that make the building process easy and enjoyable. The tool-less design, removable panels, and efficient cable management system contribute to a hassle-free setup, while the pre-installed ARGB fans provide superior cooling performance.
The GT302’s compatibility with high-powered components and the option to swap between tempered glass and mesh panels further enhance its versatility. Whether you’re a seasoned PC builder or a newcomer, this case offers the convenience and functionality needed for an optimal PC building experience.
Overall, the ASUS TUF Gaming GT302 ARGB impresses with its robust construction, innovative features, and exceptional cooling performance. It is a worthy contender in the market for gaming and high-performance PC cases. If you’re in the market for a new chassis, the GT302 is definitely worth considering.
