ASUS TUF RX 7900 XT OC Graphics Card Review

What we have for our ASUS TUF RX 7900 XT OC Graphics Card Review today is the RX 7900 XT. This graphics card is not as demanding as similar products and uses the RDNA3 architecture Navi31 GPU as its basis.

As a top-notch non-reference graphics card, the product features notable elements like triple axial-tech fans. These deliver optimised airflow compared to regular fans. It also sports a diecast fan shroud and a metal backplate to prevent PCB flex while aiding heat dissipation.

The product has more notable elements that will pique your interest. So, continue reading this ASUS TUF RX 7900 XT OC Graphics Card Review to learn more about this graphics card.

ASUS TUF RX 7900 XT OC Graphics Card Packaging

The graphics card arrived in a box with lots of details on it. The front has an image of the product, its name, company branding, and several features. It also displays how many GBs it has.

The back provides more information about the graphics card and displays other images of its parts. The box has an outer sleeve; in it is a thick black cardboard box that houses the product.

The package sports the TUF Gaming motifs to display a gamer-like aesthetic. Moreover, the TUF RX 7900 XT OC ships with several accessories, including the following:

  • A TUF Certificate of Reliability
  • One TUF Gaming Graphics Card Holder
  • TUF Velcro Hook & Loop
  • A Collection card
  • Thank you card
  • One Speedsetup Manual

ASUS TUF RX 7900 XT OC Graphics Card Review – Design and Functionality

We saw the card as sizeable while working on our ASUS TUF RX 7900 XT OC Graphics Card Review. It is evident when comparing it to its reference card sibling, which measures 335.9 x 158.2 x 72.6mm.

The TUF RX 7900 XT OC integrates a metal exoskeleton with a diecast frame. It has an aluminium shroud which gives its size and heft.

ASUS TUF RX 7900 XT OC Graphics Card Axial-tech Fans + Metal Backplate

This product also features axial-tech fans (x3) with dual ball bearings for optimised airflow. Interestingly, these only spin when the GPU temperatures are over 60 degrees.

You can find a metal backplate on the product, which aids in decreasing PCB flex while simultaneously helping heat dissipation. ASUS adorned this part with its TUF Gaming motif to enhance the overall appearance of the card.

Performance/Quiet Mode Switch

You can find this switch on the long edge of the TUF RX 7900 XT OC. Fortunately, ASUS included 8-pin PCIe power connectors (x3) to power the product. By default, remember that these graphics cards often come with two 8-pin connectors.

It also includes RGB lighting accents that come in the shape of the TUF Gaming logo. It sports an illuminated strip underneath for extra visuals.

We always look into the features of the products we test to learn more about them. So, continue reading our ASUS TUF RX 7900 XT OC Graphics Card Review to see what else it can offer.

Key Features of the ASUS TUF RX 7900 XT OC Graphics Card

User-Friendly Layout

The TUF RX 7900 XT OC has two side fans that spin counter-clockwise to reduce turbulence. As a result, it maximises air dispersion using the heatsink.

All three fans stop spinning when the GPU temperatures are less than 55 degrees. It allows for playing less-demanding games in silence.

The fans of this graphics card start spinning again when temperatures hit 61 degrees and higher. This speed curve balances acoustics and performance for any task.

3.63 Slot Style

The graphics card has a sizeable heatsink that soaks heat that is eventually whisked away by its Axial-tech fans.

Military-Grade Capacitors of the ASUS TUF RX 7900 XT OC Graphics Card

The TUF RX 7900 XT OC uses capacitors that last up to 20,000 hours at 105 degrees. It can tolerate ripple and higher temperatures, enhancing the graphics card for challenging conditions and long-term deployment.

Metal Exoskeleton

This feature helps prevent PCB flex thanks to its backplate, diecast frame, and aluminium shroud. Large vents are also present to enhance and improve heat dissipation.

Auto-extreme Technology for a Reliable Boost

This feature is a cutting-edge automated manufacturing process that revolutionises the industry by accomplishing soldering tasks in a single pass. It minimises thermal strain on components and eliminates the need for harsh cleaning chemicals. This process significantly reduces the environmental footprint and manufacturing power consumption while providing a reliable product.

Aura Sync

Experience the marvel of Aura-compatible ARGB lighting on the shroud, infusing your build with customisable colours and functional effects. Its compatible system components enable you to coordinate the radiant glow, crafting a theme that embodies your individuality.

Graphics Card Holder

ASUS ships the TUF RX 7900 XT OC with a graphics card holder to prevent sagging. It also has an included screwdriver you can use when building your PC.

Match Your ASUS TUF RX 7900 XT OC with a PSU from ASUS

ASUS has years of experience in thermal designs and power delivery from its motherboard and GPU product lines. As a result, ASUS also produced industry-leading PSUs for various builds. All series work with the newest multi-core chips and NVIDIA Ampere.

ASUS has a wattage calculator that can aid you in estimating the amount of power needed for your PC. You can choose from ASUS PSU series like ROG Loki, ROG Strix Aura, or ROG Thor power supply units. When combining these components in your build, you can enjoy optimal performance.

Higher Performance, Extended Fidelity

Experience the peak of upscaling technology with AMD FidelityFX Super Resolution, which boosts your gaming experience. Witness stunning image quality and an increase in framerates in supported games.

Unlocking the true potential of AMD Radeon Super Resolution (RSR), this FSR technology offers enhanced performance across thousands of games.

Advanced Graphics For Gamers

Enjoy and take advantage of top-notch performance, efficiency, and visuals at 4K. It is among the first gaming GPUs in the world powered by the AMD RDNA 3 technology.

It will allow you to immerse in stunning visuals with accurate colours from the AMD Radiance Display Engine. Plus, Radeon Super Resolution upscaling technologies and the AMD FidelityFX Super Resolution helps boost frame rates for your gaming enjoyment.

You can even activate the AMD Smart Technology for more optimised performance. Combine compatible AMD Ryzen processors with this graphics card, and you are all set.

Enhanced Performance with the ASUS TUF RX 7900 XT OC Graphics Card

AMD Radeon RX 7000 Series graphics cards have a higher performance standard for ultra-enthusiast gamers. It features advanced AMD RDNA 3 computing units, chiplet technology, and high clock speeds. As a result, this graphics card allows fluid gaming experiences with high refresh rates.

The TUF RX 7900 XT OC can also deliver 4K with its GDDR6 memory and second-generation AMD Infinity Cache.

Stunning Visuals with High-Performance Rendering

This graphics card combines upscaling technologies and computer-based AMD FidelityFX features to deliver new levels of high-speed gameplay and fidelity. With High-Performance Rendering, the TUF RX 7900 XT OC offers top-notch visuals with unparalleled performance. As a result, you can immerse in high-quality graphics at 8K 165Hz.

It works with AMD Radiance Display to enhance the overall visuals with up to 68 billion colours.

Optimal Performance with Ryzen Processors

Using a graphics card from the AMD Radeon RX 7000 Series with AMD Ryzen processors activates AMD Smart Technologies. It unleashes the maximum performance potential of your PC to give you the highest advantage. Boosting the graphics card with the Adrenaline Edition software application of AMD delivers optimal gaming experiences.

Increased Performance to Maximise Fidelity

AMD FidelityFX Super Resolution enhances upscaling to provide top-notch image quality while increasing frame rates in video games.

AMD Radeon Super Resolution is another advanced technology ASUS added to this graphics card. It maximises FSR up to driver levels, resulting in upscaled performance benefits when playing different games.

The Most Advanced Graphics For Gamers

AMD Radeon RX 7000 graphics cards deliver unparalleled performance, efficiency, and visuals. These are among the first gaming GPUs using the AMD RDNA chiplet,

This series of GPUs also use AMD Radiance Display to deliver colour accurately for breathtaking visuals. Other innovations include AMD FidelityFX Super Resolution and Radeon Super Resolution for superior upscaling.

Adobe Creative Cloud for Every Purchase

Purchasing the TUF RX 7900 XT OC comes with a complimentary one or three-month subscription to Adobe Creative Cloud. It provides access to over 20 creative apps for desktop and mobile. Other inclusions are Adobe Fonts, Adobe Portfolio, 100GB of cloud storage, and more.

ASUS TUF RX 7900 XT OC Graphics Card QuantumCloud

It is a secure application to help generate additional income by sharing the computing power of your graphics card. You can access these earnings through your preferred platforms, such as PayPal or WeChat. QuantumCloud also supports several exchange methods, including Steam.

What sets it apart is the strict policy of not collecting personal data, ensuring your privacy remains safeguarded.

Intuitive and Comprehensive Software – GPU Tweak III

GPU Tweak III is the TUF RX 7900 XT OC software interface. It is more feature-rich and intuitive than before.

We saw its revamped and optimised interface during tests for our ASUS TUF RX 7900 XT OC Graphics Card Review. It offers excellent accessibility by centralising core functions into a dashboard.

Moreover, ASUS also overhauled and enhanced its Voltage-Frequency tuner to make overclocking more convenient. And to make the most out of the graphics card, the company also included these:

  • Automatic Profile Swapping
  • 0dB Fan Technology
  • Fully-customisable On-screen Display
  • Logging Capabilities

It lets you intuitively monitor your components and manage the GPU boost curve and fans. Plus, you can save settings that you can link to specific applications. It also has an on-screen display showing data while running full-screen apps.


  • Graphic Engine: AMD Radeon™ RX 7900 XT
  • Bus Standard: PCIe 4.0
  • Video Memory: 20GB GDDR6
  • Engine Clock: up to 2500 MHz (for Boost Clock) and up to 2130 MHz (for Game Clock)
  • Engine Clock (Overclocking): up to 2535 MHz (for Boost Clock) and up to 2175 MHz ( for Game Clock)
  • OpenGL: OpenGL4.6
  • Stream Processors: 5376
  • Digital Max Resolution: 7680 x 4320
  • Memory Interface: 320-bit
  • Memory Speed: 20 Gbps
  • Interface: 1x Native HDMI 2.1, 3x Native DisplayPort 2.1 with HDCP support (2.3)
  • Maximum Display Support: 4
  • Recommended PSU: 750W
  • Slot: 3.63
  • Power Connectors: 3x 8-pin
  • Dimensions: 352.9 x 158.2 x 72.6mm

Hands-on with the ASUS TUF RX 7900 XT OC Graphics Card

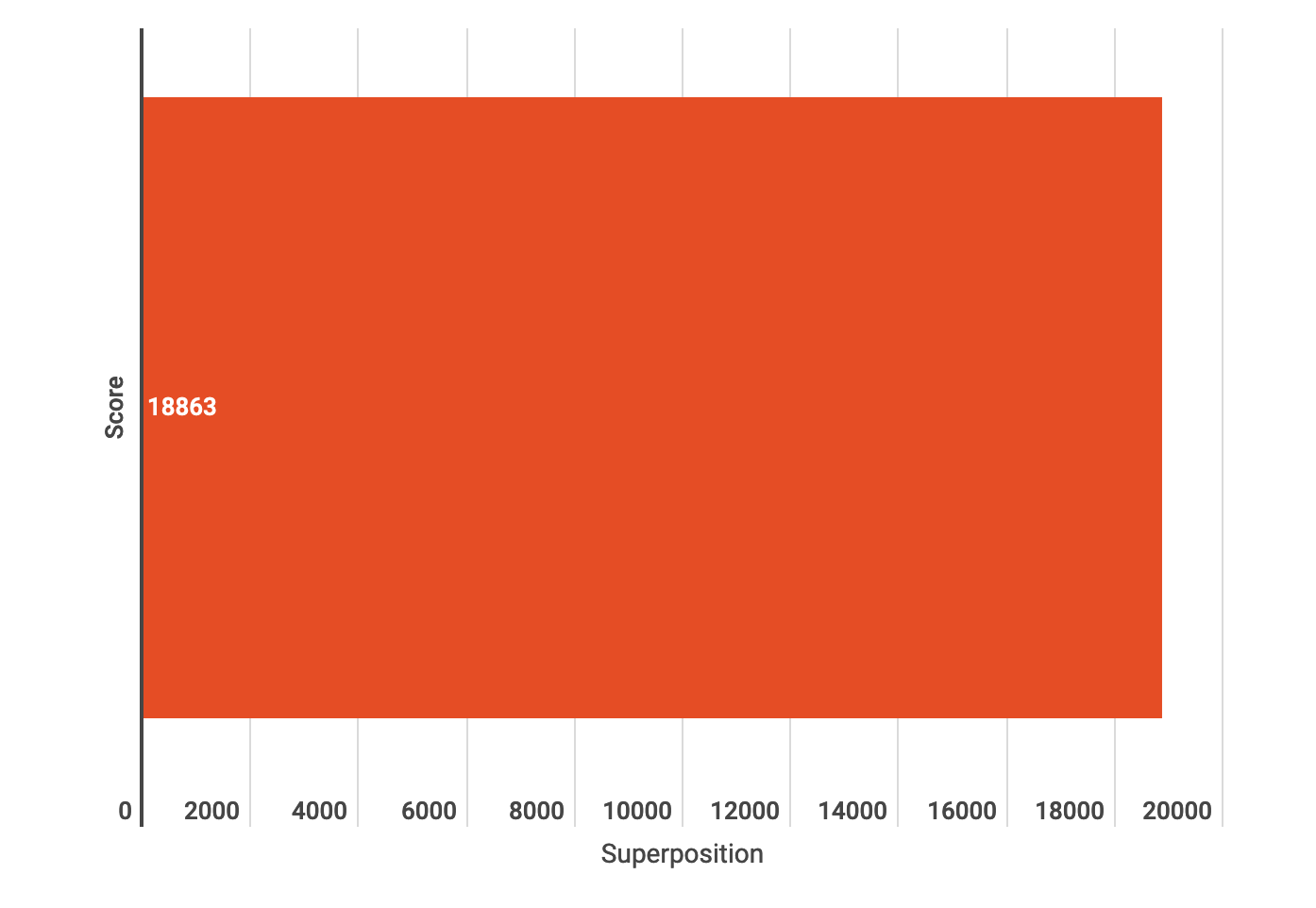

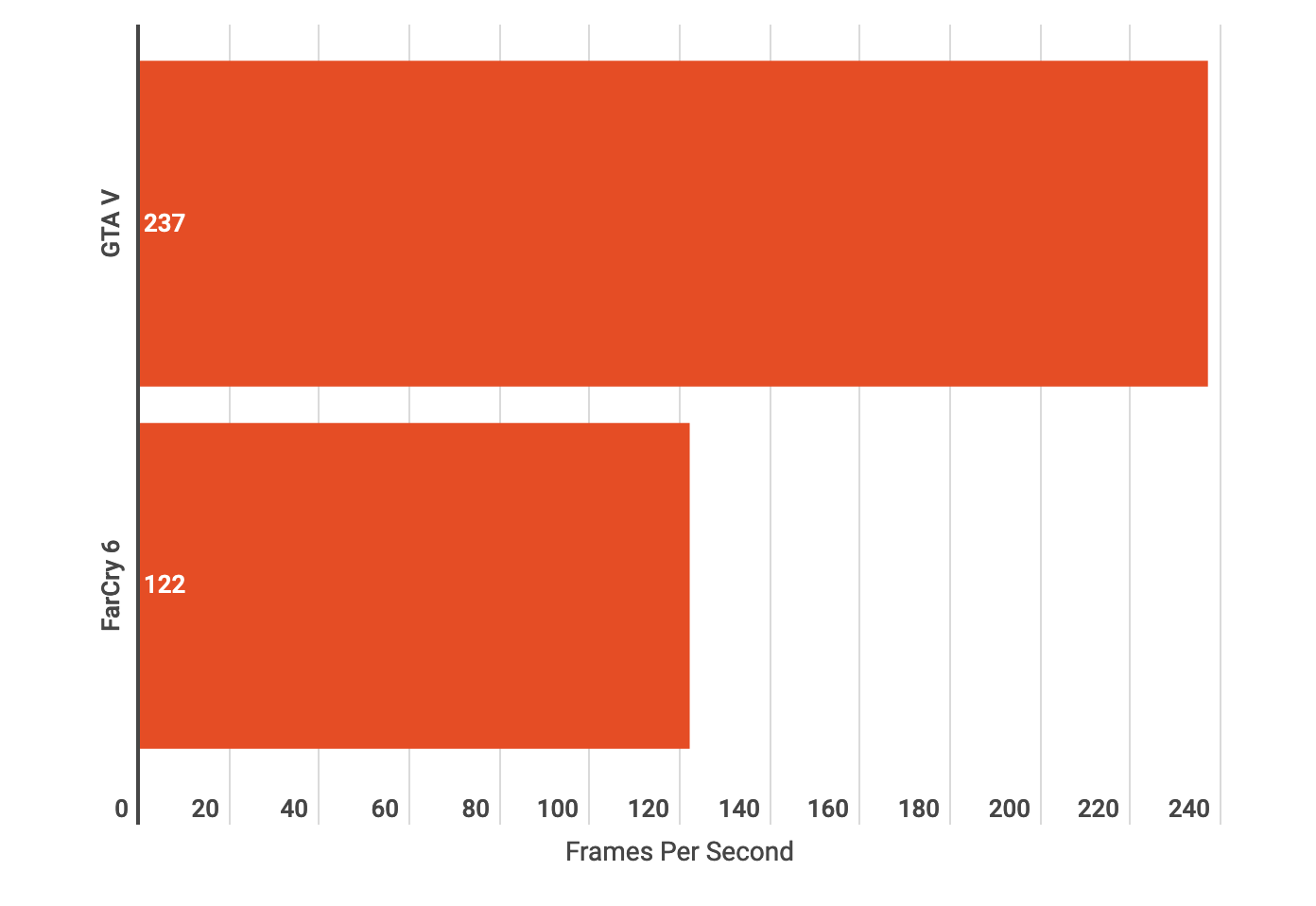

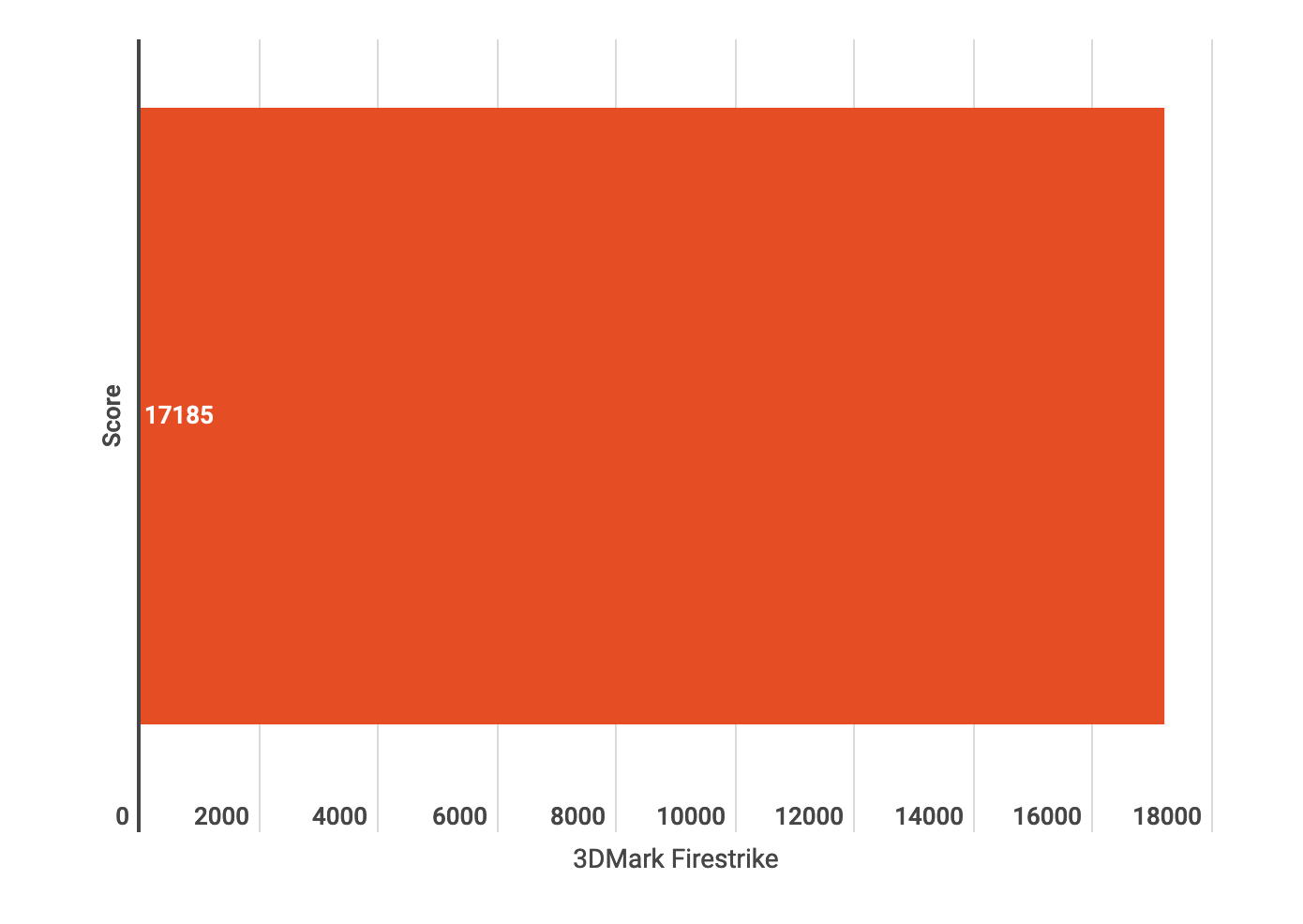

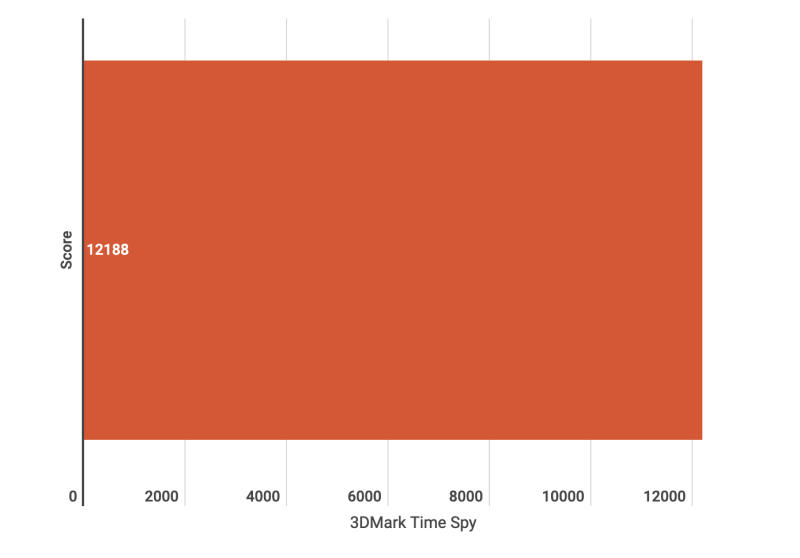

CleanShot 2023 08 18 at CleanShot 2023 08 18 at CleanShot 2023 08 18 at CleanShot 2023 08 18 at

The lowest idle temperature of the GPU in our tests was 42 degrees, while the highest reached 49 degrees.

We took the thermal results of this graphics card under load while playing games on maximum graphics settings. The lowest temperature was 53 degrees, and the highest was 81 degrees.

Based on our test results, the cooling solution of the TUF RX 7900 XT OC worked excellently. It also maintained low temperatures even when its power draw went above 300W when under load.

Another thing that impressed us was the acoustics of the TUF RX 7900 XT OC. Although it had three fans, it did not become loud, even under heavy graphics loads. The coil whine was audible but was not loud enough to disturb us, so we have no complaints about this.

Overall, the product performance was excellent during our tests for this ASUS TUF RX 7900 XT OC Graphics Card Review. It delivered excellent graphics for gaming, while its cooling system provided adequate cooling for the GPU. We also enjoyed its almost noise-free performance, making this graphics card ideal for quiet environments.

ASUS TUF RX 7900 XT OC Graphics Card Review Summary

The TUF RX 7900 XT OC is an excellent graphics card that supports GDDR6. Its superior cooling solution allows it to stay cool while gaming and doing other demanding tasks. Plus, it has excellent aesthetics that will suit any build.

We played multiple games to test the product for our ASUS TUF RX 7900 XT OC Graphics Card Review. This graphics card worked well while gaming at 1440p and maximum-level graphics settings. Plus, it had no issues, and we were satisfied with its performance.

Overall, we highly recommend this product for intense gamers who want to enjoy superior-quality graphics. Learn more about the TUF RX 7900 XT OC Graphics Card by visiting the official product page of ASUS.
