In 2021, Sony announced the M.2 NVMe drive support for storage upgrades on the PlayStation 5. Today, our Corsair MP600 Pro LPX Review will feature the first SSD optimised for the Sony gaming console. Its design, form, factor, and firmware optimisations make it an excellent storage solution for the PlayStation 5.
The MP600 Pro LPX is a high-performance PCIe Gen4 x4 NVMe 1.4 M.2 SSD. Our Corsair MP600 Pro LPX Review features the 2TB variant, but you can opt for other storage capacities. It is also available in 500GB, 2TB, 4TB, and 8TB.
What makes this SSD the best for the PlayStation 5? Our review will discuss its design, features, performance, and other details.

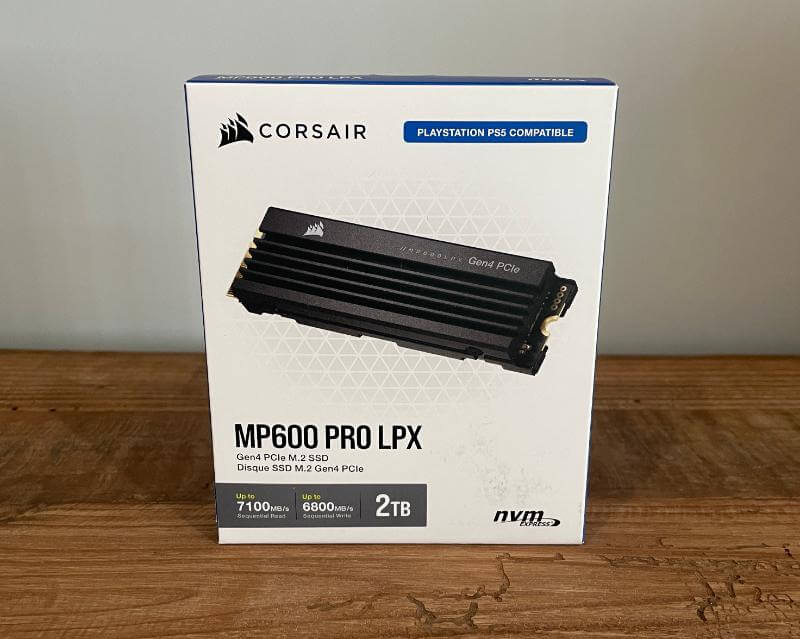

Corsair MP600 Pro LPX Packaging
Corsair MP600 Pro LPX Review – Design and Functionality

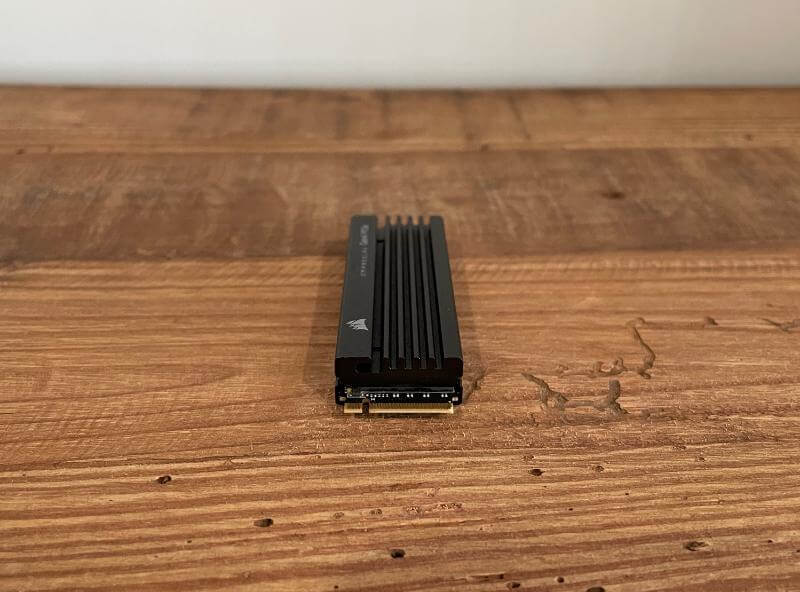

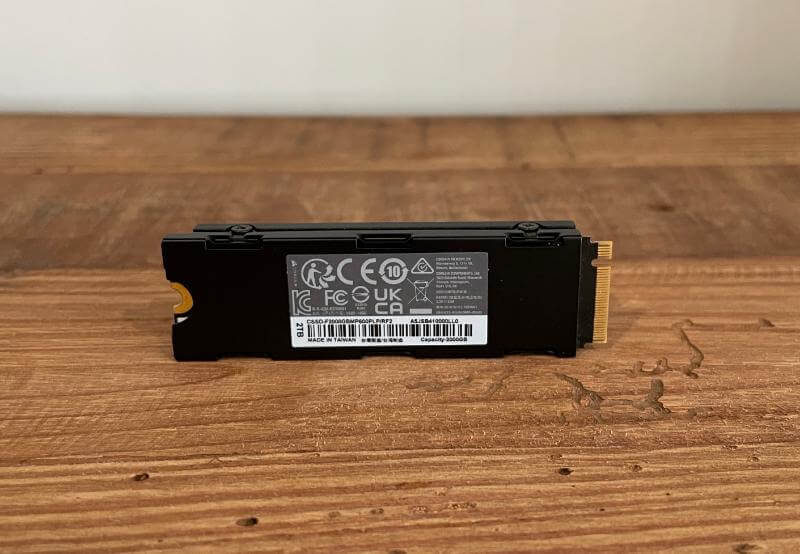

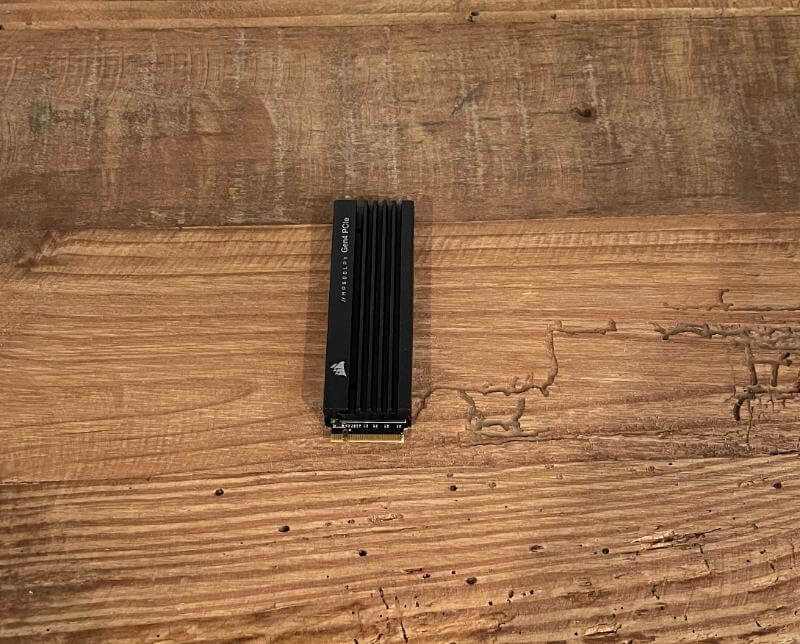

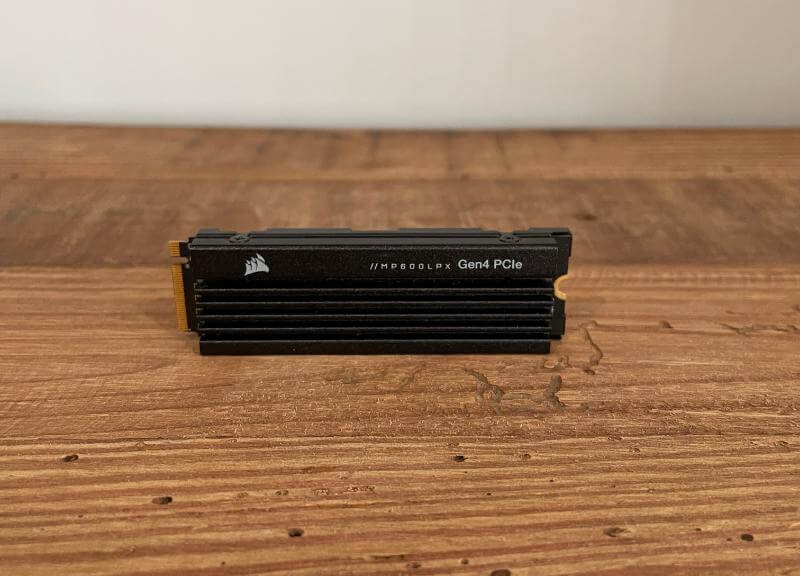

After unboxing the product for this Corsair MP600 Pro LPX Review, we immediately examined its design. It resembles the powerful MP600 Pro XT but has a more compact pre-installed heatsink.
Corsair designed it to fit the storage expansion slot of the PlayStation 5 perfectly. It uses the M.2 2280 form factor, making its dimensions 80mm long and 22mm wide.

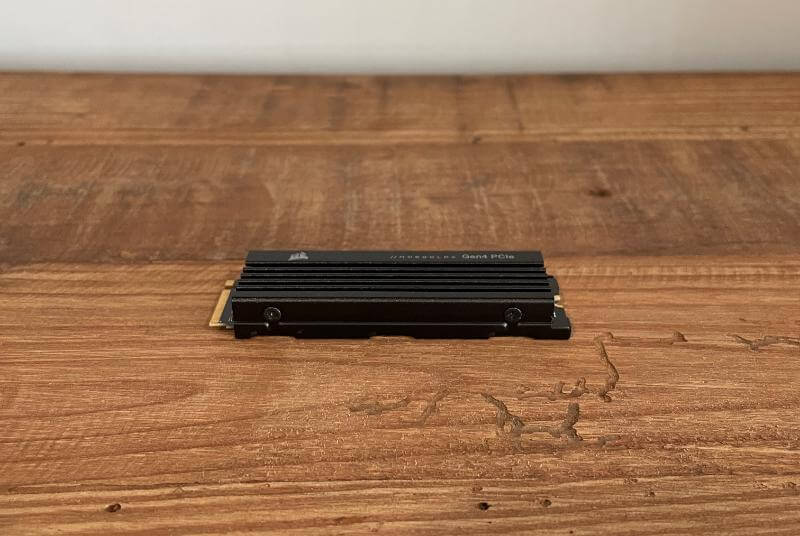

The black heatsink of the MP600 Pro LPX has a low-profile design and is sufficient for keeping the drive cool. Its mounting mechanism uses four screws and an ample amount of thermal paste.
We also inspected under the hood for this Corsair MP600 Pro LPX Review. It equips the Phison E18 controller, which the MP600 Pro also uses.
The SSD has upgraded NAND flash chips and the fastest Micron 176-layer 3D TLC. Plus, it has a 2GB DDR DRAM cache from Hynix.
Key Features of the Corsair MP600 Pro LPX
Numerous manufacturers have released SSDs optimised for the PlayStation 5. Aside from Corsair being a trusted brand, what makes the MP600 Pro LPX the top choice among gamers? Let us discuss the primary features that set it apart from other PlayStation 5 SSDs.
Perfectly Designed for the PlayStation 5
The compact M.2 2280 form factor of the MP600 Pro LPX makes it easily fit into the PlayStation 5. When we installed it before our tests for this Corsair MP600 Pro LPX Review, we did not experience difficulties. The company optimised its size and design for the storage expansion slot of the PlayStation 5.
Aside from its physical build and design, it meets all the performance requirements of the PlayStation 5. It is a quick and easy solution for a game storage upgrade.
Enhance Your Game Collection With the Corsair MP600 Pro LPX
As mentioned, the MP600 Pro LPX is available in multiple storage capacities. You can expand your game library by up to 8TB to store many titles.
Load Games Faster and Smoother
The MP600 Pro LPX can perform at lightning-fast speeds. Sequential read speed can reach 7100MB/s, while sequential write with PCIe 4.0 technology can reach 6800MB/s. With these rates, the SSD can load large games faster and smoother.
Keeping Temperatures Low for Consistent Performance
The MP600 Pro LPX has a low-profile aluminium heatsink that effectively dissipates heat and reduces throttling. It helps the SSD sustain its performance regardless of game size and intensity.
When we tested the SSD for this Corsair MP600 Pro LPX Review, its temperatures were low. We played different games, and its temperature remained within reasonable levels.
Build to Last
Corsair equipped this SSD with high-density 3D TLC NAND to provide the best combination of performance and endurance. With these high-quality components, the MP600 Pro LPX can deliver optimum performance in the long run.
Comprehensive Five-Year Warranty
Like other Corsair products, the MP600 Pro LPX offers long-term reliability. Plus, the company provides industry-leading customer support for your convenience.
Specifications
- Form Factor: M.2 2280
- Heatsink Color: Black
- Heatsink Material: Aluminum
- Memory Type: PCIe Gen 4.0 x4
- Storage Temperature: -40°C to +85°C
- Endurance: 1400TBW
- Max Sequential Read Speed: Up to 7,100MB/s
- Max Sequential Write Speed: Up to 6,800MB/s
- Storage Humidity: 93% RH (at 40°C)
- Package Contents: MP600 PRO LPX SSD with heatsink, Quick Start Guide
- Smart Support: Yes
- NAND Technology: 3D TLC
- Operating Temperature: 0°C to +70°C
- Shock Resistance: 1,500 G
- Application: Consumer/Client
- Compatibility: M.2 2280 interface, Windows 10, Mac OS X
- Voltage: 3.3V (±5%)
- Vibration Resistance: 20 Hz–80 Hz/1.52 mm, 80 Hz–2000 Hz/20G
- Power Consumption (DEVSLP): PS4: <2mW
- Encryption: AES 256-bit
- MTBF: 1,700,000 hours
- Total Bytes Written (TBW): 1400TBW
- Capacity: 2TB
- Interface: PCIe 4.0 x4
- Weight: 0.1 kg
Hands-on with the Corsair MP600 Pro LPX
Before testing the SSD for this Corsair MP600 Pro LPX Review, we installed it into the PlayStation 5. Installation was straightforward since we only had to remove the bottom panel of the PlayStation 5. Next, we removed the mounting screw and inserted the MP600 Pro LPX.
After that, we secured the mounting screw again to hold the SSD in place and repositioned the bottom panel. We proceeded to boot the PlayStation 5 after installing the SSD.
Corsair SSD Toolbox Software
Like all Corsair SSDs, the MP600 Pro LPX works with the complimentary SSD Toolbox software. This app has a user-friendly interface, and it displays comprehensive drive information. Also, it has numerous handy functions, including TRIM, cloning, and Secure Erase.
Using the Corsair MP600 Pro LPX
After installing, we immediately used the SSD to share our test results in this Corsair MP600 Pro LPX Review. Upon booting it, the PlayStation 5 prompted us to format the new SSD and test its speed.
The speed test result was 6600MB/s read speed, placing it above the 5500MB/s minimum requirement for the PlayStation 5. This high speed is crucial to meet the same performance levels as the built-in PlayStation 5 SSD.
We loved this SSD for its instant loading capability. It allowed us to install, download, and play various games without lags and delays, which is impossible with HDDs.
This 2TB model offered impressive speeds exceeding the results of other SSDs we tested. Its sequential read and write speeds were 7367MB/s and 6875MB/s. It was faster than the advertised speed and some of the top PlayStation 5 SSDs in our tests.
This SSD also fared well in our random read and write tests, reaching 3025MB/s and 2690MB/s, respectively. These impressive results were the best among the PlayStation 5 SSDs we tested.
The fast sequential and random read/write performances make the drive ideal for transferring massive files. It will also work excellently for general operation as a boot drive.
Aside from using the M600 Pro LPX on the PlayStation 5, we tried it on PC. It also performed fast, thanks to its high-quality components.
This SSD stayed cool throughout our tests, even during long and demanding gaming sessions. Its temperature peaked at 56°C, which was within operational temperatures.
The MP600 Pro LPX is a high-quality SSD optimised for the PlayStation 5. It meets all the requirements and compliance specifications of the Sony gaming console without compromising its performance.
Corsair MP600 Pro LPX Review Summary
The Corsair MP600 Pro LPX is an exceptional storage solution tailored specifically for the PlayStation 5. Its design, form factor, and pre-installed heatsink allow it to fit perfectly in the console’s storage expansion slot. With PCIe Gen4 x4 NVMe 1.4 technology, it delivers outstanding performance, with sequential read and write speeds exceeding the PlayStation 5’s minimum requirements.
The SSD’s compact design and efficient thermal management ensure consistent performance, even during extended gaming sessions. Its low-profile heatsink successfully dissipates heat, keeping temperatures stable and preventing throttling, even under heavy use. This makes it an ideal choice for users looking to upgrade their PlayStation 5 storage without sacrificing performance.
In addition to its impressive performance, the MP600 Pro LPX is available in a range of storage capacities, allowing gamers to expand their libraries significantly. Its high-density 3D TLC NAND ensures both durability and longevity, backed by Corsair’s five-year warranty and industry-leading customer support.
The Corsair MP600 Pro LPX stands out as one of the best SSDs for the PlayStation 5. Its combination of speed, reliability, and seamless integration with the console makes it an excellent choice for gamers seeking a high-quality, long-lasting storage upgrade.
