The Corsair MP700 Elite 2TB with heatsink represents a new step in SSD performance, blending the power of PCIe 5.0 with the efficiency of a DRAM-less design. It’s crafted to deliver exceptional speeds while keeping thermals in check, making it an attractive choice for those seeking reliable next-generation storage. This model demonstrates how well-balanced design can achieve both performance and endurance.
While some Gen5 drives aim to top benchmark charts, this SSD focuses on offering impressive speed with thoughtful efficiency. With read and write rates that place it ahead of even the best Gen4 options, it ensures a noticeable boost in daily computing tasks and gaming. The addition of a well-designed heatsink keeps the drive operating at stable temperatures under load.
For users upgrading to PCIe 5.0, the MP700 Elite provides an excellent middle ground between cutting-edge speed and long-term dependability. It’s designed not only for fast data transfers but also for consistent performance over extended use. This makes it an appealing choice for builders who want high performance without the usual thermal concerns.
Design and Functionality

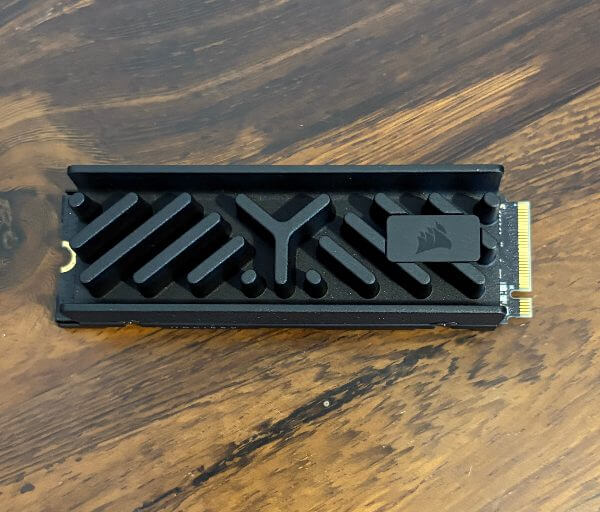

Corsair’s MP700 Elite with heatsink arrives with a confident and minimalistic look that aligns well with modern PC builds. The matte black heatsink gives it a stealthy appearance while also serving a functional role in heat dissipation.
The heatsink is constructed from aluminium and features a textured, sandblasted finish that’s both visually appealing and practical. It wraps around the drive securely, enhancing thermal efficiency while adding only modest size to the overall footprint.

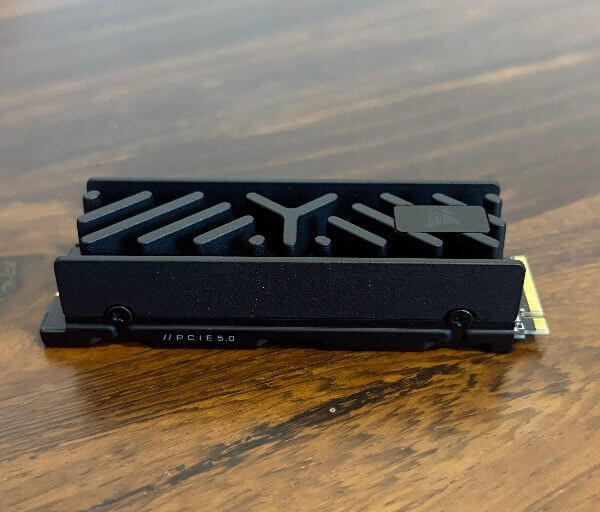

This dual-part heatsink setup is held together with four precision screws, creating a tight cradle around the SSD. Thermal pads are placed carefully beneath the heatsink to draw heat away from the controller and NAND.
While the outer design may look sleek and clean, a closer inspection reveals the thoughtful layering within the heatsink. The added height and width are minimal, making it easy to install in most motherboards without clearance issues.
The MP700 Elite follows a single-sided M.2 2280 layout, with all critical components mounted on one side of the PCB. This simplifies installation and improves heat transfer to the overlying heatsink.
At its core is the Phison PS5031-E31T controller, placed near the connector for optimal board routing. Alongside it are two 1TB packages of Kioxia’s 218-layer 3D TLC NAND flash, offering dense, high-speed storage.
A power management chip (Phison PS6231-70) sits between the controller and NAND, helping to regulate voltage and improve power efficiency. The absence of onboard DRAM is addressed by leveraging Host Memory Buffer (HMB) support, reducing component count and energy use.
Even with no dedicated DRAM, the drive maintains stable performance thanks to this HMB approach. This also helps lower the overall power draw, making it suitable for compact or thermally constrained systems.

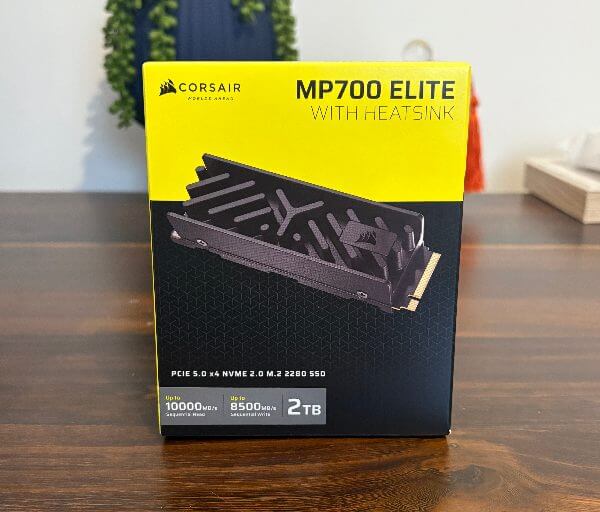

Corsair’s familiar black-and-yellow retail packaging gives an immediate sense of brand continuity. Inside, the drive is securely housed and presented alongside its performance stats and capacity clearly labelled.
The design of the MP700 Elite with heatsink showcases a practical and modern approach to SSD cooling. It blends clean aesthetics with a robust structure that ensures reliable thermal control, even during sustained workloads.
Key Features
The Corsair MP700 Elite harnesses the power of PCIe 5.0, offering sequential read speeds up to 10,000 MB/s and write speeds up to 8,500 MB/s. This ensures lightning-fast data transfers, whether loading large files, launching software, or gaming.
High-density 3D TLC NAND flash is at the heart of the drive, delivering both speed and endurance. Its advanced 218-layer architecture ensures long-lasting performance for intensive workloads.
Support for Microsoft DirectStorage allows the SSD to communicate directly with a graphics card during supported games. This leads to drastically reduced load times and smoother transitions between levels.
With random read speeds up to 1.3 million IOPS and write speeds up to 1.4 million IOPS, multitasking feels fluid and responsive. These figures help eliminate bottlenecks in scenarios like simultaneous game updates and background processes.
The drive’s DRAM-less design relies on Host Memory Buffer technology to maintain quick response times. This approach cuts down on energy consumption while keeping the drive efficient and dependable.
Thermal pads combined with the robust aluminium heatsink maintain consistent operating temperatures. This thermal management ensures sustained performance, even during demanding use.
Corsair’s SSD Toolbox software complements the hardware by providing drive health monitoring, firmware updates, and optimisation tools. Users can securely erase data or clone their existing drive with ease through the software.
The compact M.2 2280 form factor makes installation straightforward across a wide range of motherboards. Despite its high performance, it integrates seamlessly into modern systems without requiring extra space.
Technical Specifications
Form Factor
- M.2 2280 with aluminium heatsink
Interface
- PCIe Gen 5.0 x4
- NVMe 2.0
Controller
- Phison PS5031-E31T (7nm process, DRAM-less with HMB support)
NAND Flash
- Kioxia 218-layer 3D TLC NAND
Performance
- Sequential Read: Up to 10,000 MB/s
- Sequential Write: Up to 8,500 MB/s
- Random Read: Up to 1,300,000 IOPS
- Random Write: Up to 1,400,000 IOPS
Power Consumption
- Average Active: Up to 5.9W
Endurance
- 2TB Model: 1,200 TBW
- Backed by a 5-year warranty
Operating Conditions
- Operating Temperature: 0°C to +70°C
- Storage Temperature: -40°C to +85°C
- Shock Resistance: 1,500 G
- Vibration: 20 Hz–80 Hz at 1.52 mm, 80 Hz–2000 Hz at 20G
Software
- Corsair SSD Toolbox (drive health, firmware updates, cloning, optimisation)
Weight
- 0.081 kg
Experience Using the Product and Performance
From the moment the Corsair MP700 Elite 2TB with heatsink was installed, the difference in speed was immediately noticeable. Booting into the operating system felt quicker, with load times cut down significantly compared to older generation drives.
File transfers were exceptionally smooth, even when moving large media libraries and project folders. The drive consistently delivered high throughput without stuttering or slowing down.
Gaming performance benefited greatly from the Gen5 capabilities of this SSD. Games loaded faster, with levels and maps appearing almost instantly, reducing downtime between sessions.
Support for Microsoft DirectStorage made an impact during compatible titles. Scenes rendered quickly, and transitions were fluid, enhancing the overall immersion.
The heatsink design kept temperatures well under control during extended gaming and benchmarking sessions. Even when under heavy load, the drive maintained steady performance without signs of thermal throttling.
Random read and write speeds played a crucial role during multitasking. Switching between large spreadsheets, video editing software, and background downloads was seamless and responsive.
Power efficiency was another strength of this DRAM-less design. Despite the immense speed, the drive consumed less power than many of its Gen5 counterparts with onboard DRAM.
During stress tests, the drive handled continuous data transfers without performance dips. The thermal pads under the heatsink worked effectively to distribute heat evenly.
In day-to-day use, the Host Memory Buffer support was more than adequate. Tasks that might traditionally benefit from onboard DRAM performed smoothly, with no apparent lag or delays.
Corsair’s SSD Toolbox software provided a useful set of features for managing the drive. Monitoring health, checking S.M.A.R.T. data, and updating firmware were quick and easy.
The cloning utility included in the software simplified the upgrade process. Users could migrate data from their old drive with minimal effort and downtime.
For professional tasks like video editing, the MP700 Elite proved to be a strong performer. High-resolution files rendered quickly, and project exports were notably faster.
The combination of cutting-edge Gen5 speeds and dependable thermals gave confidence in long-term use. It balanced high performance with stability, making it suitable for both gaming and productivity.
The experience with the Corsair MP700 Elite 2TB with heatsink was consistently positive. It brought a clear improvement to system responsiveness, offering both speed and efficiency without compromise.
Conclusion
The Corsair MP700 Elite 2TB with heatsink demonstrates how PCIe 5.0 storage can deliver speed and efficiency in one package. Its thoughtful design ensures high performance without sacrificing thermal control.
From gaming to professional workloads, the drive consistently performs at a high level. Load times, file transfers, and multitasking all benefit from its advanced capabilities.
The heatsink design not only enhances cooling but also adds durability and style. Combined with the compact M.2 form factor, it integrates easily into a wide range of systems.
For those seeking next-generation storage that balances performance, efficiency, and reliability, this drive is an excellent choice. It sets a strong standard for DRAM-less Gen5 SSDs moving forward.
