Elegoo is among the trusted providers of 3D printers, and recently, it gave us something new. Today, we will look into this product in our Elegoo Jupiter SE 6K Review and discuss its features and performance. Aside from these, we will also look into its design, specifications, and functions.
Elegoo claims the Jupiter SE 6K has elements, making it among the top resin 3D printers. This model leans toward high-volume construction, offering optimisations for setting new 3D resin printer standards.
Elegoo Jupiter SE 6K Packaging
The printer arrived in time for our Elegoo Jupiter SE 6K Review. It came in a sturdy cardboard box and enough protection to keep the product secure during transit.
Elegoo kept things simple for its packaging, so we focused on unboxing and found these items inside the box:
- Jupiter SE 6K
- Build platform
- USB air purifier
- Resin tank
- Primary auto resin feeding module
- 2x bottle cap module
- 2x cover handle
- Funnel
- U-disk
- Mask and gloves
- Scraper
- Adapter
- Tool kit
- Backup screws
- User manual
Elegoo Jupiter SE 6K Review – Design and Functionality
Elegoo focuses on durability and dependability, which is evident in the reinforced design of its construction plate. Incorporating a charcoal filter and resin pump in this 3D printer attracts a broader customer base.
These innovations allow Elegoo to maintain its competitive edge in the 3D printing industry. It continuously evolves to meet the demands of its users.
While observing this printer for our Elegoo Jupiter SE 6K Review, we noticed its physical redesign. Aside from that, we also saw the inclusion of a 2.0 Cobb LED screen, offering better print quality and precision.
The overall build volume of this product remains the same as the Jupiter 6K. It supports multiple slicers, ensuring this printer can work for different user preferences and software ecosystems.
The printer features a removable lid instead of the hinged door present on the original Jupiter model. This aspect makes it easier to clean the product.
However, remember that the space above the printer is for fitting and removing the cover. This alteration contributes to its smaller footprint compared to its predecessor.
Moreover, the build plate now has a new engraving pattern for enhancing adhesion, a crucial element for successful prints.
The printer has large rubber feet to provide stability. We think it would be better if the printer had adjustable feet to ensure level positioning.

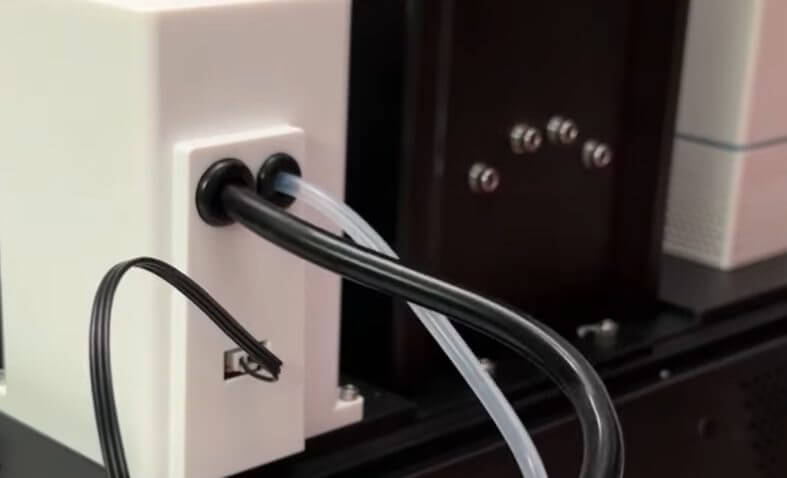

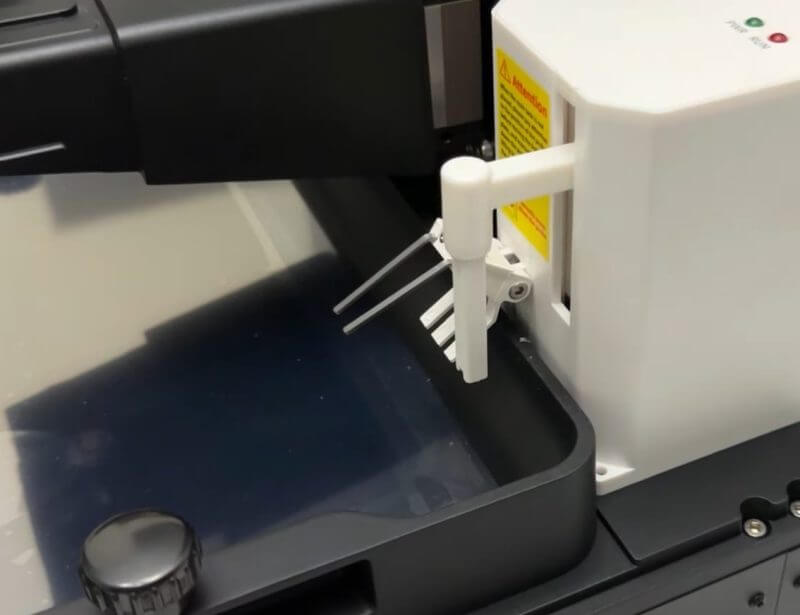

Resin Pump of the Elegoo Jupiter SE 6K
We learned about the new optimisations Elegoo integrated into this printer while writing this Elegoo Jupiter SE 6K Review. It comes with an efficient resin pump for controlling resin levels.
However, remember that it is only compatible with bottles from Elegoo. But if you use resins not from the company, always keep your Elegoo bottles empty.

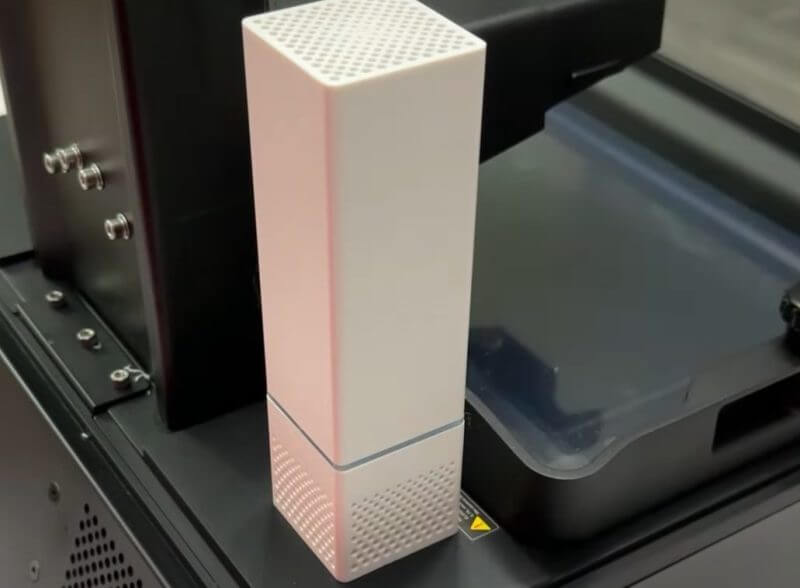

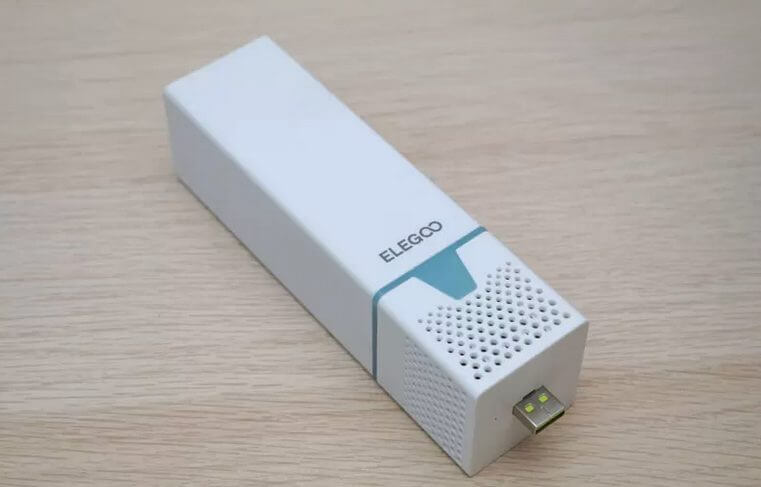

Charcoal Filter
To combat odours, the Jupiter SE 6K has a charcoal filter. It purifies air and receives power via a USB port inside the printer.
But while this filter reduces odours, it does not alter the toxicity of resin. As a precaution, we do not recommend placing this type of printer in your bedroom.
It is necessary to use resin printers in well-ventilated areas. For this reason, the hood of this printer includes a slot for air extraction.
Key Features of the Elegoo Jupiter SE 6K
Is the Jupiter SE 6K better than its predecessor and other 3D printers? Let us discuss its primary features to determine if it will meet your requirements.
32.5cm 6K Mono LCD
The Jupiter SE features a 32.5cm 6K monochrome LCD screen with a 5448×3064 resolution. It also has an XY resolution of 51 microns. These features guarantee accurate capturing of every detail of your design.
Spacious for Your Projects
The Jupiter SE 6K dimensions are 277.848 x 156.264 x 300mm³, offering plenty of room for larger projects. It allows printing larger models or multiple parts simultaneously, making it ideal for commercial and professional applications.
Automated Resin Management System of the Elegoo Jupiter SE 6K
The Jupiter SE has an automatic resin feeding and recycling system, guaranteeing a steady stream of resin when printing. This feature collects and recycles unused resin to reduce waste and save costs in the long run.
COB +Refractive Light Source
The Jupiter SE 6K has a COB + refractive light source for reduced light dispersion. It is one of the features we loved when we tested the product for this Elegoo Jupiter SE 6K Review. This feature provides consistent and uniform light exposure to make smoother prints with finer, sharper details and precise dimensions.
Top-notch Cooling System for Efficient Heat Dissipation
This 3D printer features fans and heat-conducting copper tubes on the sides of the COB light source. These components dissipate heat to keep the temperature levels stable while printing, extending the lifespan of the 3D printer.
Hassle-free Slicing with the Elegoo Jupiter SE 6K
The Jupiter SE 6K works with ChituBox and Tango for hassle-free slicing.
Stable Movement Structure
The Z-axis dual linear guide rail has a 0.02mm accuracy, ensuring precise and stable Z-axis movement while printing. Its guaranteed stability and precision result in higher-quality prints.
User-friendly Design

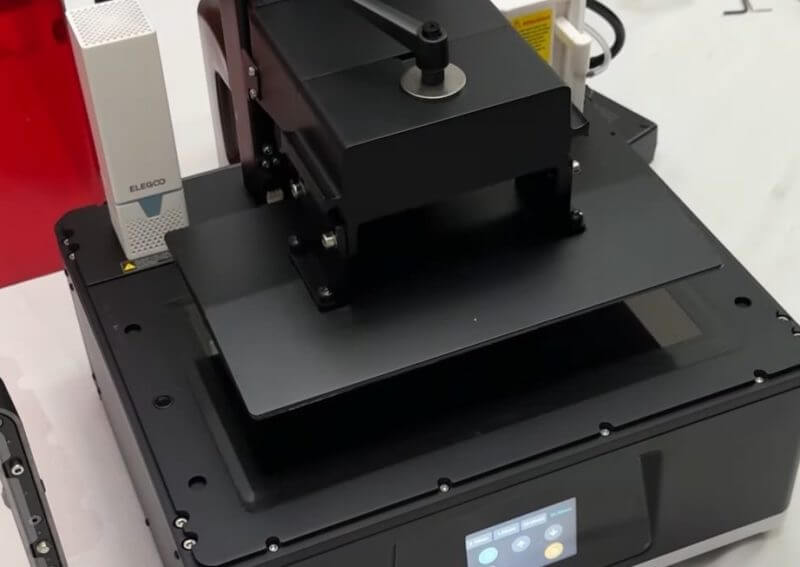

The build plate of this 3D printer has a laser-carved surface and a four-point levelling system. These offer top-notch adhesion while printing and eliminate repeat levelling. Plus, the 3D printer has a rotary handle to make build plate installation and removal easier.
Laser-carved Build Platform
The laser-carved build plate offers better adhesion and makes print removal easy. It improved our printing experience when we tested the 3D printer for this Elegoo Jupiter SE 6K Review.
Specifications
- LCD: 32.5cm 6K Mono LCD
- System: EL3D-3.0.1
- Technology: MSLA Stereolithography
- Slicer Software: ChituBox and Tango
- Layer Thickness: 0.01 – 0.2mm
- Maximum Printing Speed: 70mm/H
- Z-axis Accuracy: 0.02mm
- XY Resolution: 51 x 51um (5448*3064)
- Light Source: COB + Refractive Light Source (with 405nm wavelength)
- Connectivity: USB
- Operation: 8.9cm Touch Screen
- Languages: Chinese, English
- Build Volume: 277.848mm x 156.264mm x 300mm (L x W x H)
- Printer Dimensions: 479.9 x 377.4 x 657.5mm (L x W x H)
- Weight: 19.5kg
- Power Requirements: 100-240V 50/60 Hz 24V 7.5A
Hands-on with the Elegoo Jupiter SE 6K
When choosing a 3D printer, you have to look into several factors. These include user-friendliness, efficiency, speed, print quality, and more. We will discuss our user experience in this Elegoo Jupiter SE 6K Review to determine if it meets these criteria.
Setting up the Elegoo Jupiter SE 6K
Setting up the Jupiter SE 6K is straightforward since it is almost ready for use when pulled out of the box. Attach the air purifier and automatic resin pump and set the initial Z height.
To install the air purifier and resin pump, loosen the screws and use a spacer to attach these well. Once installed, you can tighten the screws and set the initial Z height before printing anything.

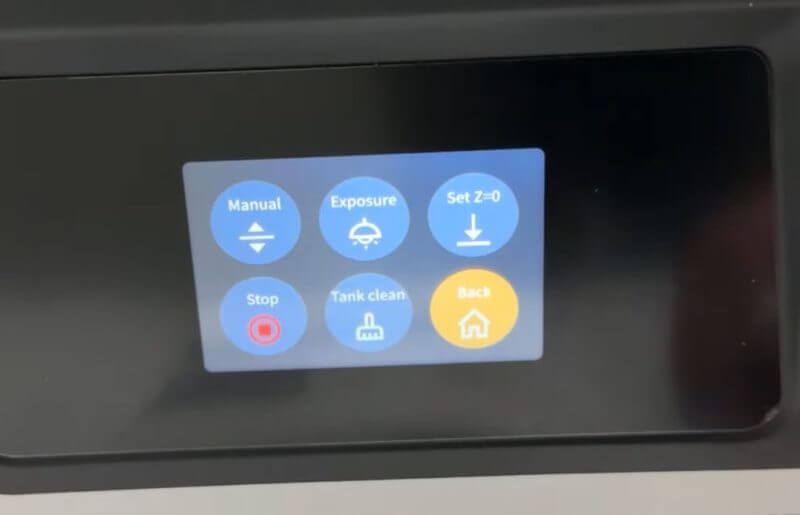

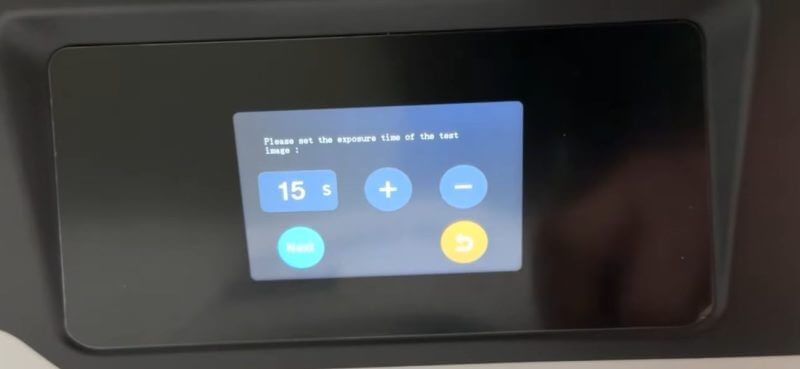

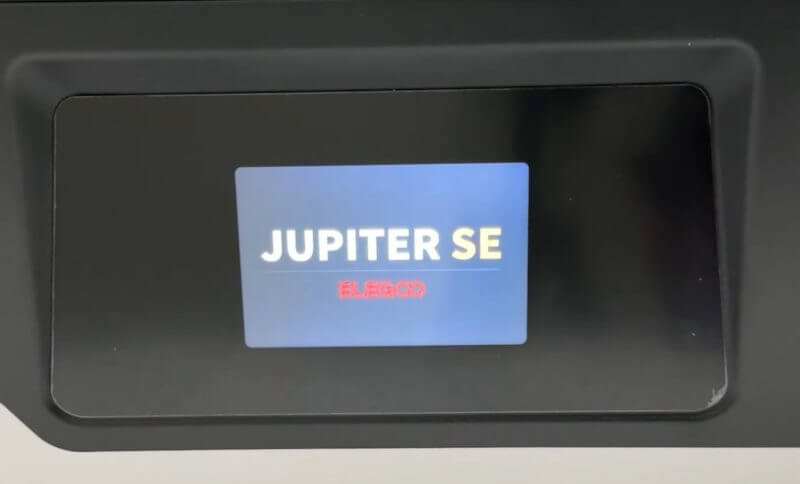

Control Panel of the Elegoo Jupiter SE 6K
The Jupiter SE 6K sports a control panel with a user-friendly interface featuring convenient menus and large buttons. Navigation on the control panel is simple for everyone.
Performance
We found the automatic resin pump intriguing and focused on it to observe its functionality. It is impressive how one can attach a resin bottle to dispense the necessary amount to maintain a full vat.
The feature is valuable for large-scale prints that need more than a resin vat.
Similar to other Elegoo resin printers, this model operates seamlessly. It is a straightforward system, so there were barely any complexities to discuss. The laser-etched bed securely holds prints, giving top-notch and quality results.
The Jupiter SE 6K does not have an integrated heater. It does not hinder its performance under controlled conditions but may pose a concern for users operating in colder climates. It could also become an issue if the printer operates in less insulated spaces.
In such scenarios, temperature fluctuations can impact the viscosity of the resin, subsequently affecting print quality. Nevertheless, when used in the appropriate environment, the printer functions impeccably.
The presence of the resin pump made printing more convenient since it kept the vat full throughout printing. We did not worry about running out of resin in the middle of printing. The pump automatically dispenses resin when needed.
Elegoo Jupiter SE 6K Print Quality
We were impressed with the models we printed for our product tests in this Elegoo Jupiter SE 6K Review. Our prints had high-quality details that were fine and sharp.
With Jupiter SE 6K, layers as thin as 0.05mm were barely visible without magnification or paint. Aside from the superior details, we noticed the smoothness of our prints.
To the naked eye, the voxels on the XY axis are invisible. The Z-axis forms the layers, with adjustable thicknesses between 0.01 and 0.2mm.
Elegoo Jupiter SE 6K Review Summary
The Jupiter SE 6K is a large resin 3D printer with impressive dimensions to accommodate big prints. It also has linear rails, a built-in automatic resin feeding system, and an air purifier.
We love the new features implemented in this 3D printer, especially its build volume that does not sacrifice workspace efficiency. Its practical elements, like ergonomic handles and a removable lid, prove it is a well-designed product that prioritises user comfort.
If you are looking for large 3D printers, we highly recommend the Jupiter SE 6K. It is a solid product that works excellently and has many impressive features.
Visit the official product page of Elegoo for more details about the Jupiter SE 6K.
