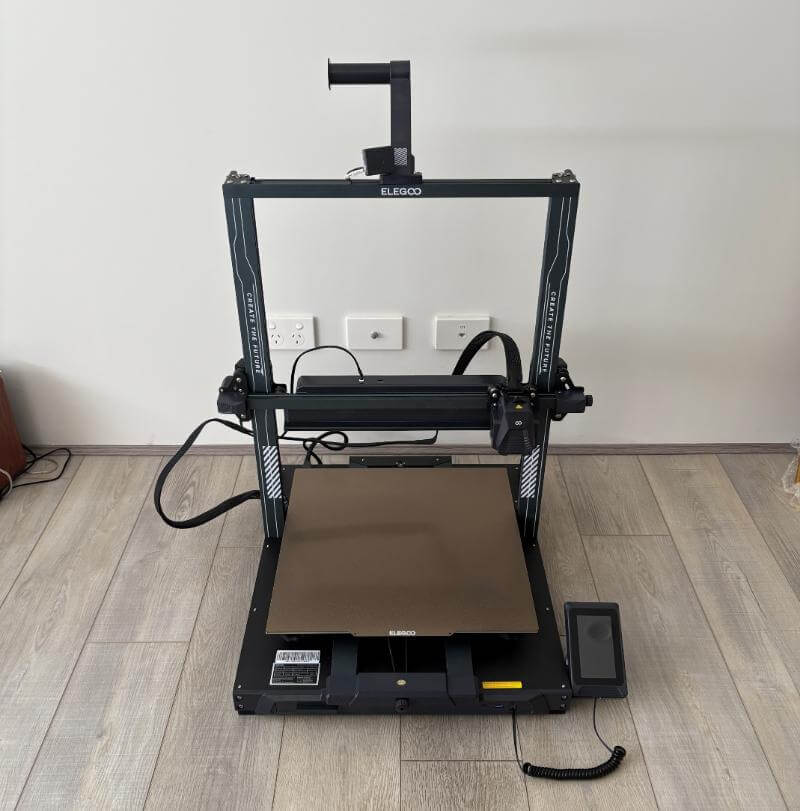

The world of 3D printing continues to evolve, with machines growing not only in capability but also in scale. The Elegoo Neptune 4 Max enters the scene as a powerful addition to the desktop FDM printer category, offering a truly expansive build volume combined with features aimed at making the printing process smoother and more accessible. Its generous printing space and advanced functionality make it appealing to anyone seeking more freedom in their 3D projects.
From the outset, it’s clear that this printer is built with efficiency and performance in mind. It arrives with features that cater to both speed and precision, offering the ability to print large-scale models quickly without compromising on quality. Everything from its dual-gear extruder to the smart auto-levelling system speaks to a machine designed to keep up with creative ambitions.
Despite its size, the Neptune 4 Max remains user-friendly and approachable, even for those newer to high-speed, large-format printing. Its thoughtful design choices and helpful interface streamline the setup and printing process, while smart connectivity options ensure a seamless workflow whether you’re working from a nearby workstation or remotely.
Design and Functionality

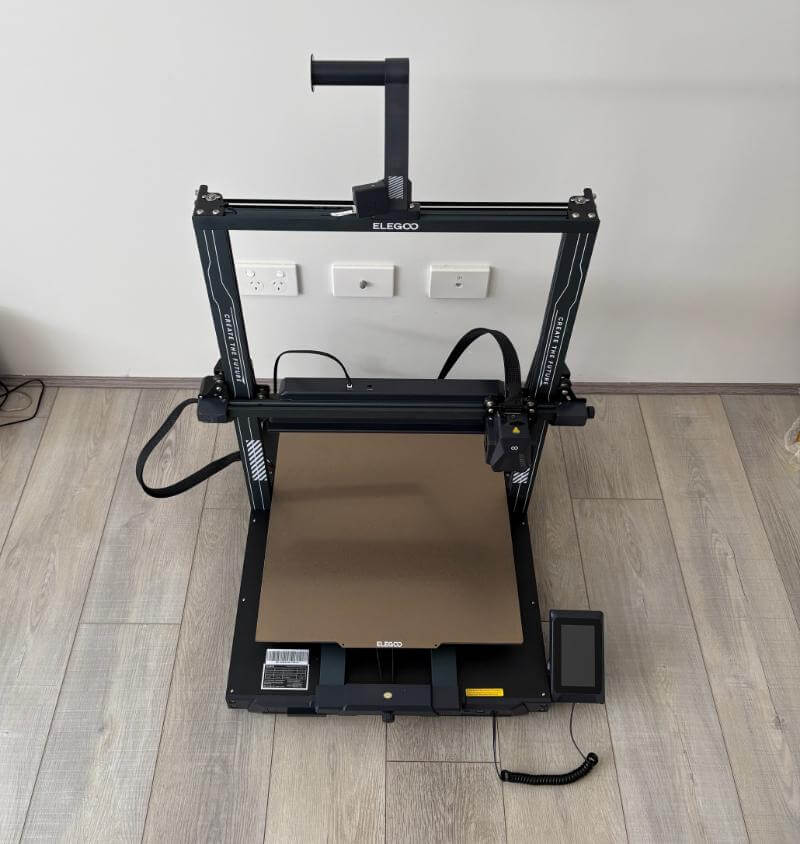

Elegoo has taken a well-established mechanical layout and refined it to suit the needs of users looking for large-scale print capabilities. The Neptune 4 Max features a solid aluminium extrusion frame that provides impressive stability, which is essential for maintaining consistent quality across taller or more complex prints. Its structure supports a reliable movement system, with the print head travelling along the X-axis, the heated bed moving along the Y-axis, and dual Z-axis screw drives ensuring smooth vertical motion.
The large print bed offers a substantial build area, allowing for the creation of bigger models or multiple parts in a single session. It’s coated with a magnetic PEI sheet that not only ensures strong adhesion during printing but also makes part removal a breeze once cooled. Manual bed levelling is supported by six adjustment wheels, which pair with the auto-levelling system to create a consistently even print surface.

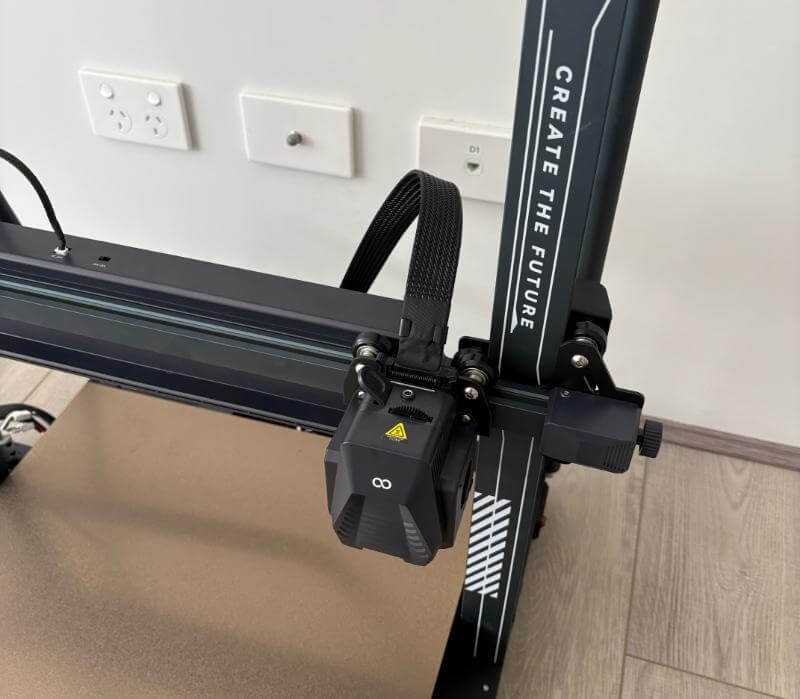

At the heart of the printer’s functionality is a dual-gear direct drive extruder, which enables more accurate filament control. This is particularly beneficial when working with flexible materials or printing at higher speeds, as it offers rapid and precise extrusion and retraction. The extruder is backed by a powerful cooling system, including a wide blower that spans the print head, keeping the model cool as it builds layer by layer.

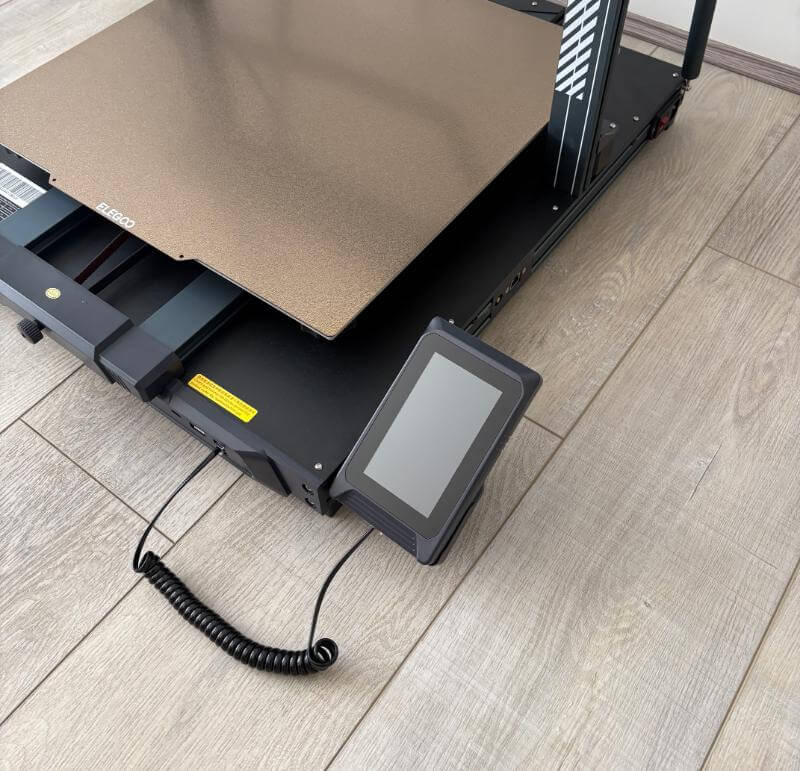

The touchscreen control panel is bright, responsive, and mounted on a magnetic dock, giving users flexibility in positioning. Its interface is intuitive, providing clear visuals of essential printing stats such as progress, temperatures, and speeds. The screen also supports real-time adjustments, which is handy when fine-tuning a print without interrupting the workflow.
Connectivity is a standout feature, with USB-A and USB-C ports on the front for easy file transfers, alongside built-in Wi-Fi and LAN support for remote control. These options give users a flexible way to start prints, manage files, and monitor progress from a distance. Elegoo also includes a USB drive loaded with useful models and software, streamlining the first-time setup experience.
Functional additions like a side tool drawer and integrated LED lighting enhance daily usability. The lighting provides clear visibility of the print bed, while the nozzle-mounted LED helps monitor fine details at the extrusion point. Combined with the printer’s overall layout, these elements reflect thoughtful design choices that add convenience to the printing process.
Key Features
One of the defining aspects of the Neptune 4 Max is its expansive build volume, measuring 420 x 420 x 480 mm. This gives creators the freedom to produce larger objects or print multiple items at once, making it ideal for prototyping, hobby projects, or small batch production. The platform size is slightly larger than the build volume, offering edge-to-edge print support.
The maximum print speed of 500 mm/s is a significant leap from typical FDM printers, enabling faster completion of jobs without sacrificing accuracy. Paired with a high acceleration of 8000 mm/s², the tool head can move swiftly and fluidly across all axes, helping to maintain crisp lines and consistent layer adhesion even on complex geometries.
The inclusion of a dual-gear direct drive extruder enhances extrusion precision and reliability, especially at high speeds. This setup works exceptionally well with a wide range of materials including PLA, PETG, TPU, ABS, ASA, and Nylon, allowing users to explore diverse applications. With a maximum nozzle temperature of 300 °C and a bed temperature of up to 85 °C, the Neptune 4 Max supports many mainstream and performance filaments with ease.
Auto-levelling is another standout, featuring a 121-point mesh levelling system that ensures uniform bed height. Before engaging the automated system, manual levelling is guided through on-screen prompts, which makes fine-tuning straightforward and accurate. Once complete, the printer compensates for any remaining imperfections, ensuring strong first-layer adhesion.
The built-in filament runout sensor helps prevent print failures by pausing the job if filament breaks or runs out. This, coupled with resume print functionality, means that even during an unexpected interruption, your project can continue from where it left off. These two features are essential for long prints where uninterrupted operation is critical.

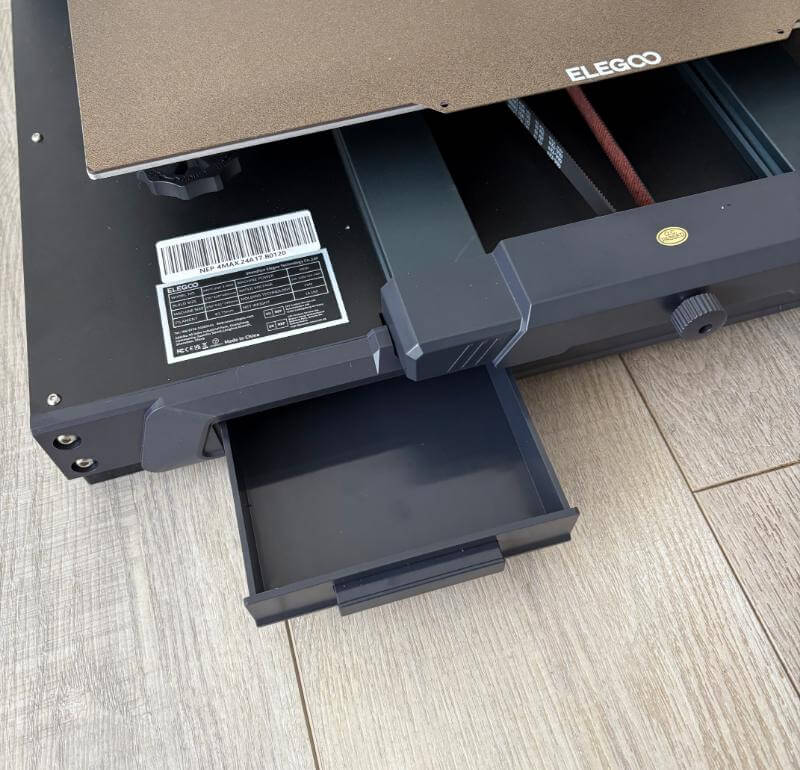

A slide-out drawer on the left side stores essential tools and spare parts, helping keep the workspace tidy and organised. This feature is especially useful when switching filaments or performing maintenance tasks, ensuring everything remains within reach.

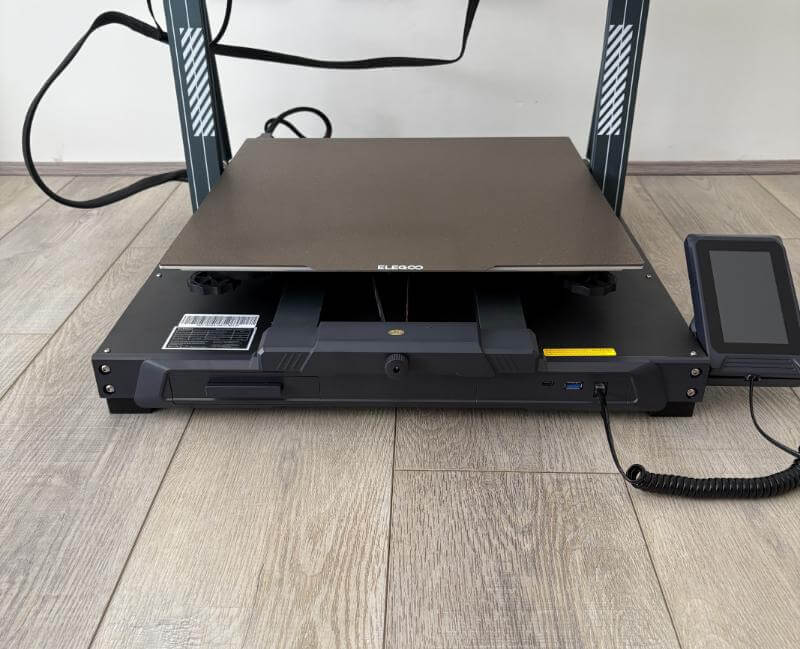

Dual USB ports—Type A and Type C—on the front panel offer versatile file-loading options. Whether using a traditional USB stick or a modern device with USB-C output, users can easily transfer print files. These ports are conveniently positioned alongside the touchscreen for fast access.

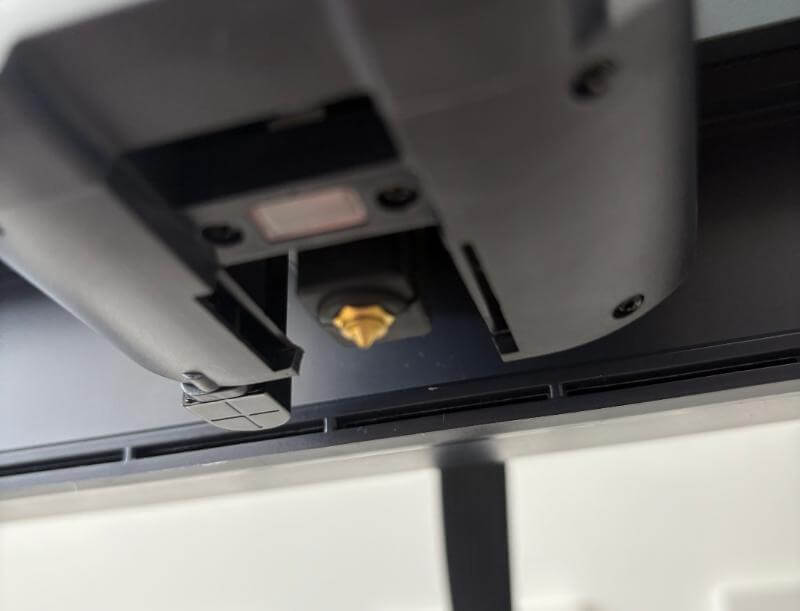

Completing the experience is the inclusion of ambient LED lighting. A light strip along the top frame and a nozzle-mounted LED provide excellent visibility during printing. These lights make it easy to monitor prints in real-time, which is particularly helpful for evening sessions or detailed work.
Experience Using the Product and Performance
Setting up the Neptune 4 Max is straightforward thanks to clear assembly instructions and well-organised parts. Attaching the gantry to the base is a simple process, and while its size makes a second set of hands helpful, everything fits together with precision. Once assembled, the overall structure feels robust and stable.
The power supply supports both 100–120V and 220–240V, making it versatile for different regions without the need for additional hardware. The voltage selector is clearly labelled, and switching is quick and safe. This thoughtful design ensures broader compatibility for international users.
Leveling the bed is made easy through a combination of manual and automatic processes. The printer walks you through an initial manual adjustment at six key points before completing a 121-point auto-levelling scan. This hybrid approach ensures the bed is as flat as possible before printing begins.
Printing starts with quick nozzle heating and reliable filament feeding, even with flexible materials like TPU. The dual-gear extruder provides smooth and consistent extrusion, which greatly improves first-layer adhesion and overall print quality. Filament swaps are equally simple, thanks to the responsive extruder and easily accessible paths.
Throughout testing, the print bed held calibration well, needing only minimal adjustments after weeks of use. The six manual wheels stayed in place, and the magnetic PEI surface made removing prints simple and damage-free. Larger models adhered well and released cleanly once cooled.
The touchscreen interface proved to be user-friendly and responsive, offering useful data during prints such as temperature, elapsed time, and progress. You can make real-time changes to speed and temperature mid-print, which is handy for fine-tuning without pausing the job. The layout of the menus feels intuitive even for newcomers.
Speed does not compromise detail on the Neptune 4 Max. Prints at 250 mm/s maintained excellent sharpness, and even when pushed to faster rates, the machine handled the workload capably. Complex geometries were rendered cleanly, with minimal layer shifts or banding.
The large blower behind the print head plays a crucial role in cooling, especially at higher speeds. This component ensures consistent print quality by helping layers solidify quickly, reducing stringing and warping. It can also be manually switched off for heat-sensitive filaments, giving the user more control.
Remote connectivity adds flexibility to the workflow. With both Wi-Fi and LAN options, you can send files and manage prints without physically being at the machine. Monitoring progress from another room or updating print files remotely becomes a convenient part of the daily routine.
The resume print function works reliably, allowing prints to continue seamlessly after a power outage or filament swap. This feature reduces the risk of losing hours of progress, particularly with larger or time-intensive models. It’s a great inclusion for peace of mind.
During prolonged use, the machine remained quiet and consistent, with cooling fans and stepper motors producing only moderate noise. For a printer of this size and power, it operates impressively smoothly without disruptive sounds. This makes it suitable even in quieter working environments.
File compatibility is broad, with support for common formats like STL and OBJ. The printer also accepts files from different slicer programs, giving users flexibility in software choice. The included USB stick with demo models offers a good starting point for testing various settings.

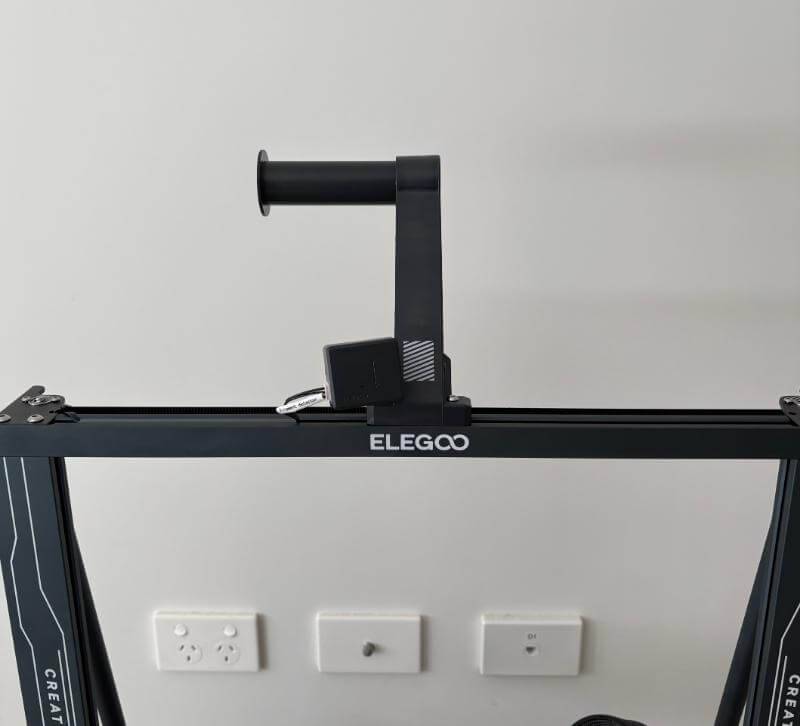

Filament handling is smooth thanks to the intelligent sensor system and accessible mounting point. The filament sensor is placed at the top, ensuring prompt detection of runouts and preventing incomplete prints. Changing spools is quick and hassle-free, with no need to disassemble any components.
Conclusion
The Elegoo Neptune 4 Max stands out as a feature-rich FDM 3D printer that combines speed, precision, and a generously sized build volume. Its thoughtful engineering and robust construction make it a reliable option for users looking to expand their creative possibilities. With its dual-gear extruder, auto-levelling system, and intuitive interface, it’s clear this printer was built with both performance and ease of use in mind.
Print quality remains consistent across various speeds and materials, showcasing its versatility. From small intricate details to large multi-part projects, the Neptune 4 Max handles each task with confidence. The responsive touchscreen, helpful LED lighting, and remote connectivity options further enhance the overall printing experience.
Elegoo has done well to include quality-of-life features that make the entire process—from setup to completion—more convenient. The tool drawer, wide cooling fan, and removable build plate are small details that contribute to a smoother user experience. The inclusion of both Wi-Fi and LAN support opens the door for more flexible workflows and real-time monitoring.
For those seeking a large-format 3D printer with reliable performance and user-friendly features, the Neptune 4 Max delivers in all the right areas. Its blend of speed, stability, and print quality makes it a great choice for hobbyists, professionals, and educators alike.
