Today, we are looking into a new 3D printer, which we will discuss in our QIDI Q1 Pro Review.
QIDI recently added a new product to their collection. Its build volume sits between the X-Smart 3 and X-Plus 3. Plus, it integrates optimisations in its hardware, among several notable features.
In this QIDI Q1 Pro Review, we will take a closer look at this 3D printer from the company. We will check if its current hardware improvements make it a product worth considering. Moreover, we will discuss its design, features, specifications, functions, and performance.
But before looking into those in-depth details, let us check what QIDI included in the Q1 Pro package.
QIDI Q1 Pro Packaging
QIDI ships the Q1 Pro in a standard but durable cardboard box. When you open the package, you will find the printer secured and surrounded by protective foam.
Aside from the 3D printer, you will find the following tools and accessories:
Filament spool holder
- Filament Extension stand
- Holder cover
- Power cord
- Scraper
- Allen keys (H1.5, H2, H2.5)
- 7mm spanner
- Flat head screwdriver
- 0.4mm nozzle
- USB 2.0 flash drive
- Spare parts kit
- Q1 Pro quick start guide
QIDI Q1 Pro Review – Design and Functionality

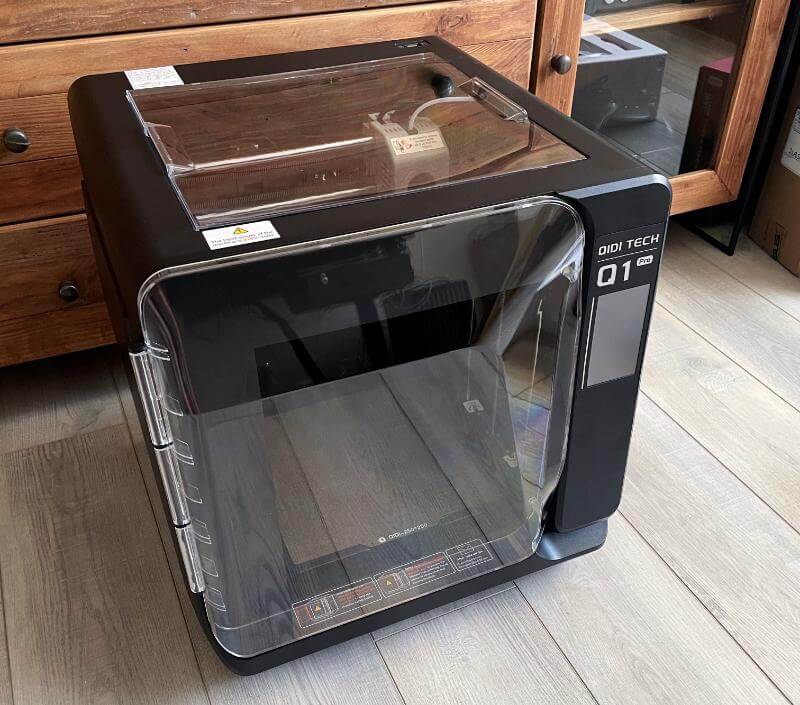

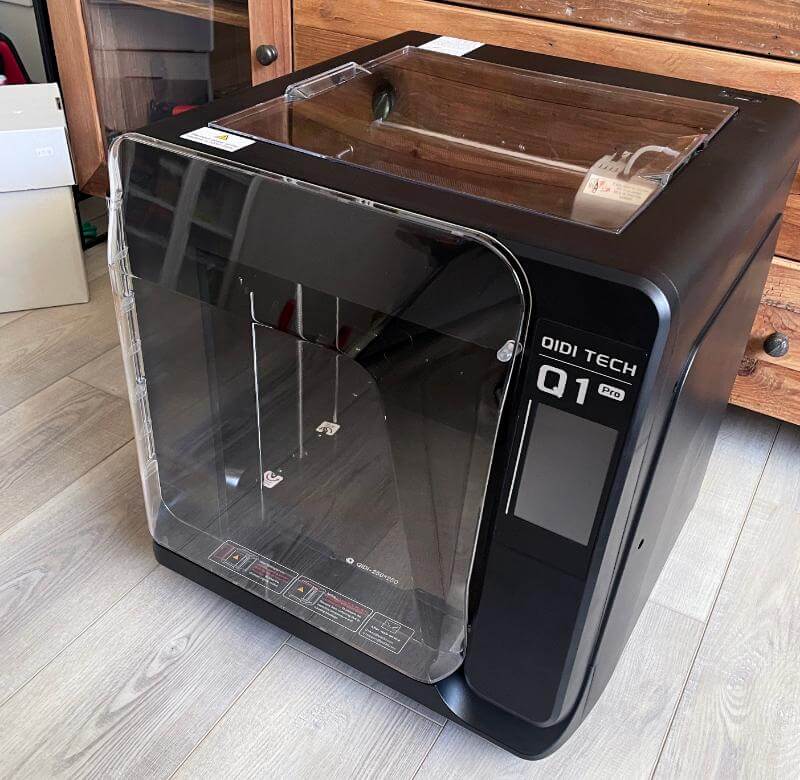

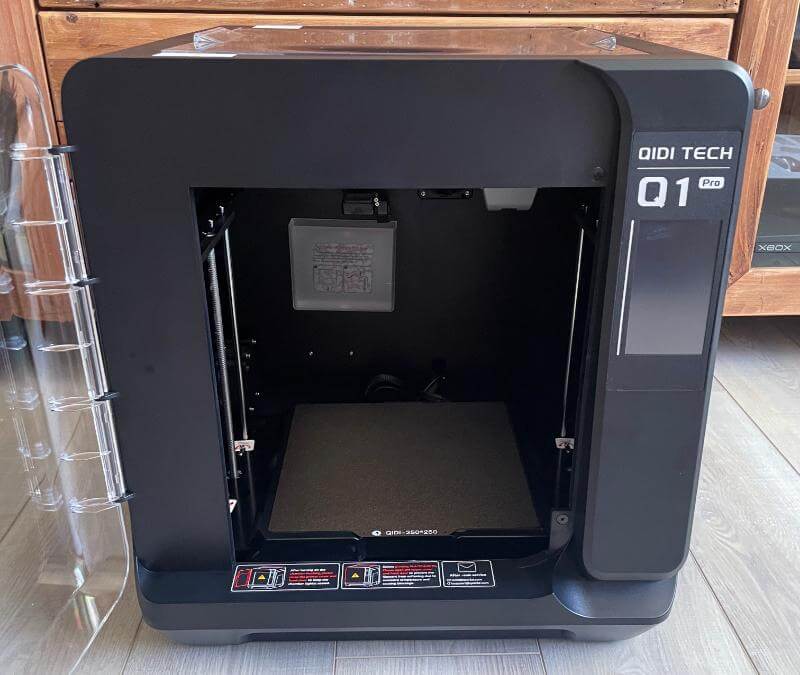

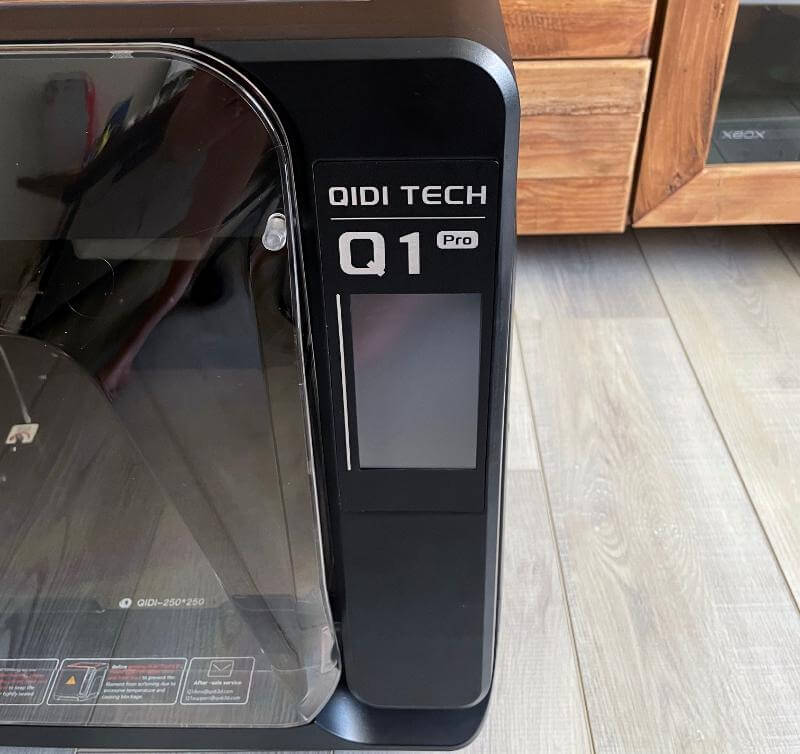

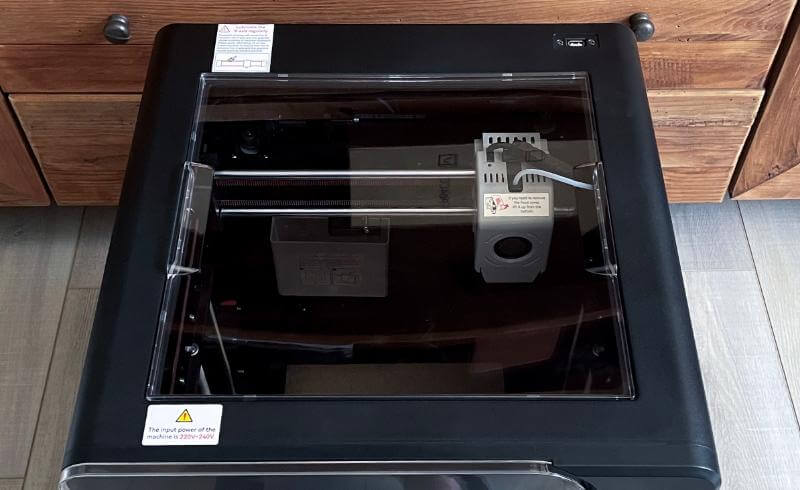

After unboxing the product for this QIDI Q1 Pro Review, we noticed its similarity with other X-line printers. It is made from sheet metal and has a plastic printing chamber. What makes it different is it is a desktop-level 3D printer.
The standout feature of this product is the active chamber heating. We were surprised to see this since active chamber heating is usually only on more expensive 3D printers.
The Q1 Pro is a pre-assembled product ready to print out of the box. It has dual sensors and supports automatic bed levelling, eliminating complex assembly and calibration. With dual Z-axis motors, you can achieve high precision and advanced stabilisation.

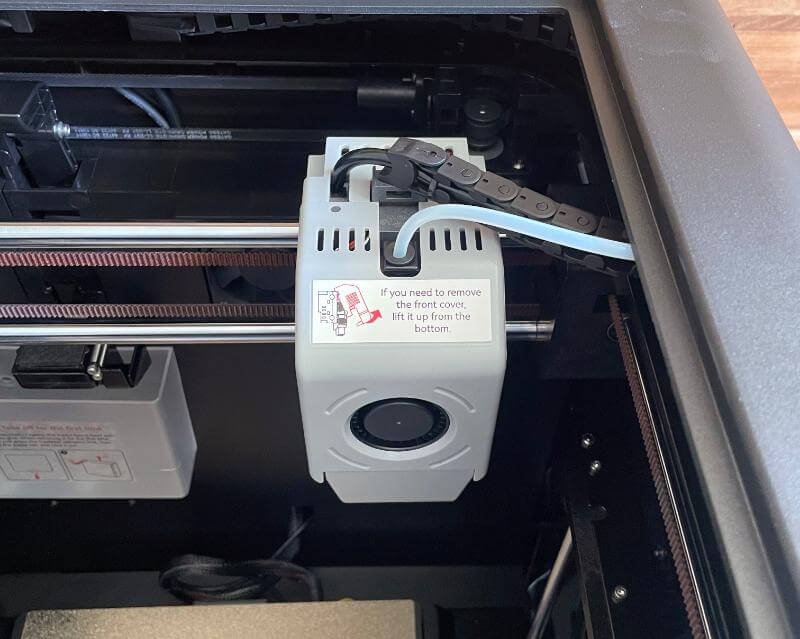

Direct Drive Extruder
The extruder design of the Q1 Pro resembles the one in the X-Max 3. It uses dual gears to allow the extruder to grip the filament better.

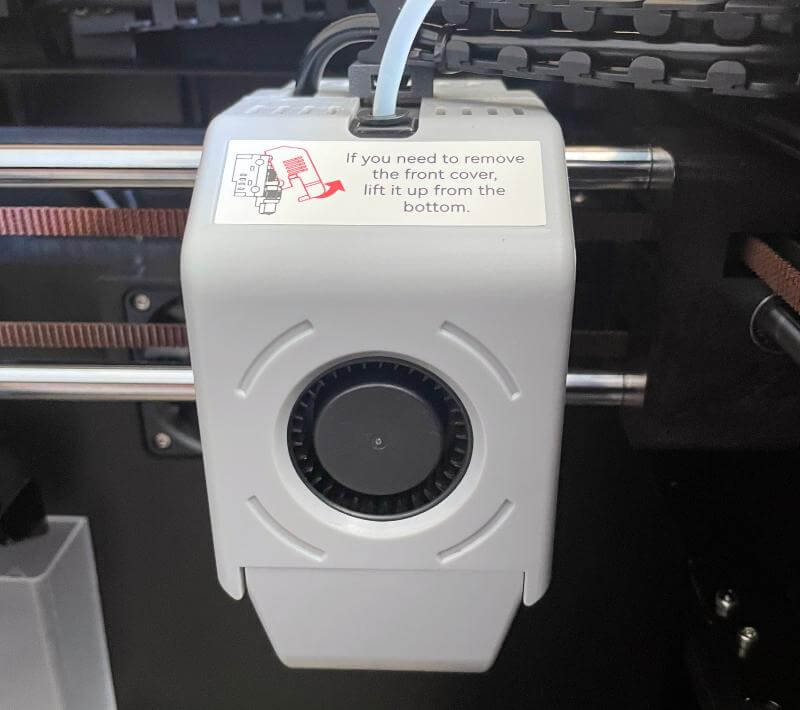

The front cover of the print head features a 5015 radial fan for part cooling. Two plastic tabs and two magnets hold the fan at the top of the 3D printer.
CoreXY Motion System with Automatic Belt Tensioning

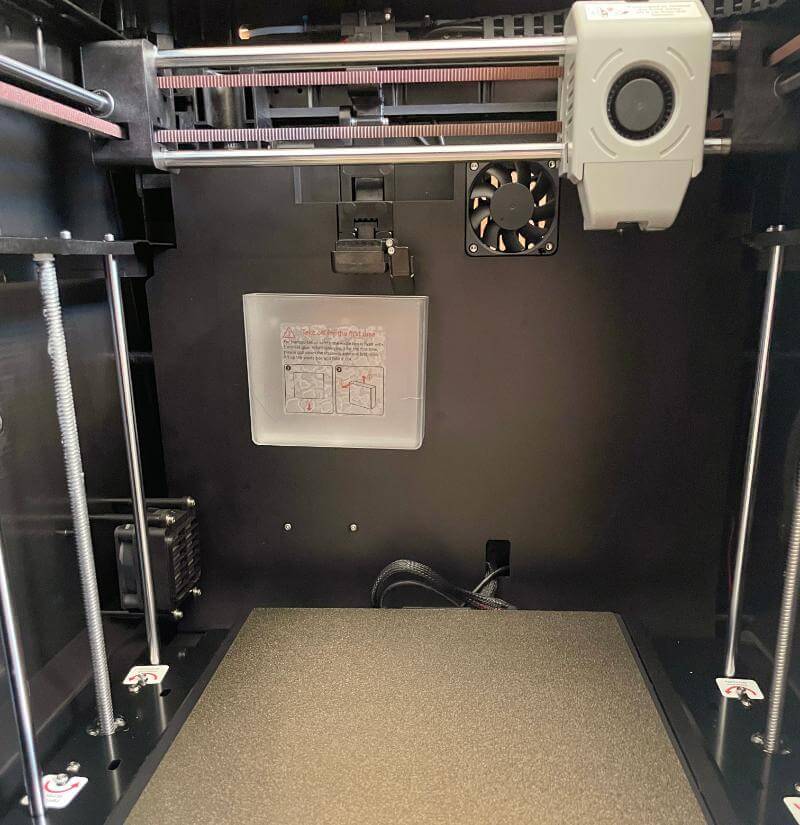

Like other 3D printers QIDI released in late 2023, the Q1 Pro has a CoreXY motion system, which is best for fast printing. QIDI made improvements to this feature by adding automatic belt tensioners. These have a strong spring pushing against belt tensioners to maintain the same tension on both belts.

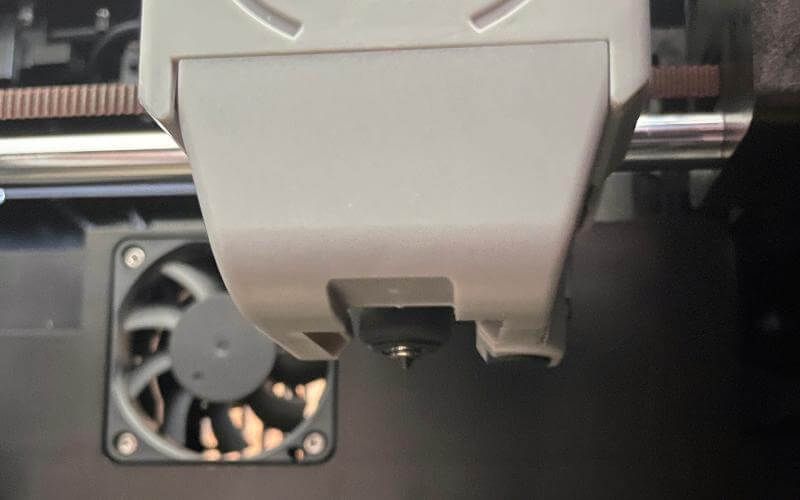

High-Flow Hot End and Dual-metal Nozzle of the QIDI Q1 Pro
The all-metal hot end of the Q1 Pro differs from the one in the X-Max 3. Instead of a ring heater, it has a flat heater on the side of the melt zone. This hot end reaches 350°C, making it ideal for filaments requiring high printing temperatures.
QIDI also changed the nozzle and used a dual-metal variant. Its tip is made of hardened material, while the body uses plated copper. These materials aid in thermal transfer to produce high-quality prints.
On the specifications, QIDI claims the highest volumetric flow of this high-flow hot end is 30 mm3/s. However, we did not reach this number when we tested the 3D printer for this QIDI Q1 Pro Review. Despite that, it delivered close results with the recommended temperatures and filaments.
Filament Runout Sensor and Tangle Detection
One of the best improvements added to the Q1 Pro is the filament runout sensor with tangle detection. It is in the rear of the 3D printer to monitor filament movement while printing. The sensor also detects clogging on the hot end or tangles on the filament spool.
In addition, the Q1 Pro has a secondary filament sensor above the extruder gears. It stops the print when the filament runs out and continues when you install a new spool.
Key Features of the QIDI Q1 Pro
Temperature Control
The heated chamber is a standard feature of the Q1 Pro. It reduces warping and improves layer bonding, resulting in high-quality prints. It works excellently for ABS, PC, PA, and other filaments prone to warping.

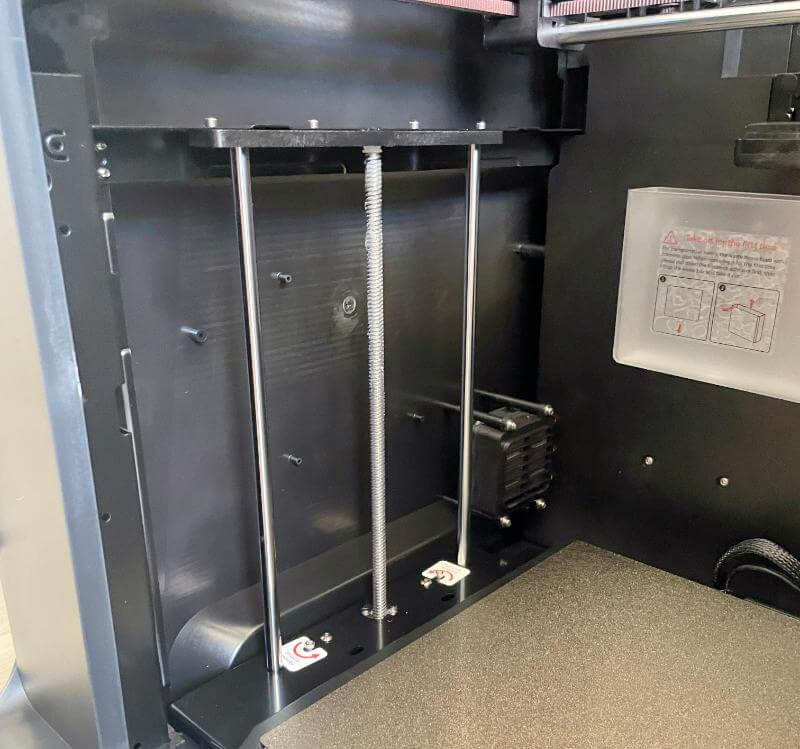

Independent Dual Z Motors
The independent dual Z motors of the Q1 Pro allow automatic tilt levelling for increased stability and precision.

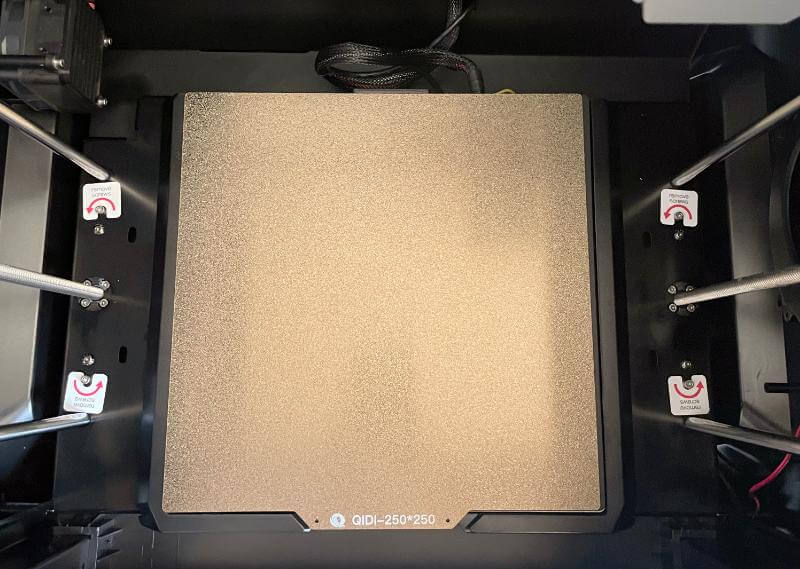

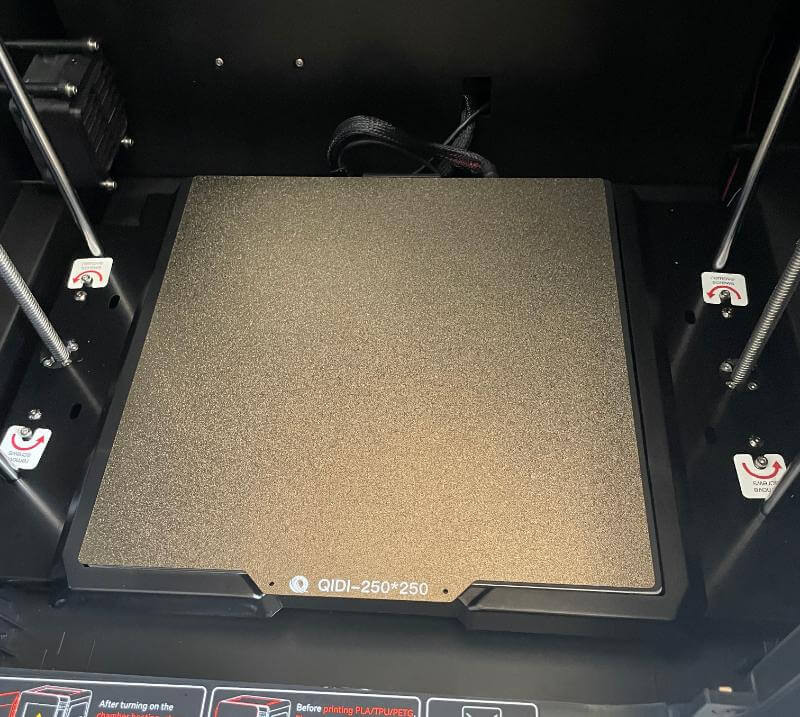

Automatic Bed Levelling and Dual Sensor
The automatic bed levelling and dual sensor guarantees precision and perfect first layer when printing.
Auto-measure Z-offset
The Q1 Pro eliminates using paper as a reference for levelling since it has auto-measure Z-offset.
Precise, Stable, and Fast
QIDI equipped the Q1 Pro with the TMC2240 driver to minimise power consumption and heat generation. Also, the 3D printer uses SpreadCycle technology for less vibrations and the Lightweight CoreXY for high-speed acceleration. These features make the Q1 Pro a reliable product that produces high-quality prints.
New and More Efficient Hot End of the QIDI Q1 Pro
The hot end of the Q1 Pro has a three-metal hollow partition for excellent cooling. It also features a wear-resistant bimetal nozzle that works with most filaments.
Comprehensive Filament Detection System
The filament detection system of the Q1 Pro features a filament runout sensor and tangle detection. This feature helps prevent failed prints and filament waste.
Solid Materials for Superior Reliability
We immediately noticed the durable construction while unboxing and setting up the product for this QIDI Q1 Pro Review. It shows the company used high-quality materials to manufacture this 3D printer.
The Q1 Pro has a full metal frame, including a metal base reinforcement for excellent stability. This durable structure makes the 3D printer a highly reliable product that will last for years.
Klipper 64-bit Processors
The Q1 Pro uses Klipper 64-bit processors, which are open-sourced and easy to expand. It also has a 32G-EMMC large memory capacity and supports 150M WiFi 6 for ultra-fast transfer.
Record the Prints of the QIDI Q1 Pro
The built-in 1080p camera can record your prints, allowing you to monitor the process remotely. It also supports timelapse, allowing you to share the video later.
QIDI Mobile Application – Control the QIDI Q1 Pro Remotely
The QIDI mobile app allows you to print remotely and skip failed prints to reduce filament waste. It makes your 3D printing experience more convenient and has a user-friendly interface.
Quick Setup for Your Convenience
Setting up the Q1 Pro takes only 10 minutes. This pre-assembled 3D printer can start running after one click, and automatic calibration offers adequate precision.
Manufacturing High-Quality 3D Printers Since 2014
QIDI Tech has been committed to manufacturing high-quality 3D printers for multiple industries since 2014. Each product has its best uses and practical applications to meet the demands of all users.
Specifications
- Build Volume: 245 x 245 x 245mm
- Dimensions: 477 x 467 x 489mm
- Printing Speed: 600mm/s
- Printing Accuracy: ±0.1mm
- Nozzle: Dual Metal Nozzle
- Nozzle Diameter: 0.4mm(0.2/0.6/0.8mm Optional)
- Extruder: High-flow direct drive extruder
- Extruder Temperature: 350℃
- Chamber Temperature Control: 60°C Independent Chamber Heating
- Hot End: Ceramic Heating Core
- Recommended Filament: ABS, ASA, PETG, PLA, PET-CF, PAHT-CF, TPU, PC, PA-CF, PA, etc.
- Hot Bed Temp: 120°C
- Printing Acceleration: 20000mm/s²
- Extruder Flow: 35mm³/s
- Extruder Transmission Ratio: 8.9:1
- Firmware: Klipper
- Main Processor: Cortex-A53，64-bit Processor

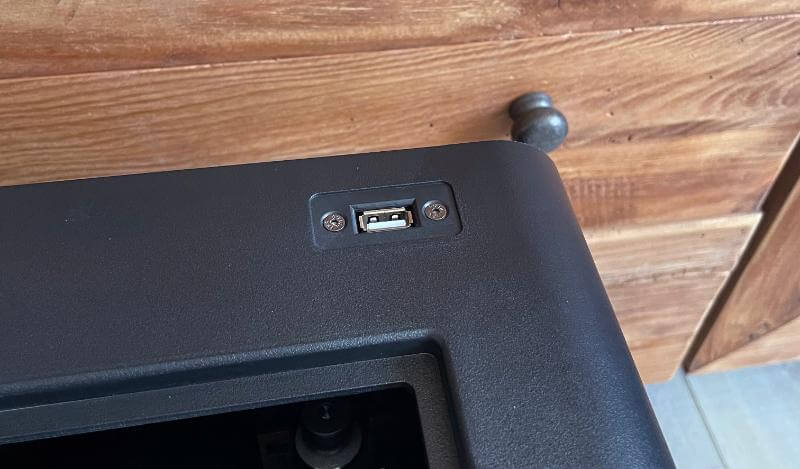

- Connection Options: WiFi/USB Flash Drive/Ethernet Cable
- Operating System: Windows/MacOS/Linux
- Slicer: QIDI Slicer/Cura/Simplify 3D/ORCA/PRUSA Slicer
- Voltage: 100-240 VAC, 50/60Hz
- Rated Power: 350W
- Weight: 20kg
Hands-on with the QIDI Q1 Pro
Setting up the Q1 Pro was quick and only required a few steps. We only needed to remove the transport security screws from the bottom and the cable tie on the print head. Since it was pre-assembled, we already switched it on.
The Q1 Pro, with its advanced features, excelled in the initial setup process by seamlessly executing automatic bed leveling and resonance compensation, ensuring swift and precise printing operations.
During our evaluation for this QIDI Q1 Pro Review, we were particularly impressed by the effortless setup experience it provided.
Unlike many pre-assembled 3D printers that often require meticulous calibration and intricate procedures before operation, the Q1 Pro simplified the entire process, requiring minimal instruction-following. This user-friendly approach not only saved valuable time but also highlighted the product’s commitment to convenience and accessibility for users of all skill levels.
After establishing a WiFi connection, we seamlessly transmitted files to the Q1 Pro for printing.
This feature streamlined our workflow, eliminating the need for cumbersome physical connections or manual file transfers. With just a few clicks, we effortlessly dispatched our designs to the printer, experiencing a level of convenience that enhanced our overall user experience.
This wireless capability exemplified the Q1 Pro’s modern and user-centric design, catering to the evolving needs of digital fabrication enthusiasts and professionals alike.
Upon initiating our test prints with the default settings on the QIDI print software, the Q1 Pro wasted no time in proving its prowess. With precision and efficiency, it effortlessly translated our digital designs into tangible objects.
Each layer adhered seamlessly, and intricate details emerged with stunning clarity. As we observed the printer in action, it became evident that the Q1 Pro was engineered for reliability and consistency.
Eager to explore the full extent of its capabilities, we decided to push the boundaries by ramping up the printing speeds. Despite the increased pace, the Q1 Pro remained unfazed, demonstrating its ability to maintain exceptional print quality while significantly reducing production time.
The results spoke volumes – each print boasted impeccable details and smooth surfaces, rivaling those produced by much slower machines. This impressive performance underscored the Q1 Pro’s versatility, making it an ideal choice for both time-sensitive projects and those requiring meticulous attention to detail.
Print performance stood as a testament to QIDI’s commitment to delivering cutting-edge 3D printing technology that effortlessly balances speed, precision, and quality. With the Q1 Pro by our side, we felt empowered to push the boundaries of creativity and innovation in our printing endeavors.
The Q1 Pro 3D printer performed remarkably, exceeding our expectations. From setup to operation, the Q1 Pro demonstrated seamless functionality, leaving us without any issues or complications to contend with.
Its user-friendly interface and intuitive design made it a true plug-and-play device, perfectly suited for beginners venturing into the realm of 3D printing.
Throughout our testing, the Q1 Pro exhibited consistent reliability, consistently delivering high-quality prints with minimal effort required on our part. This reliability factor instilled confidence in its performance, making it a dependable tool for both novice and experienced users alike.
The plug-and-play nature of the Q1 Pro not only simplifies the initial setup process but also ensures a hassle-free printing experience from start to finish. Its intuitive controls and streamlined workflow empower users to dive into their creative projects without being bogged down by technical complexities.
Overall, the Q1 Pro’s exceptional performance, coupled with its user-friendly design, positions it as an outstanding choice in the 3D printing landscape. Whether you’re a beginner seeking an accessible entry point into the world of 3D printing or an experienced enthusiast looking for a reliable workhorse, the Q1 Pro stands ready to exceed your expectations and unlock new possibilities in your creative journey.
QIDI Q1 Pro Review Summary
The Q1 Pro is ideal for beginners, especially if it will be your first 3D printer. Its automatic bed levelling, purge system, and preconfigured profiles make it ready for printing out of the box.
Thanks to its intuitive features, our experience with the QIDI Q1 Pro Review became fun. Its functions make using the Q1 Pro more user-friendly since it does not require a complex setup process before printing.
Advanced users can also benefit from the Q1 Pro. Its steel nozzle and heated chamber make it a good machine for printing engineering materials.
We highly recommend this 3D printer for its unique features, user-friendliness and excellent performance. Visit the official QIDI product page for more details about the Q1 Pro.
