November 28 2023. We will check one graphics card released this year in our GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review. The product is based on an RDNA 3 architecture. It can accommodate the graphic demands of 8K and 4K gaming at high frame rates.
Moreover, the RADEON RX 7900 XTX AORUS ELITE offers an immersive experience when playing PC games. Its GPU has 24GB (GDDR6 VRAM) and a 384-bit memory interface. These elements provide enhanced performance and power efficiency than the earlier RDNA-based generation.
If you find this graphics card interesting, continue reading our GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review. We will share important details about the product to help determine if you should consider it.
GIGABYTE AORUS RADEON RX 7900 XTX ELITE Packaging
The product arrived in time for our review. It ships in a compact box that is durable enough to protect the graphics card inside.

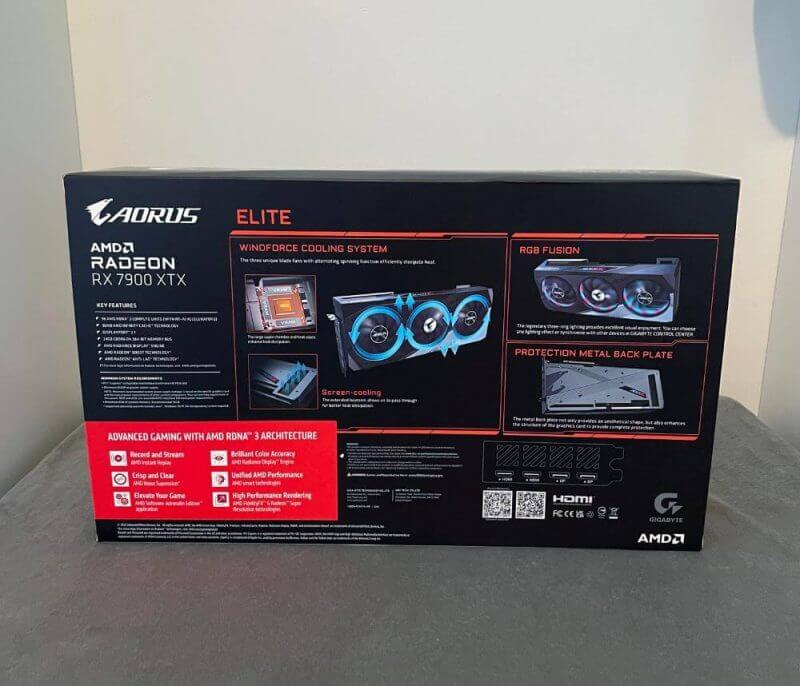

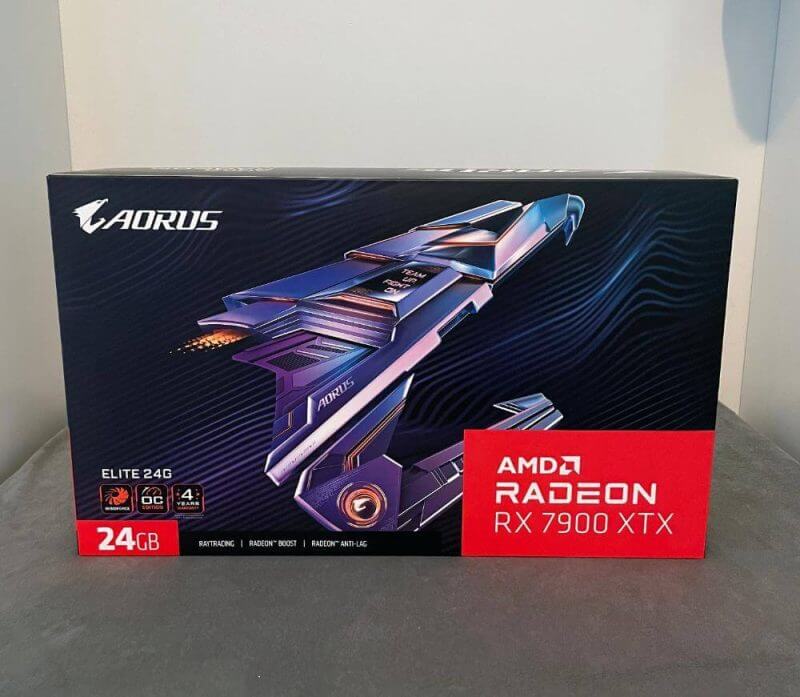

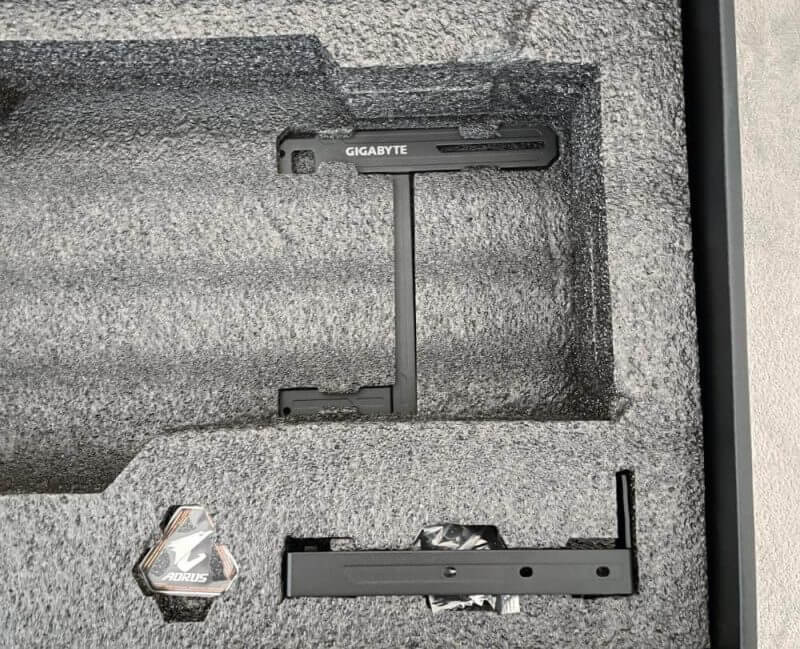

The front displays the AORUS branding and product name. You can find extra information about the graphics card on the rear of the box. Along with the RX 7900 XTX ELITE, you will find the following items inside:
- Quick Start Guide
- Anti-sag Bracket
- Warranty Registration
- AORUS Metal Sticker
- Anti-sag Bracket Installation Guide

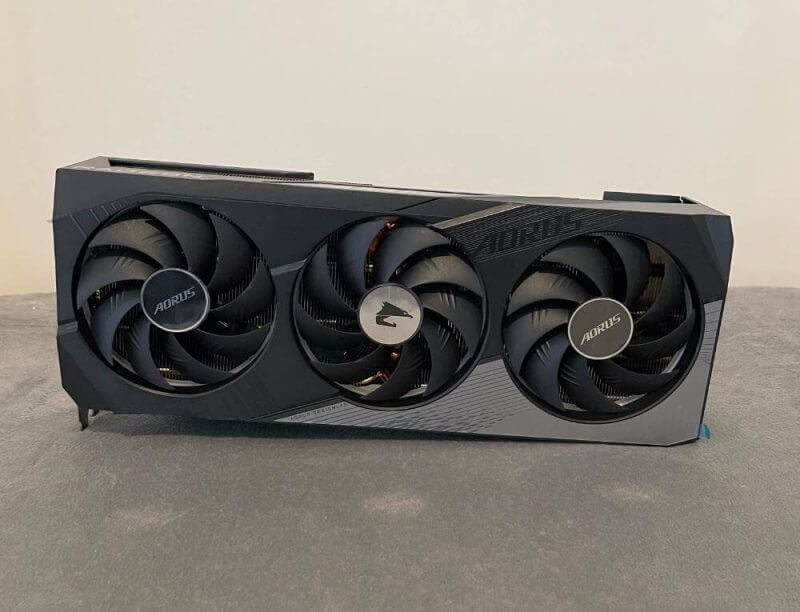

GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review – Design and Functionality

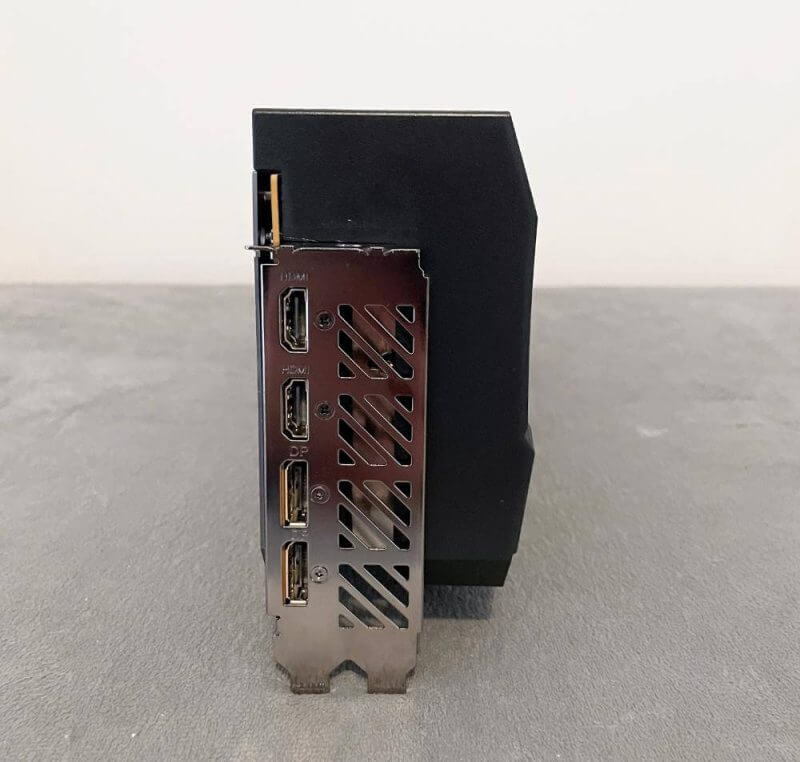

While writing our GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review, we saw its front panel housing various outputs. These include a DisplayPort 2.1 plus an HDMI 2.1 DisplayPort 2.1 technology. It has UHBR 13.5, offering up to 54GB/s of display link bandwidth, enabling high refresh 4K or 8K gaming on next-generation displays.
Generally, HDMI 2.1 can aid up to 48GB/s bandwidth, higher resolutions and refresh rates. These include 4K @120 fps, 8K @60 fps, or up to 10K.
The product has three 8-pin aux power connectors, while the video card features four video outputs. The latter includes three DisplayPorts and an HDMI supporting 8K resolution.
The RADEON RX 7900 XTX ELITE features a cutout on the opposite side of its rear plate. It provides optimised airflow via the heatsink.
With its chiplet style, this GPU achieves a notable boost. It can deliver a 15% increase in frequencies and a 54% enhancement in power efficiency.
The heart of this GPU lies in the 5nm Graphics Compute Die. It houses up to 96 compute units to drive the essential GPU functions.
Complementing it are six 6nm Memory Cache Dies (MCD). These have a substantial 16MB capacity of second-generation AMD Infinity Cache technology.
Key Features of the GIGABYTE AORUS RADEON RX 7900 XTX ELITE
How does this graphics card fare? Is it ideal enough for your needs? In this GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review, we will discuss what makes it a product to consider.
Stunning Visuals for Your Viewing Pleasure
High-performance rendering will let you enjoy new levels of ultra-fast gameplay and fidelity. With the combination of features and upscaling technologies of AMD FidelityFX, expect top-notch visuals plus world-class performance.
Additionally, you can immerse in the AMD Radiance Display Engine and DisplayPort 2.1. These elements will allow you to get up to 68 billion colours at 8K 165Hz.
Top-notch and Advanced Graphics for Gamers
Thanks to the AMD RDNA 3 chiplet technology, you can enjoy excellent performance, visuals, and efficiency at 4K. You can immerse in stunning visuals with colour accuracy with the help of the AMD Radiance Display Engine. Moreover, it works with the RADEON Super Resolution upscaling technology.
For better and more optimised performance, you can use the graphics card simultaneously with a compatible Ryzen processor. Doing so activates the AMD intelligent technology.
AMD Radiance Display Engine
The feature offers 12 bit-per-channel colours for up to 60 billion shades. It also gives you increased refresh rate displays, unlike the AMD RDNA 2 architecture. Moreover, it also offers support for HDMI 2.1 and DisplayPort 2.1.
High-Refresh Gaming with DisplayPort 2.1
The DisplayPort 2.1 boosts its display bandwidth, unlike the DisplayPort 1.4. It can also support up to 900Hz (1440p), 165Hz (4K), and 480Hz (8K) refresh rates.
Dual Media Engine
With this feature, you can expect simultaneous support for encode/decode streams as high as 8K60 for HEVC. Plus, it supports AV1 encoding to deliver 1.8 times more engine frequency compared to AMD RDNA 2.
Optimised Performance of the GIGABYTE AORUS RADEON RX 7900 XTX ELITE
The AMD RADEON RX 7000 Series graphics cards redefine the benchmarks for gaming excellence in the ultra-enthusiast class. These offer cutting-edge features, including advanced AMD RDNA 3 compute units, fast clock speeds, and chiplet technology. The latter guarantees seamless, high-refresh-rate gaming experiences.
With its groundbreaking performance, the graphics card boasts up to 24GB of GDDR6 memory. It incorporates 2nd generation AMD Infinity Cache, delivering an extraordinary gaming experience.
Increase Performance, Boost Fidelity
We took note of the AMD FidelityFX Super Resolution while writing our GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review. It provides outstanding image quality while enhancing frame rates for supported games.
The AMD RADEON Super Resolution uses the FSR technology on the driver level for upscaled performance across various games.
Windforce Cooling System for Maintaining Low Temperatures
The feature has several elements that provide high-efficiency heat dissipation for the ultimate gaming enjoyment. These include the following:
- Three 100mm distinct blade fans
- A total of 10 composite copper heat pipes
- Alternate Spinning
- A massive vapour chamber that touches its GPU
- Screen cooling
- 3D active fans
Upscaled Cooling of the GIGABYTE AORUS RADEON RX 7900 XTX ELITE

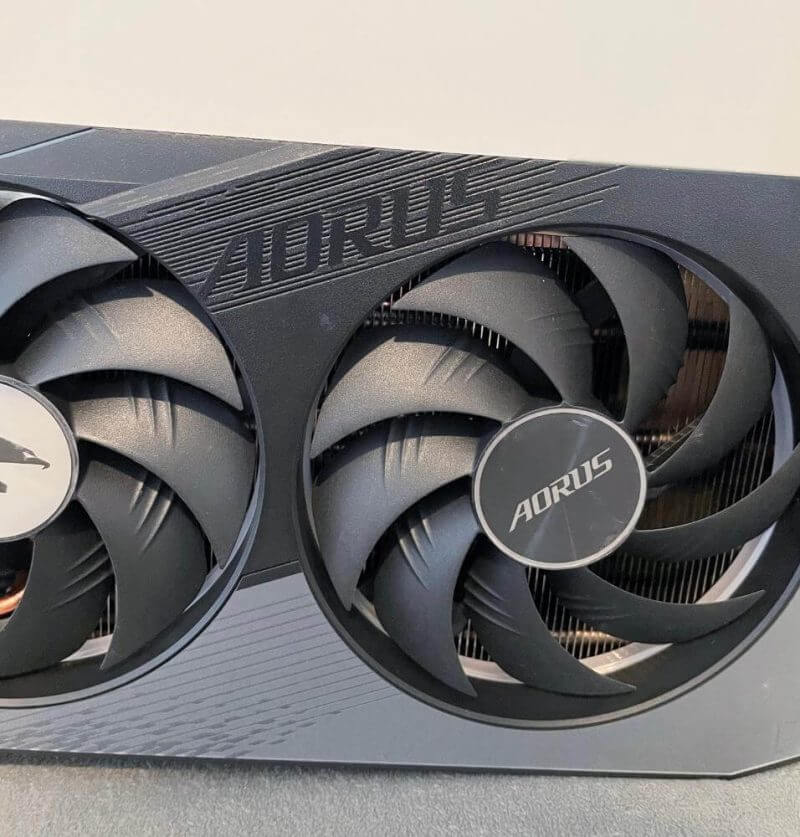

With its distinct blade fan, you can enjoy split airflow thanks to the triangular fan edge. It helps air move smoothly via the 3D stripe curve present on the fan surface.
Its graphene nano lubricant extends the fan life by 2.1 times, close to that of double-ball-bearing. Plus, it is also more silent.
Alternate Spinning and 3D Active Fan
Each fan of the RADEON RX 7900 XTX ELITE rotates in the opposite direction to its adjacent one. It reduces turbulence while increasing air pressure by decreasing the offset between airflows.
The 3D Active Fan technology offers semi-passive cooling to keep the fans off during low-load or low-power games.
Fast and Direct
The increased size of the vapour chamber has direct contact with the GPU. The composite heat pipes quickly transmit the heat of the VRAM and GPU to the heatsink.
Screen Cooling for Added Airflow

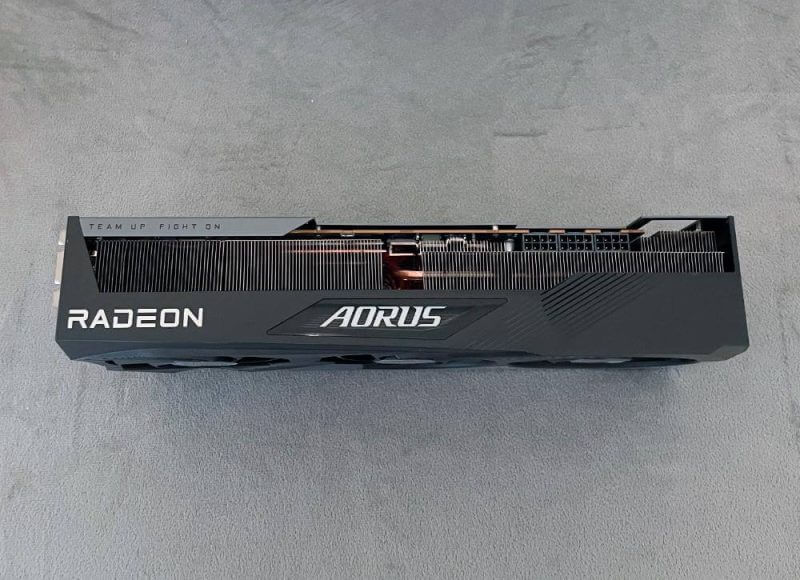

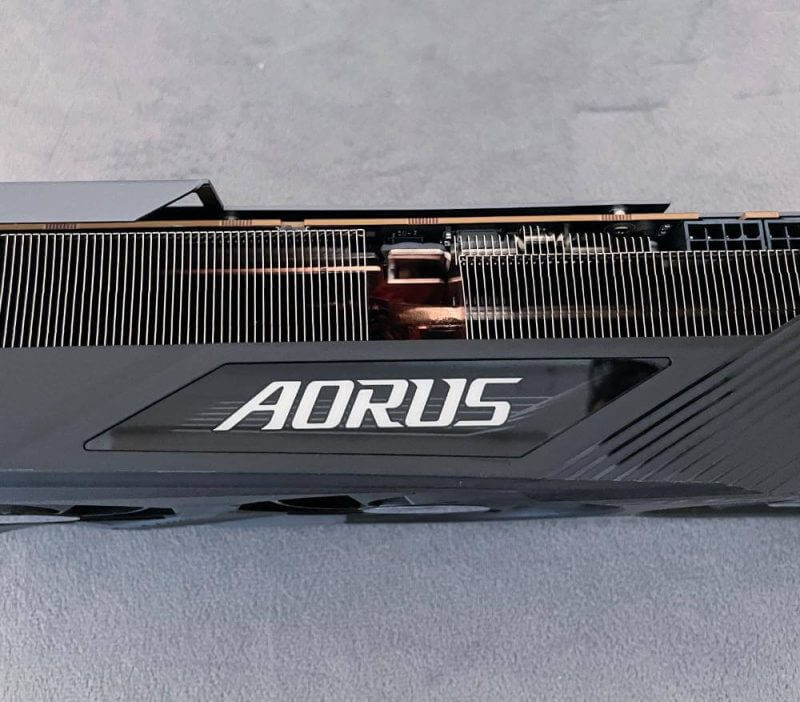

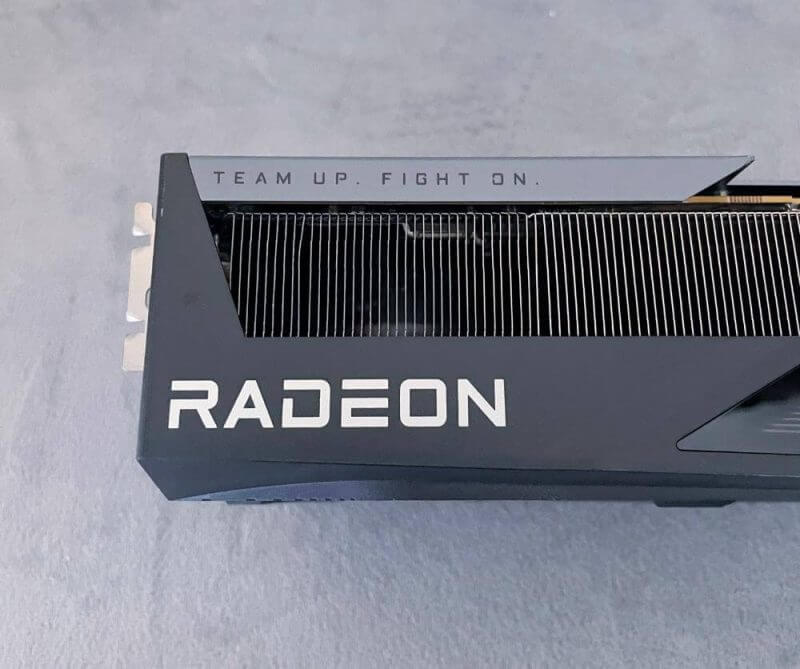

The RADEON RX 7900 XTX ELITE features a Screen Cooling design to improve heat dissipation. Its heatsink extends over the PCB for increased ventilation. It creates additional space to make room for airflow.
RGB Fusion – Customisable Colours and Effects
Our GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review will discuss its RGB technology. RGB Fusion is one of the best things about this product, especially if you love lighting effects. It significantly enhances the aesthetic appeal of your PC build, and you can customise it with different colours.
The RADEON RX 7900 XTX ELITE features a spectacular three-ring light for better visual enjoyment. Select from all the lighting effects or use the GIGABYTE Control Centre to synchronise the lighting with other devices.
Dual BIOS for Optimal Performance
OC mode is the default setting of the BIOS, and it provides the best performance. You can also switch to silent mode for quiet operation.

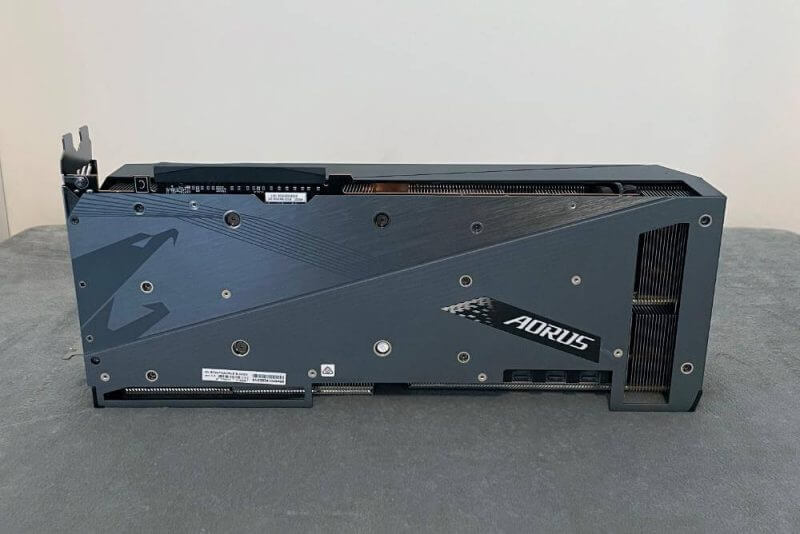

Metal Back Plate of the GIGABYTE AORUS RADEON RX 7900 XTX ELITE
The metal back plate features an aesthetic shape while enhancing the structure and integrity of the graphics card. It provides additional protection to the graphics card and helps extend its lifespan.
Prevent Your Graphics Card from Sagging
The RADEON RX 7900 XTX ELITE has a new tailored anti-sag bracket, providing optimised reinforcement. It also has enhanced aesthetics to increase the aesthetic appeal of your PC.
Power Indicator for Safety
The power indicator of the RADEON RX 7900 XTX ELITE alerts you of a power supply abnormality with a flashing light.
Dust, Corrosion, and Moisture-resistant PCB Coating
The PCB coating of the RADEON RX 7900 XTX ELITE resists dust, insects, drill shavings, abrasion, and dropped screws. Its protection against moisture prevents unwanted conduction paths that cause board damage. Plus, it is safe from salt spray and humidity, preventing corrosion.
Extreme Overclocking with the GIGABYTE AORUS RADEON RX 7900 XTX ELITE
The RADEON RX 7900 XTX ELITE has an excellent power phase design that enables MOSFETs to operate at lower temperatures. It also provides voltage output with better stability. Each MOSFET has load balancing that efficiently enhances the overclocking performance while extending the lifespan of the graphics card.
Components with Ultra Durable Certification
GIGABYTE uses ultra-durable-certified components, including lower ESR solid capacitors, highest-grade metal chokes, and lower RDS(on) MOSFETs. It also has a 2oz copper PCB and over-temperature design for superior performance and increased life span.
DIY-Friendly PCB Design
The automated production process guarantees the consistent quality of the circuit boards. It also removes the sharp protrusions of the solder connectors, which are often on conventional PCB surfaces. This design makes it safe by preventing damage to other components and cutting your hands while building your PC.
GIGABYTE Control Centre – A Unified Platform Connecting All Devices
GIGABYTE Control Centre, or GCC, is a software platform that unifies various GIGABYTE products. This centralised, one-stop platform integrates and optimises all available utilities to make everything more intuitive and easily accessible.
The unified interface of GIGABYTE allows you to make performance adjustments, control fan settings, and customise RGB aesthetics. This intuitive software makes accomplishing tasks faster and more convenient since it supports many GIGABYTE products.
Four-year Warranty
GIGABYTE aims to provide the best service. The company offers an additional one-year protection over the standard three-year warranty period. Enjoy the four-year warranty period by registering the product on the website within 30 days of purchasing the graphics card.
Specifications
- Graphics Processing: RADEON RX 7900 XTX
- Core Clock: up to 2680 MHz (Reference card: 2500 MHz) for Boost Clock | up to 2510 MHz (Reference card: 2300 MHz) for Game Clock
- Memory Clock: 20 Gbps
- Stream Processors: 6144
- Memory Size: 24 GB
- Type of Memory Used: GDDR6
- Memory Bus: 384 bit
- Card Bus: PCI-E 4.0
- Digital Max Resolution: 7680 x 4320
- Multi-view: 4
- PCB Form: ATX
- Card Size: 335 x 137 x 69mm (L x W x H)
- Recommended PSU: 850W
- Power Connectors: 3x 8-pin connectors:
- Output: 2x DisplayPort 2.1, 2x HDMI 2.1
- DirectX: 12 Ultimate
- OpenGL: 4.6

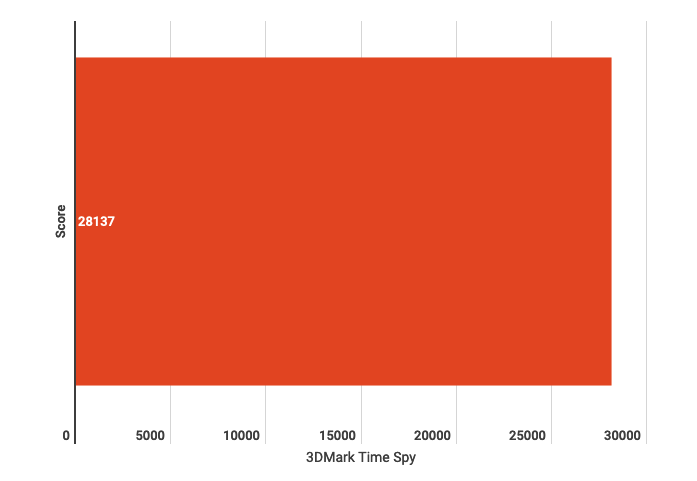

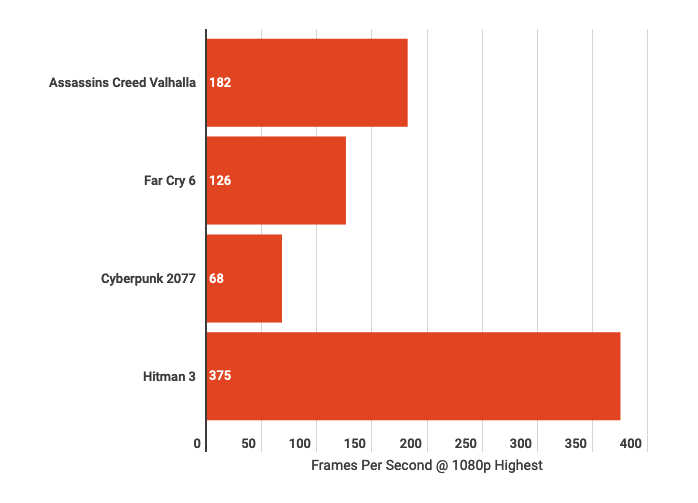

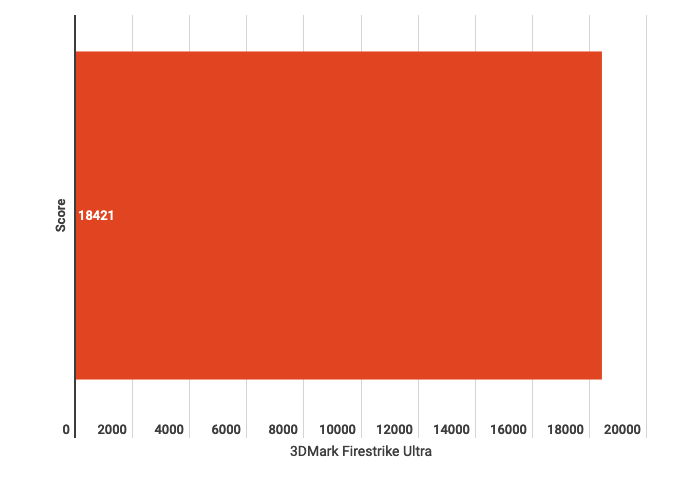

Hands-on with the GIGABYTE AORUS RADEON RX 7900 XTX ELITE
GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review Summary
The RADEON RX 7900 XTX ELITE is another superior graphics card from GIGABYTE. It delivers impressive graphics while keeping temperatures and noise levels low during operation, even with heavy workloads.
This graphics card is stylish, and its design matches many components, making it suitable for various PC builds. Plus, it features vibrant RGBs to enhance the appearance of your system.
As mentioned in our GIGABYTE AORUS RADEON RX 7900 XTX ELITE Review, the product is DIY-friendly. The PCB design made installing the graphics card safer and more convenient since GIGABYTE eliminated its sharp protrusions.
We highly recommend this product for its powerful performance, advanced features, and efficiency. It has a reasonable price for its performance, and it works well for gaming. Learn more about the AORUS RADEON RX 7900 XTX ELITE when visiting the official product page of GIGABYTE.
