GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review

Today, our GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review focuses on a mid-range product. It is based on the Z790 Express chipset from Intel and packs notable features and elements.

We will discuss its design, functions, features, specifications, and how it performs.

GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Packaging

gigabyte aorus z790 elite x wifi 7 review1 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review2 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review

Before looking deeper, our GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review will discuss its packaging. Like always, the motherboard ships in a sturdy and durable cardboard box. The front features the AORUS branding and logo, product name, and what processor it can support.

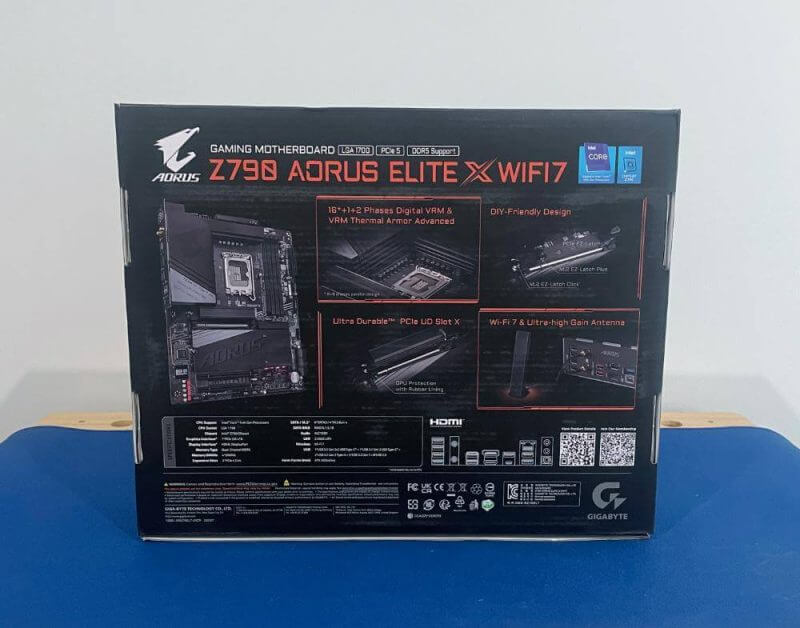

Flipping the box, you will find a detailed collection of its features. You will also find a list of specifications and a breakdown of its rear I/O ports.

Inside the box, you will find the Z790 AORUS ELITE X Wifi 7 shipped with other items. These include the following:

  • Two SATA III cables
  • Thermal pad for the M.2 SSD
  • One Wifi 7 antenna
  • A G Connector
  • One user guide

GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review – Design and Functionality

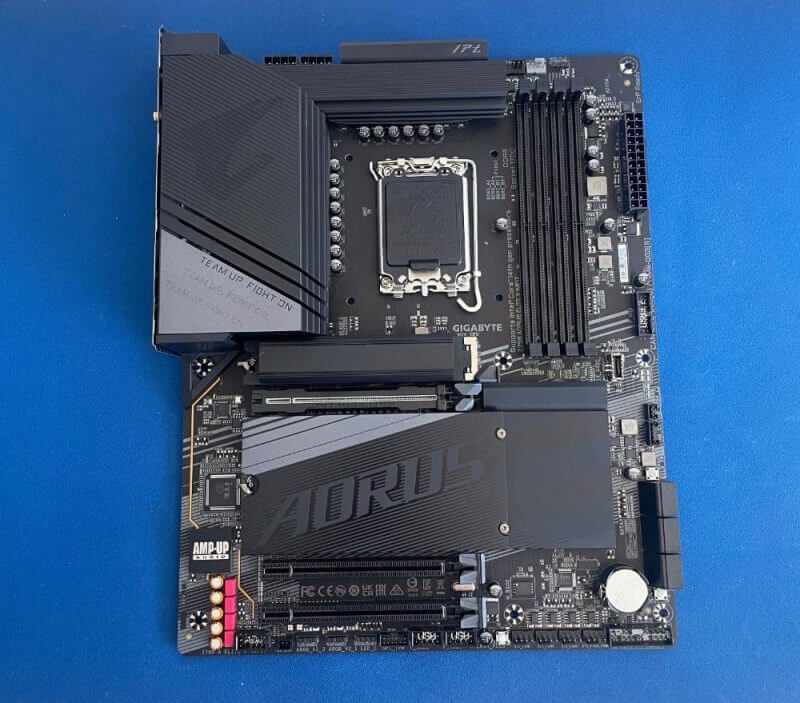

While writing our GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review, we noticed something about its layout. It is similar to the Elite AX, while GIGABYTE kept its design minimal.

The company kept its usual black-grey colour scheme, which is timelessly classy and premium.

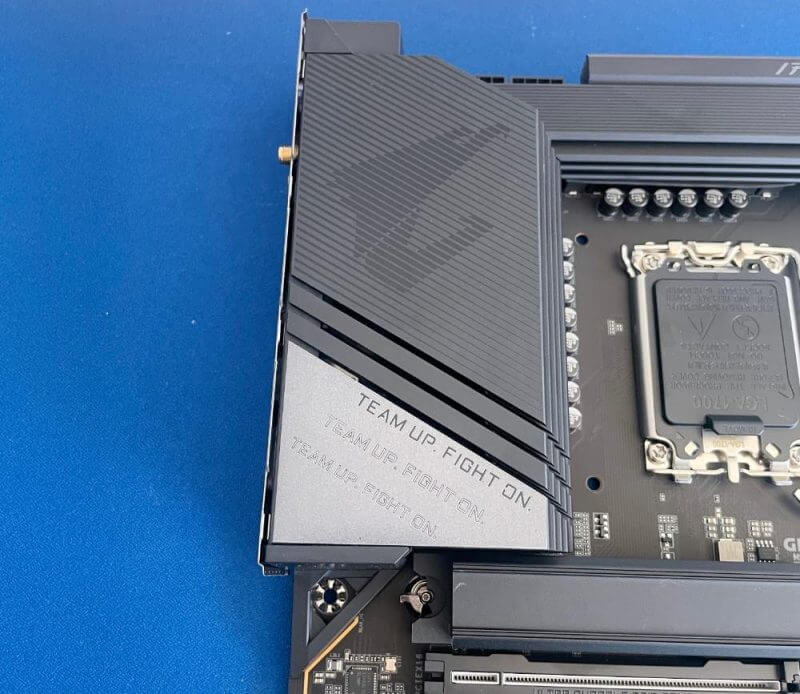

It looks perfect for a gaming PC or builds sporting a more conservative aesthetic. Like other motherboards, this product features the brand logo on its chipset heatsink. However, the only visible logo of AORUS is near the VRM heatsink, which you cannot find anywhere else on it.

If you want RGBs and ARGBs, you have plenty on the product to satisfy your aesthetic needs. Moreover, you can switch off its lights for a stealthy and darker style. gigabyte aorus z790 elite x wifi 7 review3 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review4 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review5 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review6 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review7 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review8 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review9 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review gigabyte aorus z790 elite x wifi 7 review10 GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review

With power delivery, motherboard manufacturers are sometimes less transparent about their VRM design specifications. Although some details are confidential, noticing these designs can be possible by checking the motherboard PCB and components. Fortunately, such efforts are not always required since GIGABYTE has consistently made this information available.

The motherboard has a 16+1+2 phase power design, usually called the Twin Digital style. It includes 16 ISL99390F 90A MOSFETS for the CPU, one ISL993660F 60A MOSFET for GT voltage, and two NCP303160 MOSFETs. The latter is for the VCCAUX power, which works for the PCIe and memory controllers.

Furthermore, GIGABYTE incorporates Tantalum-polymer capacitors to lessen voltage spikes by up to 30%. MOSFETs with this power output were notably top-tier just a few years ago.

Nevertheless, the Z790 AORUS ELITE X Wifi 7 exhibits robust power delivery, making it adept at handling most use cases. It is worth mentioning the VRM cooling solution of the company. This component is aptly named VRM Thermal Armour.

The PCB stands out as an 8-layer structure with a 2-ounce copper composition. GIGABYTE describes it as having a server-grade quality.

As outlined in the provided slide deck, this configuration leads to a 56% reduction in dielectric loss, unlike conventional PCBs. Numerous enhancements in the PCB design specifically target the improvement of the DDR5 memory clock. These enhancements involve the following:

  • Shielded memory routing
  • PCB isolation of memory traces
  • The incorporation of back-drilling technology
  • Impedance optimisation
  • The implementation of a daisy chain topology

Memory traces are isolated on dedicated PCB layers to minimise interference. On the other hand, individual channels undergo segregation on specific layers.

Although previously unfamiliar, GIGABYTE introduces back drilling technology. It will help enhance signal integrity in high-speed PCB designs by mitigating signal reflections.

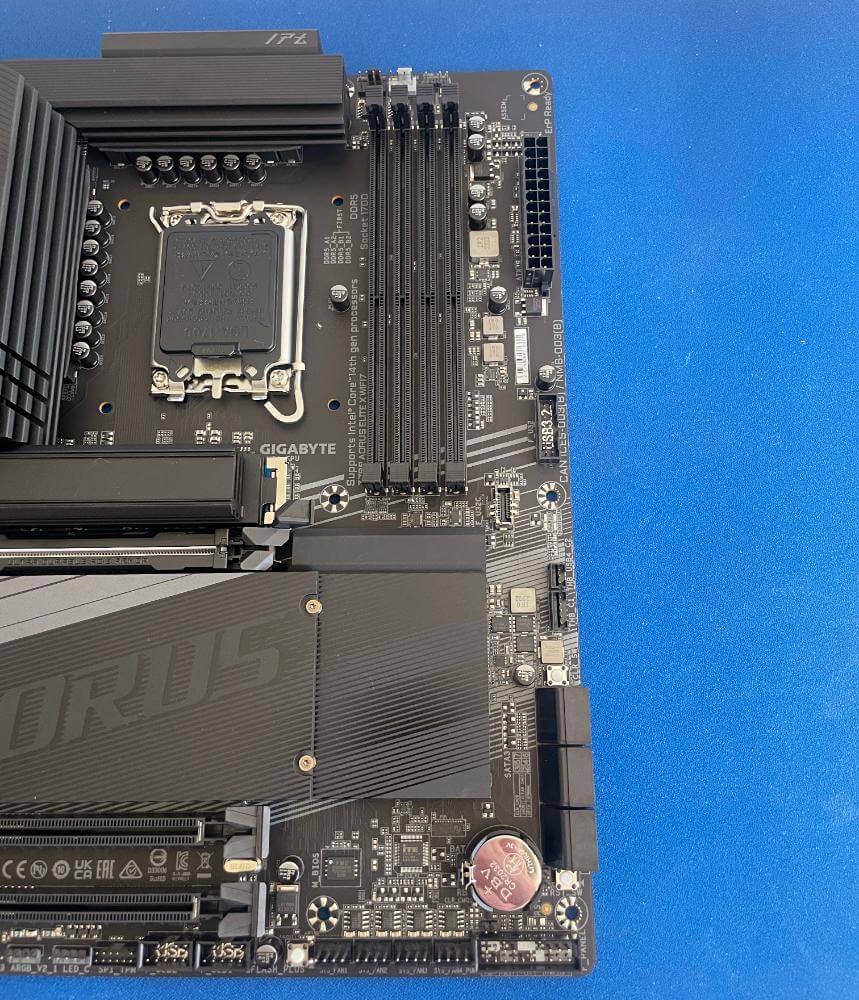

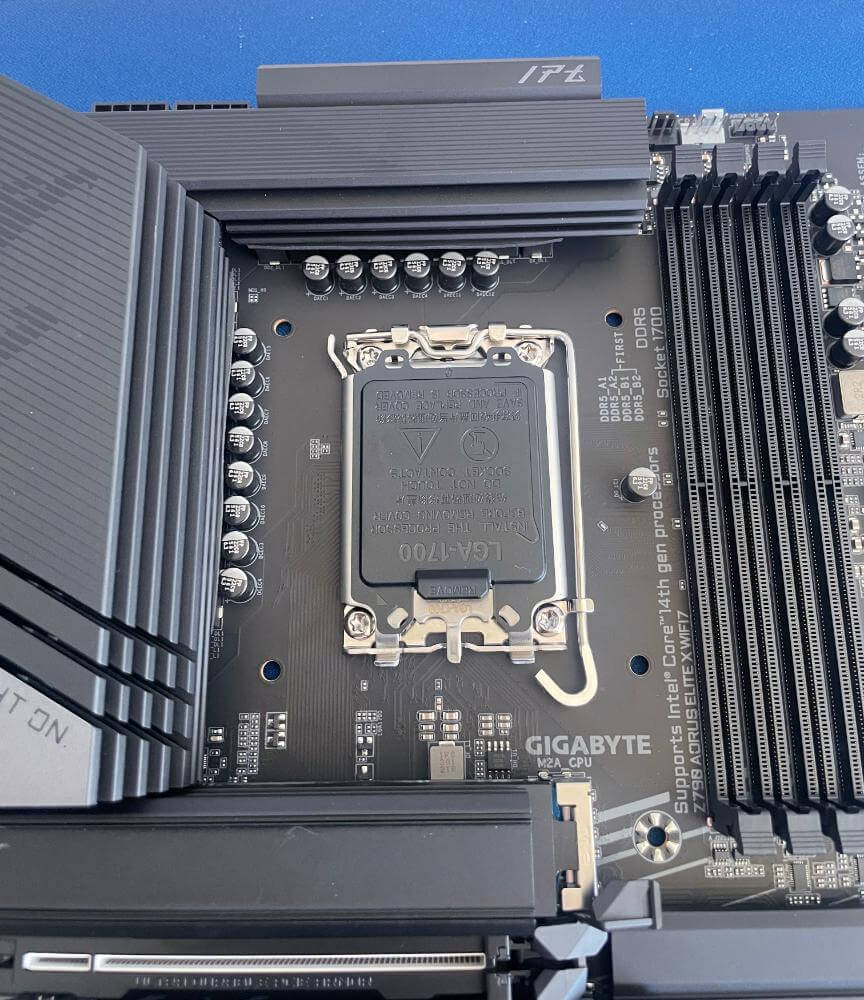

The Z790 AORUS ELITE X Wifi 7 has four 288-pin DDR5 DIMM slots and lacks colour coding. The latter indicates specific dual-channel memory mode operations.

With a daisy chain topology, these slots incorporate PCB isolation, shielding, and various design enhancements. These are available on the slide decks.

The primary focus is to avert signal interference, a challenge that intensifies with rising clock speeds. Furthermore, these slots feature standard designs with two retention tabs per slot. The PCB is clearly labelled to facilitate the identification of proper dual-channel memory mode operation.

The motherboard lacks support for EXPO and XMP technologies. Conversely, the Z790 AORUS ELITE X Wifi 7 not only supports XMP and EXPO technology. It also introduces an additional feature called XMP Booster.

The function is primarily BIOS-related. So, we will delve into it in our review.

Additional Notable Features

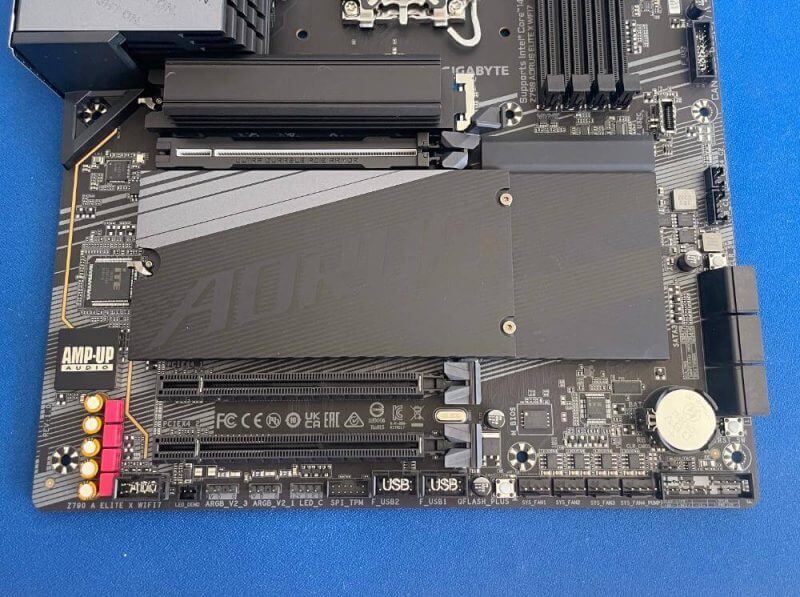

Additional standout features include onboard buttons, user-friendly latches for graphics card removal and M.2 SSD installation. You will also find a reinforced PCIe x16 slot.

Clear CMOS and Q-FLASH Plus buttons facilitate easy recovery from failure caused by unfavourable overclock settings. The absence of onboard power buttons remains a slight inconvenience. It would be better if the company integrated a power button alongside the reset, enhancing user convenience.

The M.2 heatsink latches are a prime feature on the Z790 AORUS Elite X Wifi 7 feature. It allows seamless swapping of SSDs without the constant need for a screwdriver.

The PCIe EZ-Latch may not boast the sleek push-button design found in models like the AORUS Master or Xtreme. Nevertheless, it efficiently accomplishes its intended purpose.

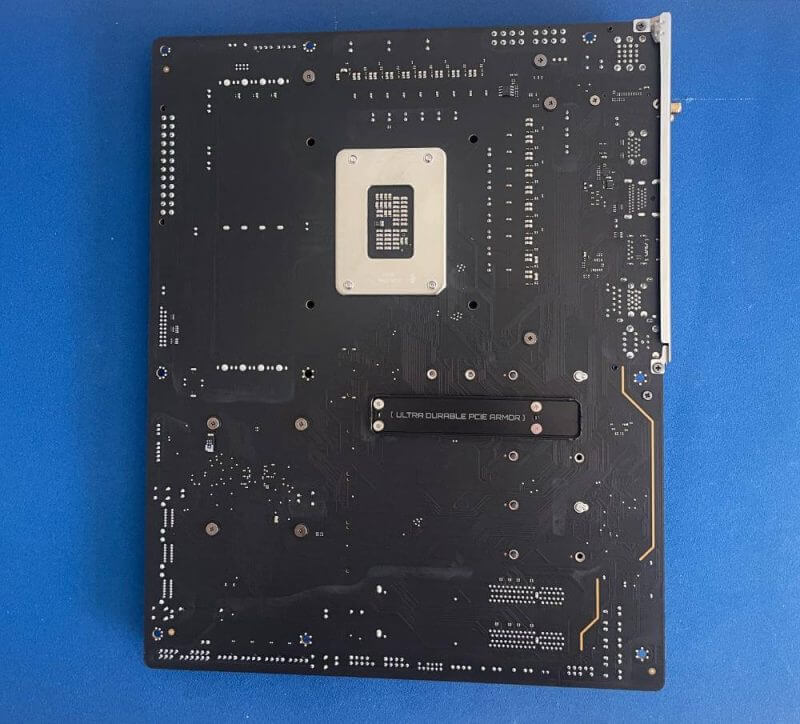

The PCIe X16 slot, reinforced with an additional backplate, is not as flashy as other features. This unique protective feature helps reduce the risk of damaging the PCIe X16 slot during transportation. It proves to be a valuable addition for individuals who travel with their PCs.

Previously, we witnessed incidents where the PCIe x16 slot was torn off the motherboard due to mishandling during transit. The reinforced PCIe x16 slot is beneficial for motherboard durability in such scenarios.

There are numerous incidents where the PCIe x16 was torn off the motherboard due to mishandling. GIGABYTE used the additional backplate to increase the product’s durability.

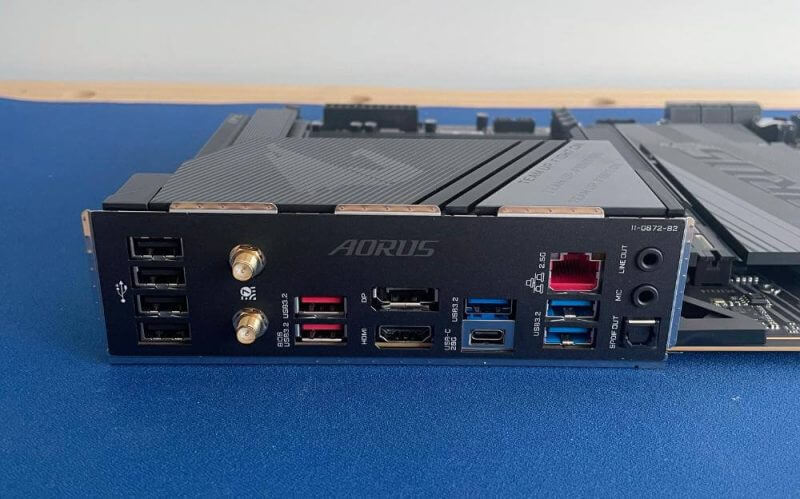

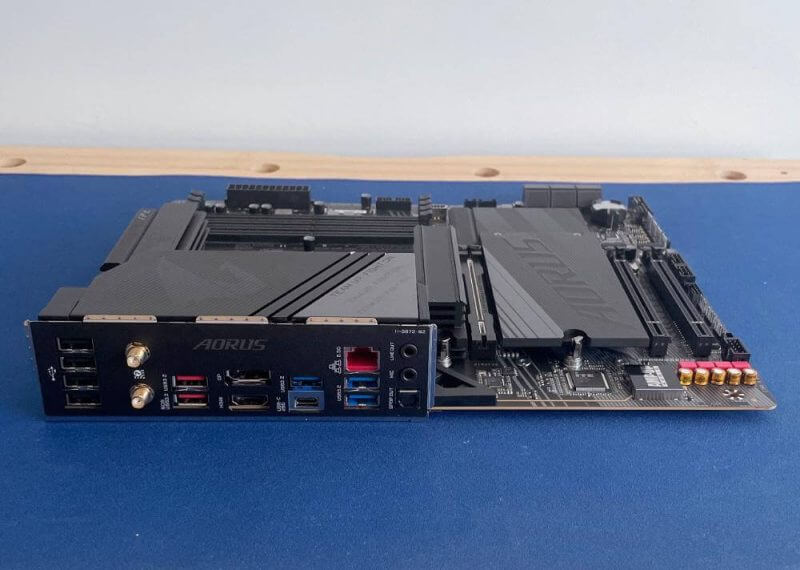

Rear I/O Panel of the GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard

On the rear I/O panel of the Z790 AORUS ELITE X Wifi 7, you will find the following connectors:

  • DisplayPort and HDMI ports for integrated graphics
  • SMA connector for the Wifi antenna
  • Two USB 3.2 Gen 2 ports
  • Three USB 3.2 Gen 1 ports
  • Four USB 2.0/1.1 ports
  • Type-C USB 3.2 Gen 2×2 port
  • 2.5GbE LAN ethernet port
  • Audio jacks that support up to 7.1 channel audio

Networking

Our GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review discusses networking features and options. It has the Intel i225v 2.5GbE controller with improved firmware. Also, this Intel controller is a premium option over other solutions like Marvel and Realtek.

Aside from the Intel controller, this motherboard also has a MediaTek Wifi 7 MT7927 wireless controller. It provides compatibility with the latest wireless standards, allowing you to enjoy fast connections.

Key Features of the GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard

This GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review lists all the elements that make this product worth considering. These are all essential features, but are they enough for your needs?

XGen Designed for Next-Gen

This motherboard from GIGABYTE is perfect for the next-generation Intel Core processors. Thanks to its DDR5 memory, optimised DIY-friendly innovations, and redesigned BIOS, this motherboard offers next-gen power that you can take advantage of.

Advanced Technologies for DDR5 Performance

GIGABYTE remains dedicated to providing exceptional capabilities of the Intel Core 14th Generation processors. For guaranteed performance, the motherboard undergoes meticulous engineering, incorporating cutting-edge technologies to deliver superior DDR5 performance.

Extraordinary Power Delivery of the GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard

The Z790 AORUS ELITE X Wifi 7 features an all-digital power design, allowing it to reach the peak performance of the next-gen processor. It also provides the best stability under heavy workloads.

Additional PCB Layers

The PCB plays a subtle yet crucial role. It is the foundation of the motherboard and its capabilities.

The Z790 AORUS ELITE X Wifi 7 has an eight-layer PCB for dense integration, power integrity, and signal quality. It also has low EMI for high-performance systems. Increased copper enhancement improves power handling and heat dissipation for seamless overclocking.

This PCB increases signal integrity in high-frequency circuits using the innovative technology of GIGABYTE. As a result, this motherboard raises the bar for high-speed electronic design.

Cool and Fast with the Advanced Thermal Design

The Z790 AORUS ELITE X Wifi 7 has the most advanced full-metal thermal design. It has forged solid heatsinks to maintain low temperatures and fast performance. GIGABYTE also increased the surface area by four times, improving heat dissipation from MOSFETs.

Single-piece Build with Multi-Cut Layout

The single-piece design of the heatsink provides superior cooling, unlike multi-piece builds used by competitors. In addition, the heatsink has a Multi-Cut Design. It includes multiple inlets and channels to enhance airflow.

8mm Heat Pipe

The Z790 AORUS ELITE X Wifi 7 has an 8mm Mega-Heat Pipe with refined manufacturing. It minimises the heatsink and heat pipe gap, ensuring efficient MOSFET heat transfer while boosting thermal performance.

Advanced VRM Thermal Armour

The integrated moulded heatsinks and high-coverage MOSFETs boost airflow and heat exchange thermal efficiency.

DIY-friendly Innovations of the GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard for Convenient PC Building

By implementing unique innovations, GIGABYTE makes your PC building experience more fun and effortless. As a result, the Z790 AORUS ELITE X Wifi 7 is a build-friendly motherboard.

Everything is UD – Ultra-durable

The Ultra Durable (UD) Technology reflects the highest standards of GIGABYTE in providing a durable and reliable gaming platform. The company built the Z790 AORUS ELITE X Wifi 7 with premium components to last longer.

This motherboard uses the latest PCIe UD Slot X for unparalleled strength and improved protection for your graphics card. It also has a 10X load-bearing capacity, which is a seamless single-piece design screwed onto its designated backplate.

Our GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review will also discuss more protective features found on this product. It has an inner lining rubber strip that prevents the PCB of your graphics card from acquiring scratches. Plus, it uses zinc alloy to ensure efficient electromagnetic shielding for high-speed signals.

Specifications

  • CPU Socket: LGA1700
  • Chipset: Intel Z790 Express Chipset
  • Memory: DRR5, Dual channel memory architecture
  • Onboard Graphics: 1x HDMI port (supporting up to 4096×2160@60 Hz), 1x DisplayPort (supports 4096×2304@60 Hz max.)
  • Audio: High Definition Audio, 7.1-channel audio
  • LAN Chip: Intel 2.5GbE (100 Mbps/1 Gbps/2.5 Gbps)
  • Support for Windows: 11 64-bit
  • ATX Form Factor: 30.5cm x 24.4cm

Hands-on with the GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard

CleanShot 2023 11 29 at GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review CleanShot 2023 11 29 at GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review CleanShot 2023 11 29 at GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review

UEFI BIOS

The UEFI BIOS of the Z790 AORUS ELITE X Wifi 7 resembles the BIOS interface of other Z790 motherboards. However, GIGABYTE enhanced its appearance by changing its colour from orange to black with blue and purple highlights. Plus, it has white text for easy reading.

When launching the UEFI BIOS, it opens a reconfigured Easy Mode. It is primarily informative, listing the status of the RAM, CPU, fans, and other peripherals. The bottom section has several options for memory tweaks and QFlash.

The UEFI BIOS also has an advanced section where you can find a standard configuration with primary headings. These include Tweaker, Favourites, Settings, and System Info.

Tweaker has all the options for overclocking and fine-tuning your system. It has settings for adjusting RAM speeds & timings, tweaking voltages, and various overclocking options for the CPU.

The Settings tab has several sub-headings for configuring I/O ports and adjusting platform power. You can also access PC Health, which shows temperatures, voltages, and other system information. This section also has options to switch on/off integrated graphics and audio, plus configure USB, SATA, NVMe, and more.

The UEFI BIOS is user-friendly, thanks to its logically placed menus and redesigned interface. Like the BIOS of X670 boards, it has many options for tweaking the CPU and RAM. However, it does not have RGB settings, and to access that, you will need the GIGABYTE Control Centre on Windows.

GIGABYTE Control Centre (GCC)

GIGABYTE Control Centre is a Windows-based software program for monitoring your system and configuring the settings of fans, RGB, etc. It also provides driver updates.

On startup, GCC prompts you with software/driver versions and asks you to update or download as needed. The program only downloads the update with your approval.

GCC has options to control fans, RGB lights, and overclocking. RGB Fusion is for lighting configuration, and here, you can choose from eight LED effects. Plus, you can change the speed and brightness of the lights.

Fan controls have the following speed options: full speed, average, and silent. It also has settings for manual adjustments and custom curves.

Overclocking the processor via GCC was straightforward. It has drop-down menus for selecting the CPU multiplier, voltage, and memory speed.

The best thing about GCC is it detects all our components without issue. As a result, the software seamlessly ran when we configured all the settings we needed.

GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review Summary

The new Raptor Lake Refresh motherboards from GIGABYTE show the company plans to add new features to improve user experience.

The best features of the Z790 AORUS ELITE X Wifi 7 are the EZ-Latch Click and EZ-Latch Plus tool-less systems. These make installing and swapping M.2 drives more convenient.

The motherboard also has the PCIe EZ-Latch for seamless swapping of graphics cards. This innovative tool makes PC building more convenient, especially with a sizeable graphics card or CPU cooler.

Aside from the innovative features, GIGABYTE implemented significant updates to the UEFI BIOS, making it more user-friendly. It has superb features like the DDR5 XMP Booster, which makes overclocking DDR5 memory effortless. GIGABYTE Control Centre also has numerous improvements that made our experience more enjoyable.

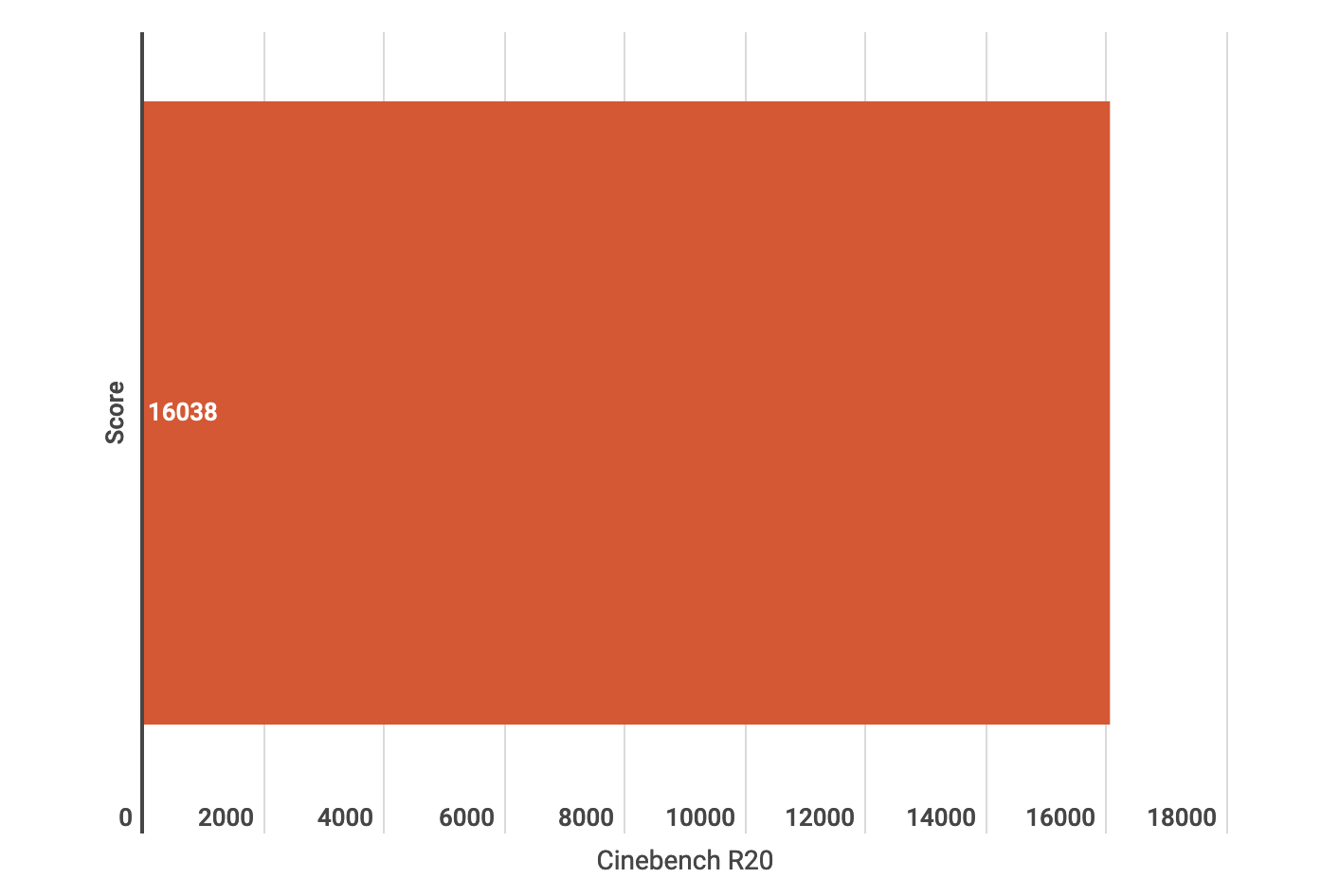

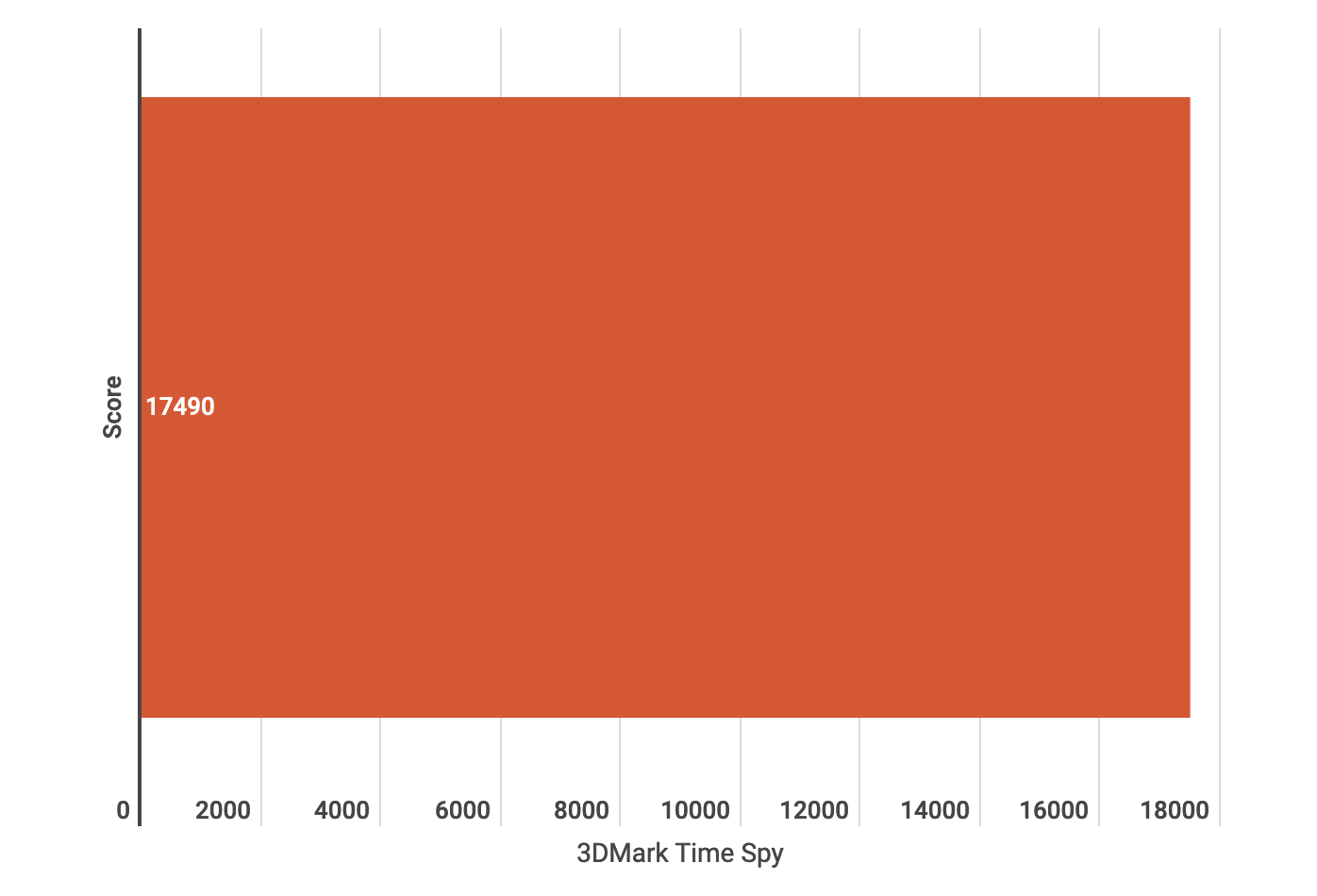

The Z790 AORUS ELITE X Wifi 7 is a feature-rich motherboard that performs excellently. It has all the essentials, and GIGABYTE implemented the necessary improvements to make PC building more convenient and enjoyable. Also, it delivered satisfying results when we tested it for this GIGABYTE Z790 AORUS ELITE X Wifi 7 Motherboard Review.

This motherboard exceeded our expectations, and we recommend it to anyone who wants a PC based on the Z790 chipset. Visit the official product page of GIGABYTE for more details about the Z790 AORUS ELITE X Wifi 7 Motherboard.
