The world of single-board computers continues to evolve, with new contenders emerging to challenge the long-standing dominance of the Raspberry Pi. One such competitor is the OrangePi 4A, a compact and capable board that carves out its own niche in a crowded market. Although it enters with modest fanfare, its performance and features suggest it deserves serious consideration.
Unlike some earlier alternatives, the OrangePi 4A strikes a strong balance between functionality and affordability. It may not aim to dethrone the latest Pi 5, but it comfortably fills a gap for users who need reliable hardware with enough power to handle day-to-day computing tasks. Whether you’re building a lightweight workstation or a home server, this board has potential.
From the moment it boots up, the OrangePi 4A shows that it means business. It’s not just a stripped-back budget board, but a thoughtfully designed piece of hardware that supports multiple use cases. With its solid feature set and polished user experience, it stands as a compelling option for enthusiasts and tinkerers alike.
Design and Functionality

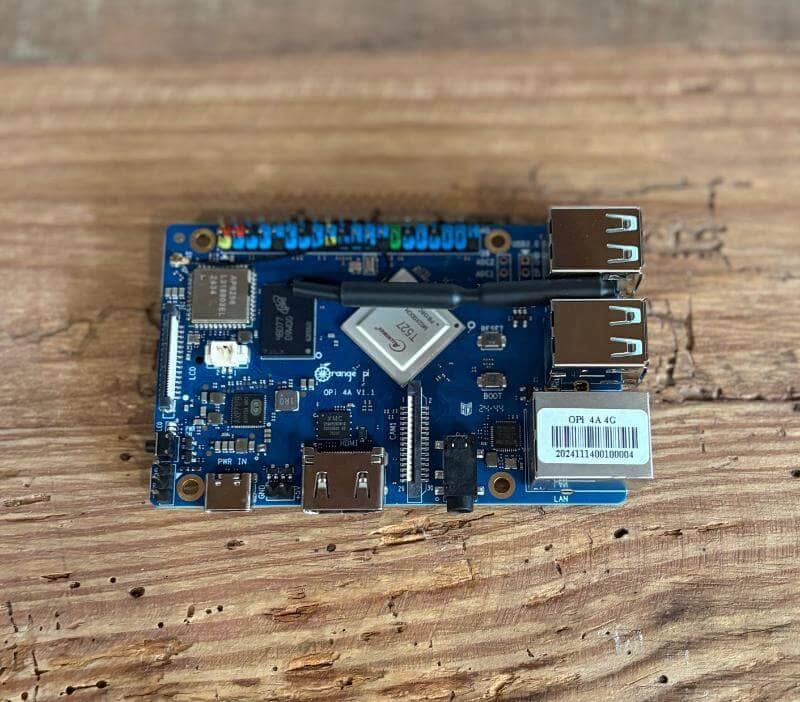

At first glance, the OrangePi 4A presents a clean and functional layout, with its ports and components neatly arranged across the compact board. The 89mm by 56mm size makes it easy to mount in various enclosures, and it fits comfortably into setups with limited space.
The positioning of the USB and Ethernet ports differs from some of its competitors, offering a slightly rearranged configuration that some users may find more intuitive. While the lack of USB 3.0 might be a concern for data-heavy tasks, the four USB 2.0 ports are more than sufficient for everyday peripherals.
A standout design choice is the inclusion of an M.2 slot for NVMe SSDs, allowing the board to be transformed into a mini server or used for faster local storage. It only supports 2280-sized drives, so users will need to be mindful when choosing compatible hardware.

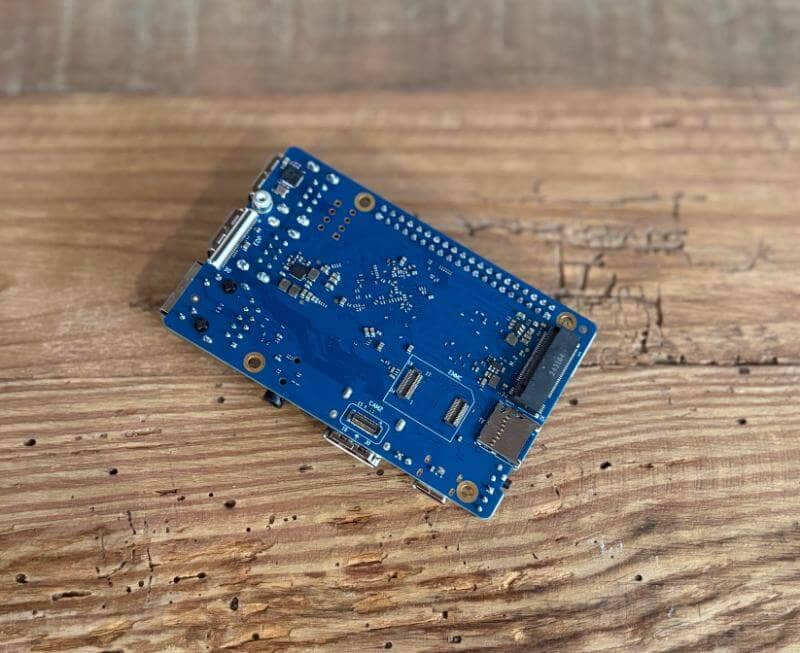

On the reverse side of the board, the presence of an eMMC module socket provides an appealing storage alternative. While not as fast as NVMe, it delivers much better performance than traditional microSD cards, which can bottleneck system responsiveness.
Cooling is passively managed by the system’s layout and component arrangement, and although there’s no active cooling out of the box, the board doesn’t seem to overheat under moderate workloads. For users intending to push the hardware more aggressively, additional thermal solutions may be considered.

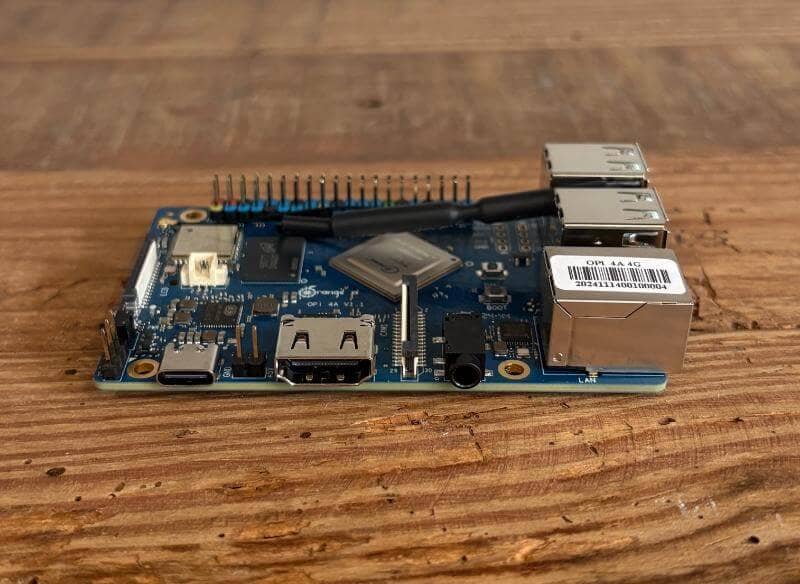

The boot, reset, and power buttons are placed along the edge of the PCB, a decision likely driven by space constraints. Unfortunately, when housed in a case, these buttons can be difficult to access, which could impact usability for some configurations.
Key Features
The OrangePi 4A is powered by an 8-core ARM Cortex-A55 processor, providing a solid base for multitasking and efficient performance. Clocked at 1.8GHz, the CPU is paired with a G57 MC1 GPU, allowing the board to handle multimedia tasks with ease.
Its onboard VPU supports 4K video decoding at up to 60 frames per second, making it a great choice for media playback or lightweight desktop setups. It also includes limited encoding capabilities, suitable for basic content creation or video streaming tasks.
One of the board’s highlights is the inclusion of a 2.0 HDMI output that supports resolutions up to 4K at 60Hz. This ensures sharp visuals and a smooth interface, whether you’re using it for desktop environments or digital signage.
There are two MIPI-CSI camera interfaces, with two and four lanes respectively, opening up a range of options for integrating cameras. This is particularly useful for developers building vision-based projects or prototyping smart camera systems.
For connectivity, the board comes with Wi-Fi 5 and Bluetooth 5.0 support, delivering reliable wireless performance for most applications. Though Wi-Fi 6 is absent, the available wireless standards are still capable and commonly used across devices.
Wired network performance is handled by a gigabit Ethernet port, offering faster and more stable speeds than wireless options. This makes the board suitable for network-intensive tasks like file serving or remote access.
Audio is delivered through a 3.5mm headphone jack that supports both input and output, allowing for basic multimedia or voice-based applications. This is supported by an onboard HIFI4 DSP, which contributes to better sound processing and clarity.
The power supply accepts a USB Type-C input, capable of delivering up to 5V at 5A. This ensures the board remains stable under load, particularly when using high-speed storage or multiple connected peripherals.
Experience Using the Product and Performance
Setting up the OrangePi 4A was straightforward, with clear documentation and a smooth initial boot process. It recognised the connected display and peripherals immediately, making the onboarding process hassle-free.
Running Ubuntu Jammy with the GNOME desktop, the user interface felt fluid and responsive during basic tasks. Navigating through menus, launching applications, and switching between windows was mostly seamless.
Even with multiple browser tabs open and a few background processes, the system didn’t show signs of strain. This suggests the 8-core processor and 4GB RAM are well-matched for general-purpose use.
Although microSD cards can often bottleneck performance, using a fast A2-rated card helped maintain decent read/write speeds. Tasks like installing packages and browsing files were slower than an NVMe setup but still acceptable for casual use.
Installing a 32GB eMMC module delivered a noticeable improvement in system responsiveness. Boot times were shorter, and applications opened faster compared to the microSD setup.
Using an NVMe SSD via the M.2 slot pushed performance further, creating a desktop-like experience for basic workloads. This configuration is ideal for those planning to use the board for lightweight development or media playback.
Streaming video content was smooth, with 4K playback running without stuttering. The hardware decoding handled high-resolution media effectively, which makes it a suitable option for home theatre or display systems.
Wi-Fi performance was steady across a range of devices and didn’t drop connection during extended use. While lacking Wi-Fi 6, the included wireless module handled basic networking tasks without issue.
Bluetooth pairing was quick and stable with both headphones and keyboards, contributing to a cable-free setup. The inclusion of BLE support also opens up possibilities for IoT or wearable projects.
Across extended use, the board remained cool and stable, even when multitasking. Passive cooling seemed adequate for the intended workloads, and no thermal throttling was observed under normal operating conditions.
Conclusion
The OrangePi 4A delivers an impressive experience for a board in its class, blending capable hardware with thoughtful design. It manages to cover essential features while leaving room for advanced users to expand its capabilities.
Its performance comfortably exceeds that of older entry-level boards, making it a practical choice for those seeking more speed without a significant investment. From media playback to basic development tasks, the 4A holds its ground reliably.
Software support is another strength, with tailored operating systems providing a smooth and user-friendly environment. Whether using GNOME or XFCE, the interface feels polished and suitable for day-to-day computing.
The OrangePi 4A stands out as a reliable, adaptable single-board computer. It’s a solid foundation for both hobby projects and more advanced DIY setups, proving that affordability doesn’t have to mean compromise.
