The ASRock B850 Steel Legend WiFi is a motherboard designed for builders who want a balance of performance, style, and modern connectivity. It arrives with a clean aesthetic and strong hardware choices, making it appealing for both gaming rigs and productivity systems. From the outset, it sets itself apart with its distinctive white theme and sturdy construction.
This model caters to AMD’s latest AM5 processors, giving users a platform that supports the newest generation of CPUs. With support for advanced memory speeds and PCIe Gen5, it ensures future-ready performance for demanding workloads. It also integrates WiFi 7 and multiple M.2 slots, creating flexibility for different builds.
Beyond the raw specifications, this board aims to deliver reliability and convenience for everyday use. Its reinforced slots, efficient cooling solutions, and straightforward BIOS make it approachable for newcomers while still offering depth for experienced users. The inclusion of a thermistor header and thoughtful design touches further highlight its versatility.
Design and Functionality

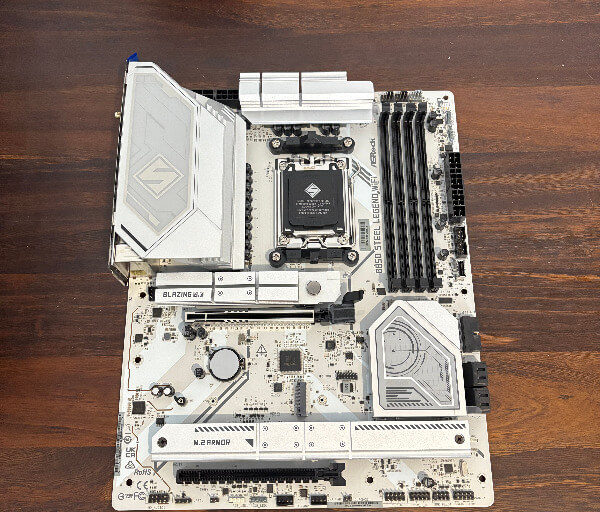

The ASRock B850 Steel Legend WiFi is striking with its all-white colour scheme, making it an excellent choice for themed builds. The PCB is complemented by artistic detailing on the heatsinks, giving it a premium and modern appearance.
Its ATX form factor offers plenty of room without feeling oversized, making it compatible with most standard cases. The eight-layer PCB design provides extra durability while ensuring stable signal transmission and electrical isolation.

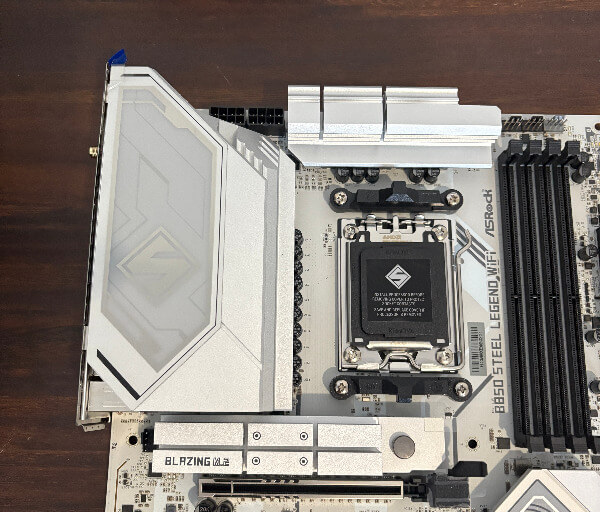

Cooling is carefully considered with large heatsink blocks covering the VRM and M.2 areas. Thermal pads are included underneath to improve heat transfer and keep temperatures under control during heavy loads.

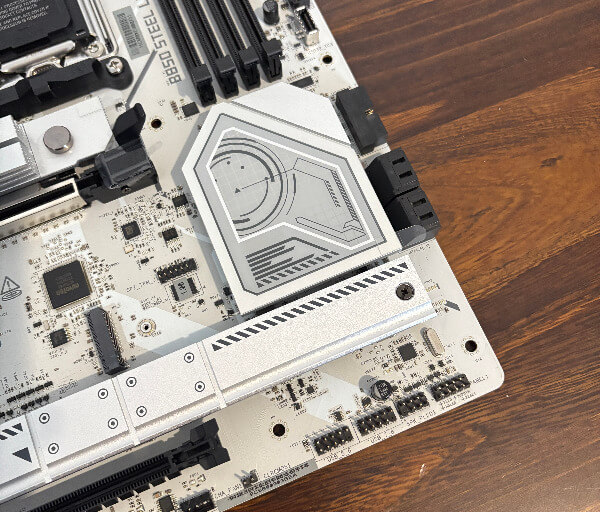

The chipset heatsink is decorated with ASRock’s signature Steel Legend artwork. This attention to detail not only enhances the look but also reinforces the identity of the motherboard series.
A reinforced PCIe 5.0 x16 slot adds both strength and reliability for heavier graphics cards. The addition of slot armour and an easy-release lever ensures secure installation and simplified upgrades.

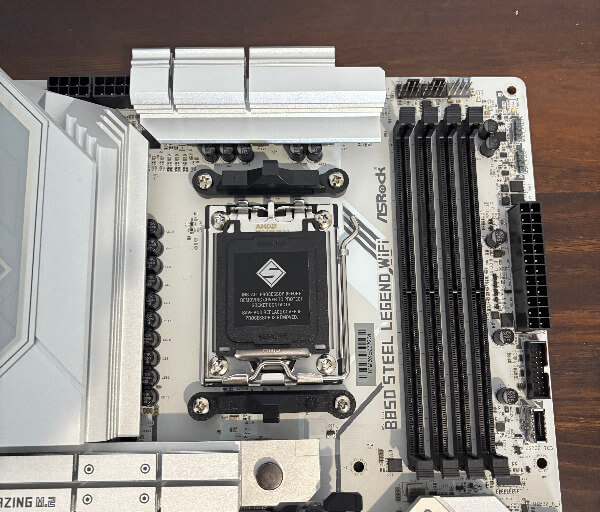

Four DIMM slots are placed conveniently with enough clearance for larger CPU coolers. These slots support up to 256 GB of DDR5 memory, catering to enthusiasts who require extensive multitasking or high-performance gaming setups.

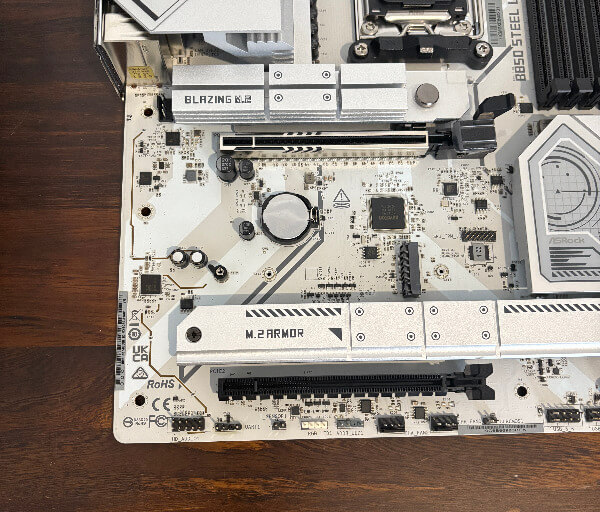

Storage expandability is addressed through four M.2 slots, one of which supports the latest PCIe Gen5 standard. While most are equipped with heatsinks, one slot lacks coverage, meaning users may need to consider additional cooling for sustained performance.
In addition to M.2 support, four SATA ports are available for traditional storage devices. This allows flexibility for those who want to combine modern NVMe drives with large-capacity HDDs.
Connectivity is balanced with a variety of rear and front USB options. High-speed ports, including Gen2x2 Type-C, ensure compatibility with the latest devices while retaining slower ports for peripherals that do not require extreme bandwidth.
The board also includes multiple fan headers, RGB connections, and a thermistor header for fine-tuned cooling. These thoughtful inclusions give builders flexibility to customise airflow and lighting, further enhancing the system’s overall design.
Key Features
The ASRock B850 Steel Legend WiFi is powered by AMD’s B850 chipset, supporting the latest AM5 Ryzen processors. This ensures compatibility with current and upcoming CPUs, giving builders a stable platform for the future.
A robust 14+2+1 phase power design with 80A Dr.MOS stages ensures stable power delivery. This setup improves efficiency under load, supporting high-performance processors without compromising stability.
Memory performance is a highlight, with support for DDR5 speeds of up to 8000 MT/s (OC). With four slots and a maximum capacity of 256 GB, it’s capable of handling intensive multitasking or demanding creative workloads.
Storage expandability is impressive, offering four M.2 slots and four SATA connectors. One M.2 slot runs on PCIe Gen5 for the fastest drives, while the others use PCIe Gen4 for reliable, high-speed storage.
Networking is upgraded with an 802.11be WiFi 7 module, bringing faster wireless speeds and improved stability. Bluetooth 5.4 is also integrated, making it easier to connect modern peripherals and accessories.

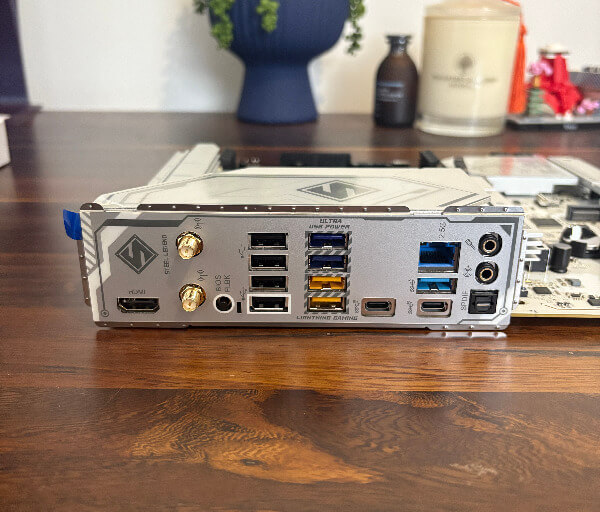

The rear I/O panel includes a variety of ports to suit different needs. With multiple USB 3.2 options, HDMI output, SPDIF, and a BIOS flashback button, it delivers both convenience and versatility.
For audio, the Realtek ALC4082 codec is paired with Nahimic software for a richer listening experience. Direct Drive Technology on the front panel further enhances compatibility with high-impedance headphones.
ASRock includes several helpful utilities to simplify setup and maintenance. The Auto Driver Installer, EZ Mode UEFI, and BIOS Flashback button ensure that users can configure, update, and troubleshoot with ease.
Tech Specs – ASRock B850 Steel Legend WiFi
CPU Support
- AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series
Chipset
- AMD B850
Memory
- 4 × DDR5 DIMM slots
- Dual Channel DDR5 up to 8000+ MT/s (OC)
- Supports ECC / non-ECC, un-buffered memory
- Max capacity: 256 GB
- Supports Intel XMP and AMD EXPO
Expansion Slots
- 1 × PCIe 5.0 x16 (with slot armour and release lever)
- 1 × PCIe 4.0 x16 (x4 mode)
Storage
- 1 × M.2 PCIe Gen5 x4 (2280)
- 3 × M.2 PCIe Gen4 x4 (2230/2260/2280)
- 4 × SATA 6 Gb/s connectors
- Supports RAID 0/1/10 for M.2 NVMe
Networking
- 2.5G LAN (Dragon RTL8125BG)
- WiFi 7 (802.11be) with 2×2 antennas
- Bluetooth 5.4
Audio
- Realtek ALC4082 7.1 HD Audio Codec
- Nahimic software support
- Direct Drive up to 600 Ohm headphones
USB Ports
- Rear:
- 2 × USB 3.2 Gen2 Type-C
- 2 × USB 3.2 Gen2 Type-A
- 3 × USB 3.2 Gen1 Type-A
- 4 × USB 2.0
- Front (via headers):
- 1 × USB 3.2 Gen2x2 Type-C
- 4 × USB 3.2 Gen1
- 4 × USB 2.0
Internal Headers & Connectors
- 2 × 8-pin CPU power connectors
- 1 × 24-pin ATX power connector
- 2 × CPU fan headers
- 3 × chassis fan headers
- 1 × AIO pump header
- RGB and ARGB headers
- Thermistor header
Rear I/O
- 2 × Antenna ports
- 1 × HDMI 2.1
- 1 × Optical SPDIF
- 1 × RJ-45 LAN
- BIOS Flashback button
- Audio jacks (Line out & Mic in, gold plated)
Form Factor
- ATX, 30.5 × 24.4 cm
- 8-layer PCB
Experience Using the Product and Performance
Setting up the ASRock B850 Steel Legend WiFi is straightforward, thanks to the clearly labelled headers and pre-installed I/O shield. Even first-time builders will find the installation process intuitive and stress-free.
The BIOS is well laid out, offering both an EZ Mode for beginners and an advanced view for enthusiasts. This balance makes it simple to adjust fan curves, enable EXPO profiles, or fine-tune overclocking settings.
Boot times are quick, with the board reliably detecting components on first power-up. This reliability reduces the hassle of troubleshooting and gives confidence during initial setup.
During gaming sessions, the VRM cooling solution performs admirably, keeping temperatures in check even with high-core count Ryzen processors. The thermal pads and large heatsinks ensure consistent stability under sustained loads.
The PCIe Gen5 x16 slot provides plenty of headroom for the latest graphics cards. Combined with slot armour, it holds heavy GPUs securely while maintaining smooth performance during demanding tasks.
When testing storage, the Gen5 M.2 slot demonstrated extremely fast read and write speeds. The Gen4 slots also delivered excellent results, showing no bottlenecks for high-end NVMe drives.
Although one M.2 slot lacks a heatsink, thermal throttling was not a major concern during light workloads. For extended transfers or heavy use, however, adding a third-party heatsink is recommended.
With four DIMM slots, memory performance was impressive when EXPO profiles were enabled. Reaching high DDR5 speeds was stable, allowing applications and games to benefit from reduced latency and faster data access.
Gaming performance was smooth across a range of titles, with no instability or frame drops caused by the motherboard. The board handled CPU and GPU communication efficiently, ensuring consistent gameplay.
When idle, the system remained quiet with fan speeds kept low by intelligent fan control. This made the board well-suited to builds prioritising silence during light use.
Under stress testing, the power delivery solution showed its strength by remaining stable without voltage dips. This stability is particularly beneficial for content creators and gamers who push hardware for long periods.
The inclusion of WiFi 7 proved beneficial for wireless connectivity. Speeds were fast and latency was minimal, making it reliable for gaming, streaming, and file transfers without resorting to Ethernet.
Wired networking through the 2.5G LAN port was equally reliable. While it doesn’t match the speed of newer 10G solutions, it delivered excellent performance for most home and office networks.
USB connectivity was another highlight, with plenty of options available for both front and rear access. High-speed ports allowed external drives to reach near their maximum potential during testing.
Peripheral compatibility was smooth across the board, with gaming mice, keyboards, and headsets working seamlessly. The mix of high-bandwidth and legacy USB ports meant there were no limitations in daily use.
The Realtek ALC4082 codec delivered clear and detailed audio output. Paired with Nahimic software, it provided additional enhancements for gaming and media consumption.
For those using premium headphones, the Direct Drive Technology on the front panel proved valuable. Driving high-impedance headsets up to 600 Ohms, the audio remained full and distortion-free.
RGB integration with Polychrome Sync worked without issues, allowing for easy lighting customisation. The additional headers made it simple to expand lighting across the entire system.
Fan management was flexible, with multiple headers supporting both PWM and DC fans. This ensured consistent cooling while giving users freedom to optimise airflow for noise or performance.
The thermistor header added an extra level of customisation. Users could place the sensor near key components to adjust fan speeds dynamically based on specific temperatures.
Over extended daily use, the board demonstrated consistent reliability. Whether gaming, editing, or browsing, there were no unexpected shutdowns or issues, highlighting the quality of its build.
For enthusiasts, the stability during overclocking was reassuring. While extreme settings may require more advanced cooling, moderate overclocks were achieved with excellent stability and minimal effort.
Conclusion
The ASRock B850 Steel Legend WiFi is a strong choice for builders who value both aesthetics and performance. Its white design and reinforced construction make it stand out while still offering practical functionality.
With support for DDR5, PCIe Gen5, and WiFi 7, the board is well-prepared for modern and future hardware. It caters equally to gamers, creators, and professionals looking for a versatile platform.
Performance during everyday tasks and gaming proved reliable and consistent. Features like stable VRM cooling, fast M.2 storage, and advanced BIOS options make it adaptable to different user needs.
This motherboard succeeds in combining durability, connectivity, and ease of use. For anyone wanting a feature-rich AM5 option with a distinctive look, it delivers a dependable foundation for high-performance systems.
