The ASRock B860 Steel Legend WiFi is designed for those who want a strong and dependable motherboard that blends style with substance. With a focus on durability and stability, it offers an appealing option for builders looking for reliability in their everyday system. The Steel Legend name continues its reputation for sturdy design with a refreshed approach for the B860 chipset generation.
What makes this model notable is its balance of robust build quality and useful modern features. It supports the latest Intel processors and DDR5 memory, while still being mindful of practical design elements that enhance usability. This makes it suitable for both gaming and productivity-oriented builds without feeling overcomplicated.
ASRock has included thoughtful hardware improvements to ensure the board can handle demanding tasks while providing flexibility for different system configurations. While not the most extravagant motherboard in the range, it brings together a solid feature set that covers the needs of most mainstream users with ease.
Design and Functionality
The ASRock B860 Steel Legend WiFi adopts a rugged design philosophy, combining a striking white and grey finish with practical heat dissipation features. The aesthetics cater to users who enjoy a clean and structured look while maintaining durability.

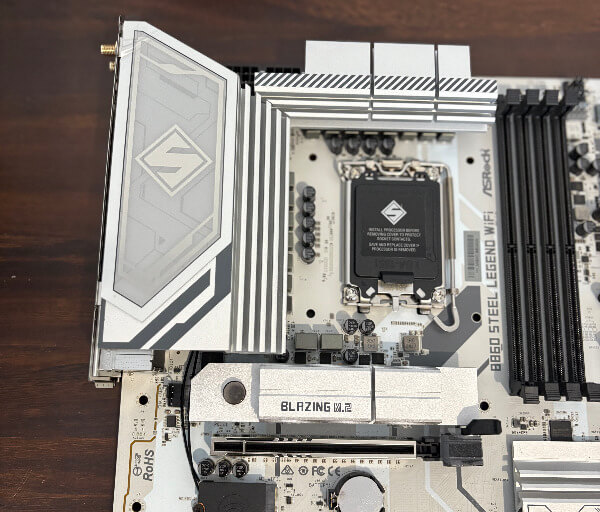

At the heart of the board sits the LGA1851 socket, compatible with Intel’s latest Ultra Core Series 2 processors. The socket design ensures firm contact and even pressure, enhancing thermal performance and CPU stability.
Large heatsinks cover the VRM circuitry, offering reliable cooling for extended workloads. Their stencil finish adds to the motherboard’s unique style without relying on excessive RGB lighting.
Power delivery is handled by a strong 14+1+1+1+1 phase setup using quality Vishay Dr.MOS components. This layout ensures smooth power management, even under demanding conditions, giving builders confidence in system stability.
The four DDR5 DIMM slots are reinforced for durability and placed on optimised PCB layers. These slots support up to 256GB of high-frequency memory, offering plenty of flexibility for heavy multitasking or overclocking.
For storage, the board includes four M.2 slots with multiple heatsink solutions. The primary Gen5 slot connects directly to the CPU for ultra-fast speeds, while the others utilise Gen4 connectivity from the chipset.
PCIe expansion is supported through three slots, with the main x16 slot operating at PCIe 5.0 bandwidth. Additional slots provide versatility for add-in cards, and the reinforced clip design makes GPU installation easier.
The rear I/O panel comes pre-installed, giving builders a simpler setup experience. It is designed with extra tolerance space, ensuring a clean fit in most cases without alignment issues.
Internal connectors include multiple fan headers with smart control, an AIO pump header, and addressable RGB headers. This provides plenty of options for cooling and lighting customisation to suit a wide variety of builds.
The design blends function and aesthetics seamlessly, with a focus on long-term reliability. ASRock has crafted a motherboard that feels premium in use while still being approachable for mainstream builders.
Key Features
One of the most important highlights of this motherboard is its PCIe Gen5 support. This ensures cutting-edge performance for both graphics cards and NVMe storage, making it future-ready for demanding applications.
Memory support is equally impressive, with four DDR5 slots capable of reaching over 8600MHz when overclocked. This allows enthusiasts to take advantage of faster speeds while still accommodating large memory capacities.
Connectivity is well-rounded with a Thunderbolt 4 port and a front USB 3.2 Gen2x2 header. These additions provide fast data transfer options for modern peripherals and external devices.
Networking performance is powered by a Dragon 2.5GbE LAN port alongside Intel WiFi 6E. Together, they deliver stable wired and wireless connections, covering both speed and flexibility.
Audio quality is enhanced through the Realtek ALC1220 codec, which offers a 7.1-channel experience with S/PDIF output. This gives users clear, immersive sound for both gaming and entertainment setups.
The board includes multiple M.2 slots, with the primary one supporting PCIe Gen5 and the others offering PCIe Gen4. With added heatsinks, these ensure both high-speed performance and thermal efficiency.
ASRock has also included BIOS Flashback support, making it easier to update the system firmware without needing a CPU installed. This feature ensures smoother upgrade paths when moving to newer processors.
Durability is reinforced with high-quality capacitors rated for extended lifespans. Combined with the steel-reinforced PCIe slots and layered PCB design, the board offers both strength and longevity.
ASRock B860 Steel Legend WiFi – Tech Specs
CPU Support
- Intel Core Ultra Series 2 processors (LGA1851)
- Supports Intel Hybrid Technology, Turbo Boost Max 3.0, TVB, and Adaptive Boost
Chipset
- Intel B860 chipset
Memory
- 4 x DDR5 DIMM slots
- Up to 256GB capacity
- Speeds up to 8666+ MHz (OC)
- Supports Intel XMP 3.0
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K 120Hz)
- 1 x DisplayPort 1.4 (up to 8K 60Hz / 5K 120Hz)
- 1 x Thunderbolt 4 (up to 8K 60Hz / 5K 120Hz)
Expansion Slots
- 1 x PCIe 5.0 x16 (CPU)
- 1 x PCIe 4.0 x16 (x2 mode)
- 1 x PCIe 4.0 x1 (WiFi module)
Storage
- 1 x PCIe Gen5x4 M.2 slot
- 2 x PCIe Gen4x4 M.2 slots
- 1 x PCIe Gen4x2 M.2 slot
- 4 x SATA3 6Gb/s ports
- Supports RAID 0, 1, 5, 10
USB Ports
- Rear: 1 x Thunderbolt 4 Type-C, 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 3 x USB 2.0
- Front: 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1, 4 x USB 2.0
Networking
- Dragon RTL8125BG 2.5GbE LAN
- Intel WiFi 6E + Bluetooth 5.3
Audio
- Realtek ALC1220 7.1-channel HD audio codec
- Optical S/PDIF out
- Gold-plated jacks
Internal Headers
- 2 x CPU fan connectors
- 5 x chassis fan connectors
- 1 x AIO pump header
- RGB and addressable LED headers
- Front panel audio, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2
Rear I/O Ports
- 2 x Antenna connectors
- 1 x HDMI, 1 x DisplayPort
- 1 x Thunderbolt 4 Type-C
- 2 x USB 3.2 Gen2 Type-A
- 4 x USB 3.2 Gen1
- 3 x USB 2.0
- 1 x RJ-45 LAN
- 1 x Optical S/PDIF
- 1 x Line out, 1 x Microphone in
- 1 x BIOS Flashback button
Form Factor
- ATX, 30.5 cm x 24.4 cm
- 6-layer PCB with 2oz copper
Experience Using the Product and Performance
Setting up the ASRock B860 Steel Legend WiFi is straightforward, thanks to the pre-installed I/O shield and clearly marked headers. The layout is practical, making it easy to route cables neatly for a tidy build.
The LGA1851 socket provides a solid foundation for the latest Intel Ultra Core Series 2 processors. Installation is secure, and the improved clamping mechanism ensures reliable contact for optimal thermal transfer.
Power delivery is robust, with the 14+1+1+1+1 phase design showing its strength under heavy CPU loads. Even during extended stress testing, the VRM remained stable without thermal throttling.
The enlarged heatsinks covering the VRM do an excellent job of managing heat. Their white and grey finish adds style while staying focused on efficiency.
Memory performance is equally strong, with support for high-frequency DDR5 modules up to 8666MHz. Overclocking profiles are easily applied, and the board handled intensive multitasking without issue.
In day-to-day use, applications ran smoothly and without hesitation. Fast memory speeds combined with strong CPU support create a responsive and fluid experience.
Storage options shine on this board, especially with the primary PCIe Gen5 M.2 slot. Transfers on supported drives reached speeds that make boot times and file operations feel instant.
The additional Gen4 slots provide ample flexibility for large storage arrays. The included heatsinks ensured that drives maintained consistent performance without thermal throttling.
Gaming performance benefits from the PCIe 5.0 x16 slot that supports the latest GPUs. Frame delivery was consistent, and the reinforced slot provided extra stability for heavy graphics cards.
The extended clip design for the PCIe slot makes GPU removal easy. This small detail improves the building experience, especially when upgrading components.
Networking performance was excellent, with the 2.5GbE LAN providing steady wired connections. Wireless performance from the Intel WiFi 6E module was equally reliable, maintaining low latency during online gaming sessions.
Bluetooth 5.3 support makes connecting peripherals seamless. Devices paired quickly and maintained strong connections without interference.
Audio performance impressed, thanks to the Realtek ALC1220 codec. Games, music, and movies delivered clean and immersive sound through both analogue and digital outputs.
The inclusion of optical S/PDIF out is particularly useful for connecting to home theatre systems. It allows for a clear and lossless signal path in entertainment setups.
USB connectivity covered a wide range of needs, with Thunderbolt 4 and USB 3.2 Gen2x2 offering extremely fast transfer speeds. These ports made handling large project files or connecting high-speed external drives effortless.
During everyday productivity, the system handled multiple peripherals smoothly. Whether running external storage, webcams, or controllers, the connections remained consistent.
Cooling support is another highlight, with multiple fan headers and an AIO pump header included. Smart fan controls in the BIOS allowed precise tuning for a balance of silence and performance.
The thermal sensor header adds flexibility for users who want more detailed monitoring. This is particularly useful for custom water-cooling or airflow-sensitive setups.
BIOS interaction was clean and intuitive, with options for both novice and advanced users. Updates via BIOS Flashback worked flawlessly, ensuring the system was always ready for new CPUs.
The auto driver installer was also helpful, reducing setup time after Windows installation. It identified required drivers quickly, making the initial configuration almost effortless.
Overall system stability was excellent, even during demanding tasks such as video rendering and extended gaming. The board maintained consistent performance without showing signs of strain.
In long-term use, the Steel Legend lived up to its name, delivering a reliable and enjoyable experience. It strikes the right balance between functionality, performance, and ease of use.
Conclusion
The ASRock B860 Steel Legend WiFi successfully blends durability with modern features, making it a dependable choice for a wide range of builds. It offers a carefully balanced package that suits gamers, creators, and everyday users alike.
From its reinforced power delivery to its versatile storage and expansion options, the board is designed with both stability and performance in mind. The addition of thoughtful extras such as pre-installed I/O and easy BIOS updates makes it user-friendly.
Networking, audio, and USB connectivity ensure the system remains future-ready while still supporting the needs of current hardware. These features make the board a solid platform for both productivity and entertainment.
This motherboard delivers strength, style, and efficiency without unnecessary complexity. It provides a reliable foundation for anyone wanting a long-lasting and capable system.
