In this review, we will be taking a look at the ASUS PRIME Z790-A WIFI Motherboard. The PRIME series motherboards are designed to unlock the full potential of 13th Gen Intel Core processors, and the PRIME Z790-A WIFI is no exception. It features a robust power design, a comprehensive cooling solution, and intelligent tuning options.
We will explore how this motherboard maximizes the performance of the latest generation Intel processors. From power efficiency to thermal management, the PRIME Z790-A WIFI delivers exceptional performance for enthusiasts and power users alike. Additionally, it boasts innovative features and cutting-edge technology, making it an ideal choice for building a high-performance PC system.
So, without wasting any time, lets look at the ASUS PRIME Z790-A WIFI Motherboard and see whether it is worth considering for your gaming build.
ASUS PRIME Z790-A WIFI Motherboard Packaging
The motherboard shipped in a cardboard box sporting a grey-and-white theme. It displays an image of the motherboard, its name, and the company branding. You will also find a list of all its highlighted features underneath the product image.
The back of the box has more detailed information about the motherboard, which you can refer to when necessary. Inside, the motherboard has adequate protection to prevent any possible damage during shipping. So when the PRIME Z790-A WIFI arrives at your place, you can rest assured that everything is intact.
This motherboard ships with other inclusions, and these are the items you will find inside:
- Two SATA 6GB/s cables
- ASUS WIFI moving antenna
- Two M.2 Rubber Packages
- Q-Connector
- A screw package for M.2 SSD
- User Guide
ASUS PRIME Z790-A WIFI Motherboard Review – Design and Functionality
The Z790 is the flagship chipset introduced with other Intel 13th Gen CPUs. These products primarily cater to high-end motherboards on the market. It means the chipset is adequate for supporting PCIe Gen 5, CPU overclocking, etc.
The sleek appearance of the motherboard offers a package that centres around a modern and clean design aesthetic. If you look closely, it features a silver-toned nameplate and chipset cover. We love its distinct look, which makes it perfect for PC builders who want something different.
ASUS adopted a lighter colour scheme for its design, which boasts more heatsink coverage than its predecessor. As a result, this modern twist on existing Prime motherboards is more striking and attractive than other boards.
The motherboard has an ATX form factor and is for the LGA1700 CPUs. These include the Raptor Lake and Alder Lake processors.
Aside from its form factor, the top of the motherboard has headers for a CPU fan. There are also headers for an AIO pump and another CPU fan. Moreover, you can find an Aura Sync header and ATX power connector on the sides of the motherboard.
Beneath the header and power connector, you will see the front panel USB connectors. These are for the USB 3.2 Gen 2 and Gen 1 connector.

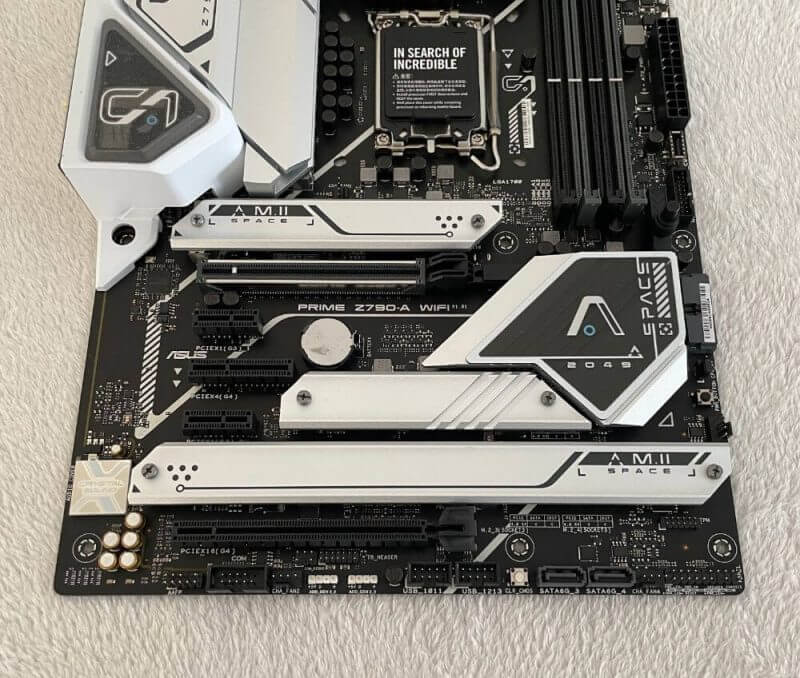

Its base contains multiple components, like the PCIe 5.0 x16 slot for the GPU. There are also several slots from the Z790 chipset. These include a PCIe 4.0 x4, two PCIe 3.0 x1, and PCIe 4.0 x16 slots.
However, the Z790 boasts a significant improvement over the Z690. Now, eight of its PCIe Gen 3 lanes are Gen 4 lanes. Additionally, ASUS has removed heatsinks to accommodate four M.2 slots.

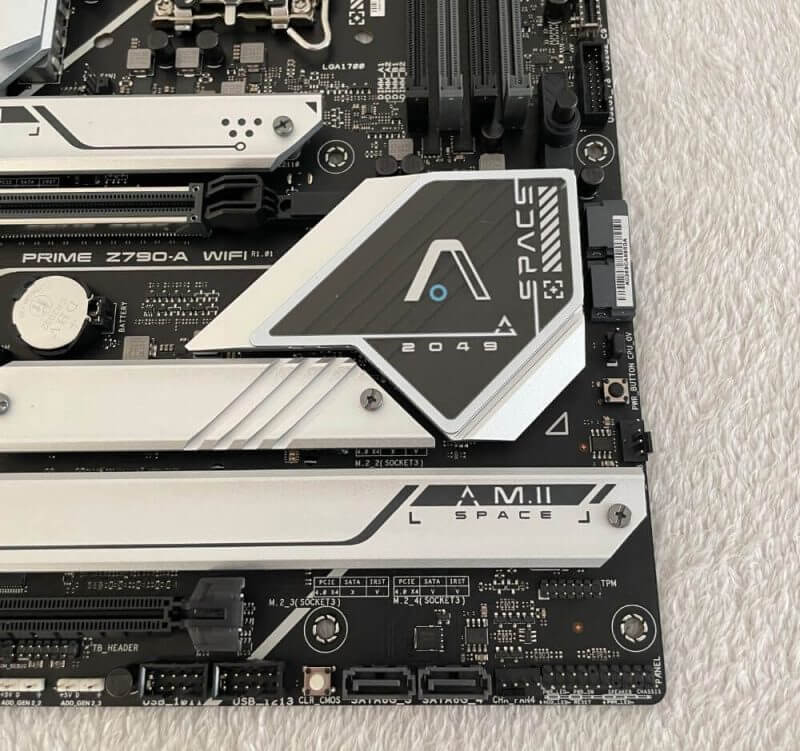

The M.2 array is impressively large while featuring a toolless installation. Furthermore, two SATA connectors are on the side of the motherboard, while two more are at the bottom.

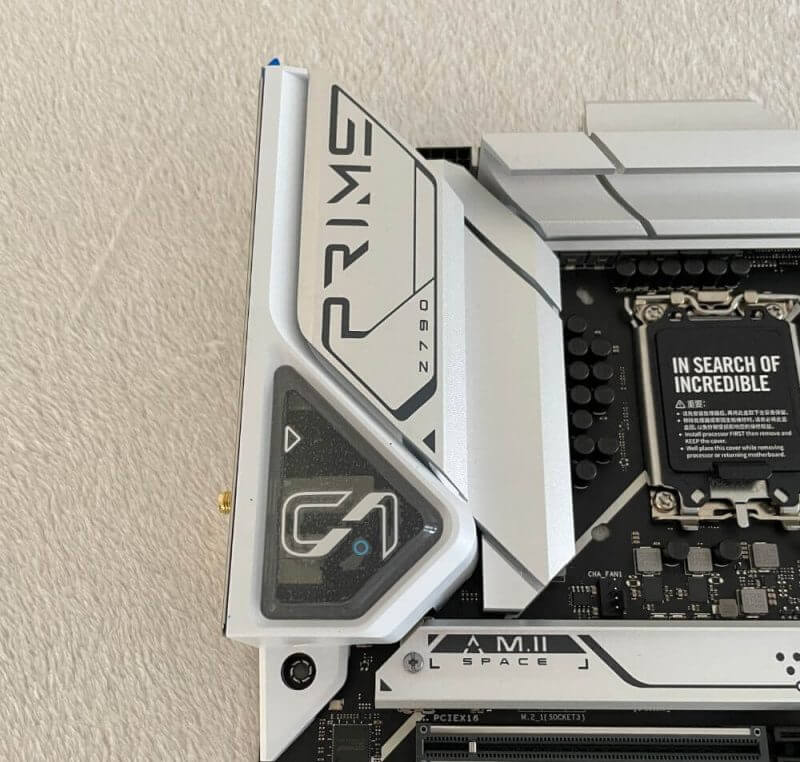

This motherboard has a transparent window in the rear I/O area that serves an unclear function. We assume it is for showcasing its WIFI 6E module. So there is a big chance that this component is purely for aesthetic purposes.
On its rear, the PRIME Z790-A WIFI also features a fixed I/O shield that displays audio connections. Moreover, there are only three audio jacks and no optical output available. However, you will also find WIFI antenna headers and a 2.5GbE network port in this area.
You have access to four Type-A USB 3 5Gbps ports for USB connectivity.
Additionally, there are two USB Type-C ports and two Type-A USB 3 10Gbps ports (one 10Gbps and one 20Gbps). This motherboard offers video output via HDMI and DisplayPort, and it also comes with a WIFI antenna.
Let us also discuss the straightforward build process of the motherboard in this ASUS PRIME Z790-A WIFI Motherboard Review. In addition, the motherboard has several usability features for a convenient PC-building experience.
Next to the primary graphics card slot is the PCIe Slot Q-Release from ASUS. This feature allows you to take advantage of easy GPU swapping or quick removal during troubleshooting. Additionally, the M.2 drives feature the Q-Latch for fastening drives without requiring additional screws or tools.
Key Features of the ASUS PRIME Z790-A WIFI Motherboard
ASUS Intelligent Control
Your PC becomes smart with ASUS Intelligent Control. It takes care of complex tuning while optimising the essential system aspects dynamically. Plus, it provides simplified options for newcomers to PC DIY and extra comprehensive features for experienced users.
AI Cooling II
AI Cooling II balances the acoustic and thermals of your click, and it only takes one click. ASUS uses a proprietary algorithm that eliminates unnecessary noise while running a quick stress test. It also monitors CPU temperatures to adjust fans dynamically to their optimal speeds.
All-Around Energy Efficiency
The Power Saving function of this motherboard has multiple settings for optimising power consumption and increasing energy savings. For example, it allows you to set a CPU power limit, set the fans to power-saving mode, and darken Aura lighting. Plus, you can toggle the integrated Power Saver plan in Microsoft Windows.
Robust Power Design and Improved Power Solution
Stable power is essential to maximise the performance of Intel processors. Fortunately, ASUS designed this motherboard to cater to the modern demands of high-core count CPUs.
The PRIME Z790-A WIFI uses 16+1 DrMOS, alloy chokes, ProCool sockets, and durable capacitors. These components deliver stable power throughout the whole motherboard and maintain electrical volume. As a result, the motherboard can perform consistently, whether you are doing simple or demanding tasks.
We will discuss its power delivery and performance later in our ASUS PRIME Z790-A WIFI Motherboard Review.
Comprehensive Cooling Features of the ASUS PRIME Z790-A WIFI Motherboard
The PRIME Z790-A WIFI equips a massive VRM heatsink for chokes and capacitors. Having these features guarantees that your system stays cool even under heavy loads.
This motherboard also has integrated M.2 heatsinks and backplates, ensuring superior thermal performance and preventing throttling. Also, Hybrid fan headers and the Fan Xpert 4 software allow controlling fans and liquid cooling elements. With access to these control options, you can enhance the cooling of your PC to suit your preferences.
ASUS Enhanced Memory Profile II for Ultimate DDR5 Performance
AEMP II is a unique firmware feature for memory modules restricted by PMIC. It utilises the ability of the memory modules and CPU to train the memory chips on your kit. As a result, it provides an optimised clock speed that can unlock maximum performance effortlessly.
ASUS built the AEMP II via a flexible training method, so tuning the memory above baseline settings is easy. It also makes system operation stability consistent for the best performance.
ASUS OptiMem II
Revisions to the trace routing of the motherboard allow unrestricted access to memory bandwidth for the newest Intel processors. OptiMem II is a technology that maps memory signal pathways across PCB layers. Plus, it reduces the number of vias and adds shielding zones that lessen crosstalk.
Four M.2 slots with Speeds up to 64 Gbps
The motherboard provides four M.2 slots for achieving up to 64 Gbps data transfer speeds via PCIe 4.0. These enable faster boot-up and app load time when using OS or application drives.
Adequate Connectivity Options of the ASUS PRIME Z790-A WIFI Motherboard
One of the things we noticed while working on our ASUS PRIME Z790-A WIFI Motherboard Review is the connectivity options. This product has many USB ports using the latest technologies, allowing faster transfer speeds.
The PRIME Z790-A WIFI provides stable connectivity for your peripherals between the internal headers and backplate. Also, USB-A and USB-C 3.2 Gen 1 & Gen 2 ports offer 5 and 10 Gb/s transfer speeds, respectively. These connections are suitable for mics, webcams, and external storage drives.
Moreover, a USB-C 3.2 Gen 2×2 port provides data transfer speeds of up to 20 Gb/s. It is suitable for devices like audio interfaces and storage arrays, which need more resources. If you need additional connectivity, the internal Thunderbolt 4 header supports high-speed transfer speeds, connectivity, and power delivery.
PCIe 5.0 Slot
PCIe 5.0 offers twice the transfer speeds of PCIe 4.0, making the motherboard enough for modern data-heavy tasks. Aside from that, it provides benefits like backwards-compatible CEM connectors for additional cards and electrical changes for better signal integrity. Plus, it is compatible with previous PCIe versions.
Two-Way AI Noise Cancellation
Two-way AI noise cancellation utilises a deep-learning database that simultaneously reduces background noise and preserves vocals. It also eliminates unwanted noise like mouse clicks, keyboard clatter, and varying ambient sounds. With this utility, all voices will be audible and crystal-clear in calls.
Realtek Codec that Delivers Pristine, Powerful Audio
The S1220A audio codec offers pristine audio quality. It uses an unparalleled 113 dB (line-in) and 120 dB (line-out) signal-to-noise ratio. Plus, a circuit that detects impedance adjusts the gain for optimal headphone volume.
Aside from the S1220A, this motherboard uses DTS:X Ultra, which offers spatial audio. It supports sound based on scenes, objects, and channels for deeper sonic immersion to enhance gaming and VR experiences. Plus, it provides device-level tuning and post-processing enhancements for DTS codecs.
Outshine the Competition with Aura Sync
ASUS Aura offers comprehensive RGB lighting control with various presets for built-in and onboard RGB LEDs. Furthermore, Aura Sync lets you synchronise all lighting within the compatible devices in your PC build.
Addressable Gen 2 RGB Header
The PRIME Z790-A WIFI has addressable Gen 2 RGB headers that can detect LEDs on second-generation addressable RGB devices. As a result, it allows the software to tailor lighting effects to particular devices. Plus, the new headers are backwards-compatible with existing Aura RGB products.
Armoury Crate
Armoury Crate simplifies customising Aura Sync RGB settings for compatible devices. It also offers controls for ASUS products, including mice and keyboards. Plus, the software integrates product registration and a news feed with updates on the ASUS community.
DIY-friendly Enhancements
ASUS added several onboard enhancements to make installation easier. It also provides additional long-term support with the M.2 Q-Latch, PCIe Slot Q-Release, SafeSlot, and Q-LED Core.
ASUS PRIME Z790-A WIFI Motherboard Specifications
CPU Support:
- Intel® Socket LGA1700 for 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and 3.0
Chipset:
- Intel® Z790 Chipset
Memory:
- 4 x DIMM slots, up to 192GB DDR5
- Supported speeds: 7200+(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600, 5400, 5200, 5000, 4800
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
Graphics:
- 1 x DisplayPort (up to 8K@60Hz)
- 1 x HDMI (up to 4K@60Hz)
Expansion Slots:
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 2 x PCIe 3.0 x1 slots
Storage:
- 4 x M.2 slots
- M.2_1: PCIe 4.0 x4
- M.2_2: PCIe 4.0 x4
- M.2_3: PCIe 4.0 x4
- M.2_4: PCIe 4.0 x4 & SATA
- 4 x SATA 6Gb/s ports
- Supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Ethernet:
- 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wireless & Bluetooth:
- Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Bluetooth® v5.3
USB:
- Rear:
- 1 x USB 3.2 Gen 2×2 Type-C
- 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C)
- 4 x USB 3.2 Gen 1 Type-A
- Front:
- 1 x USB 3.2 Gen 2 connector (Type-C)
- 1 x USB 3.2 Gen 1 header (supports 2 ports)
- 2 x USB 2.0 headers (support 4 ports)
Audio:
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- High-quality audio features with support up to 32-Bit/192 kHz playback
Back Panel I/O Ports:
- 1 x USB 3.2 Gen 2×2 Type-C
- 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C)
- 4 x USB 3.2 Gen 1 Type-A
- 1 x DisplayPort
- 1 x HDMI
- 1 x Wi-Fi Module
- 1 x Intel® 2.5Gb Ethernet port
- 3 x Audio jacks
Internal I/O Connectors:
- Various fan headers, power connectors, USB headers, and miscellaneous connectors
Special Features:
- ASUS 5X Protection III, Q-Design, Thermal Solutions, EZ DIY features, and Aura Sync for RGB lighting
Experience Using the ASUS PRIME Z790-A WIFI Motherboard
Using the ASUS PRIME Z790-A WIFI Motherboard has been a great experience, offering exceptional performance and reliability. Right from the installation, the motherboard’s design facilitated an easy and hassle-free setup.
The ATX form factor fits perfectly into our case, and the well-labeled headers and connectors made the process straightforward, even for less experienced builders.

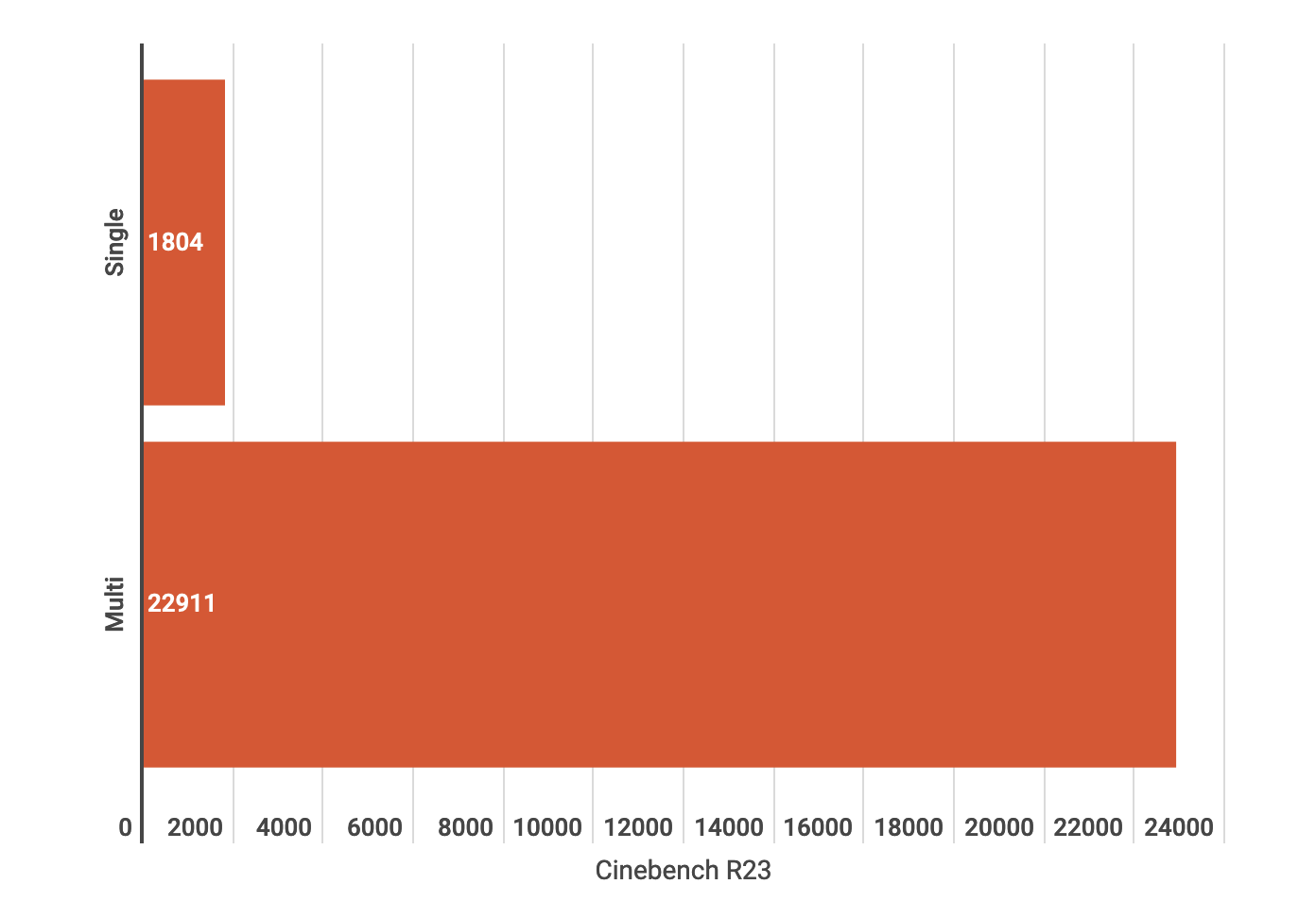

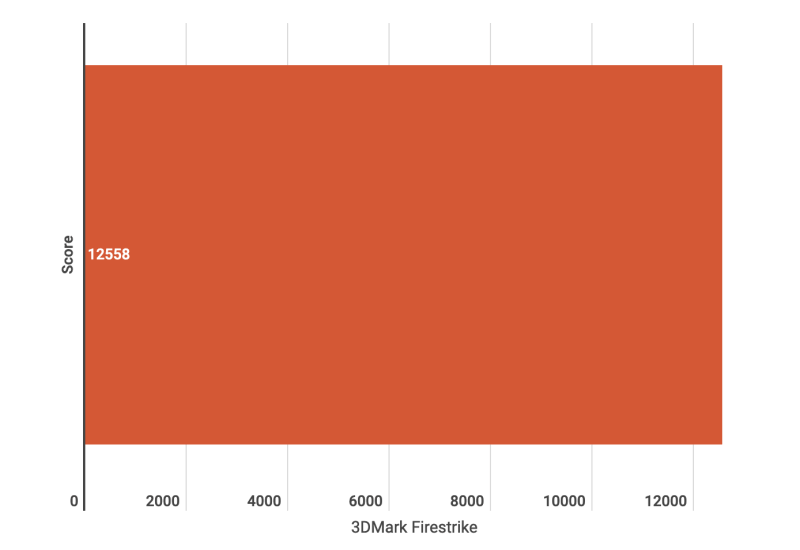

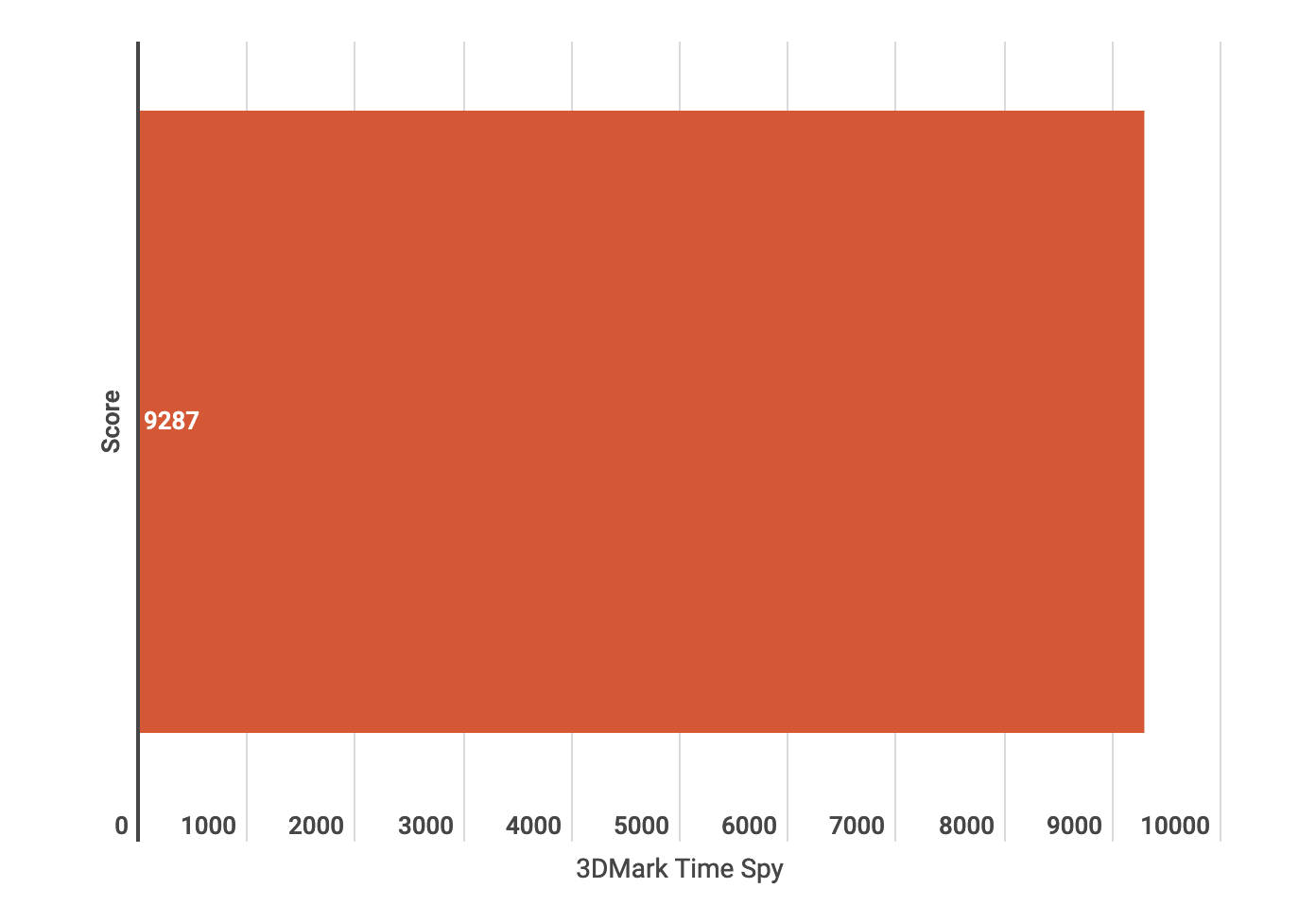

The board’s robust power design ensures stable power delivery, which was evident in our testing. Running a 13th Gen Intel Core processor, the motherboard handled various demanding tasks, from gaming to content creation, without any power stability issues.
The high quality cooling solution, including the massive VRM heatsink and integrated M.2 heatsinks, kept the temperatures in check, even under heavy load. ASUS’s AI Cooling II technology efficiently balanced acoustics and thermal performance, maintaining optimal fan speeds and minimizing noise levels.
In terms of connectivity, the PRIME Z790-A WIFI did not disappoint. The inclusion of both USB 3.2 Gen 2×2 and Thunderbolt 4 headers provided high-speed data transfer capabilities, perfect for connecting external storage and other peripherals. The onboard WiFi 6E and 2.5Gb Ethernet ensured robust and speedy network connections, which is crucial for online gaming and streaming.
The PCIe 5.0 slot is a significant highlight, future-proofing the motherboard for upcoming GPU upgrades. The tool-less M.2 installation with the Q-Latch system was a breeze, eliminating the need for screws and making the process much quicker. The ASUS PCIe Slot Q-Release feature also proved useful, allowing easy removal and replacement of the graphics card without hassle.
One of the standout aspects is the ASUS Intelligent Control suite, which simplifies system optimization. The AI Suite software provided easy access to various tuning options, from overclocking to energy-saving settings, catering to both novice and advanced users.
Overall, the ASUS PRIME Z790-A WIFI Motherboard excels in combining performance, ease of use, and innovative features, making it an excellent choice for building a high-performance PC. Whether you are a gaming enthusiast or a power user, this motherboard delivers on all fronts, ensuring a reliable and enjoyable computing experience.
ASUS PRIME Z790-A WIFI Motherboard Review Summary
The ASUS Prime Z790-A WiFi offers various features that enhance the construction of a cutting-edge gaming PC. One of these is the PCIe 5.0 slot enables upgrades when new graphics cards become available. Furthermore, the board supports high-speed DIMMs, ensuring longevity if Intel discontinues the LGA1700 platform.
We enjoyed using the product while testing it for this ASUS PRIME Z790-A WIFI Motherboard Review. This motherboard performed flawlessly, and despite the design of this board, its price is excellent for a DDR5-supported product. Thus, we highly recommend it if you want a new motherboard with outstanding features and performance.
Visit the official product page of ASUS for more details about the PRIME Z790-A WIFI Motherboard.
