Let’s talk about the packaging and contents here in this Corsair 4000D Airflow review. To begin, the company ships its 4000D Airflow in a simple-looking cardboard box sporting Corsair’s signature design.
The package’s front displays an image of the case, while its rear features a blown-up diagram. Both of the box’s sides display additional information. Plus, you’ll find a sticker that notes which variant of the case is in the box.
Both sides come with additional information, and a sticker lets you know which variant of the chassis is inside. There isn’t much to see on the box, allowing you to go ahead and focus on the case.
Inside, there are two Styrofoam spacers, plus a plastic bag to protect the 4000D Airflow while in transit.
The company included all-black screws together with a couple of distinct Velcro ties. Plus, there’s also an adequate amount of sturdy zip ties in the package.
Corsair 4000D Airflow Review – Design and Functionality
Now, let’s discuss the design and functions of this case in our Corsair 4000D Airflow review.
What we got is the white coloured version of the case. Its exterior gives you a no-frills design that can be considered elegant due to its simplicity. You’ll find a matte finish, clean lines, plus a durable tempered glass side panel with no RGBs in sight.
Also, its front panel is fully-ventilated since the chassis is the Airflow version.
The front panel is made out of steel and comes with triangular openings throughout. It’s mounted via metal tabs for quicker and easier removal and has a detachable screen filter made for the front intake.
On the component side, the side panel features the dark tempered glass. Both of its side panels are tightly secured with a mix of both. The panels snap easily in place and are both secured by thumbscrews.
The rest of the chassis sports the conventional mid-tower theme, though the company included a pair of vertical expansion slots. Also, the 4000D Airflow offers a vented top panel which features a magnetically linked screen filter. Its base holds the filter used for the PSU intake.
The company’s logo tab can be found on the top screen filter’s edge. As for aesthetics, the yellow accents can be seen on the thumbscrews and within the chassis.
Before looking into the case’s interior, it’s good to note that the enclosure has a simple-looking case I/O selection. Here, you’ll find, from left to right, the power, USB Type-A and Type-C, the 3.5mm audio, and reset button.
Also, you’ll get a pull-out PSU intake filter, which is accessible via the case’s rear. This portion of the 4000D Airflow gives a clear view of its internal cable connector selection and plastic HDD tray.
When you want to access the 4000D’s interior, just remove its thumbscrews before pulling out the panels from the case. Corsair included push pins on each side of the case. This setup allows the panel to hold nicely in place even when detaching the screws.

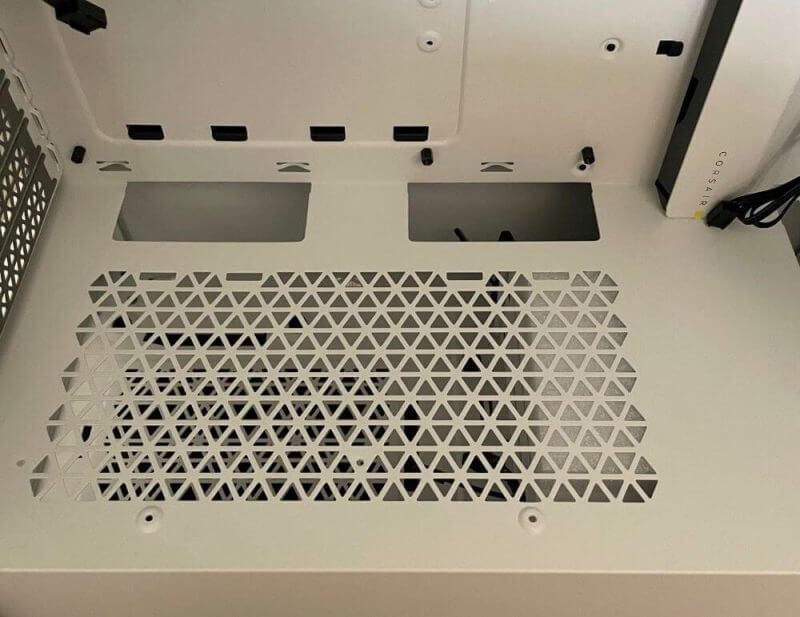

Overall, this entire setup is excellent, giving the case a solid feel to it. For the interior, things appear more classic for a modern type of case with a metallic shroud along the bottom.
The case is compatible with radiators measuring 120 to 360mm, depending on its position. The front intake supports lengthy radiators based on its HDD cage position.
Not only that, but there’s an additional 25mm of space at the rear of the board’s tray for managing cables.
Beneath the shroud, there’s a standard-looking PSU with its foam bits present. This is where you can have the PSU rest on.
Above this section, the expansion slots are seen with each of their thumbscrews. These elements are nice to see in cases under this price point.
When it comes to the 120mm exhaust fan at the top, it can be adjusted easily in height. Here, you can align it with the air cooler of your choice.
The front of this chassis gives you an area with two 3.5” trays that can accommodate 2.5” drives. With that, the 4000D’s overall storage placement possibilities reach up to four.
The section above it is made for your radiator setup or intake cooling. The company also included a cover for cable-routing that comes with some branding and yellow squares just for the kicks.
When speaking of the ATX boards, you can leave it as is. However, it needs to be shifted towards the chassis’ front by about an inch or so. This setup is with an E-ATX board.
For the cooling system, the space on the ceiling for liquid/air cooling is positioned adequately. It’s best to keep it far from the motherboard to avoid component collisions while assembling.
Corsair utilises a solid PCB for the I/O which goes perfectly with the 4000D’s quality.
The Corsair 4000D Airflow has two 120mm fans right out of the box. One is mounted to function as a front intake while the other works as the rear exhaust.
These are generally new hydraulic bearing designs with a total speed of ~1,300 RPM. They also feature what the company calls, “AirGuide Technology”, specifically the anti-vortex vanes found on the exhaust side. This specific part is designed to gather airflow.
The 4000D has adequate space that’s enough for up to four more 120mm fans. Plus, 140mm fans can be accommodated along the roof and front sections but not along the rear.
All cables found in the Corsair 4000D Airflow are coloured black, and that’s something you’d expect. The USB 3.0 cable has a flat design, making routing much easier and convenient.
There isn’t any HDD activity LED which we think is quite unfortunate for people utilising solid-state drives. It’s because the LED is a great indicator if your system is frozen or working extremely hard.
Key Features of the Corsair 4000D Airflow
Another thing we’ll discuss on our Corsair 4000D Airflow review is the chassis’ key features.
A Clean Start for an Outstanding Build
The 4000D Airflow from Corsair is a stylish chassis that provides outstanding ventilation for your system. Also, its design makes building easier than ever.
The optimised front panel allows adequate airflow for superior cooling.
Corsair’s Rapidroute Cable management
The 4000D Airflow chassis provides 25mm room of space behind the motherboard to conceal your cables. You can route your primary cables in one channel. With that, your build will look cleaner and more organised than ever.
Concentrated Airflow for Enhanced Cooling
This PC case from Corsair is equipped with two of the company’s AirGuide fans. These utilise anti-vortex vanes to keep airflow focused and provide enhanced cooling.
Excellent Cooling Potential
Aside from the inclusive fans, the Corsair 4000D has a spacious interior. It provides room for up to six 120mm or four 140mm fans. In addition to that, you can install multiple radiators.
Although compact, this PC case is efficient and has superior cooling potential without being complicated. The fan mounts have wider cutouts for flexible fan placement. There’s also adequate space for the roof radiator to prevent contact with the memory modules.
All the Room for Your Storage
The 4000D Airflow fits up to two 2.5” and two 3.5” HDDs. Plus, there are relocatable SSD trays, which you can transfer to the front PSU cover.
Connections within Easy Reach
The front I/O panel has a USB-C 3.1 port, USB 3.0 port, and an audio/mic combo jack.
Vertical GPU Mount Ready
The 4000D comes with vertical PCIe slots and a screw mount for Corsair’s PCIe 3.0 extension cable. With that, you can showcase your GPU while keeping it secure.
This case’s side panel is easy to slide on and off, allowing you to display high-end components and RGB lights.
What we’re discussing next in our Corsair 4000D Airflow review will be the case’s specifications.
The 4000D Airflow sports a mid-tower form factor with seven and an extra two vertical expansion slots. As mentioned, we have the white coloured version that features a case made from tempered glass, steel, and plastic.
The case makes use of an ATX power supply, but note that it isn’t included in the box.
For component clearance, the case’s max GPU length is 360mm while its PSU length is 180mm. The latter measures 220mm if you remove the HDD cage.
The total height of this cooler is 170mm and comes with a 25mm of extra space behind the motherboard.
The case is compatible with radiators that range from 120mm to 360mm in size. If you plan to utilise the case with a Corsair liquid cooler, it can accommodate a couple of them. These include the H55, H75, H60, H90, H80i, H105, H100i, H115i, H110i, and H150i models.
For its overall measurements, the case is 453mm x 230mm x 466mm (L x W x H). For its weight, it’s a total of 7.8kg.
The 4000D Airflow comes with a two-year warranty, which is something we greatly appreciate.
Hands-on with the Corsair 4000D Airflow
Our Corsair 4000D Airflow review won’t be complete without us getting hands-on with the 4000D Airflow.
Building in the 4000D was an absolute dream. All of the edges were nice and smooth so no cut fingers and there is plenty of room to work with. free from any issues. Once you have removed the side panels the case is incredibly light and easy to move around during the build process.
We found that Corsair’s cable shield panel did an excellent job of concealing the cables and really does make cable management incredibly simple.
The 4000D Airflow gave us great results for both the GPU and CPU. With its dimensions, it allows for easier maintenance of airflow. Airflow in the case is amazing and the air is easily able to pass through the case providing cool air to the places that need it and exhausting the hot air. This resulted in a cool running PC that did not have any issues at all when under full load.
Noise-wise, its AirGuide fans were overall quiet despite running at full speed, and that was great. The sound produced from the fans was barely audible.
Overall, the build, quality, airflow, and noise of the Corsair 4000D Airflow was great. There was adequate space inside, and the entire process of building was easy. We didn’t experience any issues and we’re happy about that.
This is one of the mid-tower cases that we’d highly recommend.
Corsair 4000D Airflow Review Summary
The Corsair 4000D Airflow is an impressive case. Although its design is clean and understated, it has great aesthetics and is perfect for showcasing your rig.
Not only that, but the interior’s layout also has an excellent design. With that, we were able to assemble the components and organise the cables neatly. Everything is well-placed, allowing for better airflow to keep each component cool.
The 4000D Airflow may not have the fancy extras like other PC cases have, but its overall quality is excellent. It has a durable body and well-designed interior, making it a great option if you’re looking for a mid-tower case.
For aesthetics, presentation, and ventilation at an affordable price, this case is a great option. It’s perfect as your setup’s base if you want to fully customise your build.
With this chassis, you can install your preferred power supply unit, cooling systems, and other components.
To sum up our Corsair 4000D Airflow review, we highly recommend this product. If you want this chassis, check out Corsair’s store locator for authorised retailers.
