The Radeon RX 7000 series GPU is a revolutionary leap in the realm of graphics processing units (GPUs). Powered by AMD’s cutting-edge RDNA 3 architecture, this series is a testament to the relentless pursuit of performance and efficiency. With the Radeon RX 7000 series, AMD has set a new benchmark in the world of gaming and professional graphics, offering a level of power and precision that was previously unimaginable.
Whether you’re a hardcore gamer seeking to immerse yourself in ultra-realistic gaming environments, or a professional requiring high-performance graphics for your work, the Radeon RX 7000 series GPU is designed to exceed your expectations.
In this article, we’ll take a deep dive into the world of the Radeon RX 7000 series GPU, exploring its key features and capabilities. We’ll also spotlight three standout products in the series: the AORUS Radeon RX 7900 XTX ELITE 24G, the Radeon RX 7900 XT GAMING OC 20G, and the Radeon RX 7600 GAMING OC 8G. Let’s get started!
The Power of RDNA 3 Architecture
The RDNA 3 architecture is the technological powerhouse behind the Radeon RX 7000 series GPU. This innovative architecture is AMD’s third-generation Radeon DNA, designed to deliver a significant performance boost and improved power efficiency compared to its predecessors.
RDNA 3 is built on advanced 5nm and 6nm processes, enabling a higher transistor density for more processing power in the same silicon area. This means the Radeon RX 7000 series GPUs can deliver more performance per watt, making them a highly efficient choice for both gaming and professional applications.
One of the key features of the RDNA 3 architecture is its chiplet-based design. This approach allows for a more flexible and scalable GPU design, enabling AMD to deliver a range of products to meet different performance and price points.
The RDNA 3 architecture also introduces several new technologies and features that enhance the performance of the Radeon RX 7000 series GPUs. These include:
- Infinity Cache: This is a high-speed cache located on the GPU die, designed to improve bandwidth and reduce latency. It helps to significantly boost gaming performance, particularly at higher resolutions.
- Ray Accelerators: Each compute unit in the RDNA 3 architecture includes a dedicated ray accelerator. This enables hardware-accelerated ray tracing, a rendering technique that simulates the physical behavior of light to create ultra-realistic graphics.
- Smart Access Memory: This feature allows the CPU to access the full GPU memory, improving performance in many games.
The RDNA 3 architecture is a testament to AMD’s commitment to pushing the boundaries of graphics technology. With the Radeon RX 7000 series GPU, gamers and professionals alike can experience the power and efficiency of RDNA 3.
The RDNA 3 Design
The RDNA 3 architecture, which powers the Radeon RX 7000 series GPUs, is a marvel of modern engineering. It’s built on a chiplet-based design, a departure from the monolithic designs of previous generations. This design approach offers several key advantages that contribute to the impressive performance and efficiency of the Radeon RX 7000 series.
In a chiplet-based design, the GPU is composed of multiple smaller chips, or chiplets, that are interconnected. This is in contrast to a monolithic design, where all components of the GPU are integrated into a single, large chip. The chiplet-based design allows for greater flexibility and scalability, enabling AMD to create a wide range of products to meet different performance and price points.
The RDNA 3 design includes one Graphics Compute Die (GCD) and six Memory Cache Dies (MCDs). The GCD is responsible for the core computing tasks, while the MCDs handle memory and cache functions. This separation of tasks allows each chiplet to be optimized for its specific role, improving overall performance and efficiency.
The RDNA 3 design also leverages advanced 5nm and 6nm manufacturing processes. These smaller process nodes allow for more transistors to be packed into the same silicon area, increasing performance and reducing power consumption.
Performance Boost with RDNA 3
The RDNA 3 architecture brings a significant performance boost to the Radeon RX 7000 series GPUs, making them a powerhouse for gaming and professional applications. This performance uplift is a result of several key improvements and features in the RDNA 3 design.
Firstly, the RDNA 3 architecture is built on advanced 5nm and 6nm process technology, allowing for a higher transistor density. This means more processing power can be packed into the same silicon area, leading to a substantial increase in performance.
Secondly, the chiplet-based design of RDNA 3 allows for greater scalability and flexibility. This means that AMD can tailor the number of chiplets to match the performance requirements of different GPUs in the Radeon RX 7000 series, optimizing performance for each specific model.
Thirdly, features like Infinity Cache, Ray Accelerators, and Smart Access Memory further enhance performance. Infinity Cache reduces memory latency and increases bandwidth, Ray Accelerators enable hardware-accelerated ray tracing for realistic graphics, and Smart Access Memory allows for more efficient data sharing between the CPU and GPU.
In real-world terms, this performance boost means smoother gameplay with higher frame rates for gamers, and faster rendering and computation times for professionals. Whether you’re battling in the latest AAA games or working on complex 3D models, the Radeon RX 7000 series GPUs, powered by RDNA 3, deliver the performance you need to excel.
Power Efficiency of RDNA 3
In addition to delivering a significant performance boost, the RDNA 3 architecture also brings improved power efficiency to the Radeon RX 7000 series GPUs. This is a critical aspect of modern GPU design, as it directly impacts the thermal performance and power consumption of the GPU.
The RDNA 3 architecture is built on advanced 5nm and 6nm process technology, which allows for more transistors to be packed into the same silicon area. This not only increases performance but also improves power efficiency, as more work can be done per clock cycle.
The chiplet-based design of RDNA 3 also contributes to power efficiency. By separating the GPU into multiple chiplets, each can be optimized for its specific tasks, reducing unnecessary power usage. For example, the Memory Cache Dies (MCDs) can be designed to efficiently handle memory and cache functions, while the Graphics Compute Die (GCD) focuses on computing tasks.
Furthermore, features like Infinity Cache help to reduce power consumption by reducing the need for the GPU to access the slower and more power-hungry VRAM. By storing frequently accessed data in the high-speed Infinity Cache, the GPU can save power while also boosting performance.
In summary, the RDNA 3 architecture brings improved power efficiency to the Radeon RX 7000 series GPUs, making them a powerful yet energy-efficient choice for gamers and professionals alike. Whether you’re gaming for hours on end or running intensive professional applications, you can trust the Radeon RX 7000 series to deliver exceptional performance without breaking the power budget.
Spotlight on Key Radeon RX 7000 Series Products from GIGABYTE
The Radeon RX 7000 series GPUs offer a range of options to cater to different performance needs and budgets. In this section, we’ll put the spotlight on three standout products in the series: the AORUS Radeon RX 7900 XTX ELITE 24G, the Radeon RX 7900 XT GAMING OC 20G, and the Radeon RX 7600 GAMING OC 8G. Each of these GPUs brings something unique to the table, showcasing the versatility and power of the Radeon RX 7000 series. Let’s take a closer look at each of these GPUs.

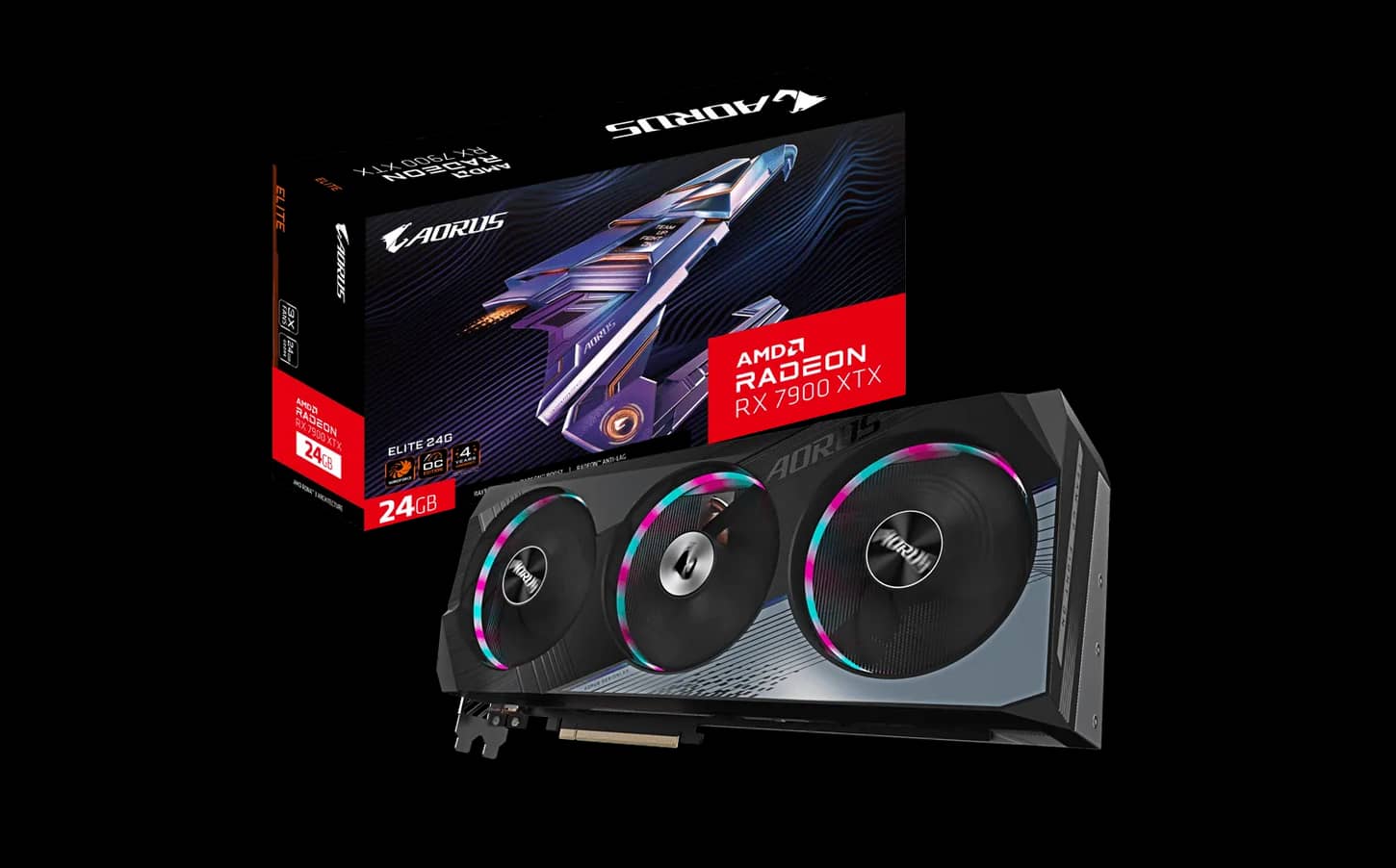

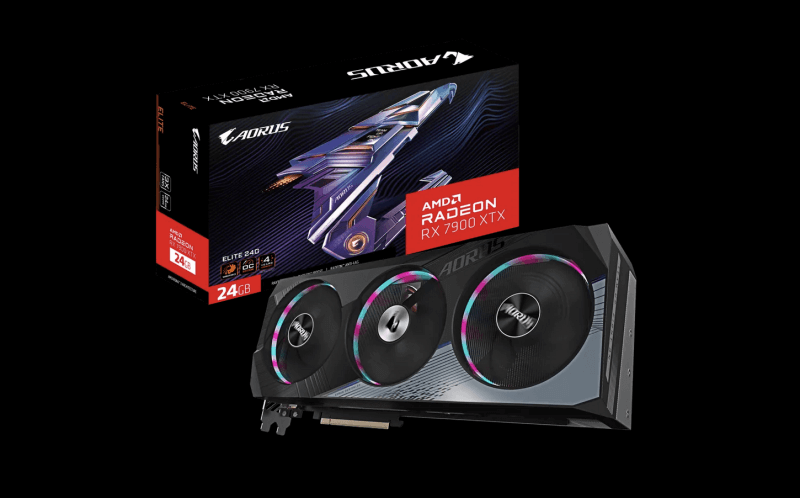

AORUS Radeon RX 7900 XTX ELITE 24G
The AORUS Radeon RX 7900 XTX ELITE 24G is a top-tier GPU in the Radeon RX 7000 series, designed for gamers and professionals seeking elite performance. This GPU is powered by the Radeon RX 7900 XTX and comes with a massive 24GB GDDR6 memory with a 384-bit memory interface.
One of the key features of this GPU is the WINDFORCE Cooling System, which includes three 100mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber that directly touches the GPU, 3D active fans, and Screen cooling. This system ensures high-efficiency heat dissipation, keeping the GPU cool even under heavy loads.
The AORUS Radeon RX 7900 XTX ELITE 24G also supports RGB Fusion, allowing you to customize the lighting effects to match your gaming setup. It also comes with a dual BIOS and a protection metal back plate for added durability.
This GPU comes loaded with a boost clock of up to 2680 MHz and a game clock of up to 2510 MHz, significantly higher than the reference card. It also supports AMD’s latest technologies, including AMD FidelityFX Super Resolution for upscaling performance and AMD Radeon Anti-Lag for minimizing input lag.
The AORUS Radeon RX 7900 XTX ELITE 24G also comes with a 4-year warranty (online registration required), offering peace of mind for your investment.
AORUS Radeon RX 7900 XTX ELITE 24G Specifications:
- Graphics Processing: Radeon RX 7900 XTX
- Core Clock: Boost Clock up to 2680 MHz, Game Clock up to 2510 MHz
- Stream Processors: 6144
- Memory Clock: 20 Gbps
- Memory Size: 24 GB
- Memory Type: GDDR6
- Memory Bus: 384 bit
- Card Bus: PCI-E 4.0
- Digital max resolution: 7680×4320
- Multi-view: 4
- Card size: L=335 W=137 H=69 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 850W
- Power Connectors: 8 pin*3
- Output: DisplayPort 2.1 *2, HDMI 2.1 *2

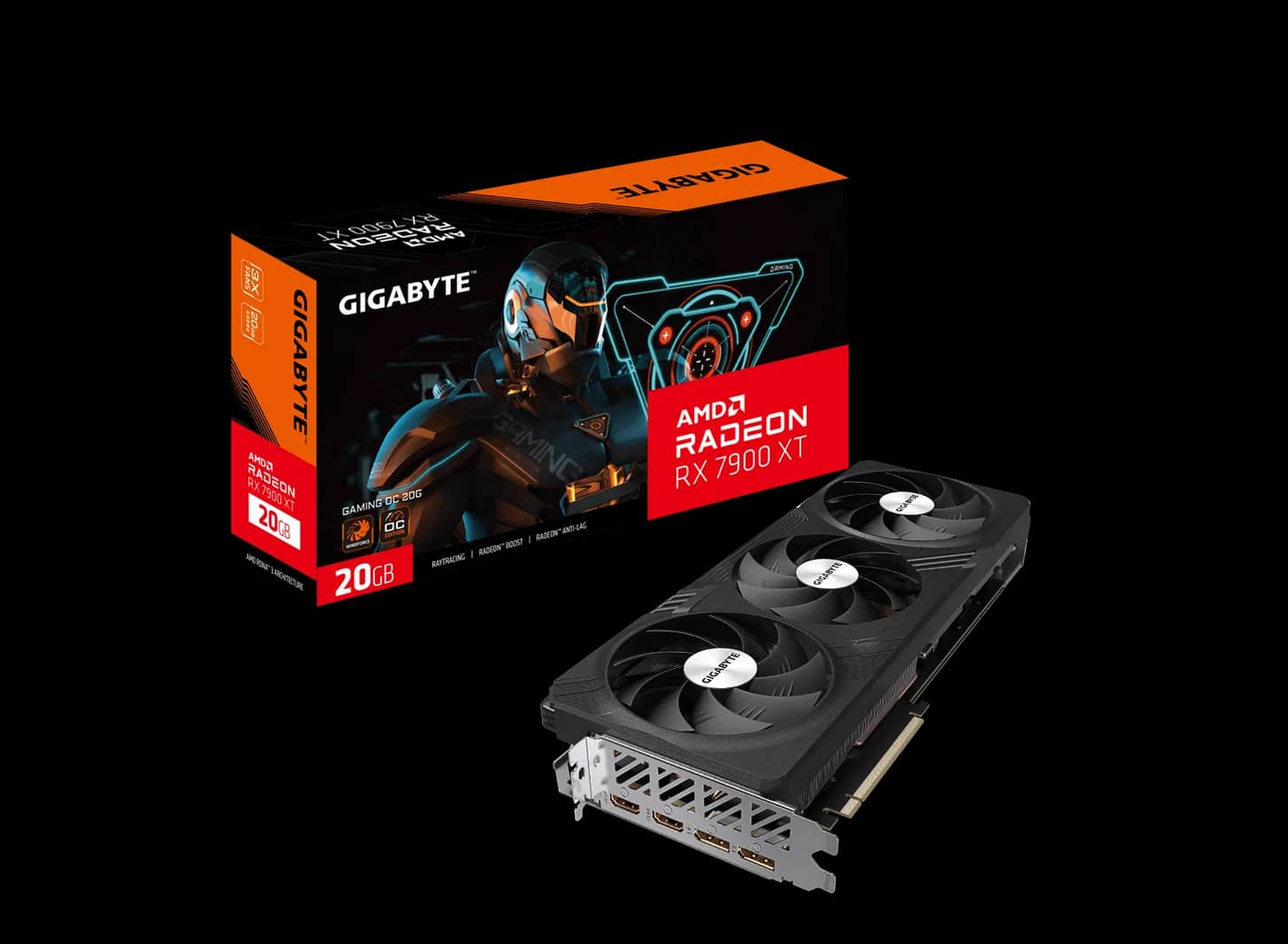

Radeon RX 7900 XT GAMING OC 20G
The Radeon RX 7900 XT GAMING OC 20G is a high-performance GPU in the Radeon RX 7000 series, designed for gamers who demand top-notch performance and overclocking capabilities. This GPU is powered by the Radeon RX 7900 XT and comes with a substantial 20GB GDDR6 memory with a 320-bit memory interface.
The WINDFORCE Cooling System is a standout feature of the Radeon RX 7900 XT GAMING OC 20G. It is engineered to manage heat effectively, comprising 3D active fans, screen cooling, three 100mm blade fans that alternate spinning, 9 composite copper heat pipes, and a substantial vapor chamber that makes direct contact with the GPU. This setup ensures that the GPU stays cool, even during heavy usage.
This GPU also supports RGB Fusion, allowing you to customize the lighting effects to match your gaming setup. It comes with a dual BIOS and a protection metal back plate for added durability. The GPU also includes an anti-sag bracket to prevent bending and damage to the card.
The Radeon RX 7900 XT GAMING OC 20G is equipped with AMD’s latest technologies, such as AMD FidelityFX Super Resolution for upscaling performance and AMD Radeon Anti-Lag for minimizing input lag. Additionally, this graphics card boasts a boost clock of up to 2535 MHz and a game clock of up to 2175 MHz, which is a significant improvement over the reference card.
With these features, the Radeon RX 7900 XT GAMING OC 20G is a top-performing graphics card that can handle even the most demanding applications.
Radeon RX 7900 XT GAMING OC 20G Specifications:
- Graphics Processing: Radeon RX 7900 XT
- Core Clock: Boost Clock up to 2535 MHz, Game Clock up to 2175 MHz
- Stream Processors: 5376
- Memory Clock: 20 Gbps
- Memory Size: 20 GB
- Memory Type: GDDR6
- Memory Bus: 320 bit
- Card Bus: PCI-E 4.0
- Digital max resolution: 7680×4320
- Multi-view: 4
- Card size: L=331 W=138 H=50 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 800W
- Power Connectors: 8 Pin*2
- Output: DisplayPort 2.1 *2, HDMI 2.1 *2

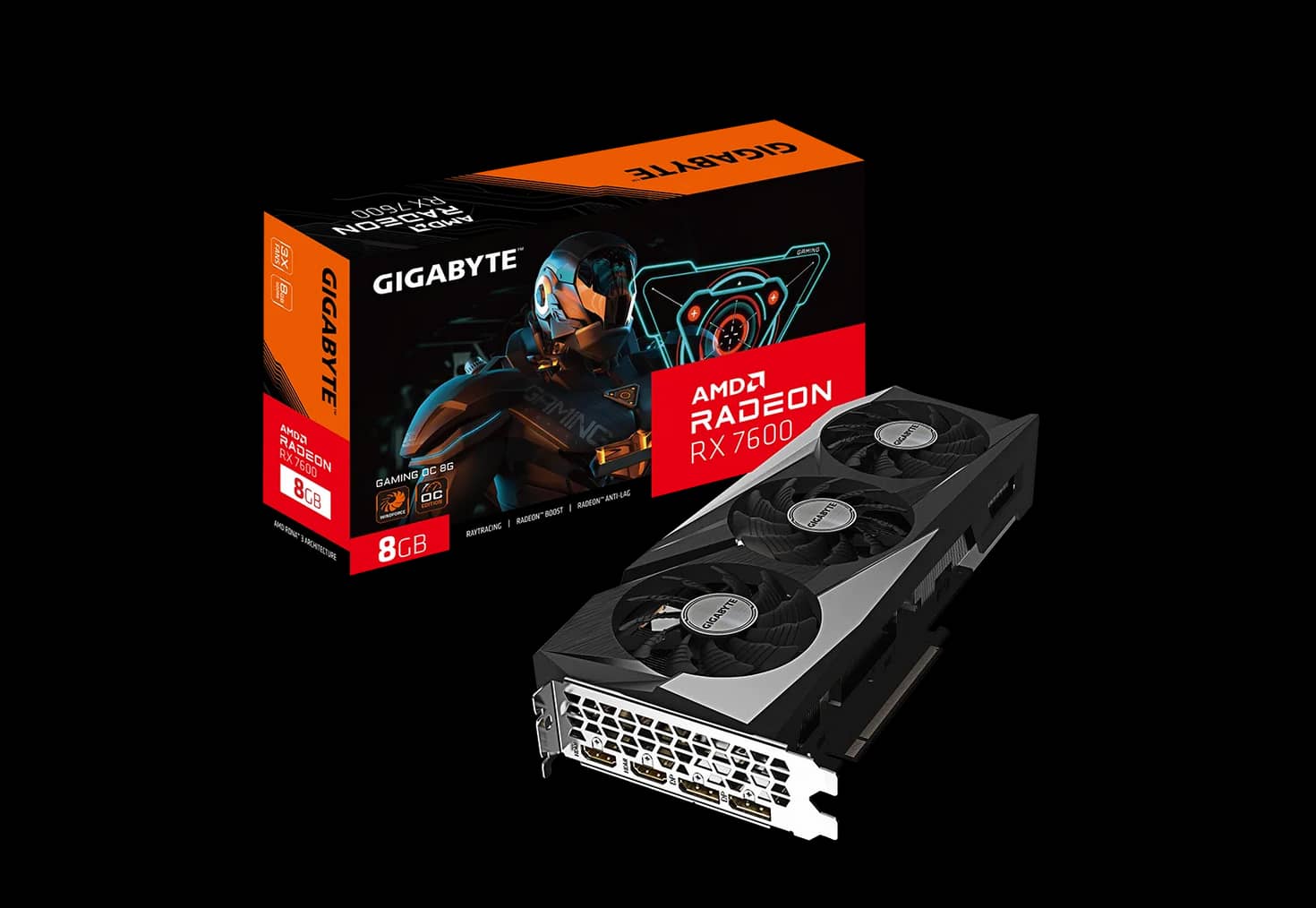

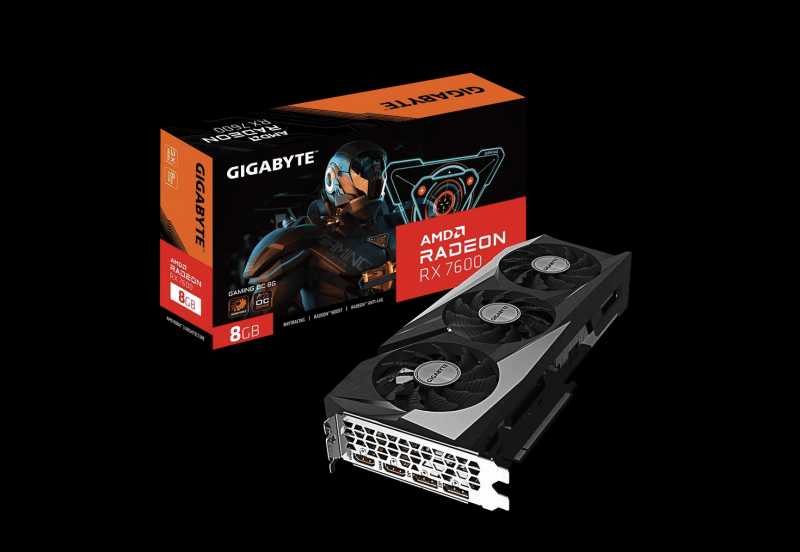

Radeon RX 7600 GAMING OC 8G
The Radeon RX 7600 GAMING OC 8G is a mid-range GPU in the Radeon RX 7000 series, offering great performance at a more affordable price point. This GPU is powered by the Radeon RX 7600 and comes with 8GB GDDR6 memory with a 128-bit memory interface.
The Radeon RX 7600 GAMING OC 8G comes with the WINDFORCE cooling system. This system features three unique 80mm blade fans, alternate spinning, 5 composite copper heat pipes that directly interface with the GPU, a 3D active fan, and Screen cooling. This arrangement is designed to effectively dissipate heat, ensuring that the GPU stays cool even during high-performance tasks.
Additionally, this GPU is compatible with RGB Fusion, offering you the flexibility to tailor the lighting aesthetics to complement your gaming environment. It is equipped with a protective metal back plate to enhance its longevity. Furthermore, it incorporates a power indicator for convenient tracking of power usage.
AMD’s latest technologies, including AMD FidelityFX Super Resolution for upscaling performance and AMD Radeon Anti-Lag for minimizing input lag, are supported by the Radeon RX 7600 GAMING OC 8G. This graphics card also features a boost clock of up to 2755 MHz and a game clock of up to 2355 MHz, which is a significant improvement over the reference card.
Radeon RX 7600 GAMING OC 8G Specifications:
- Graphics Processing: Radeon RX 7600
- Core Clock: Boost Clock up to 2755 MHz, Game Clock up to 2355 MHz
- Stream Processors: 2048
- Memory Clock: 18 Gbps
- Memory Size: 8 GB
- Memory Type: GDDR6
- Memory Bus: 128 bit
- Card Bus: PCI-E 4.0
- Digital max resolution: 7680×4320
- Multi-view: 4
- Card size: L=282 W=115 H=50 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 550W
- Power Connectors: 8 pin*1
- Output: DisplayPort 1.4a *2, HDMI 2.1a *2
Why GIGABYTE Leads in High-Performance Graphics Cards for Gaming
When it comes to high-performance graphics cards for gaming, GIGABYTE stands out as a leader in the industry. Here’s why:
- Innovative Technology: GIGABYTE is renowned for its innovative technology, including the WINDFORCE cooling system and RGB Fusion. These features not only enhance performance but also provide gamers with a more immersive experience.
- Wide Product Range: GIGABYTE offers a broad range of graphics cards, catering to various needs and budgets. Whether you’re a casual gamer or a professional, GIGABYTE has a graphics card that suits your requirements.
- Quality and Durability: GIGABYTE graphics cards are built to last. They come with protective metal back plates for added durability, ensuring that your investment stands the test of time.
- Excellent Performance: GIGABYTE graphics cards are known for their excellent performance. They boast high clock speeds and substantial memory sizes, ensuring smooth gameplay even in high-demand scenarios.
- Reputation: GIGABYTE has a strong reputation in the gaming community. Their graphics cards are trusted and recommended by gamers worldwide for their reliability and performance.
- Customer Support: GIGABYTE provides excellent customer support. If you encounter any issues with your graphics card, you can rely on GIGABYTE’s support team to help you resolve them.
The Future of Radeon RX 7000 Series
As we look ahead, the Radeon RX 7000 series is poised to continue its trajectory of innovation and performance. With the RDNA 3 architecture at its core, the future of this series is incredibly interesting and full of potential.
The Radeon RX 7000 series has already demonstrated its competitive advantage with the launch of the AORUS Radeon RX 7900 XTX ELITE 24G, Radeon RX 7900 XT GAMING OC 20G, and Radeon RX 7600 GAMING OC 8G. These GPUs offer a range of options for gamers, from the premium performance of the 7900 XTX ELITE to the affordability of the 7600 GAMING OC.
Looking forward, we might see AMD expand the Radeon RX 7000 series with new GPUs that offer even better performance and more features. The company may also continue to refine the RDNA 3 architecture to further improve power efficiency and performance.
In terms of technology, the Radeon RX 7000 series is at the forefront of the latest advancements. Features like the Infinity Cache, Ray Accelerators, and Smart Access Memory are just the start. As AMD continues to innovate, we can expect to see even more striking features in future GPUs.
The Radeon RX 7000 series is not just about performance, it’s also about offering a better gaming experience. With support for technologies like AMD FidelityFX Super Resolution and AMD Radeon Anti-Lag, these GPUs are designed to make games look better and run smoother.
Final Thoughts on Radeon RX 7000 Series
As we wrap up our exploration of the Radeon RX 7000 series, it’s clear that these GPUs are a game-changer in the world of gaming and professional graphics. With the RDNA 3 architecture at their core, the AORUS Radeon RX 7900 XTX ELITE 24G, Radeon RX 7900 XT GAMING OC 20G, and Radeon RX 7600 GAMING OC 8G have set a new standard for performance, power efficiency, and features.
The Radeon RX 7000 series GPUs are not just about raw power—they’re about enhancing the gaming experience. With features like the Infinity Cache, Ray Accelerators, and Smart Access Memory, these GPUs are designed to deliver more immersive and realistic gaming experiences.
Moreover, the Radeon RX 7000 series is competitively priced, offering great value for gamers and professionals alike. Whether you’re a hardcore gamer looking for the best performance or a casual gamer seeking good performance at an affordable price, there’s a Radeon RX 7000 series GPU for you.
In conclusion, the Radeon RX 7000 series represents a significant leap forward for AMD and the GPU market as a whole. With its powerful performance, advanced features, and competitive pricing, the Radeon RX 7000 series is poised to redefine the gaming landscape in 2023 and beyond.
