Home entertainment systems, networking closets, and other electronics also need adequate airflow. Fortunately, Noctua meets these needs with the HOME series products. Today, our Noctua NV-FS1 Review will feature a multi-purpose fan for cooling the previously mentioned devices.
The NV-FS1 is a high-quality desk and room fan offering impressive versatility. It is a powerful and compact personal cooling solution that provides adequate ventilation for electronics.
What makes this product worth purchasing? Our Noctua NV-FS1 Review will discuss its appearance, features, functions, design, performance, and other details to answer this question.
Noctua NV-FS1 Packaging
Noctua NV-FS1 Review – Design and Functionality
Noctua balanced functionality and subtlety in the NV-FS1, making it an ideal addition to desk setups. Its all-black finish blends seamlessly with your home aesthetics while providing adequate cooling.
The NV-FS1 measures 140mm wide and 150mm tall. Its compact size and thoughtful design make it simple to set up on any desk.

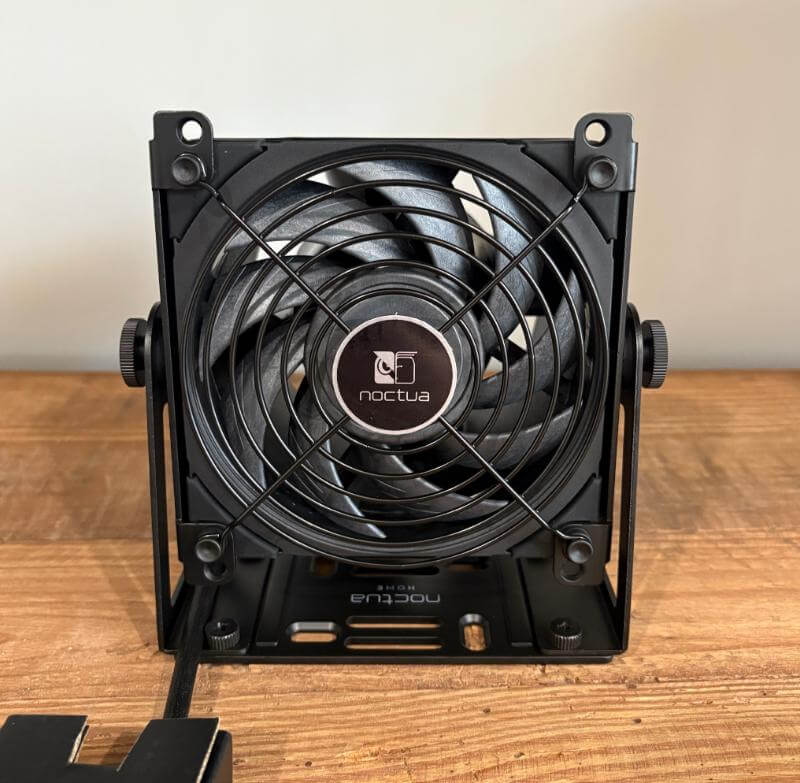

While examining the product for this Noctua NV-FS1 Review, we noticed the pre-installed NF-A12x25 fan. Noctua made a unique approach by integrating one of its PC fans instead of general fan blades.
Its outstanding feature is the Airflow Amplifier. It enhances the performance of the NF-A12x25 120mm fan by focusing its airflow. Thanks to its helix-shaped design, the NV-FS1 delivers powerful and precise airflow while retaining the signature whisper-quiet operation.
The NF-A12x25 fan attaches to the all-metal stand and housing. This highly regarded fan provides superior cooling performance, earning Noctua over a hundred awards. It is a trusted, award-winning cooling component from Noctua.

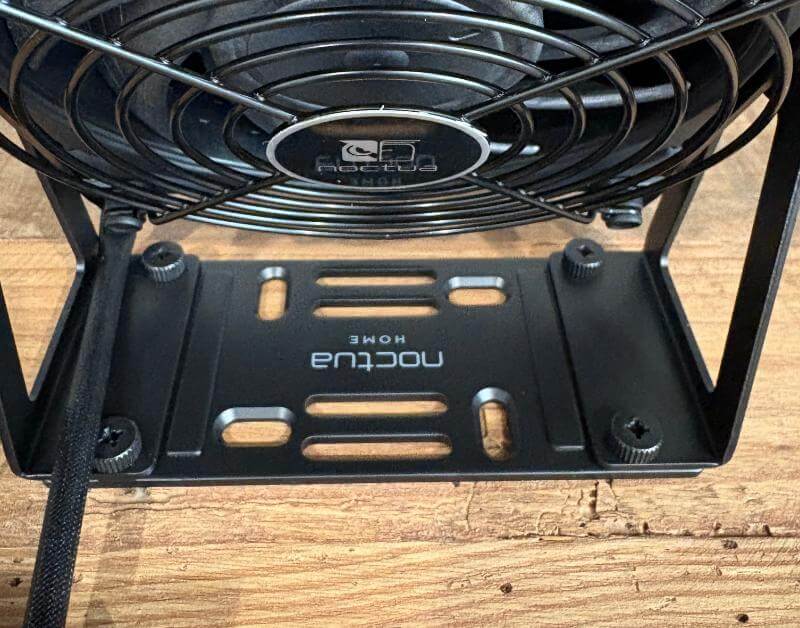

Noctua added rubber paddings to the metal base. The fan also has black rubber on its eight corners to achieve quiet performance.
You can attach the versatile metal frame to most surfaces or use the NV-FS1 as a free-standing unit. It allows the NF-A12x25 fan to be rotated 180 degrees or replaced with a 140mm fan, offering more flexibility.
Controls of the Noctua NV-FS1
The supplied NA-FC1 enhanced our user experience when we tested the product for this Noctua NV-FS1 Review. It allowed us to conveniently control the fan speed without downloading apps or purchasing another product. Also, its compact design adds to the convenience of the multi-purpose fan set.
The fan speed on this controller ranges from standstill to full fan speed. You can adjust it with the rotary control at the centre. Turning it to the left stops the rotation, and turning it to the right runs at full power. Pressing the button under the dial lets the fan rotate at low speeds for quiet operation.
In addition, the fan controller has LEDs indicating its functions. The orange light shows the power draw and glows depending on the power percentage delivered to the fan.
You can also set up the green LED light to indicate that the fan speed will not drop to 300 rpm.
Key Features of the Noctua NV-FS1
NF-A12x25 – A Recognised and Trusted 120mm Fan
The NF-A12x25 is a superb, award-winning fan that set a new benchmark for 120mm fans. Its modern design and construction allow it to operate efficiently and quietly, making it ideal for homes and offices.

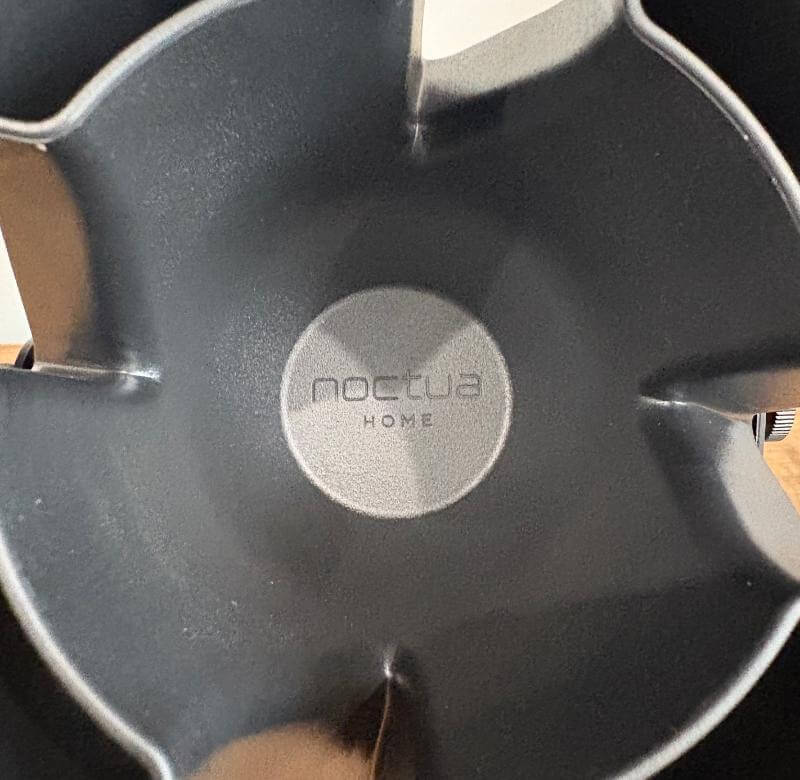

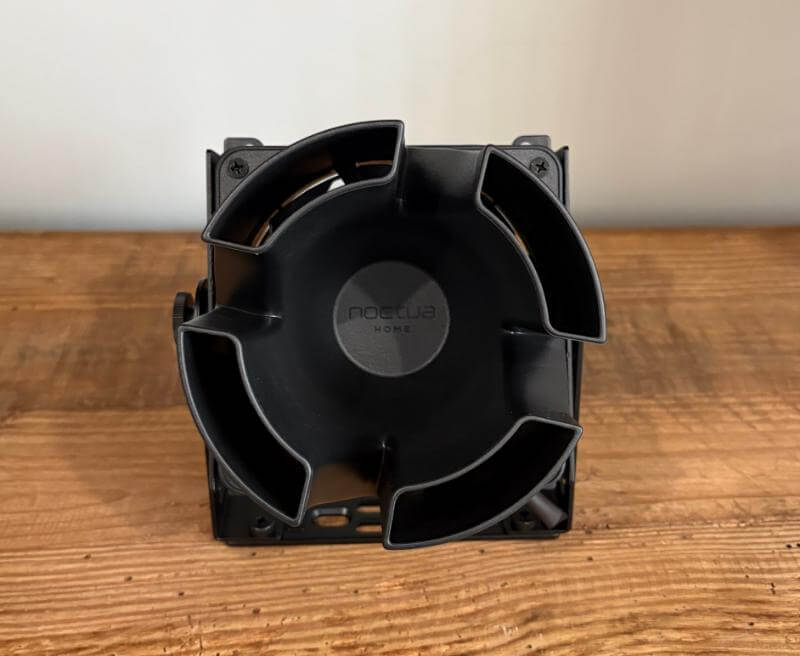

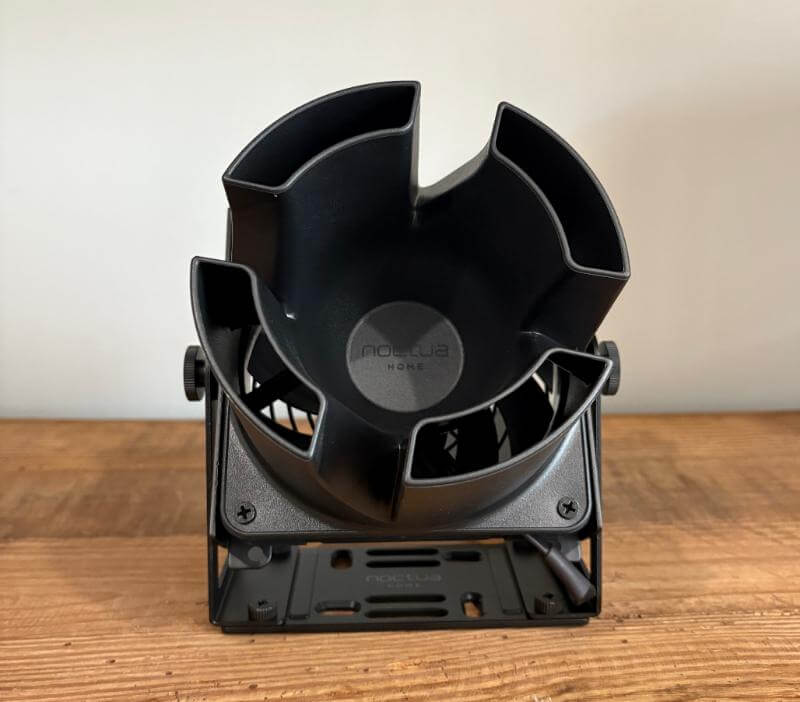

Airflow Amplifier for Better Ventilation
This multi-purpose fan set has a pre-installed NV-AA1-12 Airflow Amplifier to enhance ventilation and fan performance.
The Airflow Amplifier allows the fan to create a powerfully focused air beam while maintaining low noise levels during operation. It employs a tri-phase airflow amplification system that combines progressive flow acceleration, helix energy recovery, and Venturi effect volume boosting.
Sturdy, Pivoting Fan Mount with Versatile Mounting Options
The NV-FM1 is the robust and durable steel centrepiece of the NV-FS1. This versatile pivoting mount supports 120mm or 140mm fans, making it suitable for various setups. The mount allows you to place the NV-FS1 on your desk, other level surfaces, walls, furniture, ceilings, and more.
Three Levels of Anti-Vibration
The NV-FS1 uses silicone push-pins when attaching to the steel centrepiece for less vibrations. It also has rubber hinges to prevent vibration on the base. Finally, it features rubber strips on the base to stop vibrations from reaching the mounting surface.
When we used the product for this Noctua NV-FS1 Review, we noticed the minimal noise it produced. These hinges, pins, and strips effectively minimised vibrations and reduced disruptions while we were working.
Step-less PWM Fan Controller
Noctua equips the NV-FS1 fan with the NA-FC1 controller, enabling fine-tuned speed adjustments. This fan controller has a step-less design for convenience and features status LEDs. It lets you adjust the maximum airflow performance or stop the fan rotation.
Premium 230/115V Power Supply
The bundled NV-PS1 power supply delivers sufficient direct power to the multi-purpose fan set from the mains. This compact PSU supports 115V and 230V inputs and has modular connectors for different locations.
It consumes only 0.075W, making it ideal for uses requiring maximum efficiency. Thanks to this PSU, the multi-purpose fan received adequate and stable power throughout our tests for this Noctua NV-FS1 Review.
Flexible Cables
Noctua supplies a 30cm NA-AC10 adapter to facilitate the fan connection. The company also includes a 1m long NV-EC4 extension cable, offering superior convenience. The latter lets you place the controller before or after the extension cable, offering maximum flexibility.
Fully Modular and Expandable Design
Noctua designed the HOME ecosystem with modularity and expandability, allowing for easy future upgrades. You can add fans and fan mounts from the same power supply and control it with a single NA-FC1 controller. The company also allows adding NA-SEC3 extension cables for a hassle-free HOME ecosystem expansion.
Safe and Protected
The NV-FS1 has a pre-installed fan grille for safety when accidentally touched. Its power supply and fan also have safety certifications from TÜV and UL. Unlike other fans and power supplies, the NV-FS1 also meets and complies with the EMC and CE/UKCA standards.
Hands-on with the Noctua NV-FS1
Installing the Noctua NV-FS1 multi-purpose fan set was effortless, thanks to the thoughtfully designed accessories and detailed instructions provided. The kit included various mounting brackets, screws, and a pre-installed fan grille, ensuring compatibility with multiple setups and eliminating the need for additional purchases. The intuitive installation process made it easy for both novice and experienced users to get the fan up and running in minutes.
Once installed, the NV-FS1 remained operational without any interruptions, showcasing its reliability in handling continuous workloads. The fan’s advanced design efficiently dissipated heat, keeping temperatures stable across all connected electronics. Even when subjected to heavy use, the fan maintained peak performance without faltering, solidifying its role as a robust cooling solution.
Noise levels during operation were minimal, even at higher speeds, which was a standout feature of the NV-FS1. The acoustic performance was impressive, with the fan barely audible during our testing. This made it ideal for environments where noise sensitivity is a concern, such as home offices, bedrooms, or recording studios.
We also conducted a thorough evaluation of the fan’s safety features to ensure it met modern standards. The pre-installed grille not only prevented accidental contact with the blades but also reinforced the durability of the unit. This design element makes the NV-FS1 suitable for use in homes with children or pets, adding a significant layer of safety.
The PSU included with the NV-FS1 exceeded expectations, delivering steady power even under fluctuating loads. Its robust protection mechanisms effectively guarded against common risks like overvoltage, overcurrent, and short circuits. These features provided peace of mind, ensuring that the fan and connected electronics remained safe and operational at all times.
During testing, we appreciated the versatility of the NV-FS1, which was compatible with various devices and setups. Whether used to cool a compact PC, home networking equipment, or even AV components, the fan adapted seamlessly to different needs. This adaptability underscored the fan’s multi-purpose functionality, making it a highly versatile cooling solution.
The Noctua NV-FS1 demonstrated exceptional performance, safety, and ease of use. Its high-quality build, thoughtful design, and reliable components positioned it as a top-tier choice for anyone seeking an efficient and quiet cooling solution for their electronics.
Noctua NV-FS1 Review Summary
The Noctua NV-FS1 stands out as a versatile and efficient cooling solution designed to meet the needs of modern home electronics. Its compact size, high-quality build, and thoughtful design make it a perfect choice for applications ranging from cooling networking equipment to enhancing airflow in entertainment setups or compact PCs.
The fan’s performance exceeded expectations, offering powerful airflow and maintaining low noise levels, even under heavy workloads. With features like the Airflow Amplifier and NF-A12x25 premium fan, the NV-FS1 delivers precise, whisper-quiet cooling, making it ideal for noise-sensitive environments such as home offices or studios.
Safety and reliability are key strengths of the NV-FS1, with its pre-installed fan grille and TÜV- and UL-certified PSU ensuring stable operation and user protection. The modular design and included accessories, such as flexible cables and a PWM fan controller, further enhance its usability and adaptability for diverse setups.
The Noctua NV-FS1 combines functionality, safety, and exceptional performance in a sleek, compact package. Whether for personal cooling or maintaining optimal conditions for electronics, the NV-FS1 is a reliable and efficient solution that upholds Noctua’s reputation for engineering excellence.
