T-Force is a name almost everyone knows when we speak of memory and storage. Today, we will discuss a notable SSD in our Teamgroup T-Force G70 Pro Review.
Last year, the company launched the G70 Pro along with other units from the line. It uses a PCIe Gen 4×4 interface, a controller from InnoGrit, and more.
Continue reading our Teamgroup T-Force G70 Pro Review because we will talk about its specifications, design, and functions. We will also look into its features and how it performs when tested.
Teamgroup T-Force G70 Pro Packaging

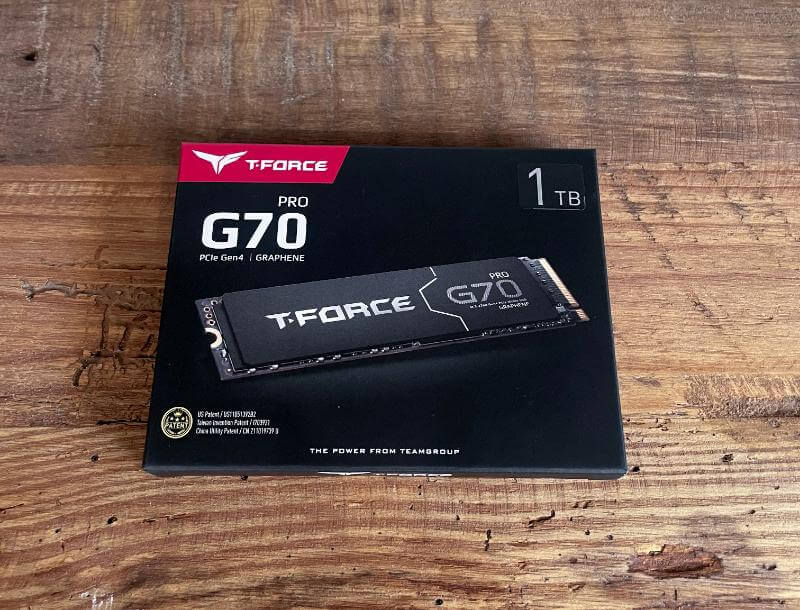

Teamgroup packed the G70 Pro in a black cardboard box. The front panel shows the SSD and highlights its storage capacity. Plus, you will find the company branding, product name, and patent logo.
On the rear, Teamgroup lists the technical specifications of the G70 Pro. You will also find simple installation instructions illustrated underneath the product specs. The right portion of this panel provides a link directing to the more detailed warranty information.
The bottom portion shows the SSD in blister packaging, displaying the part with the informative sticker. You will also see various certifications close to it.
Removing the product from the cardboard box, you will find the unit arranged on a transparent plastic. Like other SSD products from Teamgroup, it is the only item inside the box.
Teamgroup T-Force G70 Pro Review – Design and Functionality
Teamgroup offers the G70 Pro with two heat dissipation variants. One has a thin graphene sheet to accommodate memory chips, while the other has a voluminous aluminium heatsink.
The graphene heatsink is a patented thermal solution, making it a unique feature of the G70 Pro. This 1mm heatsink is composed of graphene, a popular and innovative material that effectively dissipates heat. As a result, the SSD becomes ideal for daily tasks since graphene can hold up with the heatsink.
The model with aluminium heatsinks focuses on high-performance devices like the PS5. Since this gaming console does not generate adequate airflow, it needs the aid in heat generation from an external heatsink.
We observed its thermal performance when we tested the product for this Teamgroup T-Force G70 Pro Review. Its temperatures remained low throughout our tests and proved these heat-dissipating features worked efficiently.
Design, Layout, and Heatsinks of the Teamgroup T-Force G70 Pro

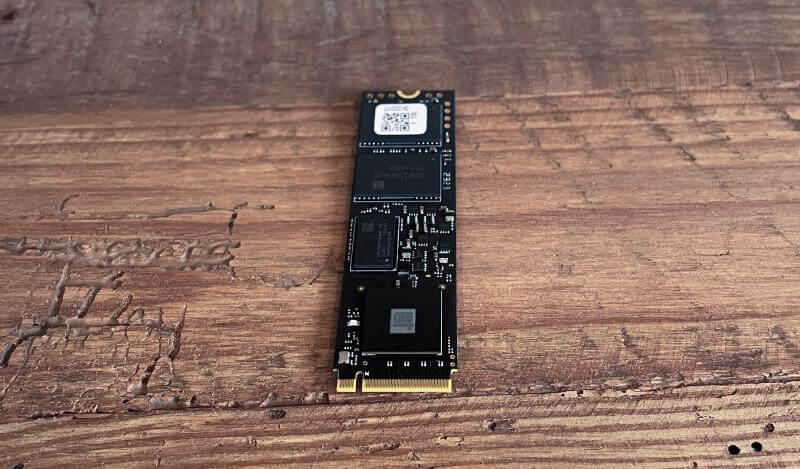

The G70 Pro has a conventional M.2 2280 layout. Its dimensions and weight differ on the included heatsink.

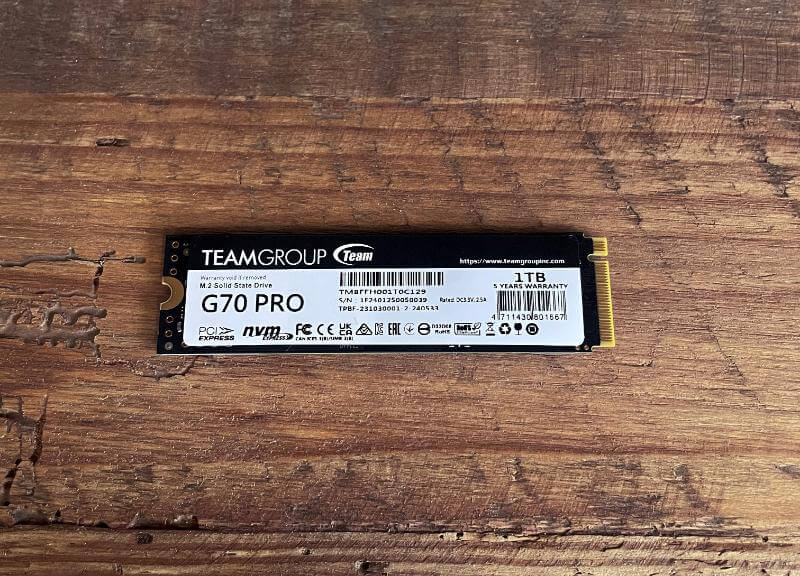

The SSD has a simple appearance with a black finish, and it features the T-Force branding in white text. The other side has a sticker with technical information and various certifications.

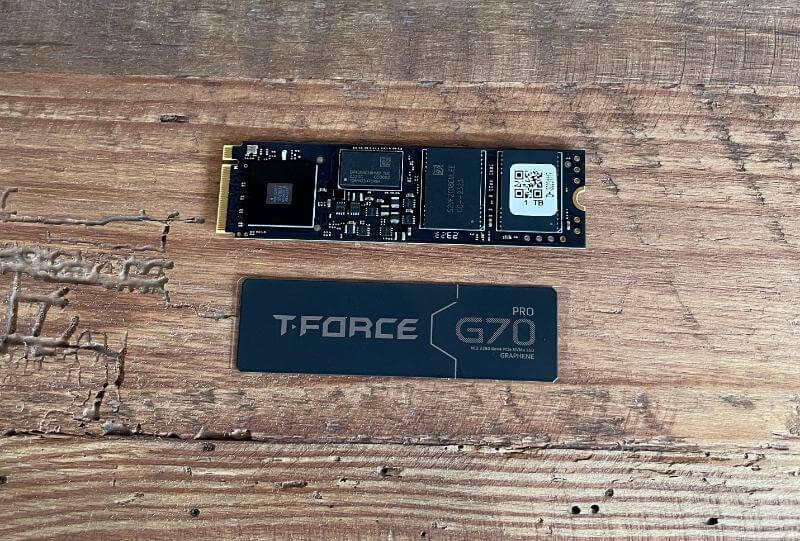

As mentioned, the G70 Pro has two types of heatsinks. The graphene heatsink resembles a thin sticker placed on the SSD. It is ideal for laptops or PS5 consoles since these have no room for bulky heatsinks. The aluminium heatsink, on the other hand, attaches to the sides of the SSD with screws.
Interface and Speeds
The G70 Pro has a PCIe 4.0 x4 interface and uses an NVMe 1.4 protocol. Our SSD has a 1TB capacity, but you can choose from 512GB, 2TB, and 4B.
Teamgroup equipped it with TLC-type 3D NAND chips, and unlike the older models using Phison, it uses an Innogrit controller. Innogrit is a Chinese company that manufactures SSD controllers notable for good value for money. This controller has 8 NAND channels and supports MLC, SLC, TLD, TRIM, and QLC NAND Flash.
The 1TB SSD can reach 7400 MB/s and 5500 MB/s for sequential read and write speeds. However, Teamgroup did not provide its random speeds.
The construction process used for the G70 Pro is 12nm FinFET CMOS. It supports DDR SDRAM with a 32-bit or 32+8 data bus.
Finally, Teamgroup included a DRAM for buffer and SLC for cache to improve its overall performance. Although it lacks hardware encryption, it has other features that reduce wear and prevent errors.
Key Features of the Teamgroup T-Force G70 Pro
Choosing the best SSD that meets your needs can be a challenge. What makes the G70 Pro worth purchasing? We will discuss its primary features in our Teamgroup T-Force G70 Pro Review to learn what this SSD offers.
High Speeds, Best for Gaming Performance
The G70 Pro uses the PCIe Gen4x4 interface while delivering read & write speeds reaching 7000 MB/s. Its speeds allow you to boot games in a split second and enjoy smooth and fast gaming experiences.
Preset Controller Solutions of the Teamgroup T-Force G70 Pro
The G70 Pro uses the industry-leading InnoGrit controller solution, giving users peace of mind when using the SSD.
Supports DRAM and SLC Caching for Faster Transmission
The G70 Pro is a PCIe 4.0 SSD that supports SLC and DRAM caching for better efficiency. DRAM caching creates a fast storage medium for frequently accessed files, enabling faster read/write operations.
SLC caching also allows write caching on SSDs for fast transfer speeds.
The Different Heat Dissipation Modules of Teamgroup T-Force G70 Pro
Teamgroup offers two heat dissipation modules for the G70 Pro: patented ultra-thin graphene and aluminium alloy heat spreader. These comply with the PS5 console heatsink regulations.
Optimised Performance Balancing Lifetime and Reliability
When we received the SSD for this Teamgroup T-Force G70 Pro Review, we were impressed with its specifications. It has a 3-million-hour MTBF and high transmission speeds.
Windows TRIM SSD optimisation ensures using Free Block upon release to increase the speed of write and transmission performance. The ECC and wear-levelling technology boosts data transmission reliability while prolonging the lifetime of the SSD.
SMART Software – Intelligent System for Status Monitoring
Teamgroup has a patented SMART software that allows you to monitor the SSD status. It conducts fast and simple inspections and settings to monitor the quality status and performance of your SSD.
Manufacturing the Teamgroup T-Force G70 Pro while Protecting the Environment
The production of the G70 Pro is halogen-free and lead-free. Teamgroup also complies with RoHS and uses recyclable, environment-friendly materials for packaging. The company helps conserve the earth through eco-friendly manufacturing.
Specifications
- Interface: PCIe Gen4x4 with NVMe
- Capacity: 1TB
- Sequential reading: 7,400 MB/s
- sequential writing: 5,500 MB/s
- Durability: 740 TBW
- DRAM Cache: Yes
- Voltage: DC +3.3V
- Operating Temperature: 0˚C – 70˚C
- Storage Temperature: 40˚C – 85˚C
- Weight: 7g (with graphene heat sink), 54g (with aluminium heat sink)
- Dimensions with Graphene Heat Sink: 80 x 22 x 3.7mm (L x W x H)
- Dimensions with aluminium Heat Sink: 80.0 x 22 x 8.7mm (L x W x H)
- Vibration: 80Hz~2,000Hz/20G
- Impact: 1,500G/0.5ms
- MTBF: 3 million hours
- Operating System Requirements: Windows, MacOS, Linux
- Warranty: Five-year limited warranty
Hands-on with the Teamgroup T-Force G70 Pro
We tested the product for this Teamgroup T-Force G70 Pro Review to determine if it delivers what the company promises. Before discussing its speed and performance, we will focus on the SMART software.
Teamgroup SMART Software
Teamgroup SMART is a simple and intuitive software utility where you can monitor the status of the G70 Pro. You can access features like TRIM and volatile write cache commands for controlling its write performance.
Aside from those options, Teamgroup SMART lets you check the system information and disk usage time. You can also conduct tests based on the CrystalDiskMark.
Performance of the Teamgroup T-Force G70 Pro
While testing the G70 Pro for our Teamgroup T-Force G70 Pro Review, we saw how good its response time was. Sequential writing was good at around 5,800 MB/s, while its write was 6,900 MB/s. These results make it a product worth considering.
The T-Force G70 Pro NVMe SSD delivered an exceptional gaming experience with lightning-fast loading times and impeccably smooth gameplay. Whether delving into the depths of immersive open-world adventures or engaging in high-octane multiplayer battles, the G70 Pro proved to be the ultimate companion for gamers seeking unparalleled performance.
One of the most notable advantages of the G70 Pro was its ability to drastically reduce loading times across a spectrum of games. From sprawling open-world environments to intricately detailed levels, the SSD’s remarkable speed ensured that transitions between scenes were virtually seamless.
Tasks that once incurred frustrating wait times now became mere moments of anticipation, allowing gamers to dive into their favorite titles with unprecedented immediacy.
Every movement, every action unfolded with a silky-smooth precision, devoid of the jitters or stutters that can detract from the immersive gaming experience. Whether executing split-second maneuvers or navigating complex environments, the SSD’s responsiveness remained unwavering, empowering gamers to fully immerse themselves in the virtual worlds they inhabit.
Regardless of the demands placed upon it, the SSD exhibited great reliability, ensuring that each gaming session was characterized by the same level of exceptional performance. This consistency instilled confidence in the SSD’s capabilities, allowing us to focus solely on our gameplay without the worry of performance fluctuations.
The T-Force G70 Pro NVMe SSD truly excelled in terms of overall performance, offering an outstanding combination of blazing-fast speeds, stability, and consistent reliability. Throughout various tasks and applications, the SSD demonstrated its prowess, setting a new standard for performance in its class.
Whether transferring large files, launching applications, gaming, or booting up the system, the G70 Pro exhibited lightning-fast speeds that significantly reduced wait times and enhanced productivity.
Teamgroup T-Force G70 Pro Review Summary
Teamgroup produces high-quality SSD models to meet the needs of different consumers. With the G70 Pro, the company aims at users who want a high-performance SSD for a reasonable price.
This SSD is fast and can withstand heavy loads and demand while maintaining low temperatures. Its performance in our tests for this Teamgroup T-Force G70 Pro Review shows its excellent value for money. The product we tested is a 1TB SSD, but you can also choose from 512GB, 2TB, and 4TB.
Aside from price and performance, the G70 Pro offers numerous benefits, like the 740TBW durability and 300 million MTBF. These ensure the SSD will last long and can withstand the most demanding workloads. It is ideal for expanding your console or PC storage.
We highly recommend this SSD for users who want a cost-efficient option for storage expansion. It is also best for creators and professionals who need an SSD as virtual memory in design programs like Photoshop.
Visit the official product page of Teamgroup for more information about the T-Force G70 Pro.
