Today, our Terramaster D6-320 Review focuses on a DAS, which slightly differs from other devices from the company. Unlike the NAS (network attached storage), DAS stands for direct attached storage.
The D6-320 is a six-bay DAS enclosure ideal for users who need a mass storage solution. It uses the latest USB 3.2 Gen 2 protocol with up to 10Gbps data transmission bandwidth.
Our Terramaster D6-320 Review will discuss all the details you need to know about this storage solution. These include its package inclusions, features, functions, design, and performance.
Terramaster D6-320 Packaging
Terramaster packed the D6-320 in a sturdy cardboard box featuring an illustration of the product. The DAS is securely covered from every angle to protect it from damage during transit.
The other items in the package include the following:
- AC power cord
- Power adapter
- HDD and SSD screws
- Screwdriver
- 1m 10Gb USB Type-C to Type-C cable
- Warranty note
Terramaster D6-320 Review – Design and Functionality

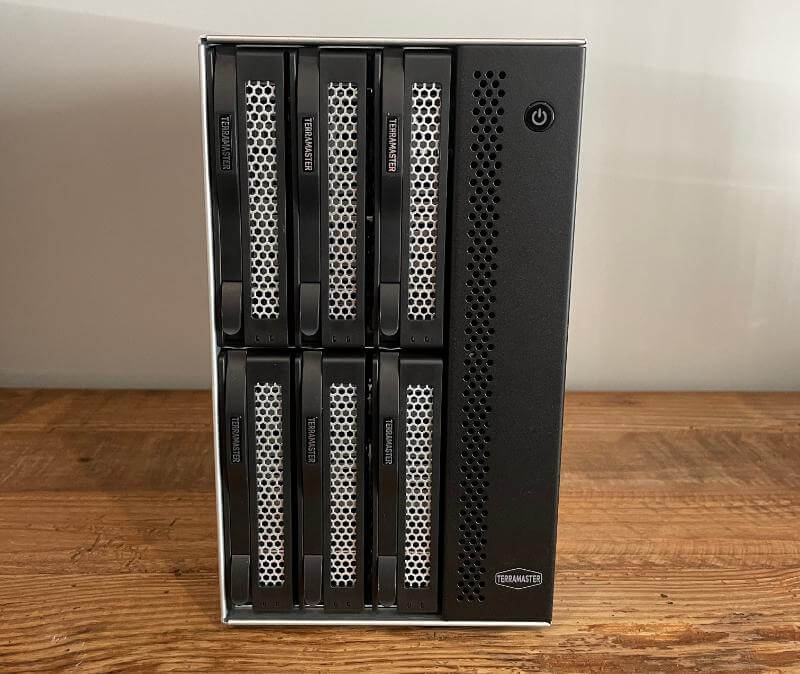

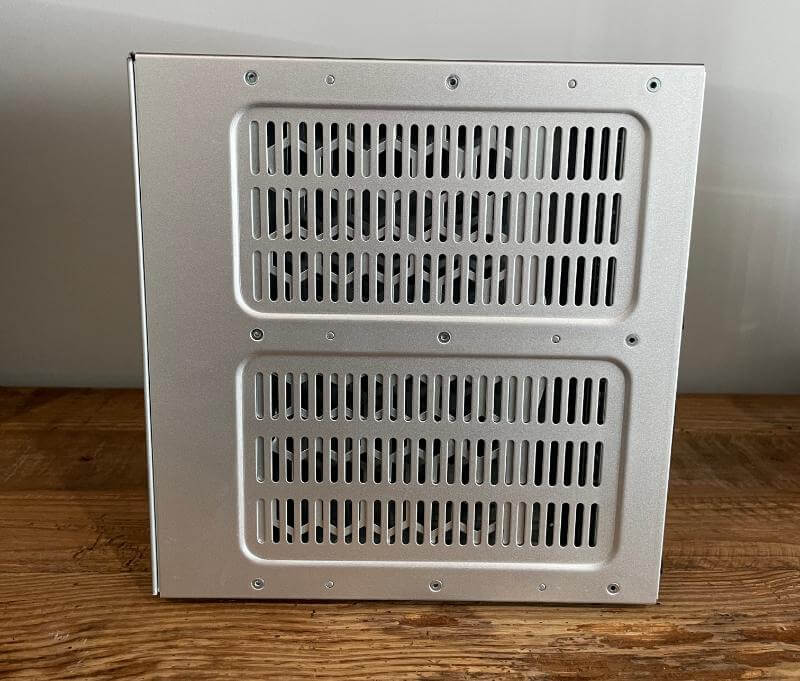

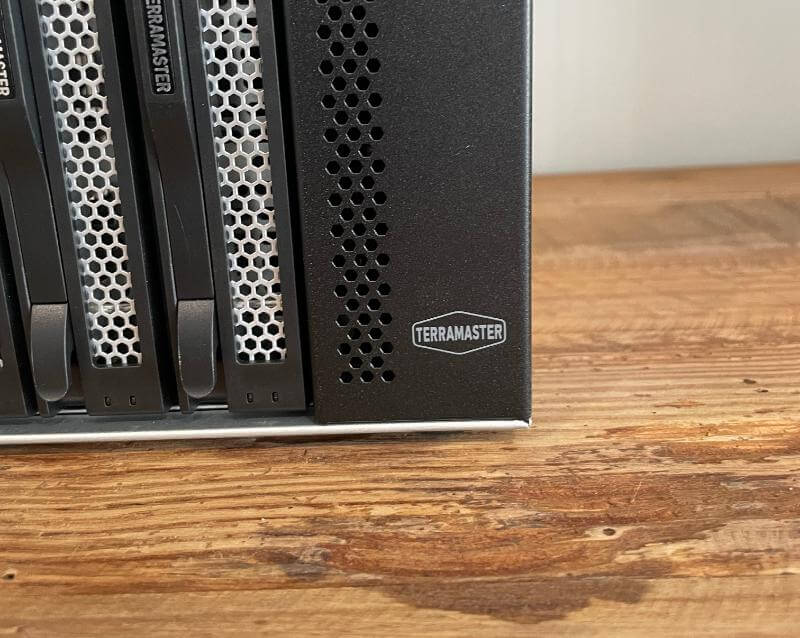

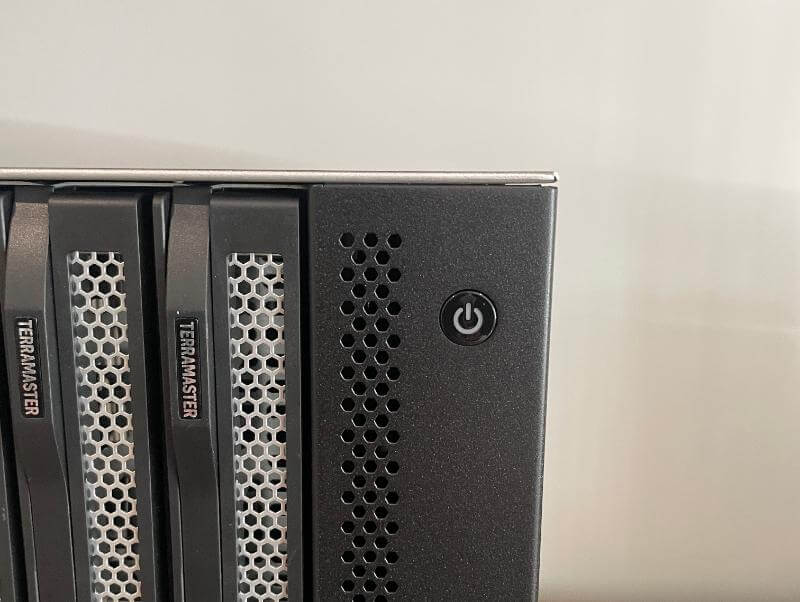

The D6-320 has a simple design focusing on functionality, practicality, and performance over style. Its robust all-metal enclosure makes it sleek, compact, and suitable for any home or office.

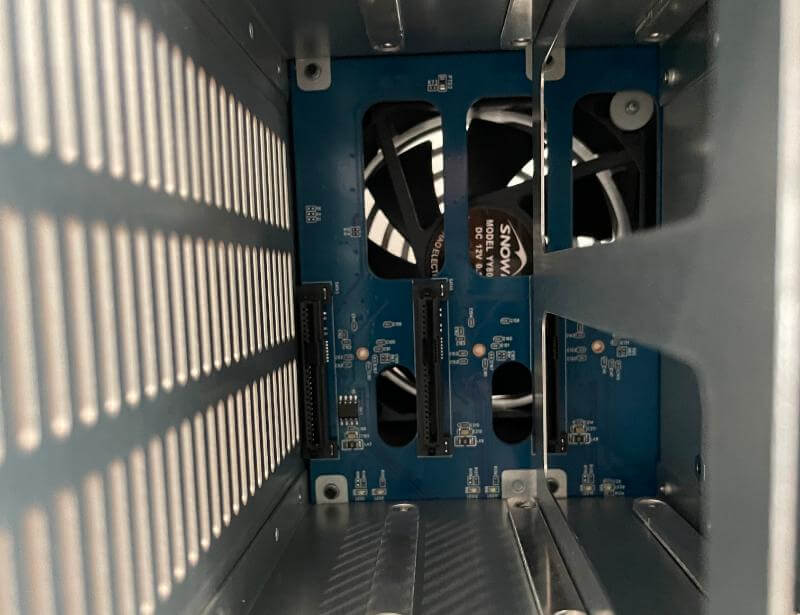

The D6-320 has six SATA drive bays that can hold 3.5-inch and 2.5-inch HDDs or 2.5-inch SSDs with SATA connectors. SATA stands for Serial Advanced Technology Attachment, and this type of hard drive is easy to find.
If you install six drives, they will appear as individual drives on your desktop. You can manage all the files in each drive from your computer.

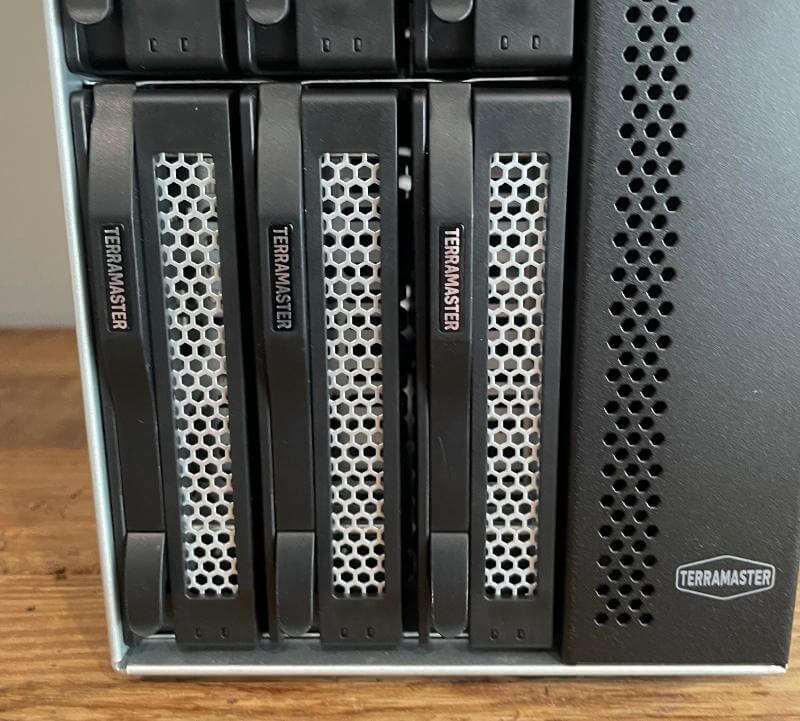

One design feature that deserves special mention in our Terramaster D6-320 Review is the hot-swap capability for the hard drives. The drive trays feature a push-and-release locking mechanism for quick removal or insertion of drives. Pushing a button unlocks the drive bay and causes the handle to pop, allowing you to pull the tray out.
Re-inserting the drive tray is quick since it automatically closes and snaps the handle shut. You can swap drives even while the DAS is operating, but you must eject them properly before removal.
All SATA drives feature matching screw holes on the sides to make mounting secure. Terramaster packs the D6-320 with a screwdriver and all the screws you need to make installation fast and easy. Installing a SATA drive into the removable frame only requires two screws.

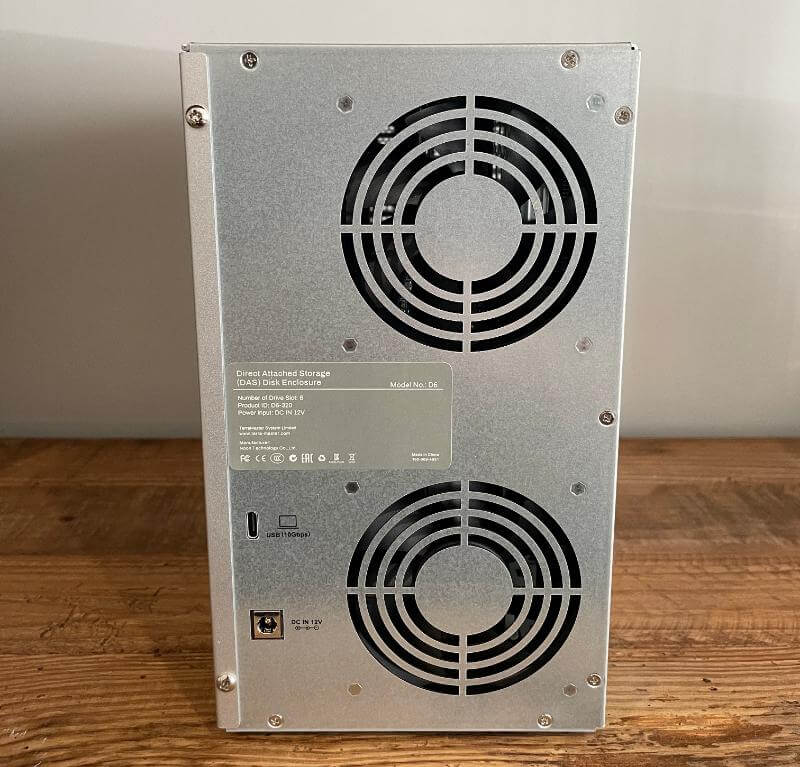

The rear of the D6-320 features two fans that maintain low temperatures while the DAS operates under heavy load. They dissipate heat effectively to keep your drives cool. Next to the fans is the power input tucked away to keep your workspace uncluttered.
You will also find a USB Type-C port at the back of the unit. This versatile connector links the D6-320 to a compatible Terramaster NAS or your computer.
The USB Type-C connector also works as a terminal link to daisy chain NAS systems. However, it is a streamlined storage solution that cannot simultaneously connect different devices to form a complex setup.
Key Features of the Terramaster D6-320
What makes this DAS a high-quality storage server? Our Terramaster D6-320 Review will discuss each feature so you can learn about the best things this product can offer.
High-Speed Performance
The D6-320 adopts the USB 3.2 Gen 2 protocol, providing a 10Gbps data transmission bandwidth. As a result, the DAS offers actual read and write speeds up to 1016 MB/s with six HDDs installed. Its read speed could reach 510 MB/s if you install only one HDD.
Hot-Swapping of Hard Disks With the Terramaster D6-320
The D6-320 supports hot-swapping or replacing hard disks while the device is powered. This feature simplifies data transfer for your convenience.
Compatible With Different Types of Hard Disks
The D6-320 is a versatile storage solution that works with different hard disks. Compatible drive types include 3.5-inch and 2.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Versatile USB Type-C Interface
The D6-320 uses a USB Type-C interface and connects with a 1m USB Type-C cable. It works with Thunderbolt 3 or 4, USB 3.2, USB 3.1, and USB 3.0.
Expand Your NAS
If you have a TerraMaster NAS, you can connect the D6-320 via USB after specific adjustments and changes. You can create arrays and storage pools on this DAS with TerraMaster OS to expand the storage space of the NAS.
Note that this feature only works with TerraMaster NAS running TOS 5.1 or higher.
Massive Storage Space
As mentioned earlier in this Terramaster D6-320 Review, this storage solution supports up to six hard drives. Each slot can support up to 22TB maximum capacity. With this capacity and drive bays, you can use up to 132TB of total storage space.
This DAS only supports single-disk working mode and does not have an array function. However, you can create an array with a third-party software management tool.
Intelligent Disk Sleep
The D6-320 supports the sleep function, allowing the computer operating system to sleep. It efficiently reduces the power consumption and working duration of hard disks to extend its service life.
Temperature-Controlled Fans for Enhanced Heat Dissipation
The D6-320 uses intelligent low-noise and temperature-controlled fans that automatically adjust the speeds based on the hard disk temperature. This fan maintains the best operating temperatures of the D6-320 to ensure optimal performance.
This DAS also has a specially optimised internal structure for better air pressure on the interior. It reduces the working temperature of the hard disk while reducing the resonance between the hard disk and DAS components. As a result, the D6-320 maintains low noise even when working under full load.
Compact and Durable Build of the Terramaster D6-320
The D6-320 has an all-metal body and a compact design to reduce the space it occupies. It also has vertical and horizontal types to meet the needs of all users.
Safe From Damage With Power Supply Protection
One of the impressive features we want to feature in this Terramaster D6-320 Review is its power supply protection. The DAS enables automatic protection when an improper power supply is connected to prevent hard disk damage.
Automatic Backup With the TPC Backupper
The TPC Backupper is a user-friendly backup tool for Windows. This software allows scheduling folder and disk partition backup on your Windows PC to Terramaster USB devices or storage servers.
This reliable, straightforward backup solution lets you focus on work while the D6-320 operates in the background. As a result, it keeps your data protected while saving time.
TPC Backupper supports differential and incremental backup strategies. The software works with Windows 8, 8.1, 10, and 11.
Specifications
- Disk Slots: 6x
- Compatible Disk Types: 3.5-inch SATA HDD, 2.5-inch SATA HDD, 2.5-inch SATA SSD
- Maximum Internal Raw Capacity: 132TB (22TB x 6)
- Read/Write Speeds (1x SSDs): up to 520MB/s (Read), 500MB/s (Write)
- Read/Write Speeds (6x SSDs): up to 1016 MB/s (Read), 986 MB/s (Write)
- Noise Level: 28.4 dB(A)
- Power Supply: 120W
- AC Input Voltage: 100V to 240V
- Supported Operating Systems: Windows, MacOS, Linux
- Size: 226 x 130 x 218mm
- Weight: 3.4kg
- Warranty: Two years
Hands-on with the Terramaster D6-320
We tested the product to share our experience in this Terramaster D6-320 Review. The DAS immediately impressed us when we inserted our drives since it ran within a few seconds.
It was quiet throughout our tests despite its high-speed performance. The fans emitted some noise under full load, but its sound was within reasonable levels. It was also acceptable since the temperature-controlled fans effectively kept the temperatures of the drives low while transferring massive files.
Intelligent features like the disk sleep function worked perfectly, and the D6-320 fell silent when the computer switched off. We tested this function in various scenarios and did not experience any issues.
The D6-320 performed with an excellent balance between speed and capacity. We appreciate the innovative features and functions that streamline everything in a complex storage setup.
The best thing about this DAS is its simplicity, which allows anyone to use and understand how it works. Most importantly, it operates with the speeds Terramaster promises, even under full load and with six drives installed.
Terramaster D6-320 Review Summary
The D6-320 is a superb storage solution from Terramaster. Although the design and aesthetics are underwhelming, it offers a sturdy enclosure for your drives that store crucial data. The product has numerous handy features like hot-swapping, massive storage capacity, power supply protection, disk sleep function, and more.
This product stood out in the performance department when we used it for this Terramaster D6-320 Review. Speeds were impressive even when operating under heavy load.
We highly appreciate the D6-320 for being a streamlined storage solution that efficiently works while offering scalability. It works with high speeds and provides a simplified storage solution for managing your data.
This product is an excellent investment since it offers unparalleled reliability and performance while protecting your data. With six bays that can house high-capacity drives, it is the perfect scalable solution for anyone with growing storage needs.
Visit the official Terramaster product page for more information about the D6-320.
