ASUS never fails to use essential elements that they integrate into their products. Today, we will discuss one of these products in our ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review.
The B760 Plus WiFi D4 has military-grade parts, an optimised power solution, and a comprehensive cooling system. It has other notable elements, allowing it to provide top-notch performance for non-stop gaming.
This ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review will discuss everything about the product. These include its performance, specs, functions, features, and design.
ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Packaging
ASUS packs the B760 Plus WiFi D4 in a black box featuring yellow accents, representing the TUF Gaming brand identity. Its front shows an image of the motherboard with its name and a few product highlights. The rear shows more details about the B760 Plus WiFi D4, including its features and specifications.
You will find numerous accessories and documentation packed with the motherboard, and these include the following:
- Two SATA 6Gb/s cables
- Two M.2 Rubber Packages
- ASUS WiFi moving antenna
- TUF Gaming sticker
- Screw package for M.2 SSD
- TUF Certification card
- User guide
ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review – Design and Functionality

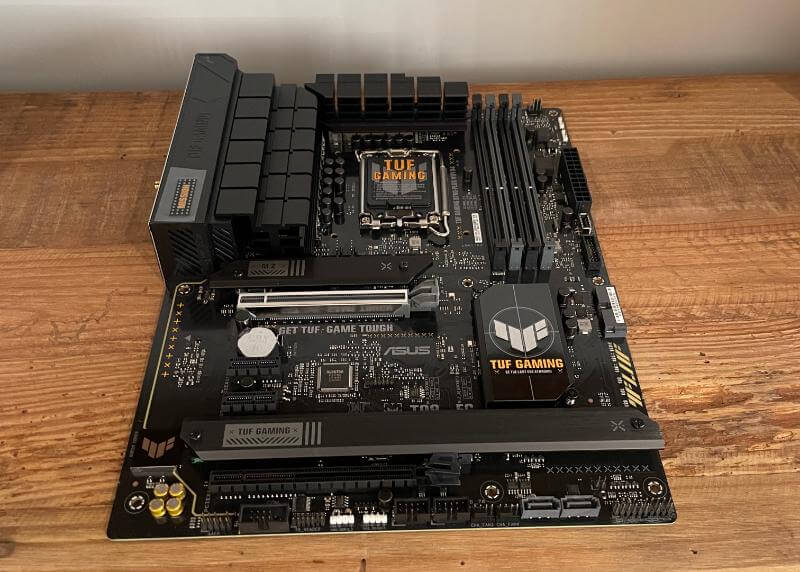

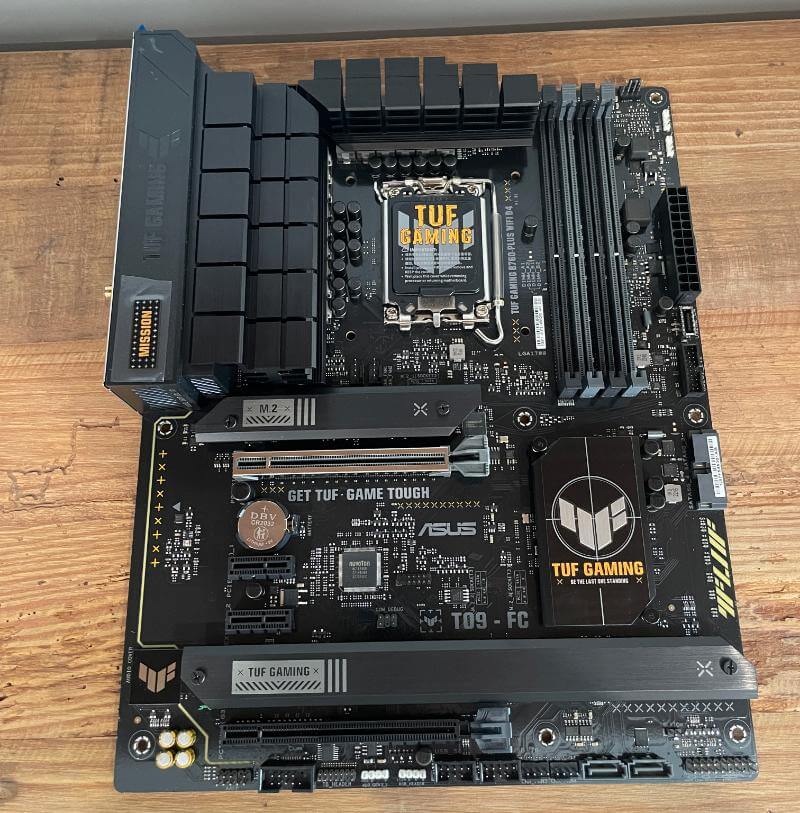

Like other TUF Gaming products, the B760 Plus WiFi D4 showcases its brand identity. The design sports a black and yellow colour scheme with light grey accents.

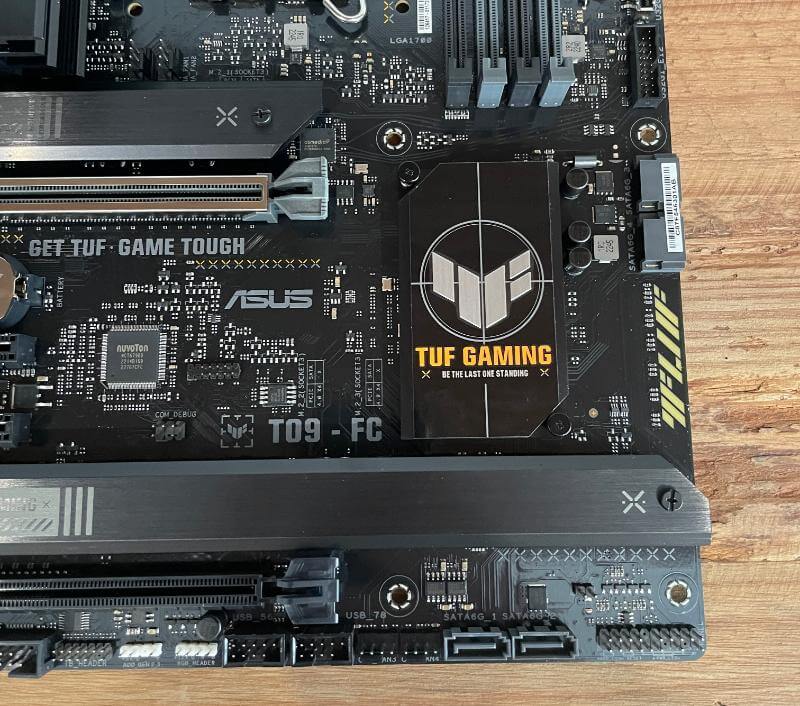

Like the entire motherboard, its heatsinks are black. Plus, you will find an integrated I/O shield design. Along the edge is a subtle RGB lighting accent with a passive heatsink for cooling the chipset.
Another feature worth noting in our ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review is its memory. You will find four DDR4 slots supporting 12GB RAM and DD4 5333 when overclocking.
USB connections include two USB 2.0 front panel headers and a USB 3.2 Gen 1 front panel header. There is also a USB 3.2 Gen 2 Type-C for faster transfer speeds.

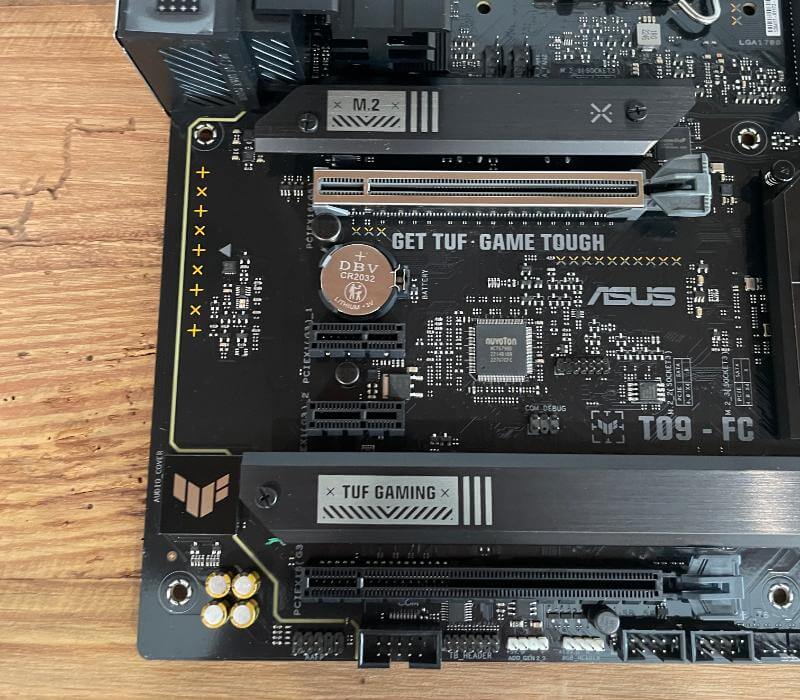

In addition, you will find one PCIe 5.0 x16 slot and four SATA III ports. It also has three PCIe 4.0 x4 M.2 slots and the Realtek RTL8125BG chip for networking. You will also find the module providing WiFi 6 and Bluetooth 5.2 support.
Power Design

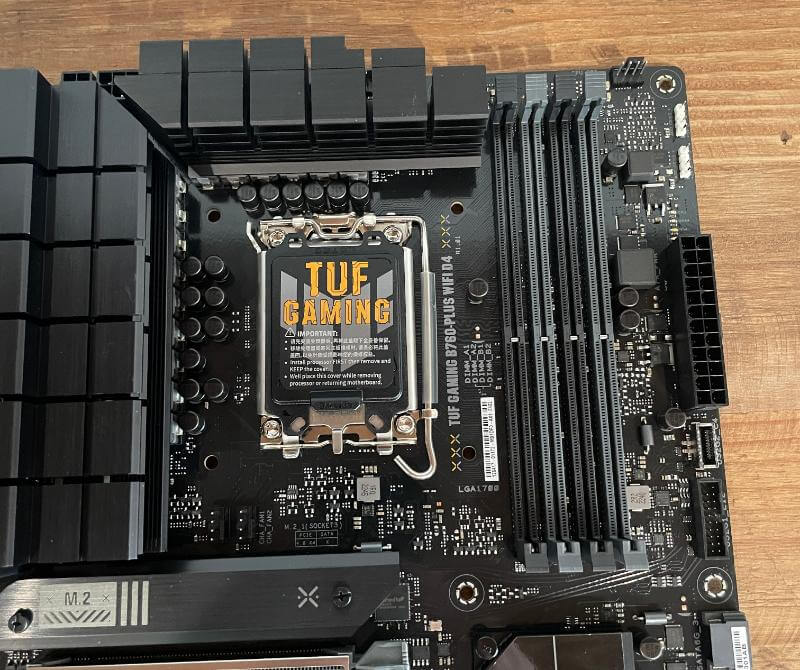

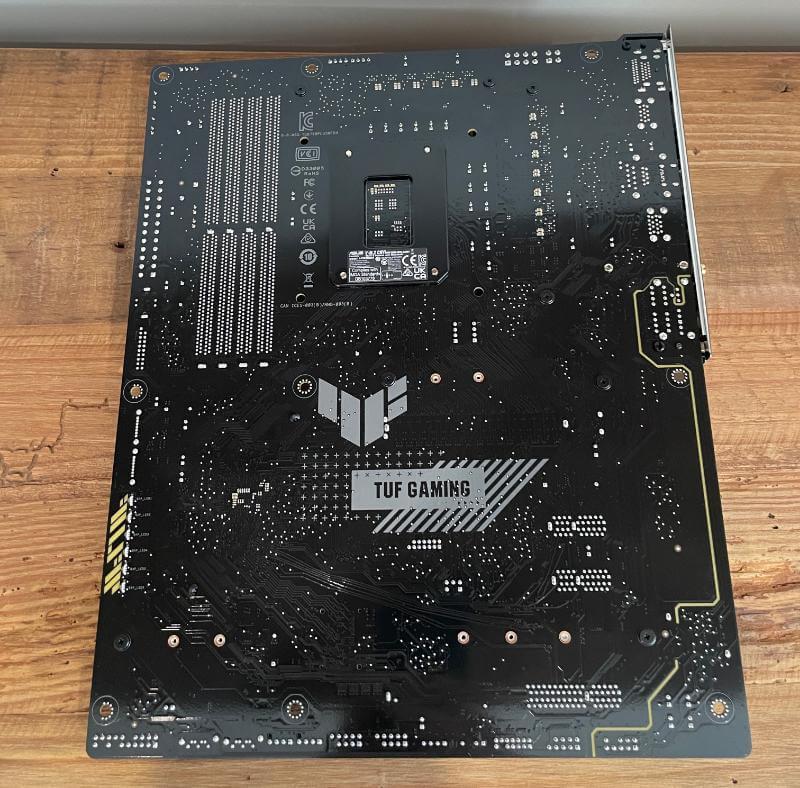

The power design adds to the aesthetic of the B760 Plus WiFi D4 with the black six-layer PCB. ASUS also claims its EPS connectors can handle 10A.
This motherboard has 15 chokes in total. Two are for VCCAUX or auxiliary voltage, and one is for the VCCGT or processor graphics. The rest are for the CPU.
The 12 DrMOS power stages are from Alpha Semiconductor, and each can handle up to 55A. They combine driver ICs and high and low-side FETs.
The maximum amperage of the CPU is 660A, allowing it to support high-end Intel processors. You will also find a Vishay SiC623 60A DrMOS chip supporting the VCCAUX power circuit. The black polymer caps have a 5000-hour lifespan, ensuring their reliability.
I/O Panel
The I/O panel houses six USB ports. One of these is Type-C, while the rest are Type-A with varying speeds. You will also find one RH45 port for 2.5GbE speeds.
Other connectors in this section include a DisplayPort, D-SUB connector, and three mini-stereo jacks for analogue audio.
Audio
The onboard audio is another feature-rich area of the B760 Plus WiFi D4. It has premium audio capacitors, PCB isolation, and 7.1 HD audio from Realtek.
We noticed the audio codec while checking the product for this ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review. It uses the Realtek ALC897, which ASUS does not specify in the product specifications. With 98 dB signal-to-noise ratio for the stereo line-out and 7.1 Surround Sound, it provides superior audio quality.
Key Features of the ASUS TUF Gaming B760 Plus WiFi D4 Motherboard
This motherboard has many impressive features worth discussing in our ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review. Can its technologies and parts deliver adequate power for the latest processors? We will focus on the details of each feature to find out.
Intelligent Control
The B760 Plus WiFi D4 has flexible tools for configuring every single aspect of your system. You can tweak its performance based on your needs and preferences to enjoy its optimal performance.
Top-Notch Energy Efficiency
The B760 Plus WiFi D4 has a power-saving function with numerous settings you can optimise to maximise energy savings. It allows you to set a CPU power limit, darken Aura lighting, and set the fans to power-saving mode. Plus, you can toggle the Power Saver plan integrated into Microsoft Windows.
All-Around Solid Performance of the ASUS TUF Gaming B760 Plus WiFi D4 Motherboard
ASUS provided the B760 Plus WiFi D4 with upgraded power delivery and comprehensive cooling options. It also supports DDR4 memory and PCIe 4.0 for storage expansion. These parts can fuel the latest Intel processors, making this motherboard the perfect foundation for your PC.
Aside from the top-notch components that can support the latest Intel CPUs, the motherboard has many USB ports. These include two Type-C and Thunderbolt 4 for expanded bandwidth and compatibility.
DrMOS Power Stages
The power design is worth highlighting in our ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review. This product features 12+1 power stages with high and low-side MOSFETs and drivers.
All these features are in one package to deliver efficiency, power, and stable performance when using any compatible Intel processor.
Easy DIY PC
Motherboards under the TUFGaming series simplify the setup process for all builders. Aside from granting versatile compatibility with TUF Gaming Alliance, Armoury Crate features Fan Xpert 2+. You can also maximise features like Two-Way AI Noise Cancellation and other settings for RGB and peripherals.
Like other TUF Gaming motherboards, the B760 Plus WiFi D4 has all the intuitive tools to build your dream PC.
Versatile Compatibility to Confidently Build Your PC
ASUS collaborated with renowned PC component brands to form the TUF Gaming Alliance. They ensure the compatibility of this motherboard with many PC parts, including CPU coolers, power supplies, PC cases, and more. ASUS continues to add new partnerships and compatible components to make TUF motherboards more versatile.
Superior Audio, Networking, and RGB for Immersive Gaming
The B760 Plus WiFi D4 has many features centred towards high-performance gaming. These include ultra-fast networking to achieve seamless online gaming, pristine audio with positional cues, and onboard synchronised RGB.
Specifications
- CPU Socket: LGA1700
- Chipset: Intel B760
- Memory: 4x DIMM DDR5
- Maximum RAM: 128GB
- Graphics: DisplayPort, HDMI
- Ethernet: Realtek 2.5Gb Ethernet, TUF LANGuard
- Wireless Connectivity: WiFi 6, 2.4/5GHz frequency band, Bluetooth 5.2
- Operating System: Windows 10 (64-bit), Windows 11
- Form Factor: 30.5×24.4cm
Hands-on with the ASUS TUF Gaming B760 Plus WiFi D4 Motherboard
The performance and test results are the most crucial parts of our ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review. But before we discuss that, we will focus on navigating the UEFI.
UEFI is the modern firmware interface that replaces the BIOS. It is more comprehensive, secure, and flexible for hardware management and operating system booting.
The B760 Plus WiFi uses a similar UEFI to other TUF Gaming motherboards, and it is highly intuitive. Like most UEFI and BIOS, ASUS motherboards display the EZ Mode by default when you launch the firmware.
EZ Mode shows the most commonly used settings and the system information in a single menu. Here, you can adjust the XMP memory settings, fan speeds, boot order, time & date, and RAID settings.
Aside from EZ Mode, the UEFI also has an Advanced Mode for more comprehensive settings.
Temperatures remained low, thanks to its efficient cooling system. As a result, its power consumption was also low.

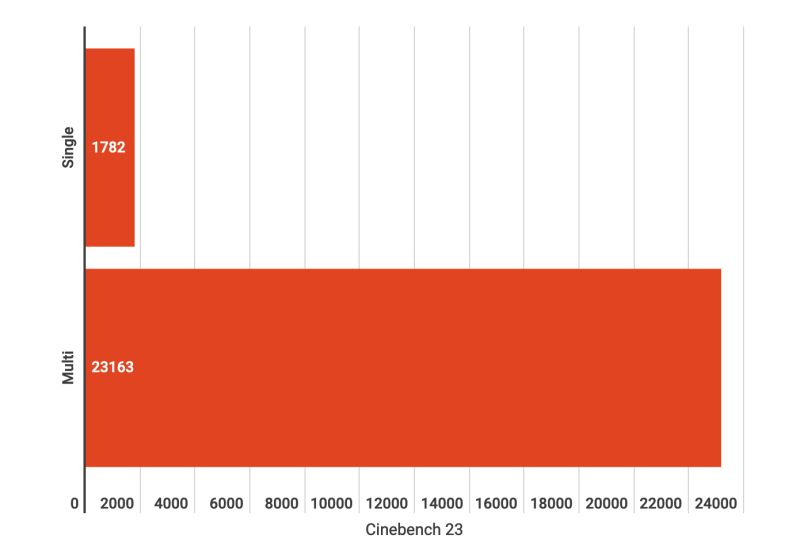

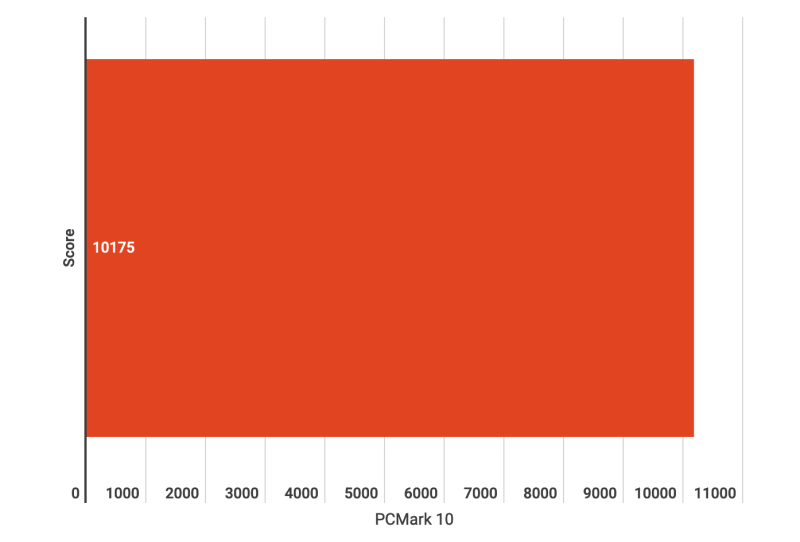

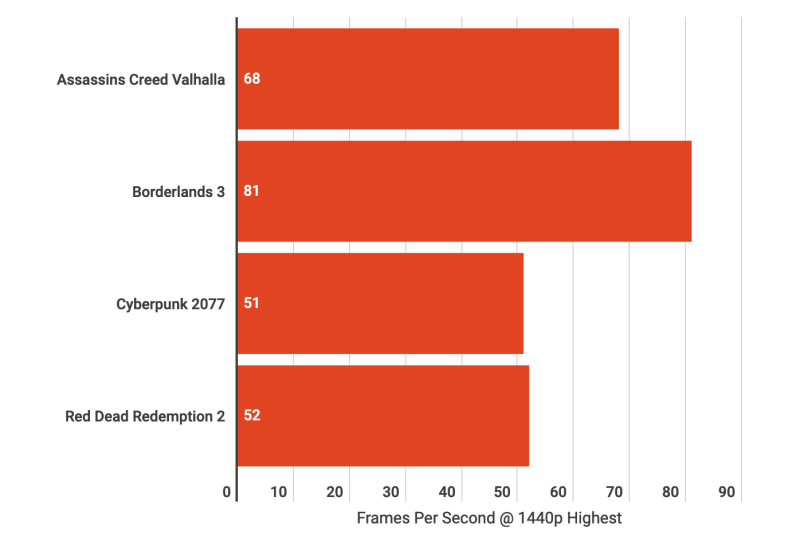

The B760 Plus WiFi D4 delivered solid performance for content creation and gaming. With results on par with a few Z790 motherboards, it can handle demanding tasks like 3D rendering and video editing.
ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review Summary
The B760 Plus WiFi D4 is an excellent motherboard from the TUF Gaming line of ASUS. Although it is budget-friendly compared to similar products, it offers many features supporting the latest processors. With its Gen5 x16 slot, this motherboard is a future-proof platform open for graphics card upgrades.
Aside from having upgrade paths ready, it has many M.2 slots and USB ports for more components and peripherals. It is a versatile motherboard that allows you to build your dream PC.
We also appreciate the all-black aesthetic of the B760 Plus WiFi D4 since its premium design suits any setup. With its RGB headers, anyone can flexibly customise their PC build.
Most importantly, it delivers excellent performance for gaming while keeping low temperatures and power efficiency. We did not experience issues with it while testing for this ASUS TUF Gaming B760 Plus WiFi D4 Motherboard Review.
The B760 Plus WiFi D4 is an excellent platform to upgrade to the latest Intel CPUs. Although it is not as feature-rich as Z790 motherboards, it offers adequate versatility and superior performance at a reasonable price. With our test results and user experience, we highly recommend this affordable, versatile, and future-proof motherboard.
Visit the official ASUS product page for more information about the ASUS TUF Gaming B760 Plus WiFi D4 Motherboard.
